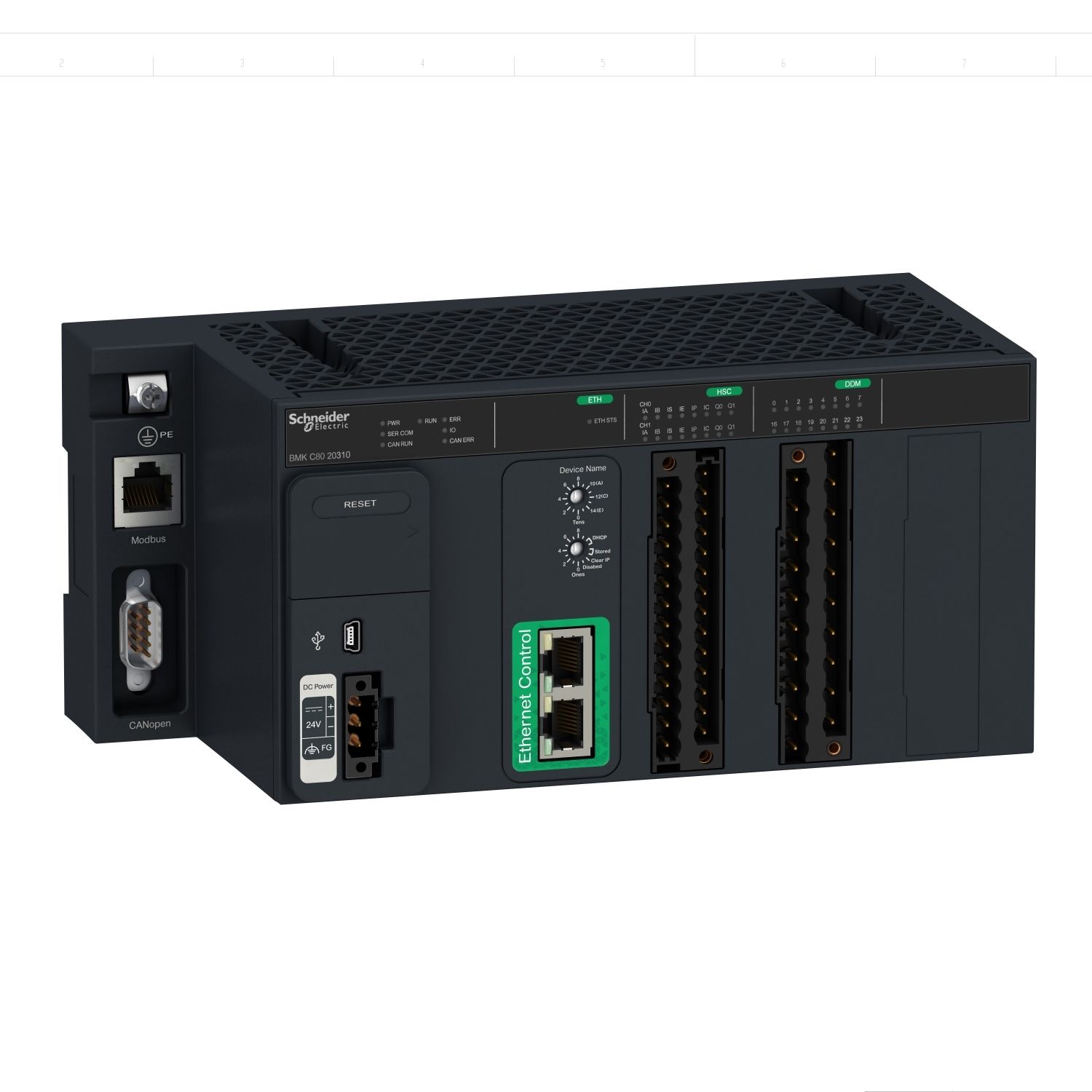

Picture of Modicon MC80, Controller, 8 DI, 8 DO, 2 HSC
SKU:

BMKC8020310

Modicon MC80, Controller, 8 DI, 8 DO, 2 HSC

$3,471.13 INC GST
Available for Shipping : 01-Jun-2025
Modicon MC80, Controller, 8 DI, 8 DO, 2 HSC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This controller is part of the Modicon MC80 range, an offer of compact processors. It features 8 discrete inputs and 8 discrete outputs, It does not support analog inputs. It provides Modbus, CANopen, and Ethernet connection. It has a 24 V power consumption. EcoStruxure Control Expert programming software is required to set up the Modicon MC80 controller. It weighs 0.980kg. It is fit for thermo solar and tower power applications. Modicon MC80 PLCs comply to IEC, UL, and CSA standards. It is compatible with terminal blocks for high-speed counter and discrete I/O modules. MC80 PLC can be mounted on DIN rails of 35mm wide or on panels. MC80 controllers are completely integrated with the other Modicon controllers, programmed and commissioned with EcoStruxure Control Expert. Modicon MC80 range features automated platform processors which are compact with discrete I/O functions, analog input functions, counting functions, and communication functions.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon MC80
Product specific application thermo solar - tower power
Product or component type processor module
Complementary
Memory description internal RAM 3590 kB program constants and symbols, internal RAM 128 kB data, internal RAM 3840 kB
Bus length 0-100 m, communication port: Ethernet, 0-2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0-20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0-1000 m serial link isolated with external isolation tap, 0-15 m serial link non isolated, 0-10 m serial link non isolated
Maximum counting frequency 60000 Hz
Realtime clock with
Number of counter 2
[Us] rated supply voltage 24 V - 15...20 % DC
Function available memory retention without battery
Input compatibility 24-24 V 2/3-wire sensor PNP,  incremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2-wire/3-wire proximity sensor
Discrete output voltage 19...30 V DC
Discrete output current 500 mA per output
Number of inputs 3-3 high speed, 3-3 auxiliary
Protection type short-circuit protection for output, overload protection for output
Communication port protocol 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices
Discrete input voltage 19...30 V DC
Discrete input type type 3
Number of outputs 2 positive
Port Ethernet 10BASE-T/100BASE-TX
Product compatibility BMXFTB20... terminal block discrete I/O module, BMXFTB28... terminal block high-speed counter module
Execution time per instruction 0.08 µs mixed, 0.06 µs Boolean
Sensor power supply 19-30 V DC
Isolation voltage 1500 V DC
Nominal output current 0.5 A per output
Communication service RSTP support for Ethernet, SNMP for Ethernet, FDR client for Ethernet, Service Data Object (SDO) for CANopen, Process Data Object (PDO) for CANopen, send/receive character string for character mode, diagnostics for Modbus, read/write variables for Modbus
Current consumption <= 700 mA
Discrete input current 5 mA
Discrete input number 8 positive logic (sink)
Counter functions freelarge counting, loop (modulo) counting, measure time periods, one shot counting, frequency meter, ratio count, count events
Discrete output number 8 positive
Integrated connection type USB port: mini B USB connector
Logic input positive (sink)
Environment
Ambient air temperature for storage -40-85 °C
Relative humidity 0-95 %
Vibration resistance 3 gn
Marking CE
Ambient air temperature for operation -25-70 °C
Standards IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C
Product certifications RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.48 cm
Package 1 Width 12.45 cm
Package 1 Length 27.18 cm
Package 1 Weight 1.2 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.77 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 61.16 kg
