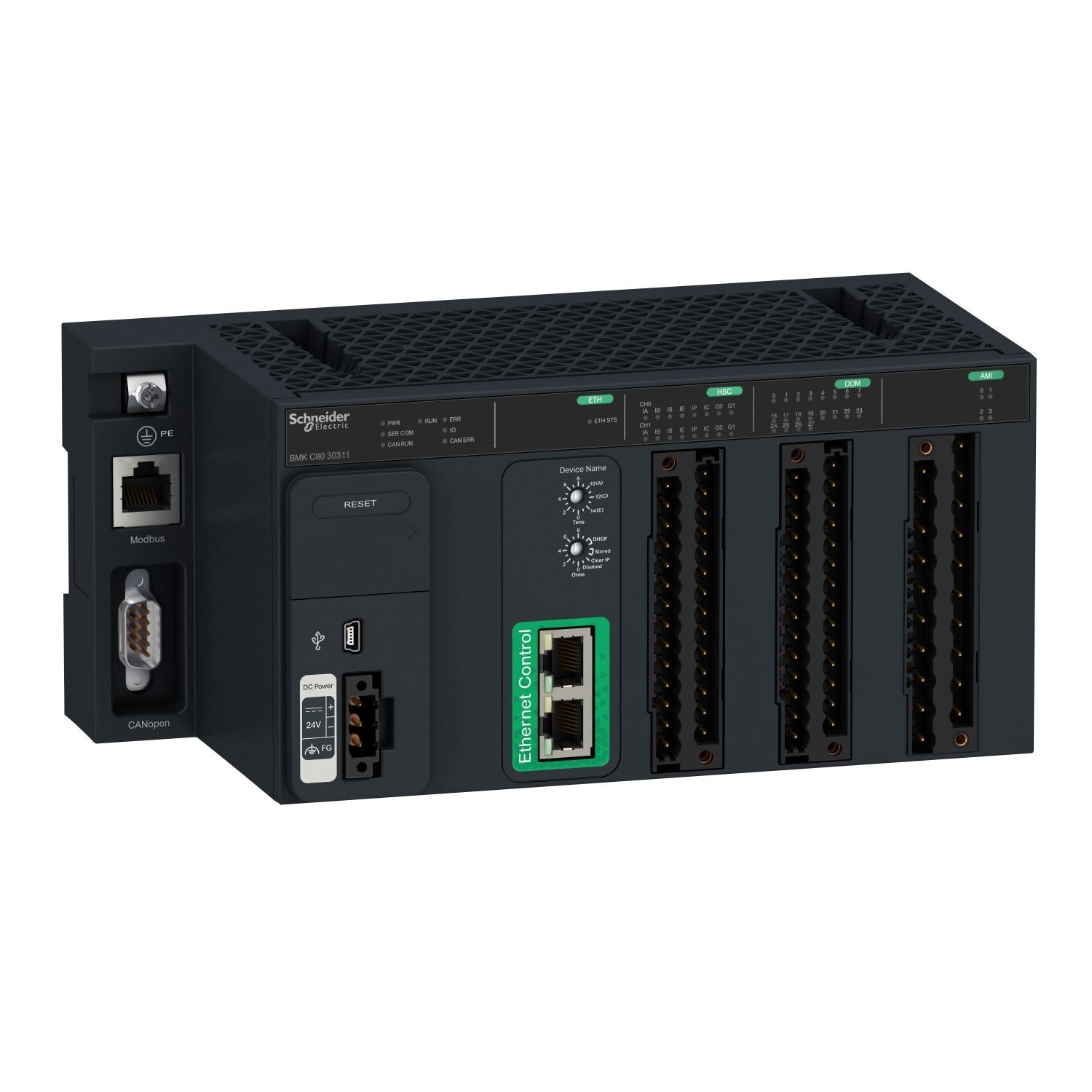

Picture of Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI
SKU:

BMKC8030311

Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI

$4,004.27
Available for Shipping : 01-Jan-2025
Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. With two high-speed counter channels, this controller is the most complete of its range. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.15kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal block with 20 or 28 pins. Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon MC80
Product specific application thermo solar - tower power
Product or component type processor module
Complementary
Memory description internal RAM 3590 kB program constants and symbols, internal RAM 128 kB data, internal RAM 3840 kB
Bus length 0-100 m, communication port: Ethernet, 0-2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0-20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0-1000 m serial link isolated with external isolation tap, 0-15 m serial link non isolated, 0-10 m serial link non isolated
Maximum counting frequency 60000 Hz
Realtime clock with
Analogue input resolution 16 bits
Number of counter 2
Fast read cycle time 1.3 ms + 1.3 ms x number of channels used
[Us] rated supply voltage 24 V - 15...20 % DC
Function available memory retention without battery
Input compatibility 24-24 V 2/3-wire sensor PNP,  incremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2-wire/3-wire proximity sensor
Discrete output voltage 19...30 V DC
Discrete output current 10 A per module, 2 A per output
Number of inputs 3-3 high speed, 3-3 auxiliary
Protection type short-circuit protection for output, overload protection for output
Communication port protocol 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices
Discrete input voltage 19...30 V DC
Discrete input type type 3
Number of outputs 2 positive
Analogue input type voltage, input range: - 10...10 V, current, input range: - 20...20 mA
Port Ethernet 10BASE-T/100BASE-TX
Product compatibility BMXFTB28... terminal block discrete I/O module, BMXFTB20... terminal block analog input module, BMXFTB28... terminal block high-speed counter module
Nominal read cycle time 6.5 ms for 4 channels
Execution time per instruction 0.08 µs mixed, 0.06 µs Boolean
Sensor power supply 19-30 V DC
Isolation voltage 1500 V DC
Analogue input number 4
Nominal output current 0.5 A per output
Communication service RSTP support for Ethernet, SNMP for Ethernet, FDR client for Ethernet, Service Data Object (SDO) for CANopen, Process Data Object (PDO) for CANopen, send/receive character string for character mode, diagnostics for Modbus, read/write variables for Modbus
Current consumption <= 700 mA
Discrete input current 2.4 mA
Discrete input number 8 positive logic (sink)
Counter functions loop (modulo) counting, freelarge counting, measure time periods, one shot counting, ratio count, frequency meter, count events
Discrete output number 12 positive
Integrated connection type USB port: mini B USB connector
Logic input positive (sink)
Environment
Ambient air temperature for storage -40-85 °C
Relative humidity 0-95 %
Vibration resistance 3 gn
Marking CE
Ambient air temperature for operation -25-70 °C
Standards CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group A, IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C, UL 508
Product certifications RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.4 cm
Package 1 Width 11.8 cm
Package 1 Length 27.2 cm
Package 1 Weight 1.29 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8.45 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 74.6 kg
