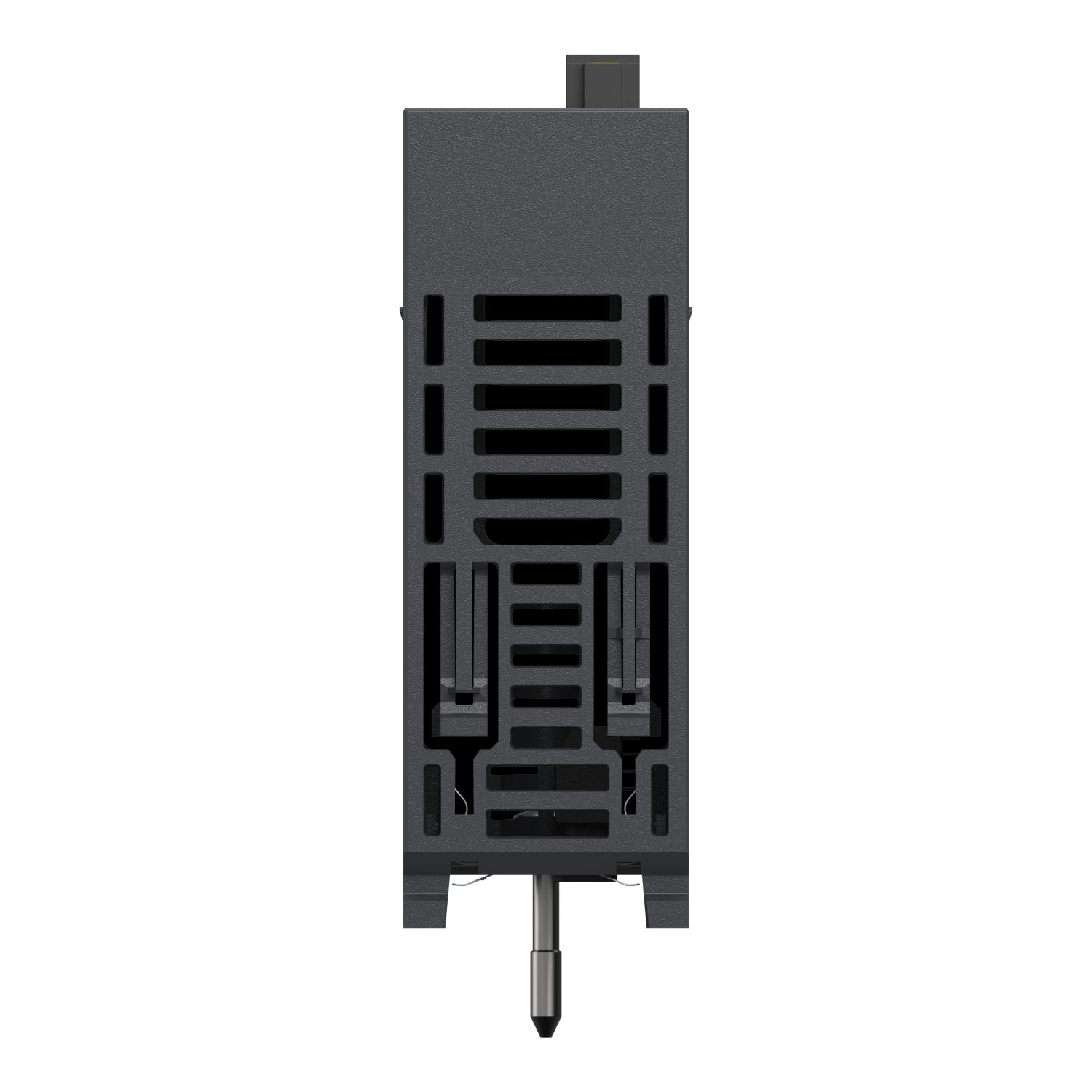

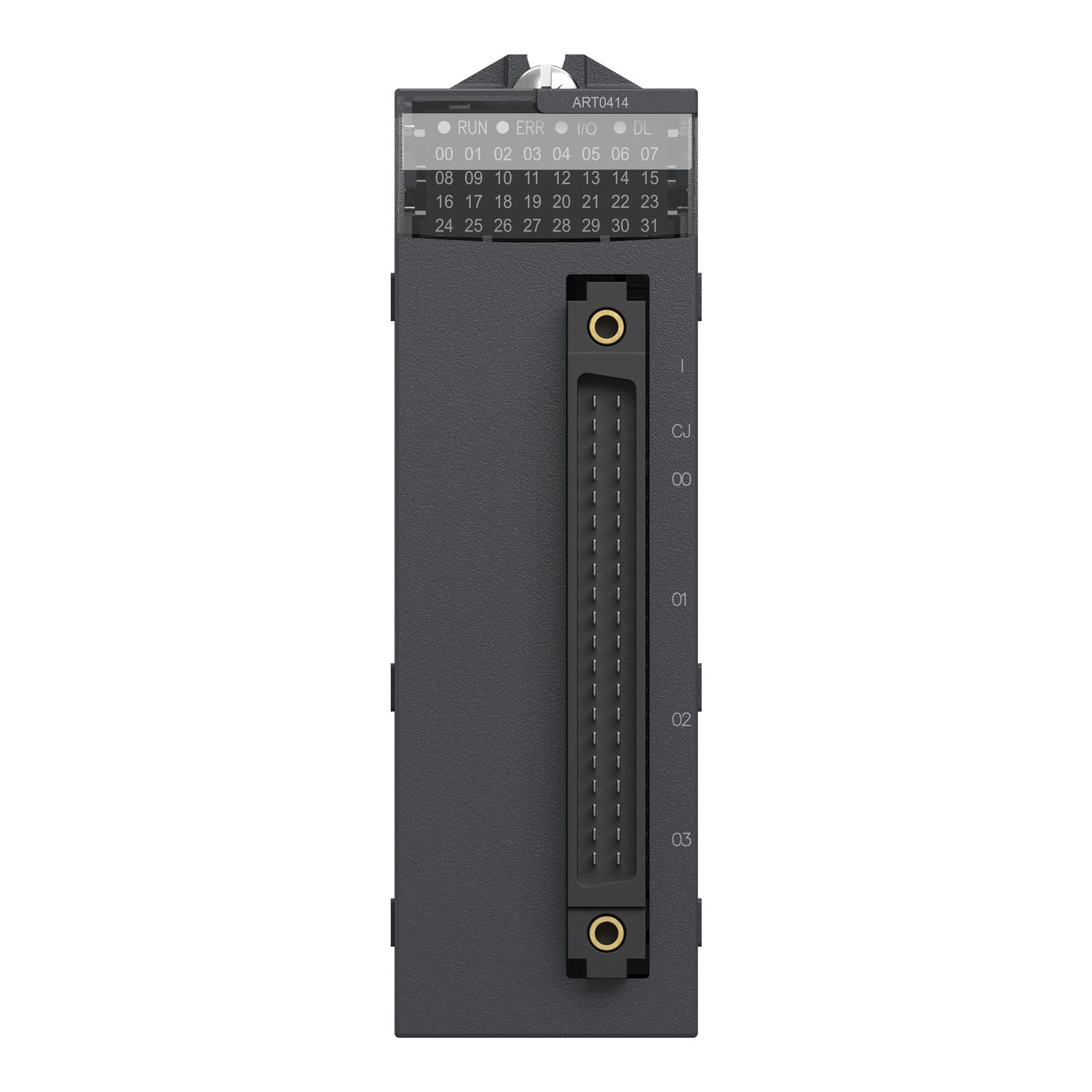

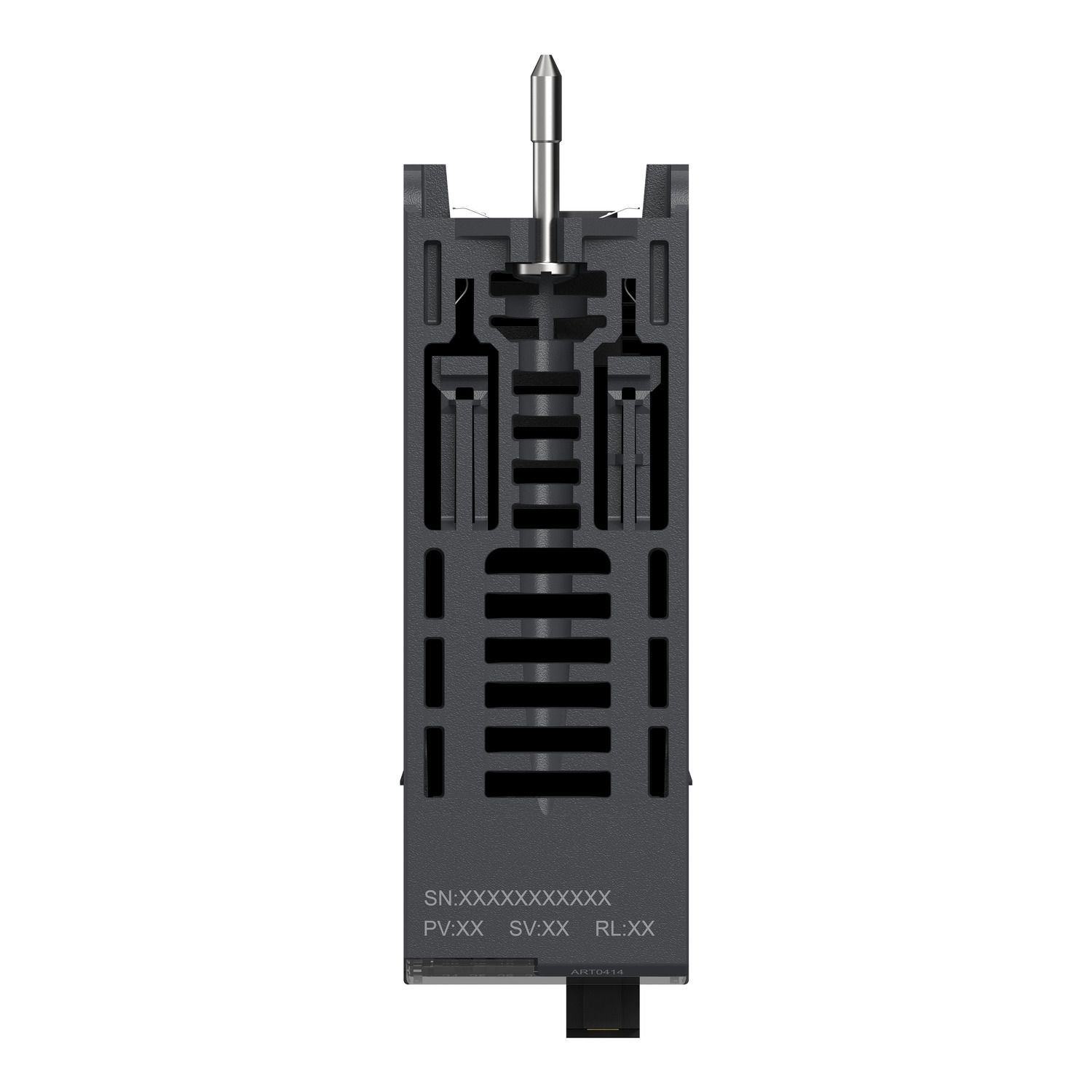

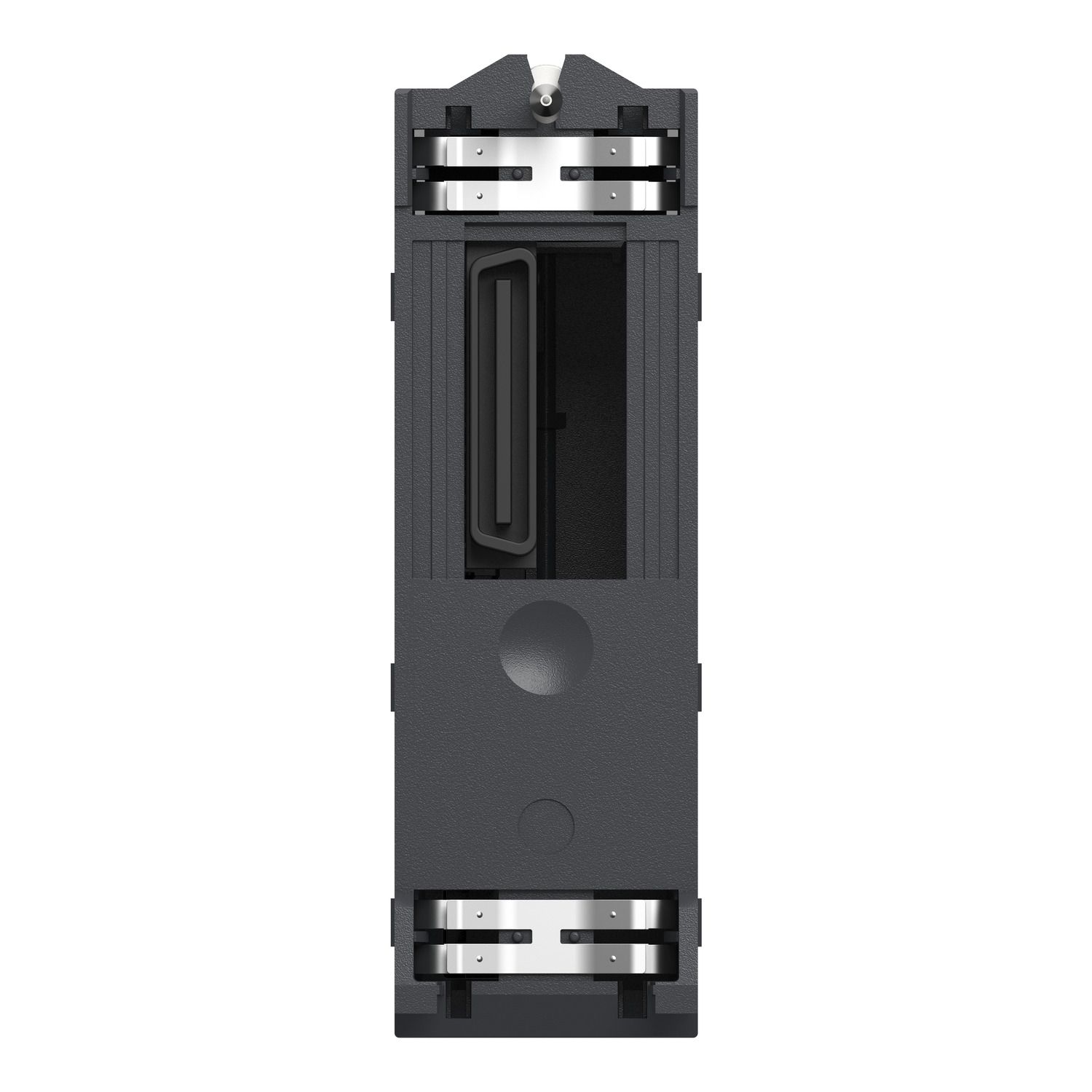

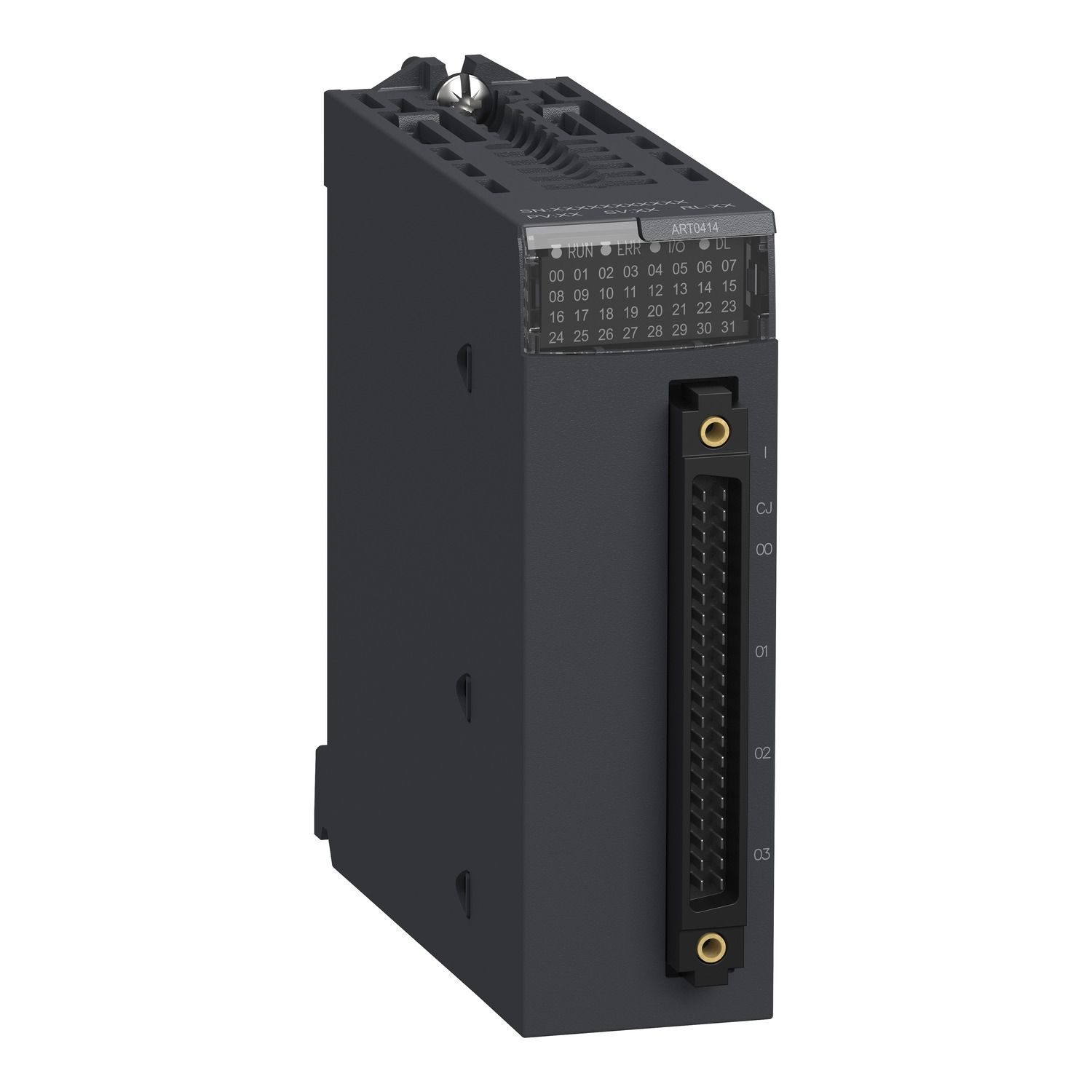

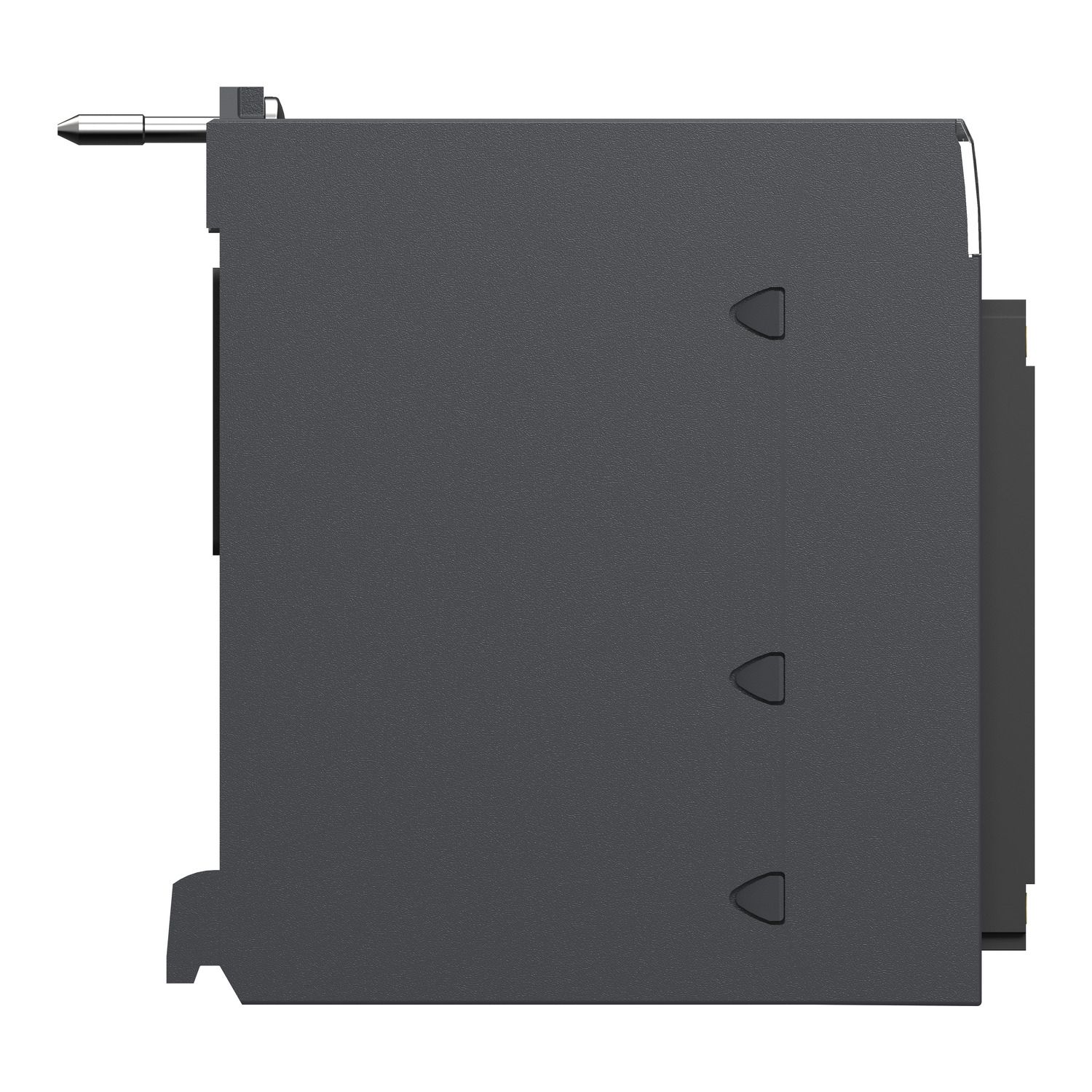

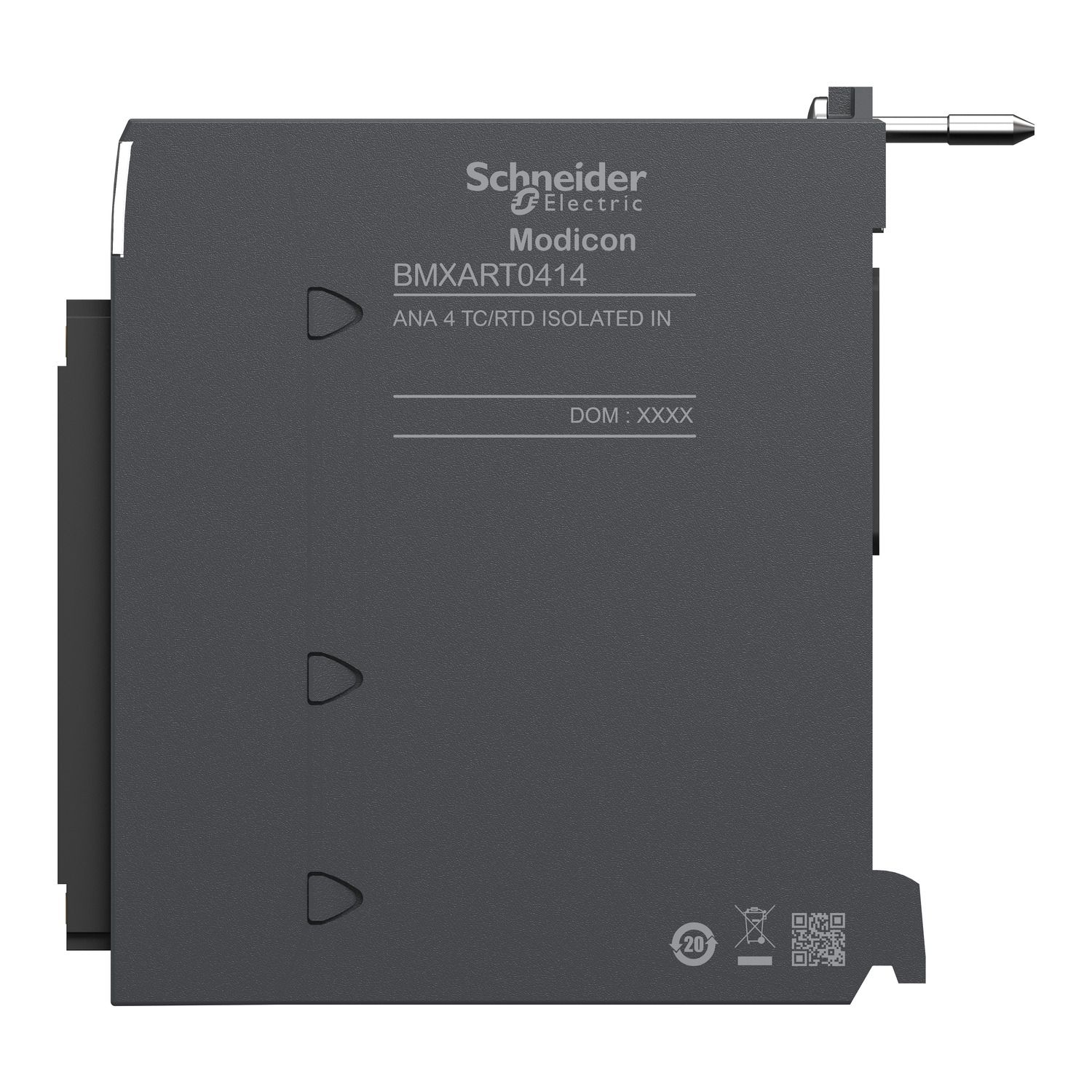

Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Picture of analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
SKU:

BMXART0414

analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative

$1,991.11 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This analog input module is part of the Modicon X80 modules. It has 4 isolated low level inputs (15 bits + sign). It offers, voltage, thermocouple, temperature probe or resistor inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name Attribute value
Main
Analogue input type thermocouple -50...+1769 °C thermocouple S, thermocouple -50...+1769 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+900 °C thermocouple L, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+600 °C thermocouple U, thermocouple +270...+1300 °C thermocouple N, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000, temperature probe -60...+180 °C Ni 100, temperature probe -200...+850 °C Pt 1000 conforming to IEC, temperature probe -200...+850 °C Pt 100 conforming to IEC, temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, temperature probe -100...+260 °C Cu 10, resistor 4000 Ohm 4 wires, resistor 4000 Ohm 3 wires, resistor 4000 Ohm 2 wires, resistor 400 Ohm 4 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 2 wires, voltage +/- 80 mV, voltage +/- 640 mV, voltage +/- 40 mV, voltage +/- 320 mV, voltage +/- 160 mV, voltage +/- 1.28 V
Analogue input number 4
Input output isolation isolated
Electrical connection 40 ways 1 connector
Input level low level
Product or component type analog input module
Range of product Modicon X80
Complementary
Permitted overload on inputs +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 1.28 V
Measurement resolution 80/2exp14 mV +/- 80 mV, 640/2exp14 mV +/- 640 mV, 125 mOhm 4000 Ohm, 12.5 mOhm 400 Ohm, 40/2exp14 mV +/- 40 mV, 320/2exp14 mV +/- 320 mV, 160/2exp14 mV +/- 160 mV, 1280/2exp14 mV +/- 1.28 V, 0.1 °C thermocouple U, 0.1 °C thermocouple T, 0.1 °C thermocouple S, 0.1 °C thermocouple R, 0.1 °C thermocouple N, 0.1 °C thermocouple L, 0.1 °C thermocouple K, 0.1 °C thermocouple J, 0.1 °C thermocouple E, 0.1 °C thermocouple B, 0.1 °C Pt 1000, 0.1 °C Pt 100, 0.1 °C Ni 1000, 0.1 °C Ni 100, 0.1 °C Cu 10
Analog/digital conversion sigma delta 16 bits
Common mode rejection 120 dB 50/60 Hz
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Maximum wiring resistance 500 Ohm 4 wires Pt 1000, 500 Ohm 4 wires Ni 1000, 50 Ohm 4 wires Pt 100, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Cu 10, 200 Ohm 3 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 2 wires Ni 1000, 20 Ohm 3 wires Pt 100, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Cu 10, 20 Ohm 2 wires Pt 100, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Cu 10
Detection type open circuit thermocouple U, open circuit thermocouple T, open circuit thermocouple S, open circuit thermocouple R, open circuit thermocouple N, open circuit thermocouple L, open circuit thermocouple K, open circuit thermocouple J, open circuit thermocouple E, open circuit thermocouple B, open circuit Pt 1000, open circuit Pt 100, open circuit Ni 1000, open circuit Ni 100, open circuit Cu 10
Nominal read cycle time 200 ms with thermocouple, 400 ms with temperature probe
Differential mode rejection 60 dB 50/60 Hz
Isolation voltage 750 V DC between channels and ground, 750 V DC between channels, 1400 V DC between channels and bus
Net weight 0.135 kg
Analogue input resolution 15 bits + sign
Current consumption 40 mA at 24 V DC, 150 mA at 3.3 V DC
Cold junction compensation external by Pt100 probe
Recalibration internal
Temperature drift 30 ppm/°C Pt 1000, 30 ppm/°C Pt 100, 30 ppm/°C Ni 100, 30 ppm/°C Cu 10, 30 ppm/°C +/- 80 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 1.28 V, 25 ppm/°C thermocouple U, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple B, 25 ppm/°C Ni 1000, 25 ppm/°C 4000 Ohm, 25 ppm/°C 400 Ohm
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter first order digital filtering
Maximum conversion value +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 1.28 V, +/- 100 % 4000 Ohm, +/- 100 % 400 Ohm
Measurement error 0.12 % of full scale 4000 Ohm 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 0.7 °C Ni 1000 25 °C
MTBF reliability 1400000 H
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Shock resistance 30 gn
Standards EN 61010-2-201, EN 61000-6-2, EN 61000-6-4, EN 61131-2
Ambient air temperature for operation 0-60 °C
Product certifications CE, CSA, Merchant Navy, UL, RCM, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 164.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.750 kg

Related products

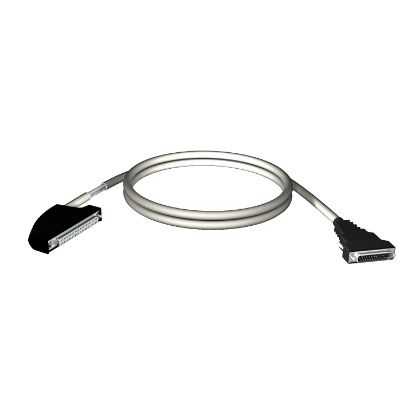

Picture of cord set, Modicon X80, 40-way terminal, SUB-D25 connector, 3m
