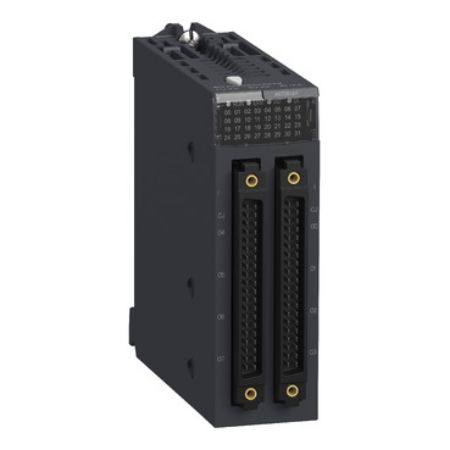

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

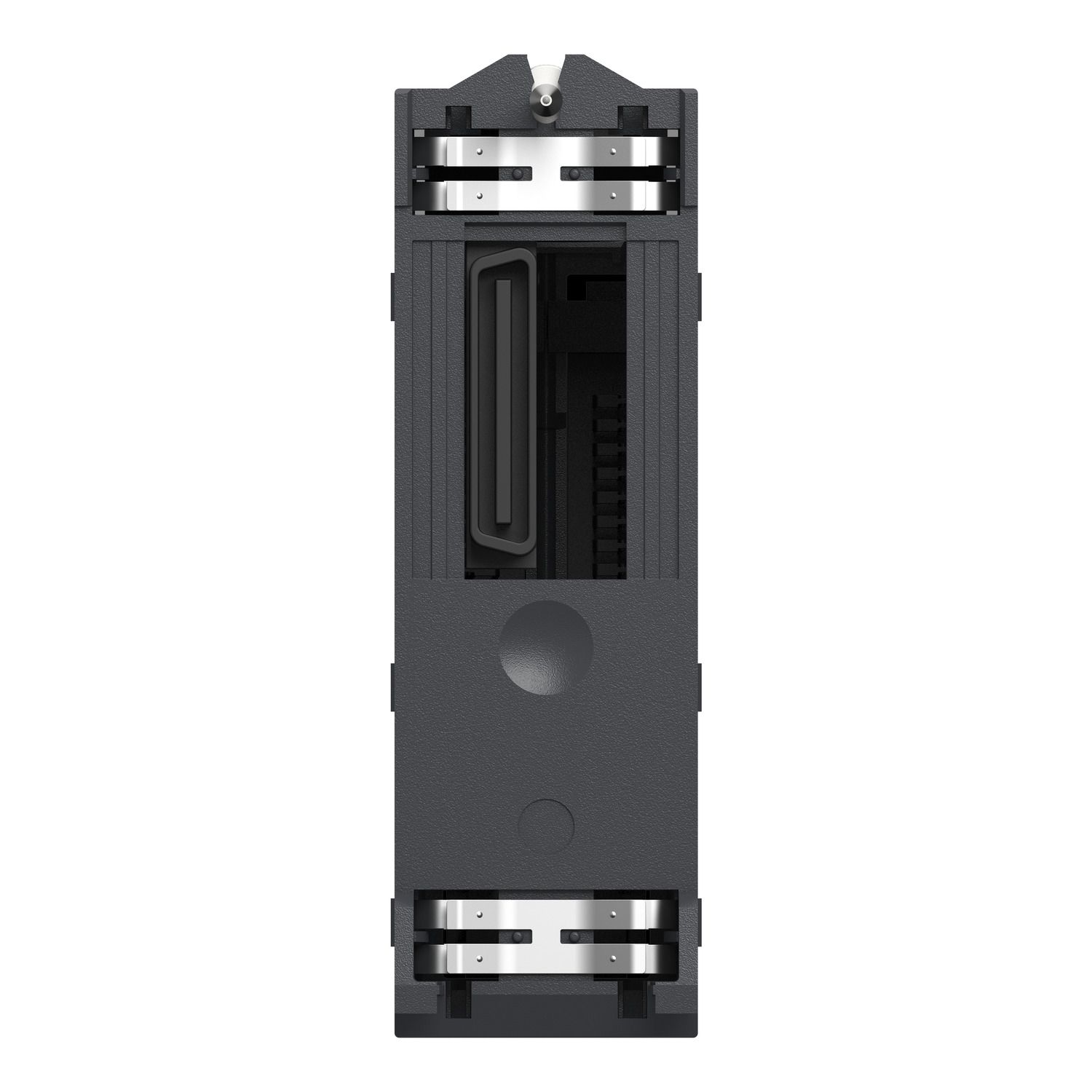

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

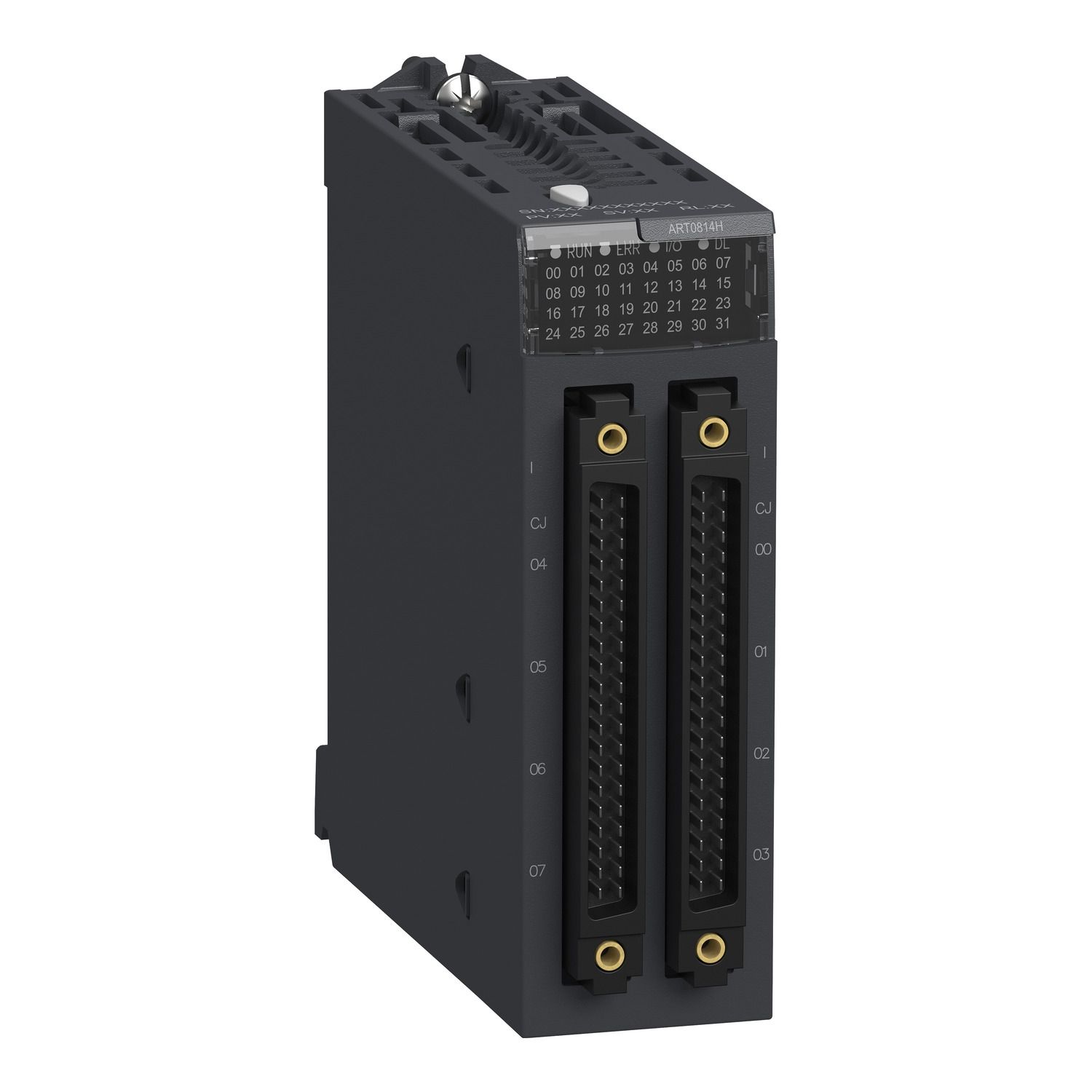

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

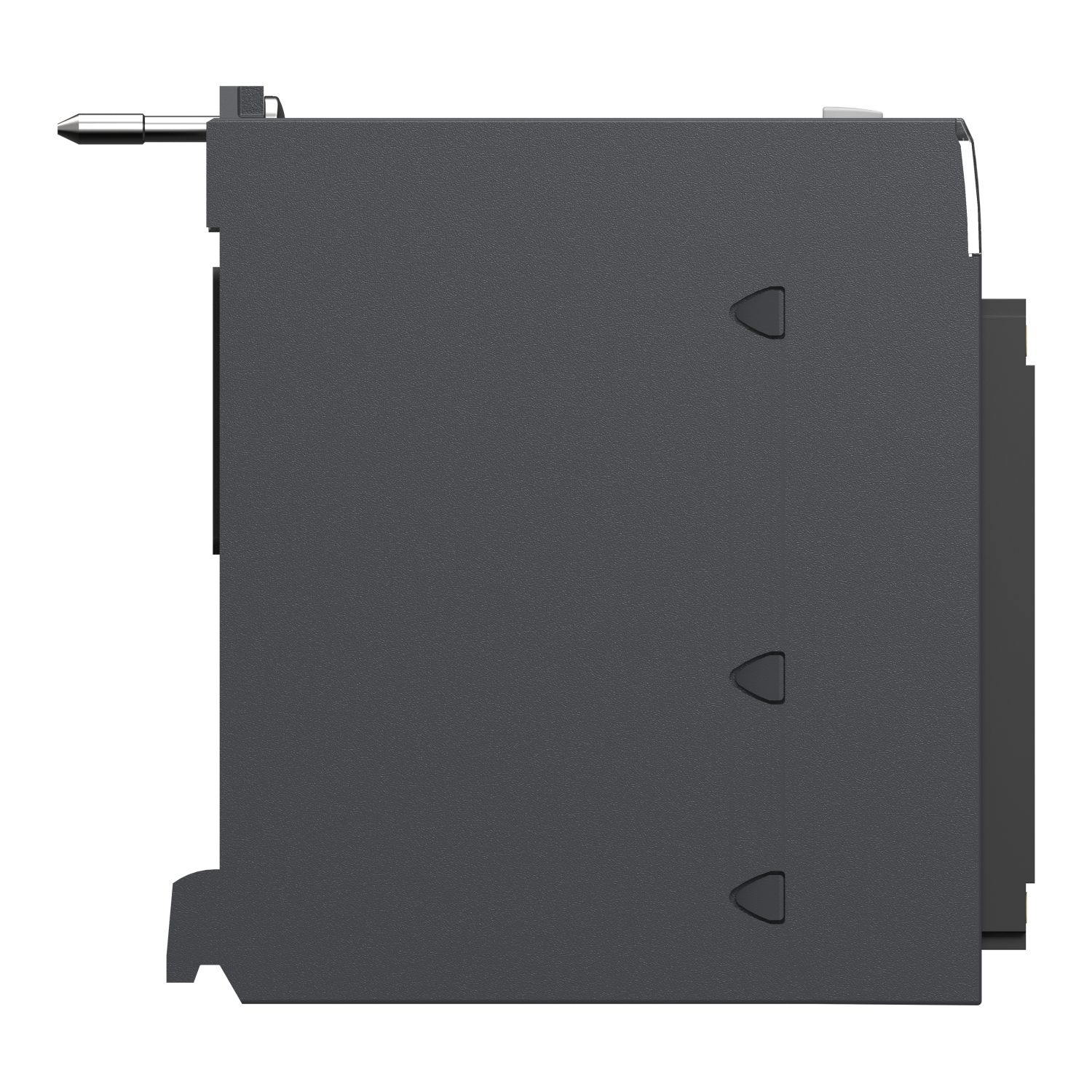

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

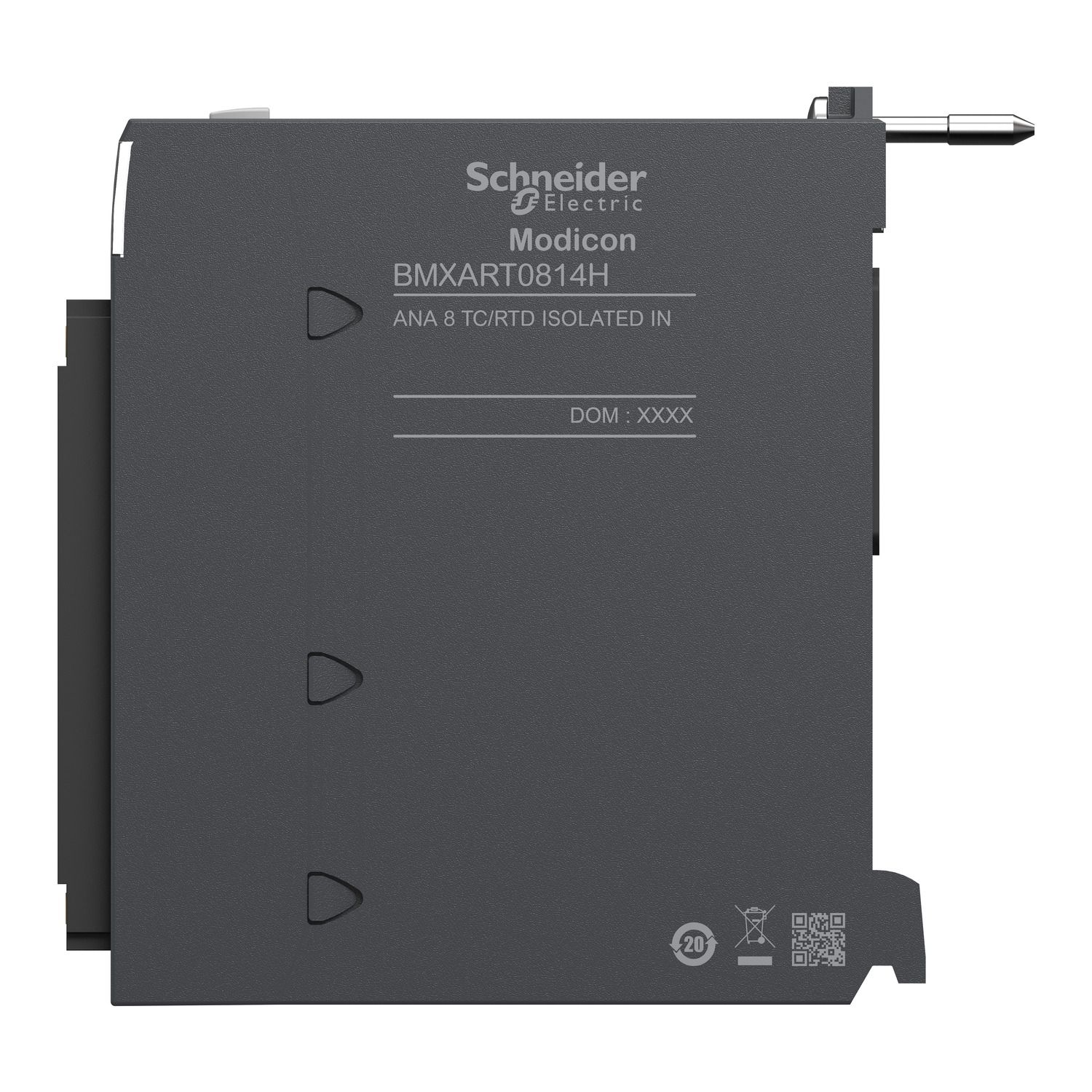

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

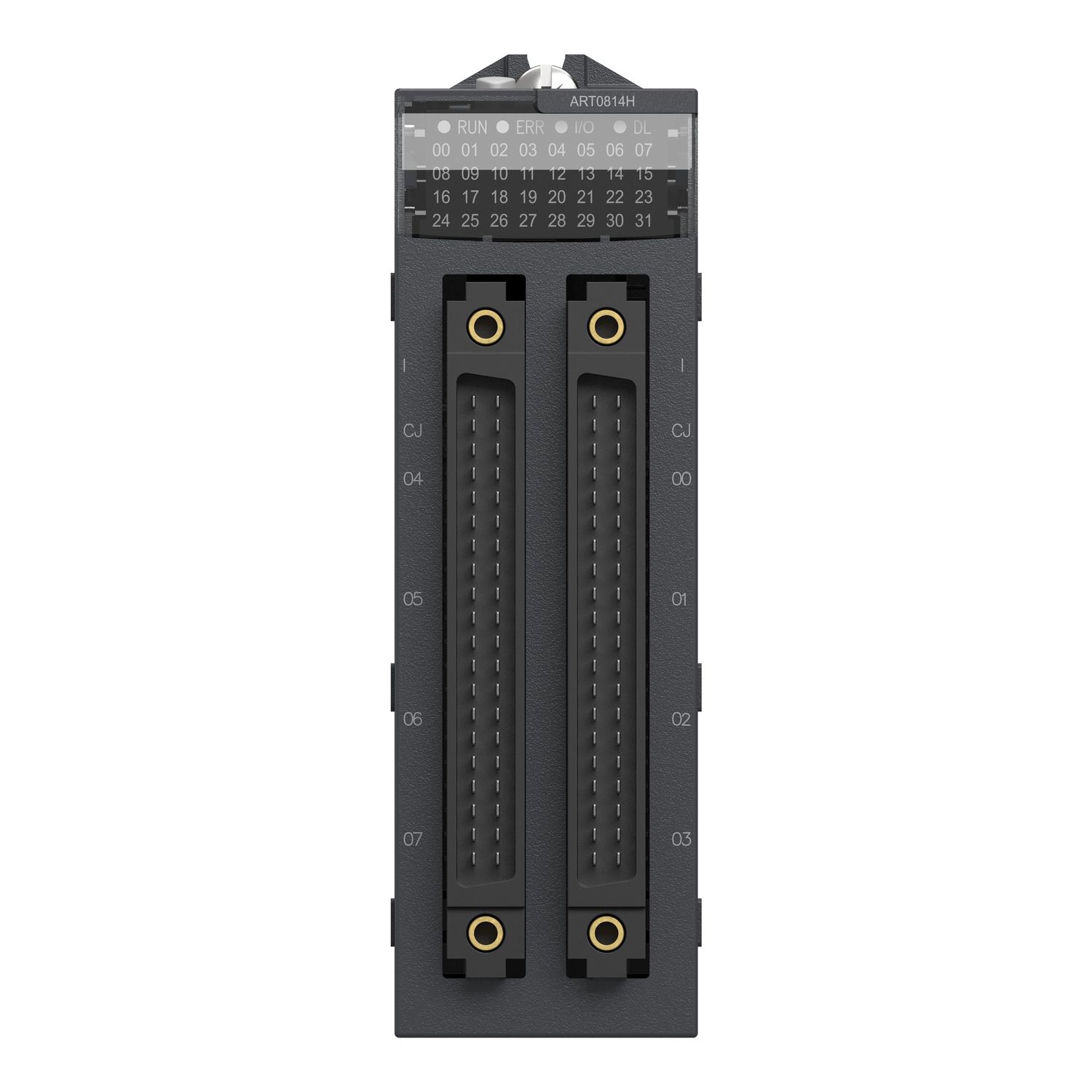

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

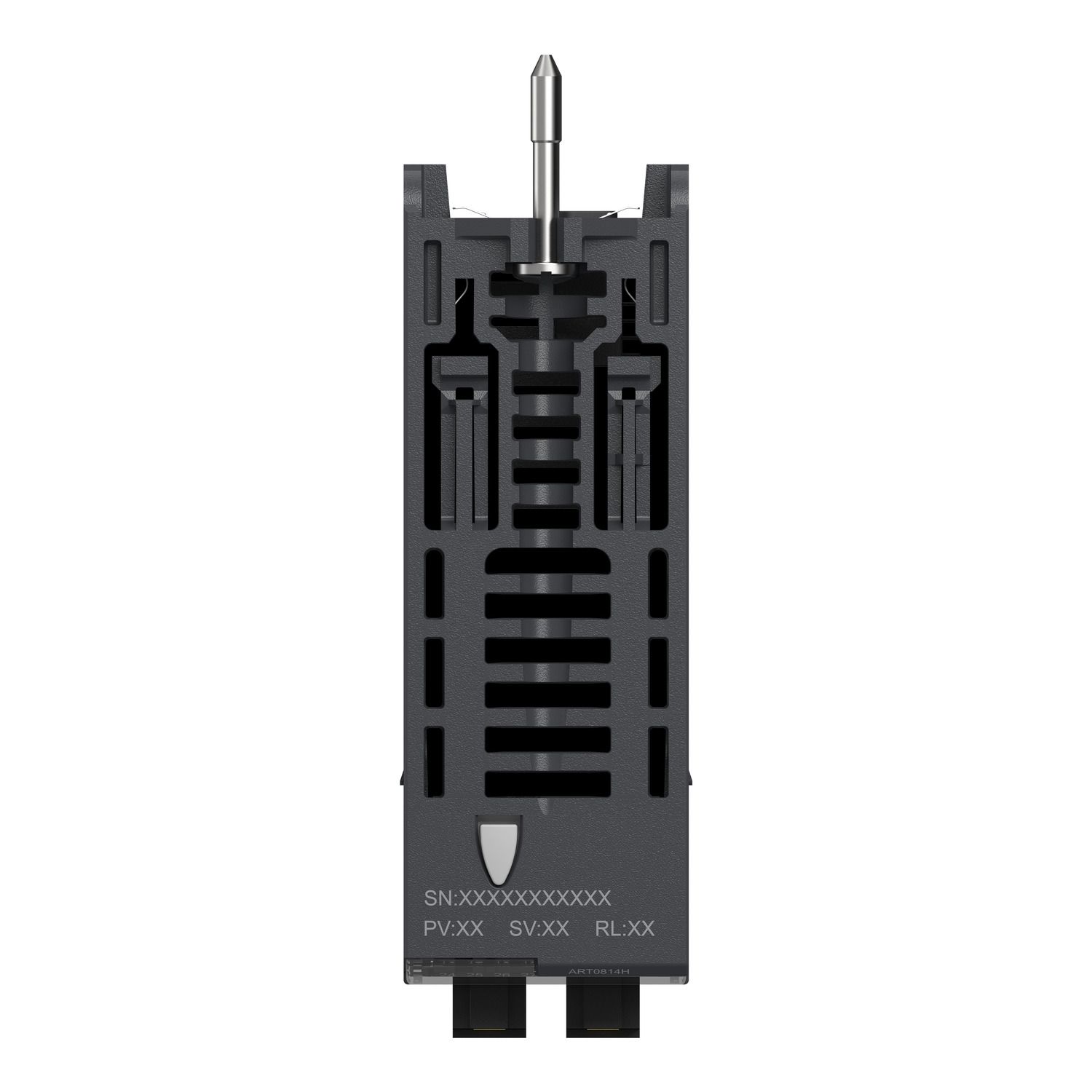

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

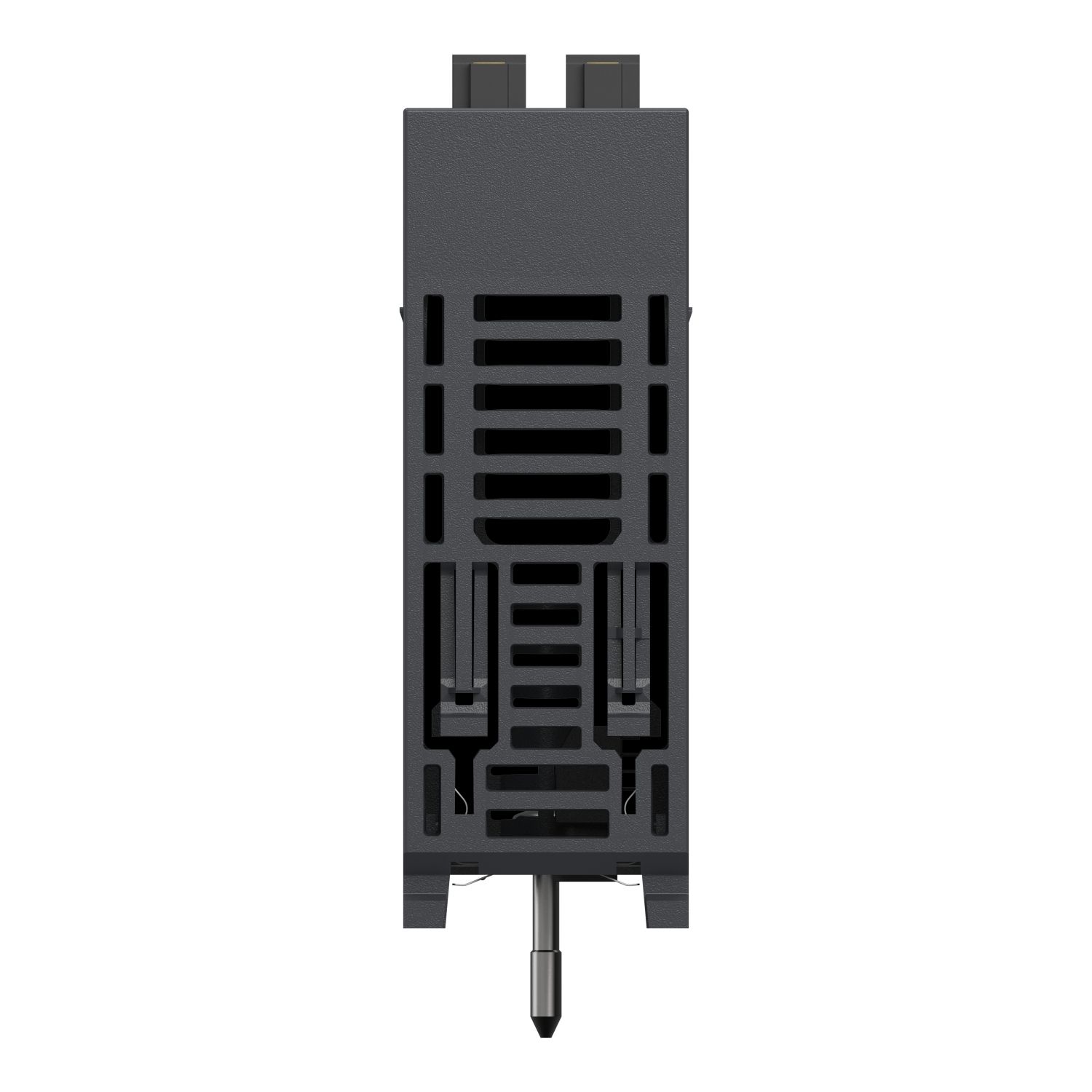

Picture of analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments
SKU:

BMXART0814H

analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

$5,393.96 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
CAD
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Input level low level
Range of product Modicon X80
Analogue input type thermocouple -50...+1769 °C thermocouple S, thermocouple -50...+1769 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+900 °C thermocouple L, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+600 °C thermocouple U, thermocouple +270...+1300 °C thermocouple N, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000, temperature probe -60...+180 °C Ni 100, temperature probe -200...+850 °C Pt 1000 conforming to IEC, temperature probe -200...+850 °C Pt 100 conforming to IEC, temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, temperature probe -100...+260 °C Cu 10, resistor 4000 Ohm 4 wires, resistor 4000 Ohm 3 wires, resistor 4000 Ohm 2 wires, resistor 400 Ohm 4 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 2 wires, voltage +/- 80 mV, voltage +/- 640 mV, voltage +/- 40 mV, voltage +/- 320 mV, voltage +/- 160 mV, voltage +/- 1.28 V
Product specific application for severe environments
Analogue input number 8
Input output isolation isolated
Electrical connection 40 ways 2 connectors
Product or component type analog input module
Complementary
Measurement resolution 80/2exp14 mV +/- 80 mV, 640/2exp14 mV +/- 640 mV, 125 mOhm 4000 Ohm, 12.5 mOhm 400 Ohm, 40/2exp14 mV +/- 40 mV, 320/2exp14 mV +/- 320 mV, 160/2exp14 mV +/- 160 mV, 1280/2exp14 mV +/- 1.28 V, 0.1 °C thermocouple U, 0.1 °C thermocouple T, 0.1 °C thermocouple S, 0.1 °C thermocouple R, 0.1 °C thermocouple N, 0.1 °C thermocouple L, 0.1 °C thermocouple K, 0.1 °C thermocouple J, 0.1 °C thermocouple E, 0.1 °C thermocouple B, 0.1 °C Pt 1000, 0.1 °C Pt 100, 0.1 °C Ni 1000, 0.1 °C Ni 100, 0.1 °C Cu 10
Analog/digital conversion sigma delta 16 bits
Common mode rejection 120 dB 50/60 Hz
Differential mode rejection 60 dB 50/60 Hz
Recalibration internal
Temperature drift 30 ppm/°C Pt 1000, 30 ppm/°C Pt 100, 30 ppm/°C Ni 100, 30 ppm/°C Cu 10, 30 ppm/°C +/- 80 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 1.28 V, 25 ppm/°C thermocouple U, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple B, 25 ppm/°C Ni 1000, 25 ppm/°C 4000 Ohm, 25 ppm/°C 400 Ohm
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter first order digital filtering
Maximum conversion value +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 1.28 V, +/- 100 % 4000 Ohm, +/- 100 % 400 Ohm
Measurement error <= 0.3 % of full scale 4000 Ohm - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, 0.12 % of full scale 4000 Ohm 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, +/- 4 °C Cu 10 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 0.7 °C Ni 1000 25 °C
MTBF reliability 900000 H
Permitted overload on inputs +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 1.28 V
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Maximum wiring resistance 500 Ohm 4 wires Pt 1000, 500 Ohm 4 wires Ni 1000, 50 Ohm 4 wires Pt 100, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Cu 10, 200 Ohm 3 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 2 wires Ni 1000, 20 Ohm 3 wires Pt 100, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Cu 10, 20 Ohm 2 wires Pt 100, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Cu 10
Detection type open circuit thermocouple U, open circuit thermocouple T, open circuit thermocouple S, open circuit thermocouple R, open circuit thermocouple N, open circuit thermocouple L, open circuit thermocouple K, open circuit thermocouple J, open circuit thermocouple E, open circuit thermocouple B, open circuit Pt 1000, open circuit Pt 100, open circuit Ni 1000, open circuit Ni 100, open circuit Cu 10
Nominal read cycle time 200 ms with thermocouple, 400 ms with temperature probe
Net weight 0.165 kg
Analogue input resolution 15 bits + sign
Current consumption 50 mA at 24 V DC, 150 mA at 3.3 V DC
Cold junction compensation external by Pt100 probe
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation -25-70 °C
Vibration resistance 3 gn
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards EN 61010-2-201, IEC 61000-6-2, IEC 61000-6-4, IEC 61131-2
Product certifications EAC, ATEX, RCM, Merchant Navy, CE, IEC-Ex, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 225.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.550 kg
