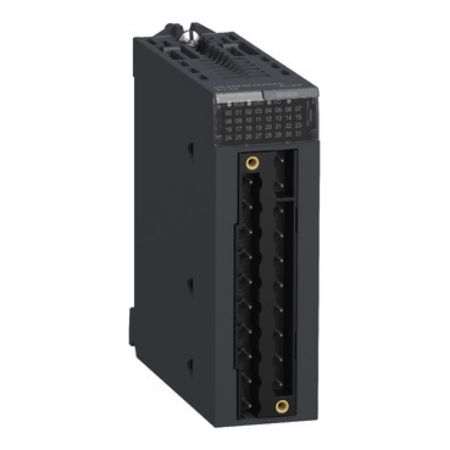

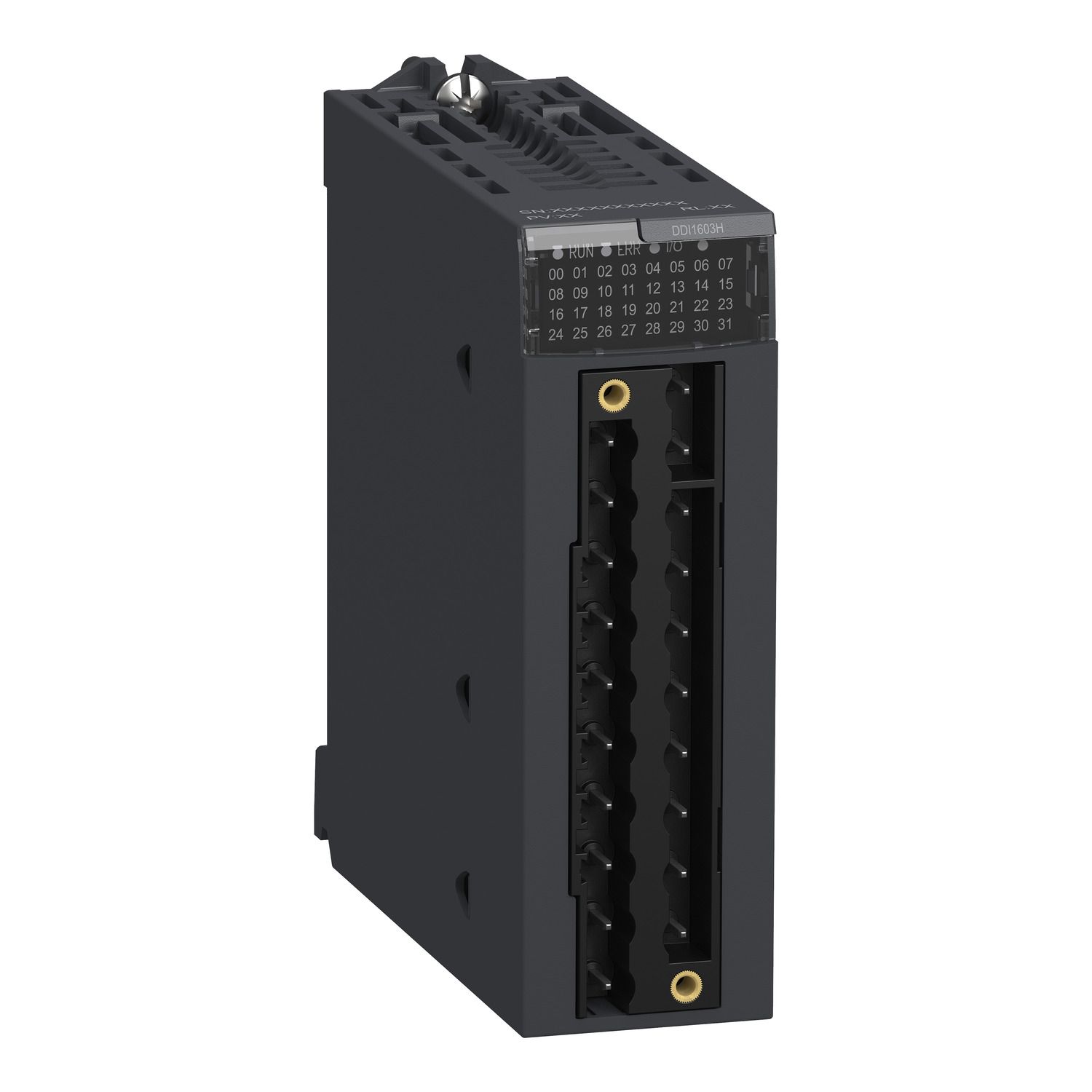

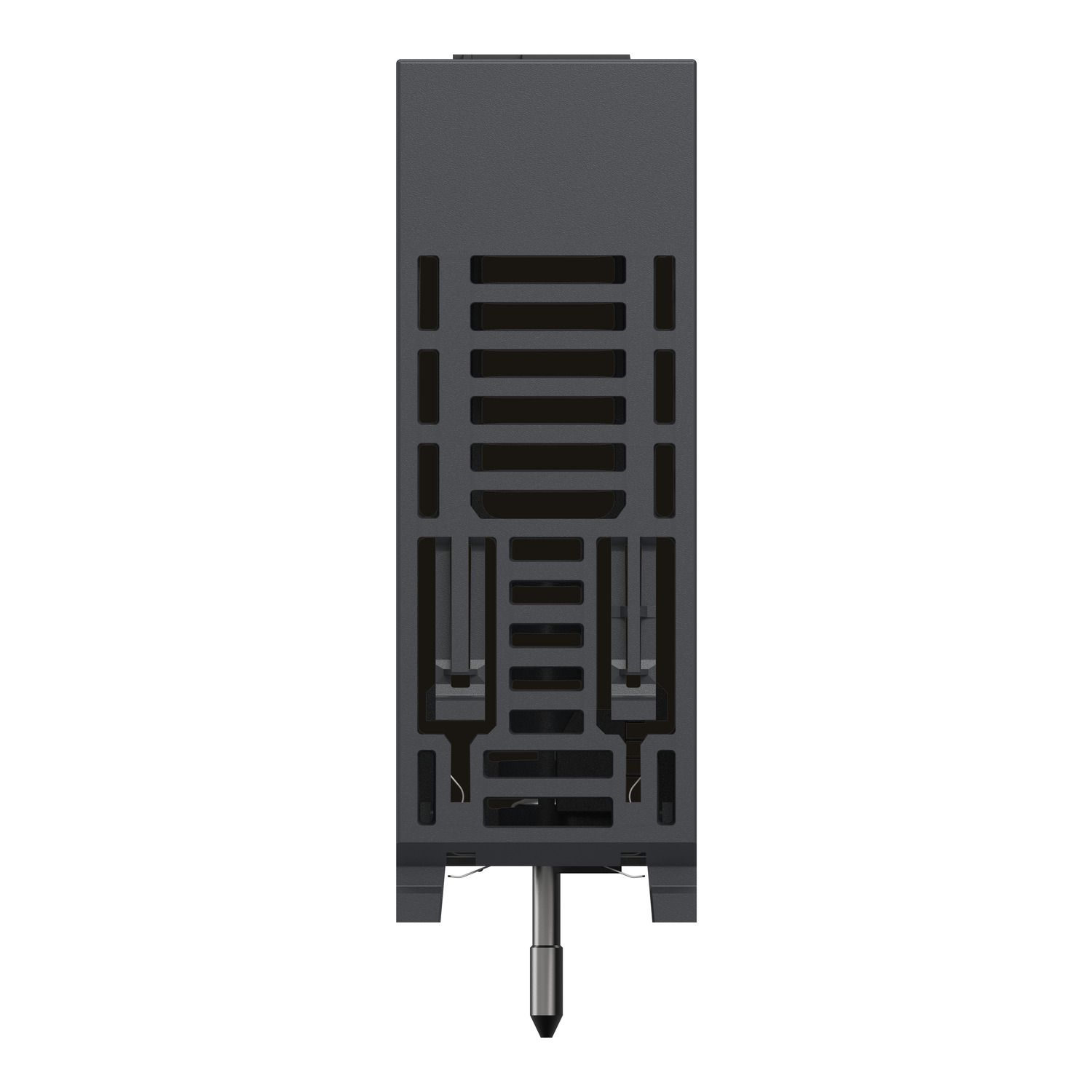

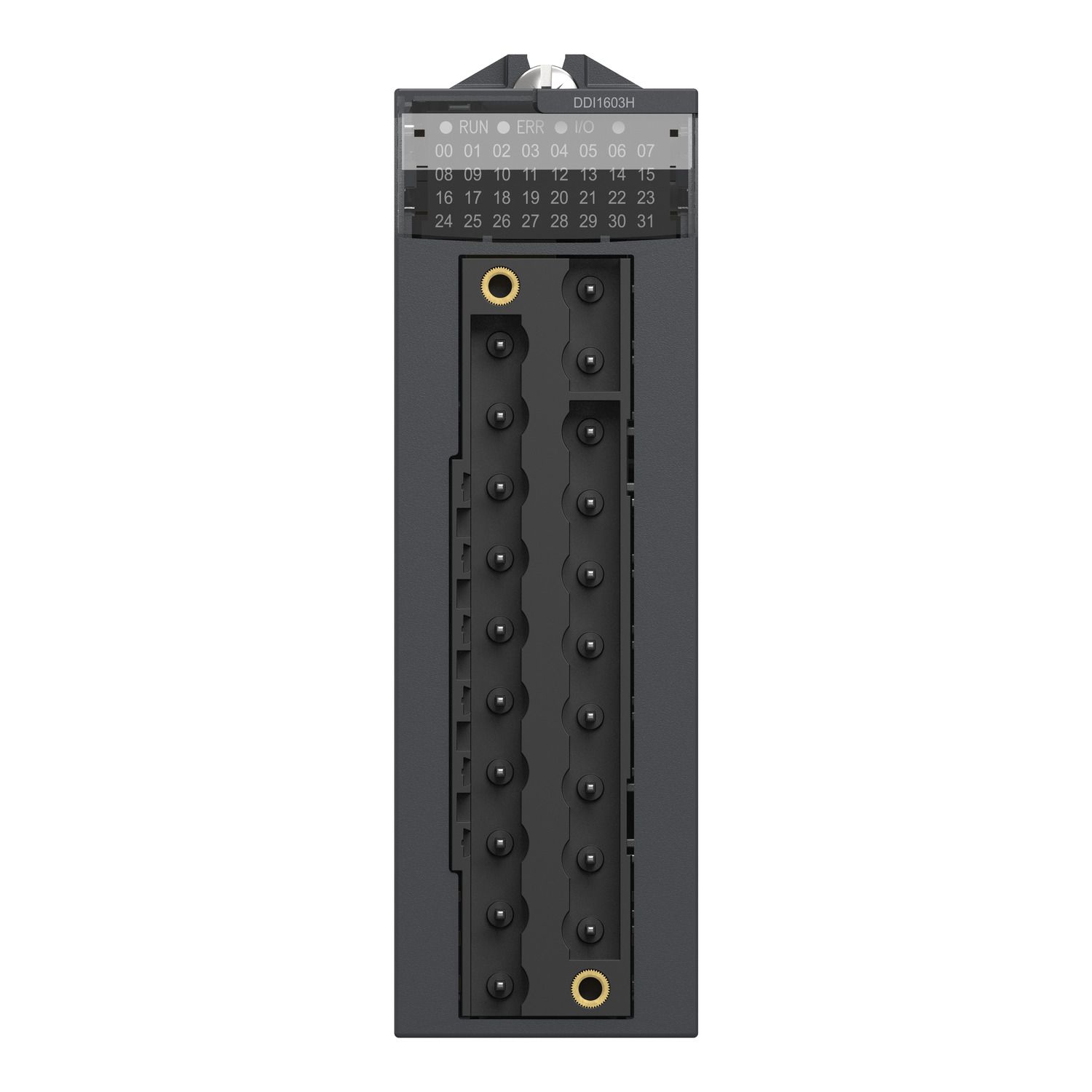

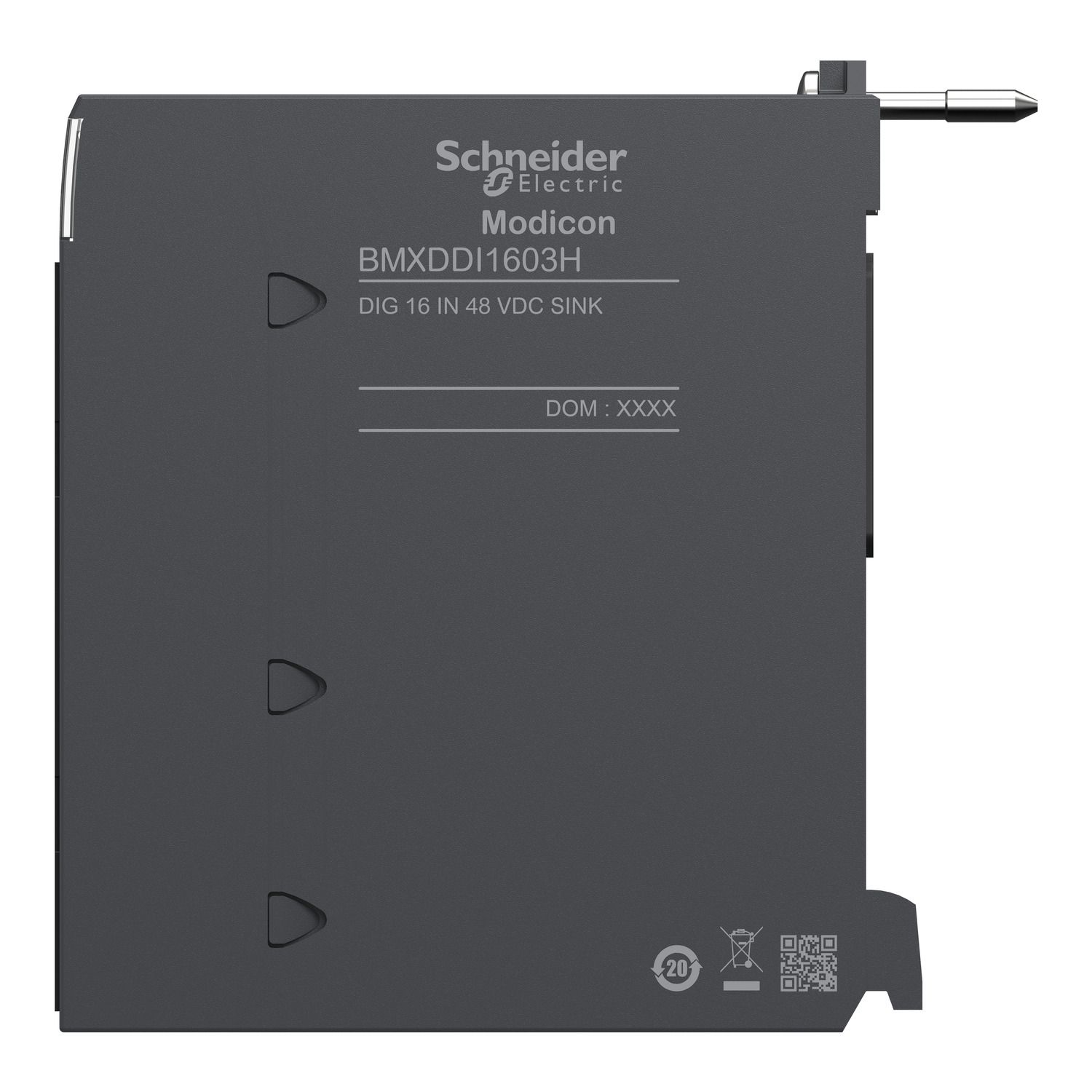

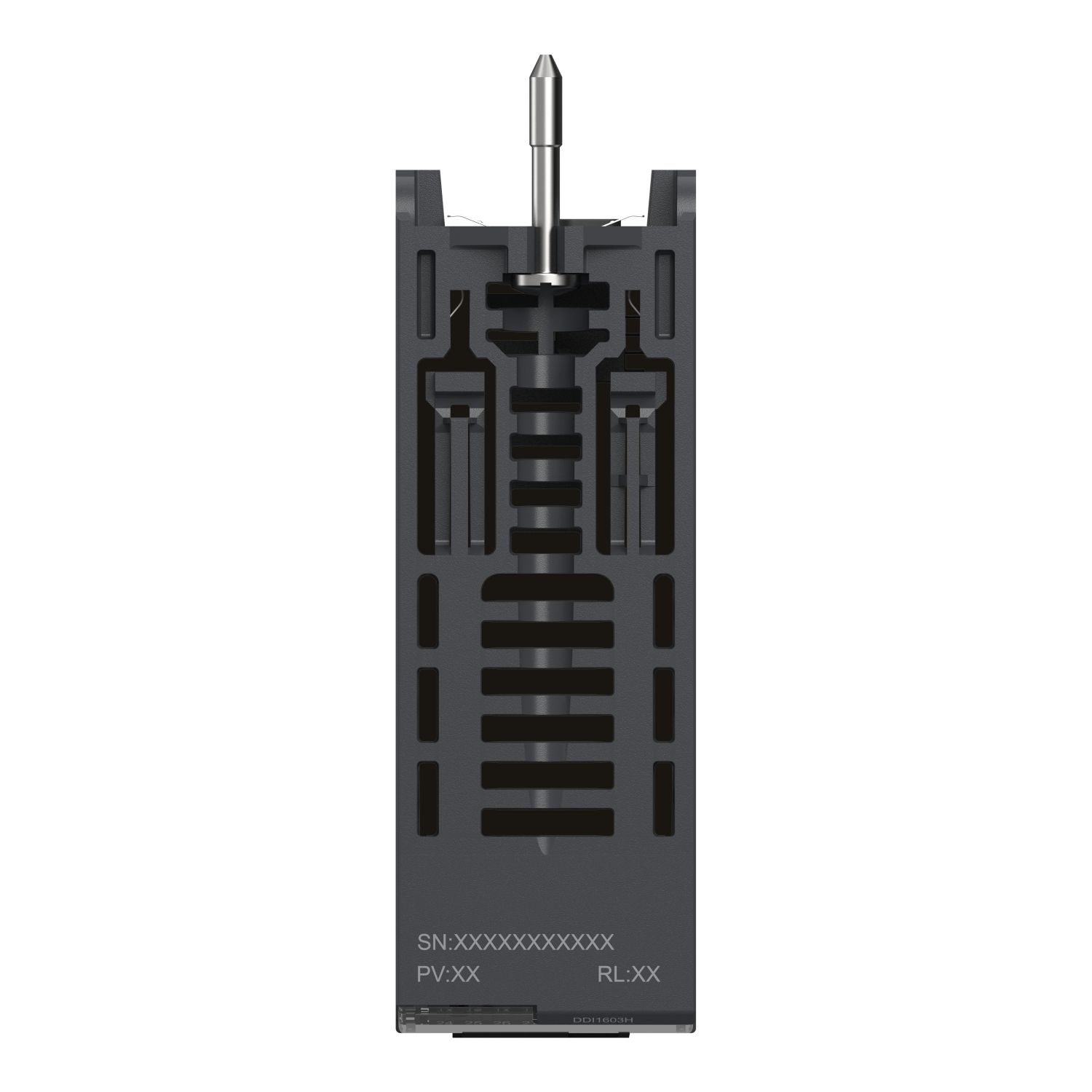

Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Picture of discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
SKU:

BMXDDI1603H

discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe

$1,353.55 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - severe
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 48V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.6W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete input current 2.5 mA
Product specific application for severe environments
Discrete input number 16
Discrete input type isolated
Input type current sink (logic positive)
Product or component type discrete input module
Discrete input voltage 48 V DC, discrete input logic: positive
Range of product Modicon X80
Complementary
DC maximum filtering time 7 ms
Input impedance 19200 Ohm
Current state 0 guaranteed <= 0.5 mA
Typical current consumption 76 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
DC typical filtering time 4 ms
Paralleling of inputs yes
Net weight 0.115 kg
Power dissipation in W 3.6 W
Protection type reverse polarity protection,  1 external fuse per group of channel0.5 A fast blow
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 36 V DC sensor OK, < 24 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Voltage range 42.2...52.8 V 70 °C, 36...60 V 60 °C
MTBF reliability 777000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 164.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.788 kg

Related products

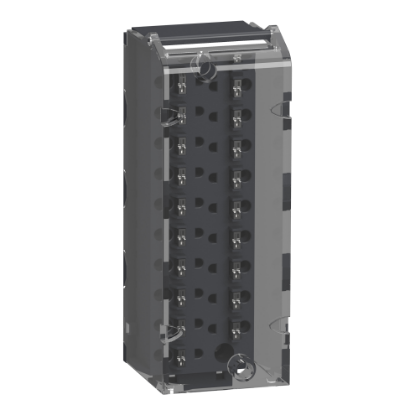

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
$107.15 INC GST
View Detail

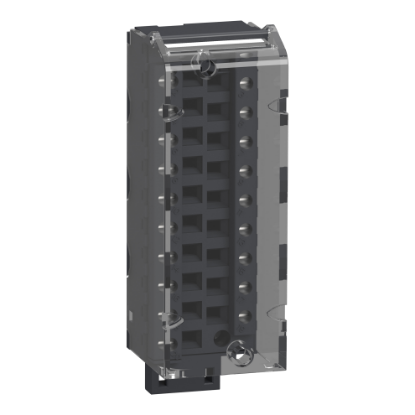

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

BMXFTB2000
$101.07 INC GST
View Detail

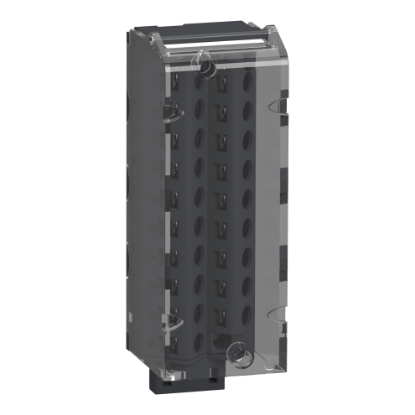

terminal block, Modicon X80, 20-pin removable screw clamp, 1 or 2 x 0.34..1.5mm2
