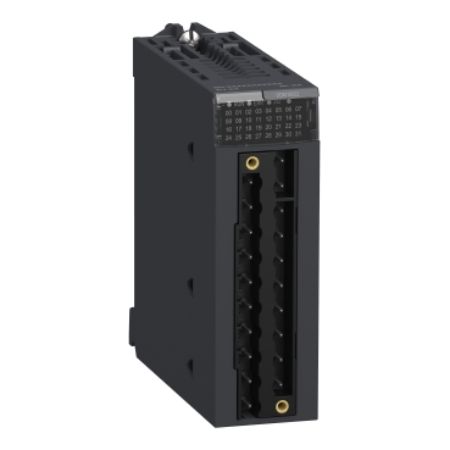

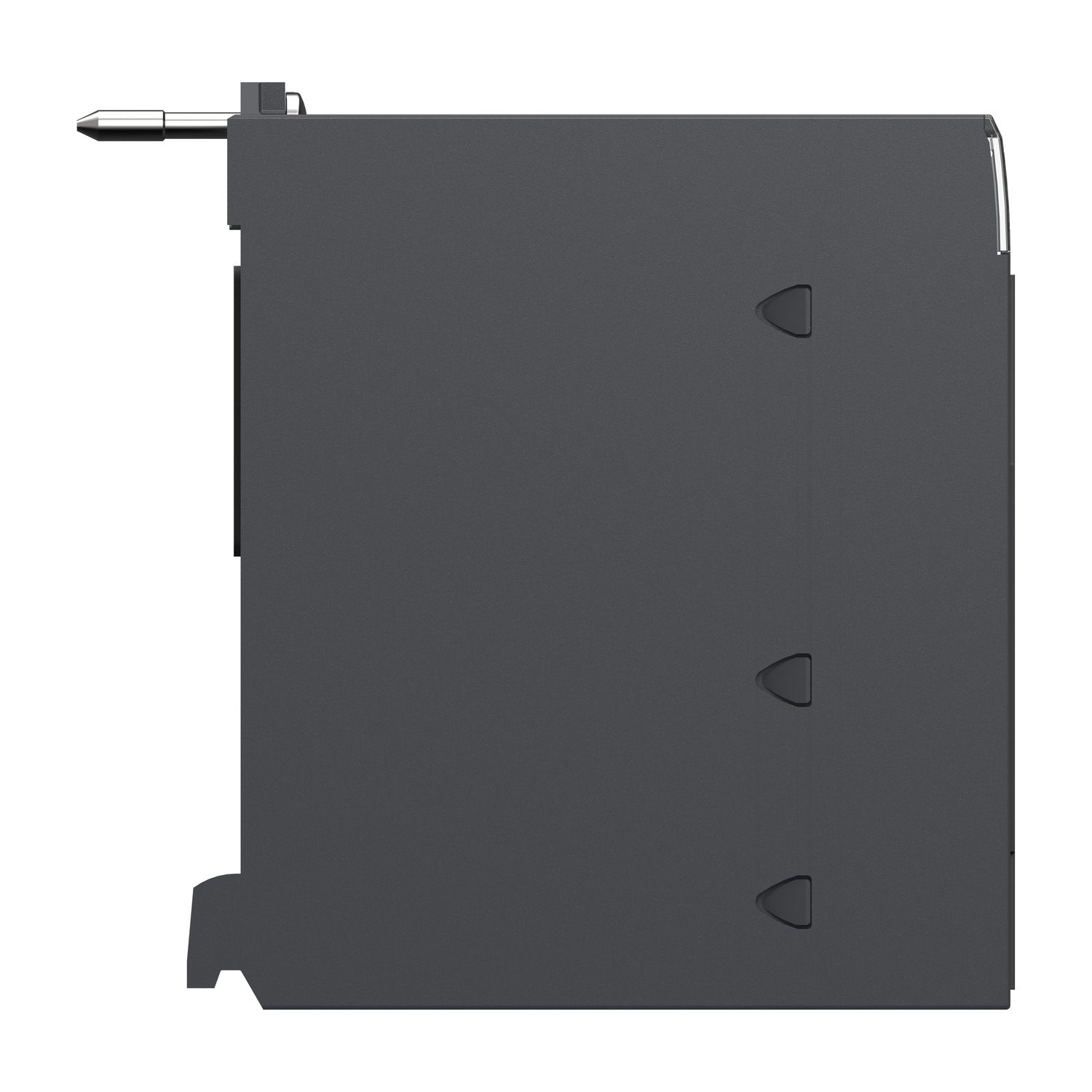

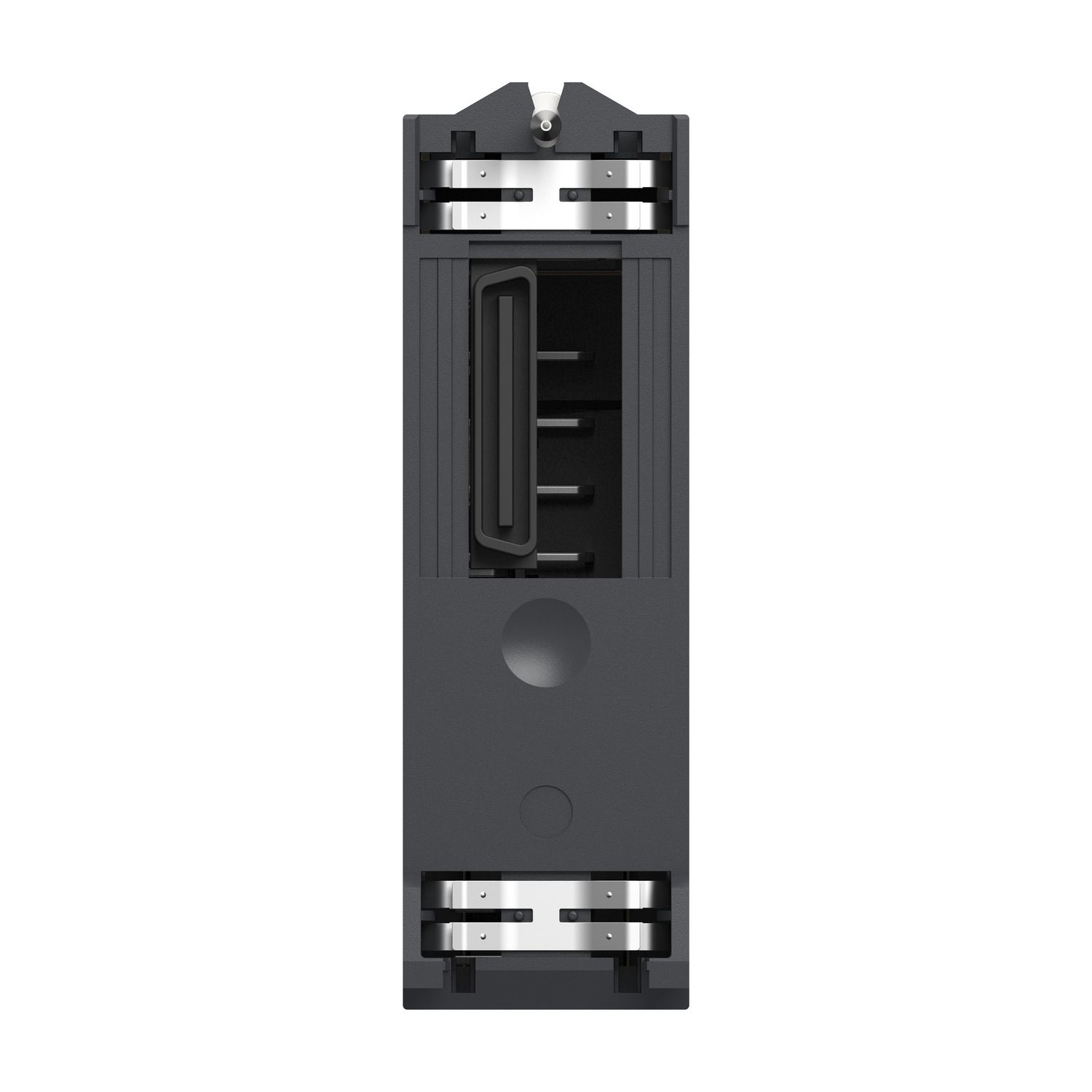

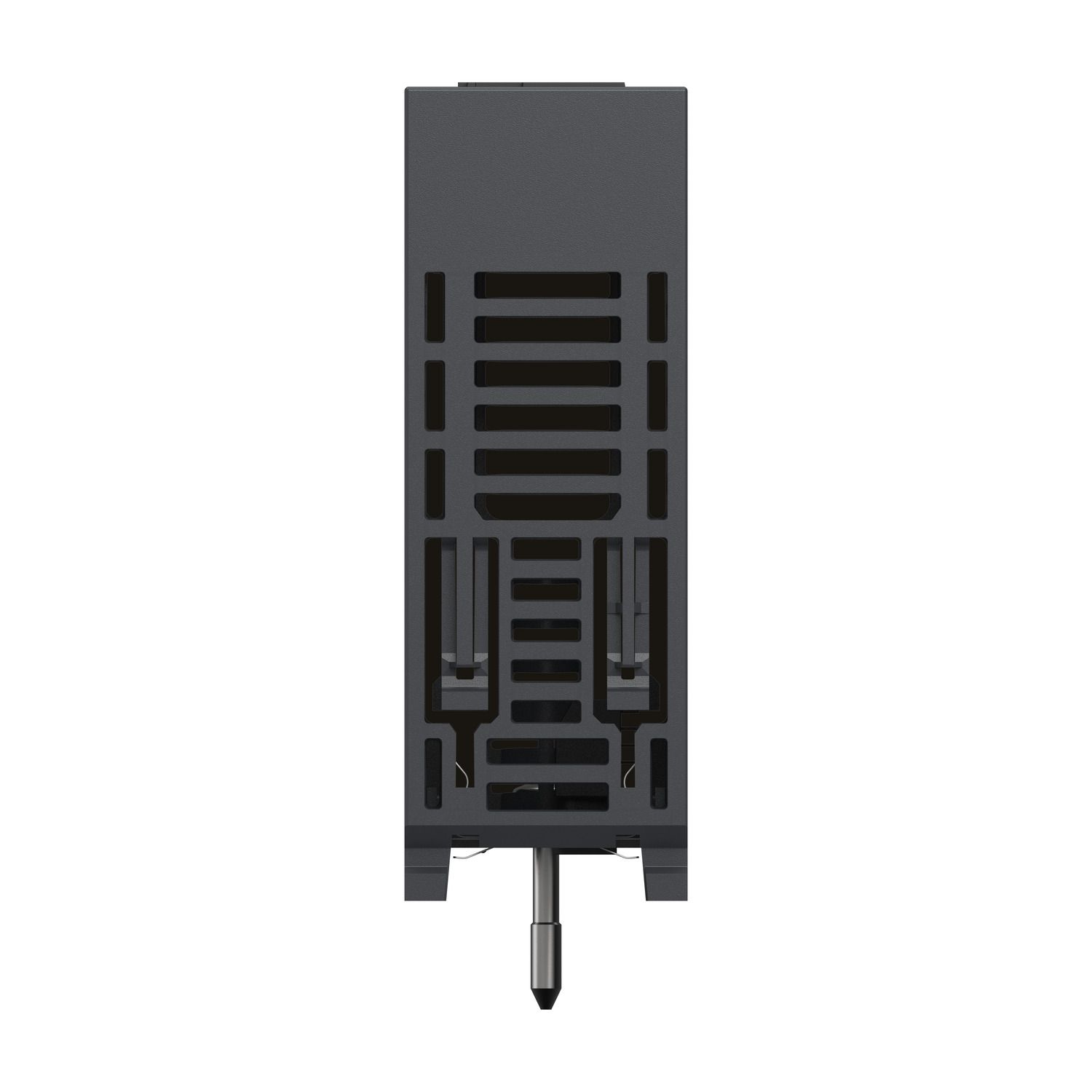

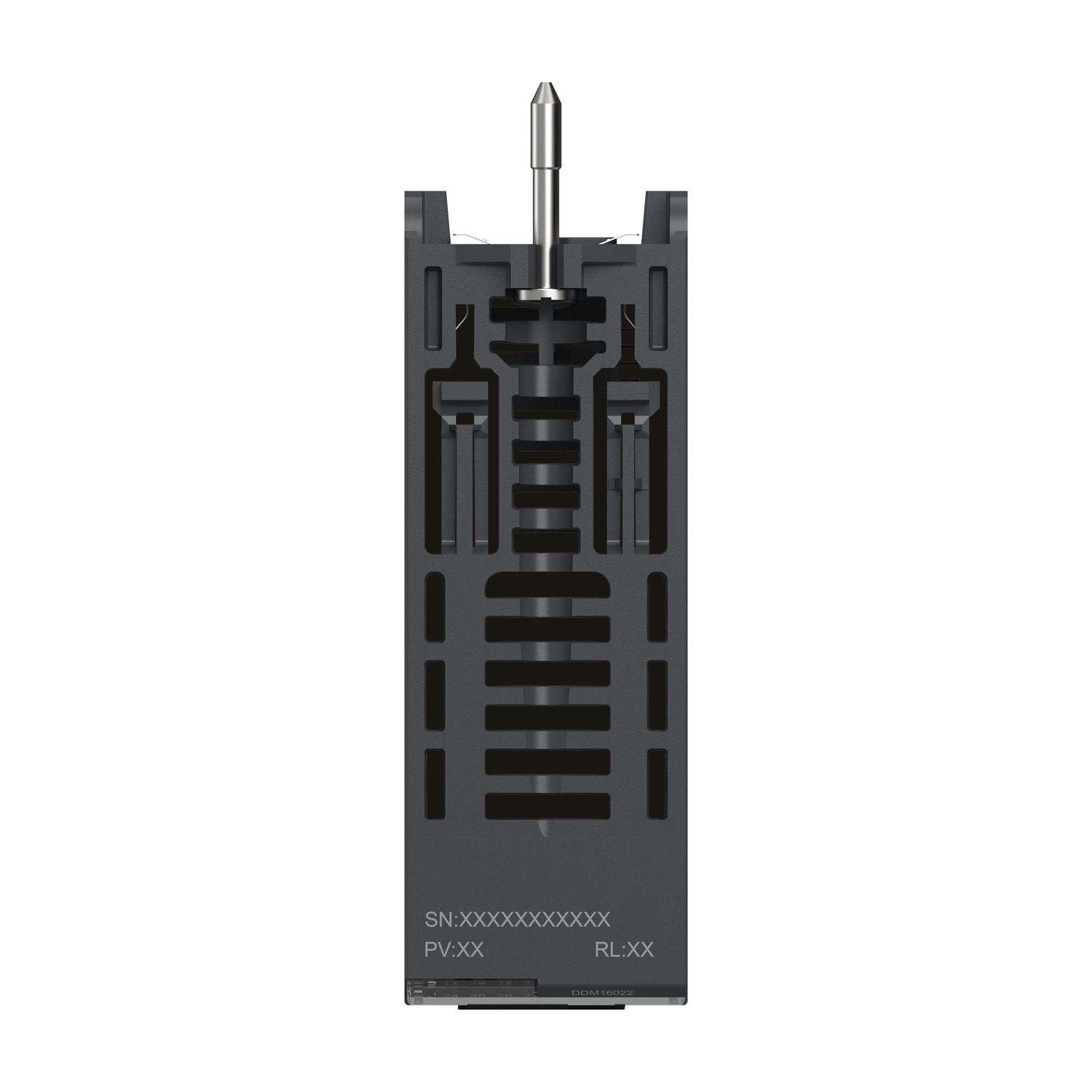

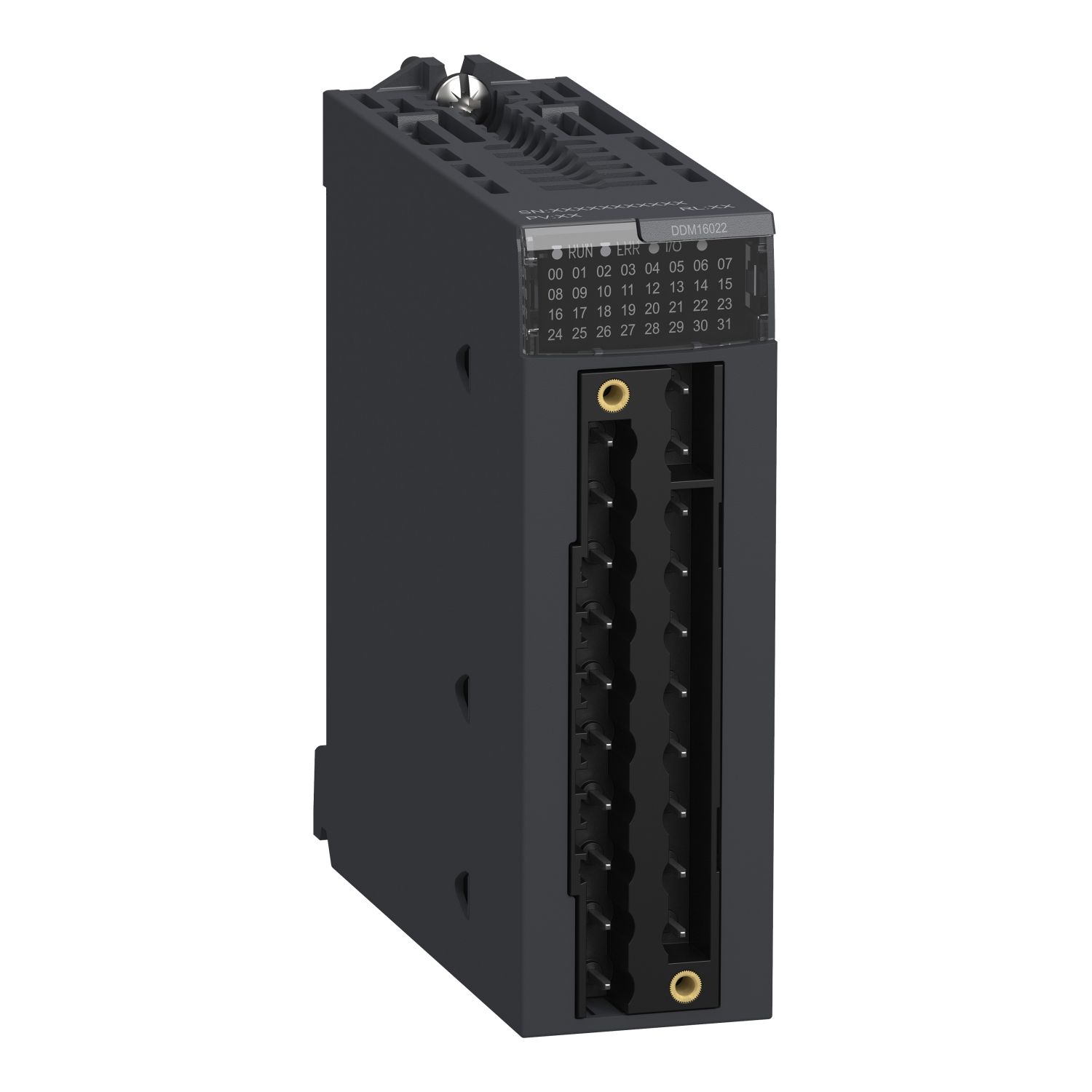

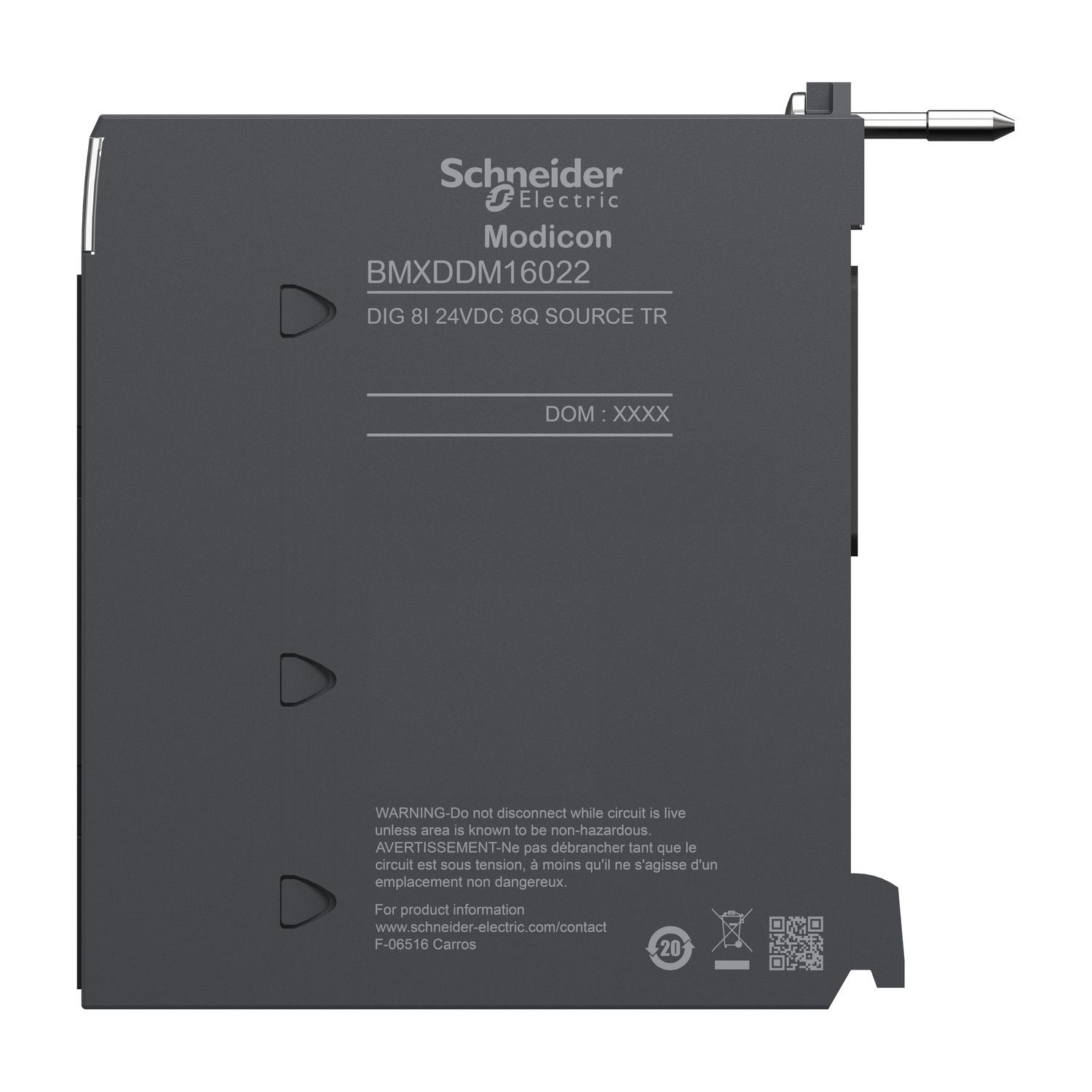

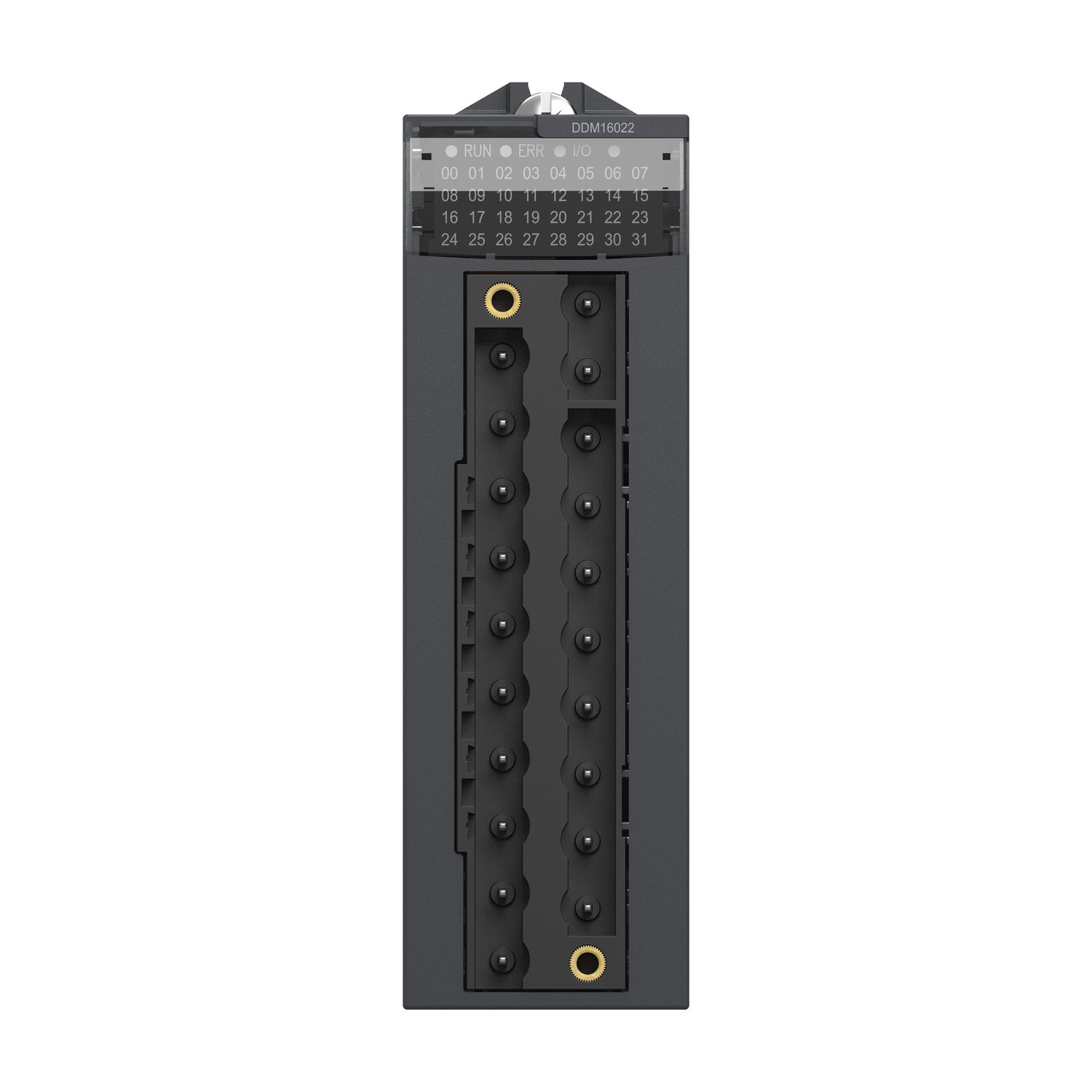

Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
SKU:

BMXDDM16022

discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive

$1,004.41 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.5A, a maximum power dissipation of 3.7W and current consumption of 67mA at 24V DC, 111mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 447581 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete output current 0.5 A
Discrete output voltage 24 V 19...30 V DC
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Discrete output type solid state
Discrete input current 3.5 mA
Discrete input number 8
Input type current sink (logic positive)
Product or component type discrete I/O module
Discrete output number 8
Complementary
Response time on output 1.2 ms
DC maximum filtering time 7 ms
Output overload protection with electronic circuit breaker 1.5 In < Id < 2 In, with current limiter
Output short-circuit protection with 2 A external fuse
Output overvoltage protection with transil diode
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 59 mA at 24 V DC, 79 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W 3.7 W
Protection type reverse polarity protection on output,  reverse polarity protection on input,  overvoltage protection on output,  1 external fuse per group of input channel0.5 A fast blow
Maximum voltage drop <1.2 V at state 1
Voltage detection threshold > 18 V DC sensor OK, > 18 V DC preactuator OK, < 14 V DC sensor fault, < 14 V DC preactuator fault
Current per channel 0.625 A
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Maximum overload time 15 ms
Switching frequency 0.5/LI² Hz
Maximum current per module 5 A
MTBF reliability 450000 H
Reverse polarity protection reverse mounted diode
Maximum tungsten load 6 W
Input impedance 6800 Ohm
DC typical filtering time 4 ms
Paralleling of outputs yes : 2 maximum
Load impedance ohmic >= 48 Ohm
Maximum leakage current 0.5 mA at state 0
Net weight 0.115 kg
Current state 1 guaranteed >= 3 mA
Insulation resistance > 10 MOhm 500 V DC
Current consumption <= 67 mA at 24 V DC, <= 111 mA at 3.3 V DC
Voltage range 19...30 V
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of inputs and outputs, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.700 cm
Package 1 Weight 142.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.490 kg

Related products

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
$107.15 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

BMXFTB2000
$101.07 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable screw clamp, 1 or 2 x 0.34..1.5mm2

BMXFTB2010
$130.04 INC GST
View Detail
Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 10m

cord set, Modicon M340, 20-way terminal, one end flying leads, 10m

BMXFTW1001
$406.70 INC GST
View Detail
Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 3m

cord set, Modicon M340, 20-way terminal, one end flying leads, 3m

BMXFTW301
$149.27 INC GST
View Detail

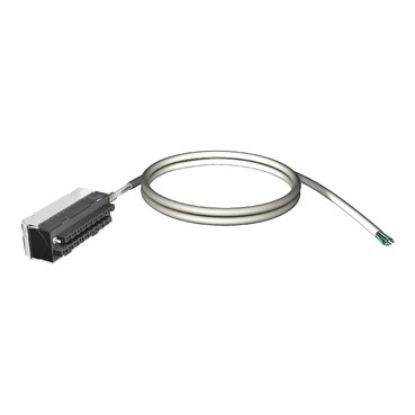

Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 5m
