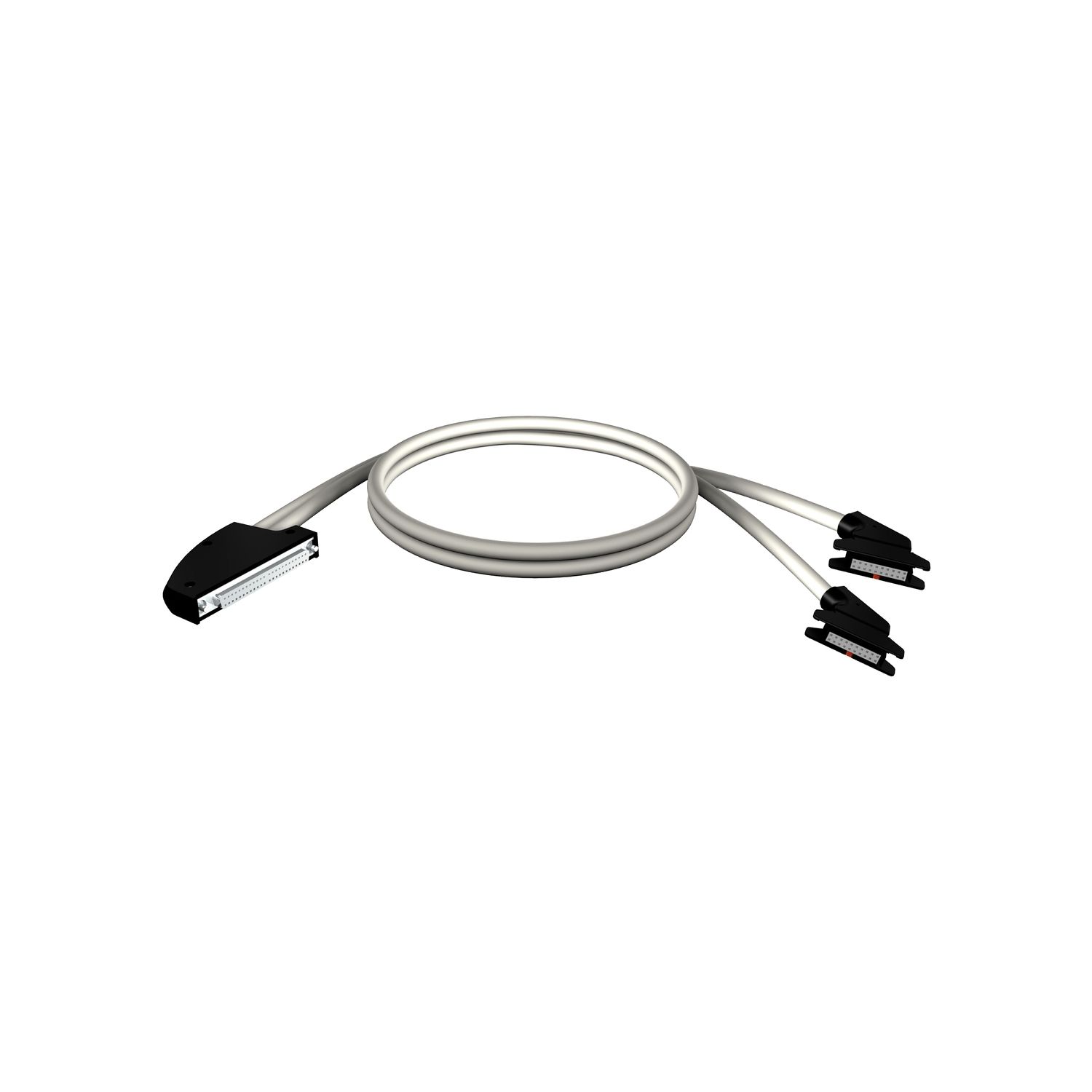

Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 0.5m
SKU:

BMXFCC053

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 0.5m

Please Contact Sales to buy this Product. click here
preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 0.5m
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 0.5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two HE10 connectors for electrical connection. It weighs 0.21kg. It is suitable for medium to large process applications. This cordset is compatible with Telefast Advantys ABE7 sub-bases and I/O module with 40-way connectors. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationfor I/O module with 40-way connectors
Accessory / separate part typepreformed cordset
Cable length0.5 m
Accessory / separate part designationpreformed cordset for Telefast Advantys ABE7 sub-bases
Range of productModicon X80
Electrical connection2 connectors HE10, 1 connector 40 ways
Number of cables2
Complementary
Total number of wires40
Net weight0.21 kg
Wire section0.324 mm²
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.000 cm
Package 1 Width20.000 cm
Package 1 Length25.000 cm
Package 1 Weight215.000 g
Unit Type of Package 22
Number of Units in Package 29
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.254 kg
