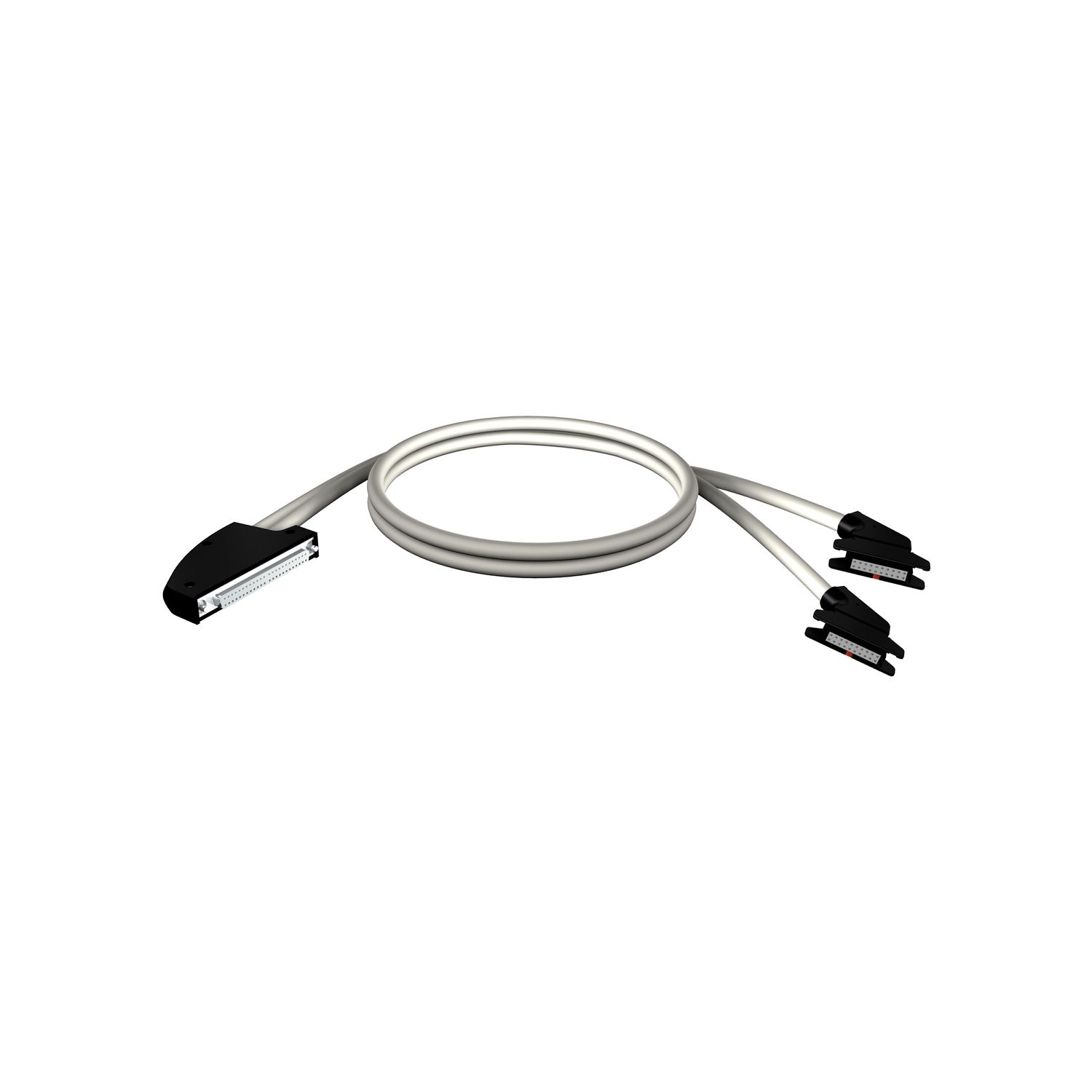

Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 10m
SKU:

BMXFCC1003

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 10m

$608.98
Available for Shipping : 10-Dec-2024
preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 10m
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 10m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two HE10 connectors for electrical connection. It weighs 3kg. It is suitable for medium to large process applications. This cordset is compatible with Telefast Advantys ABE7 sub-bases and I/O module with 40-way connectors. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for I/O module with 40-way connectors
Accessory / separate part type preformed cordset
Cable length 10 m
Accessory / separate part designation preformed cordset for Telefast Advantys ABE7 sub-bases
Range of product Modicon X80
Electrical connection 2 connectors HE10, 1 connector 40 ways
Number of cables 2
Complementary
Total number of wires 40
Net weight 3 kg
Wire section 0.324 mm²
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 26.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 2.858 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.900 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 107.616 kg
