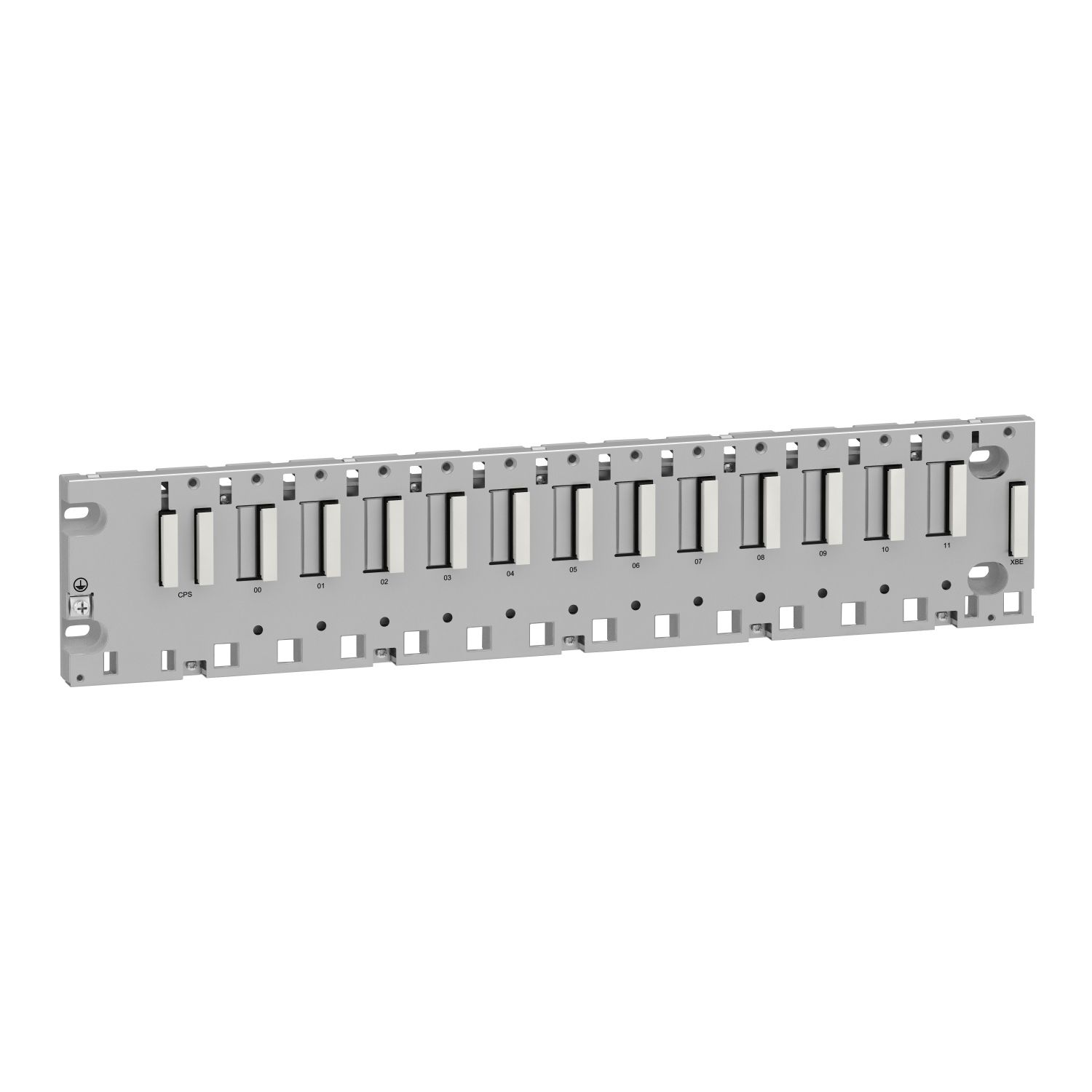

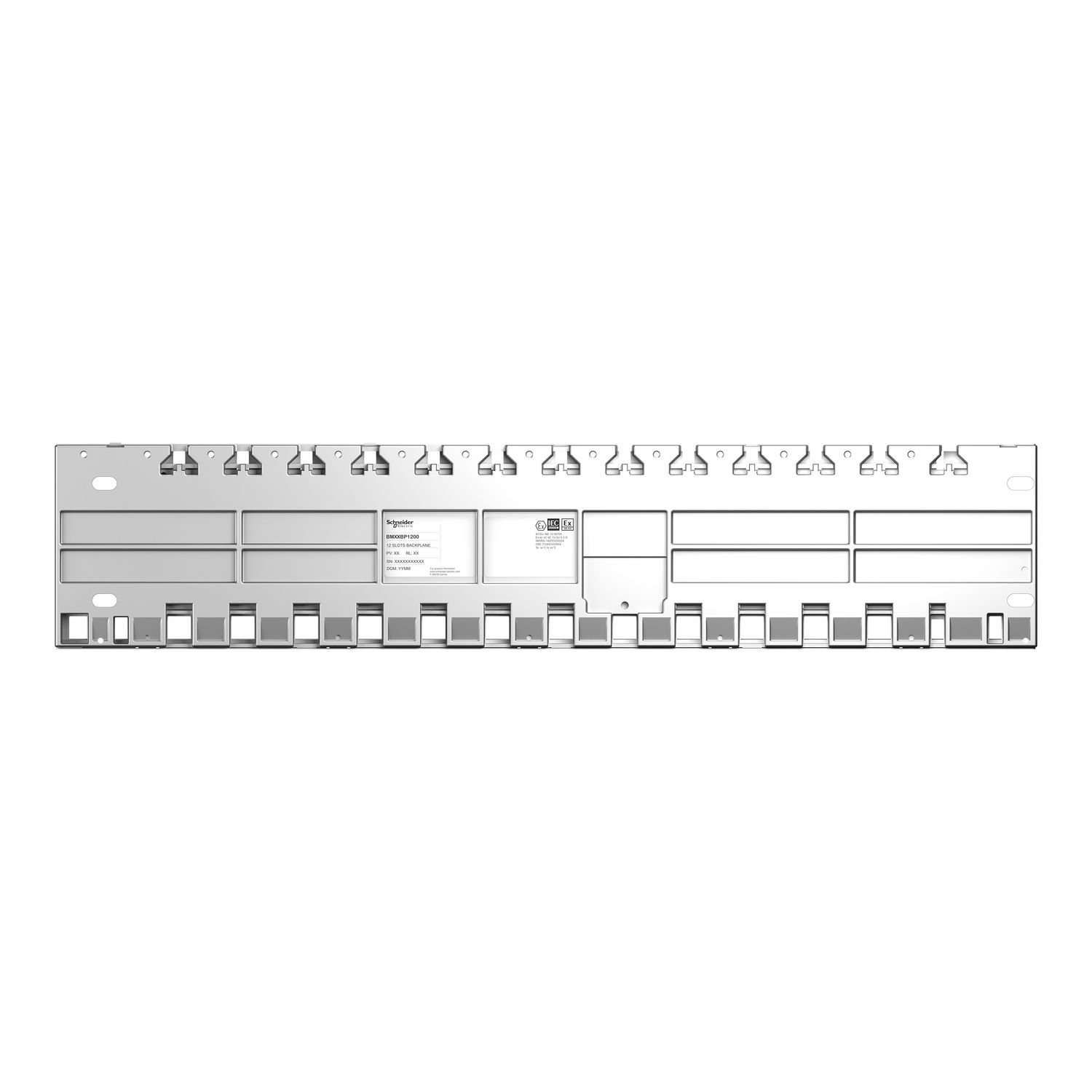

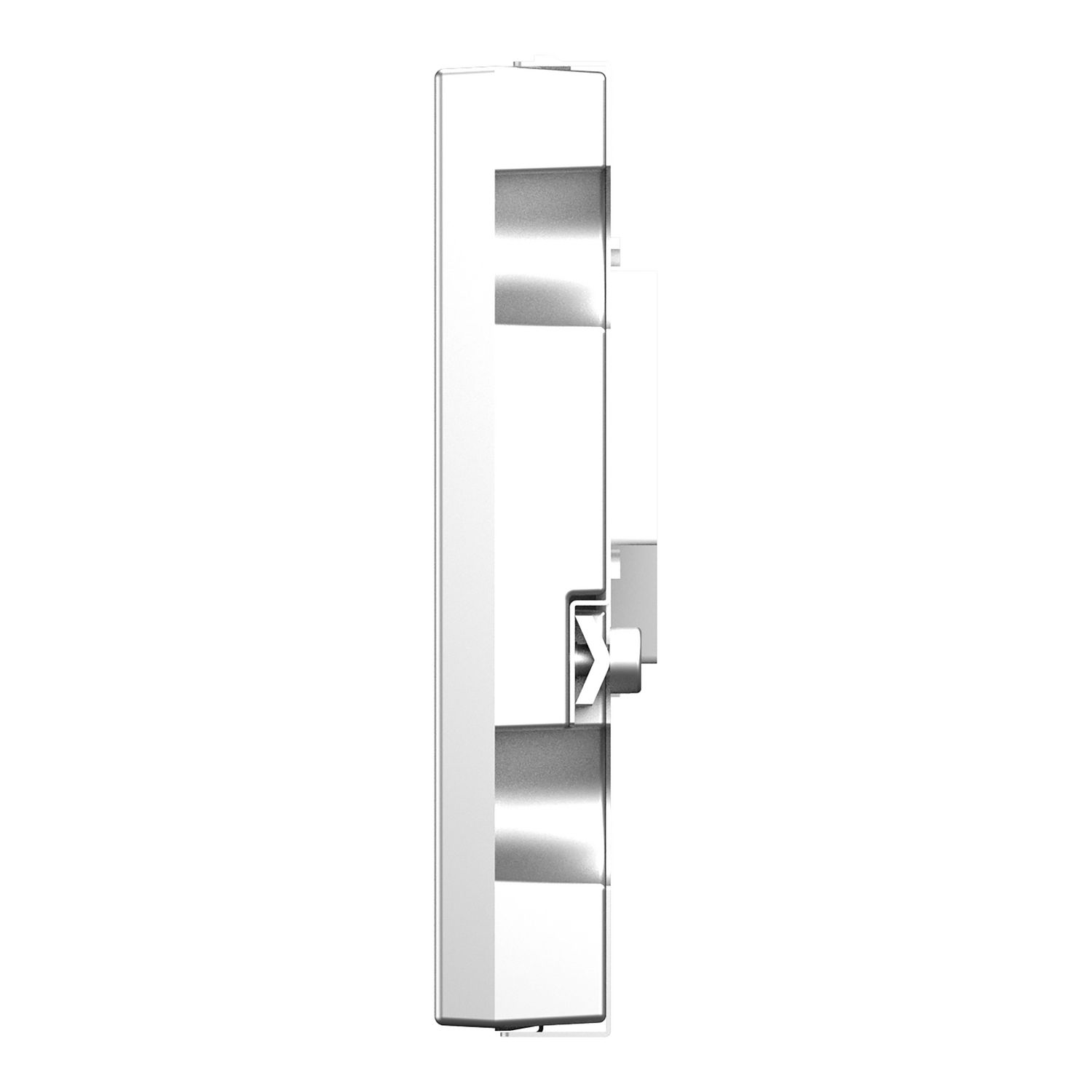

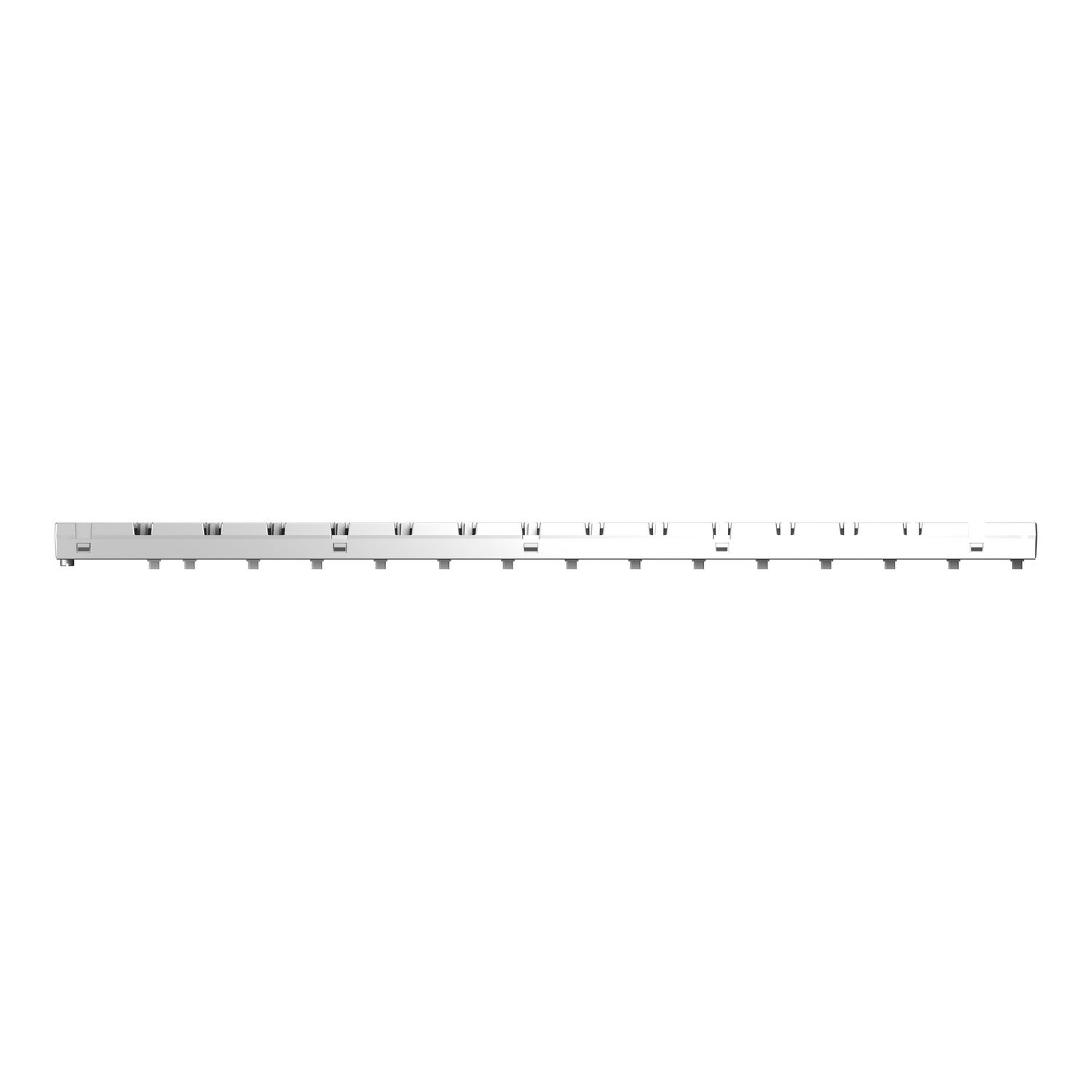

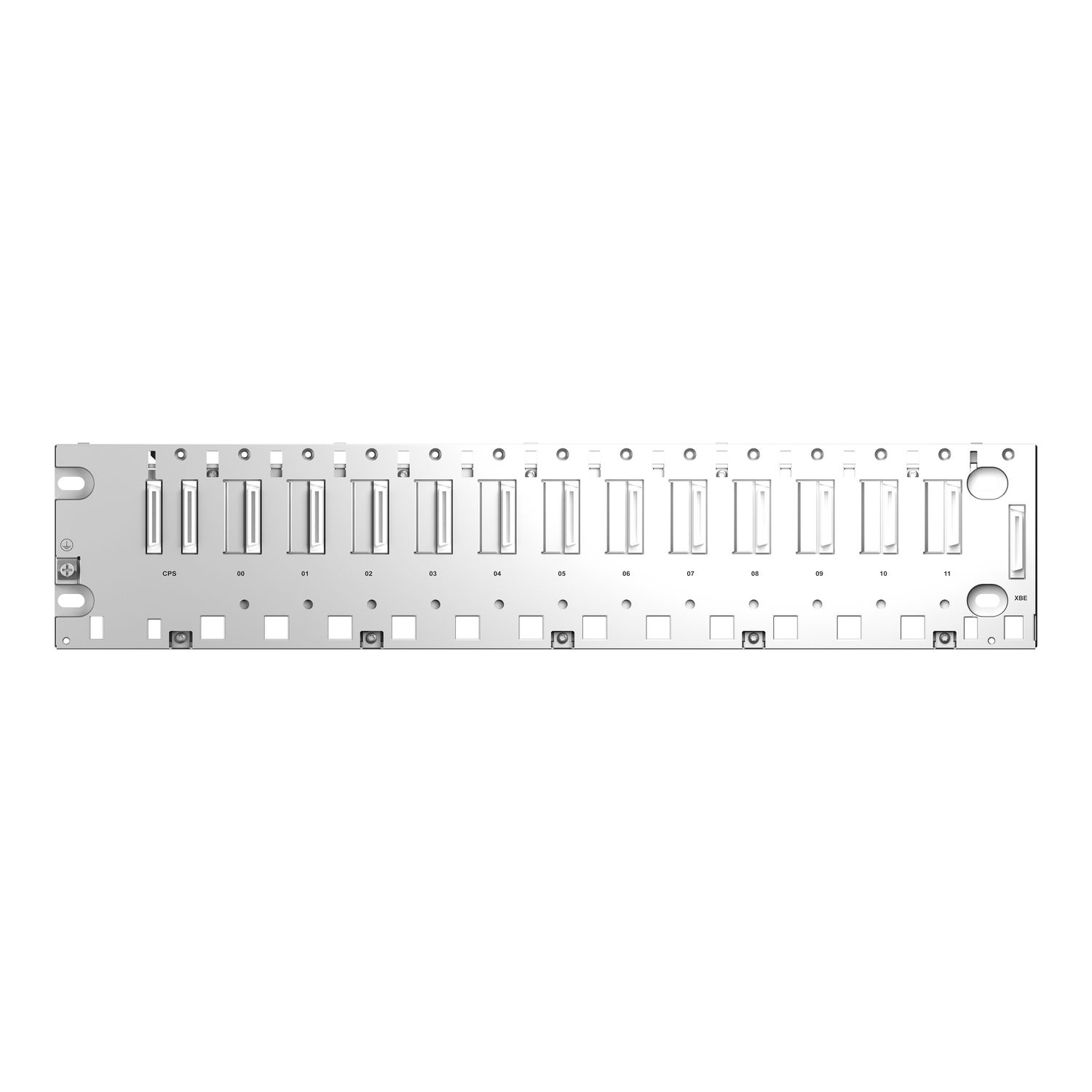

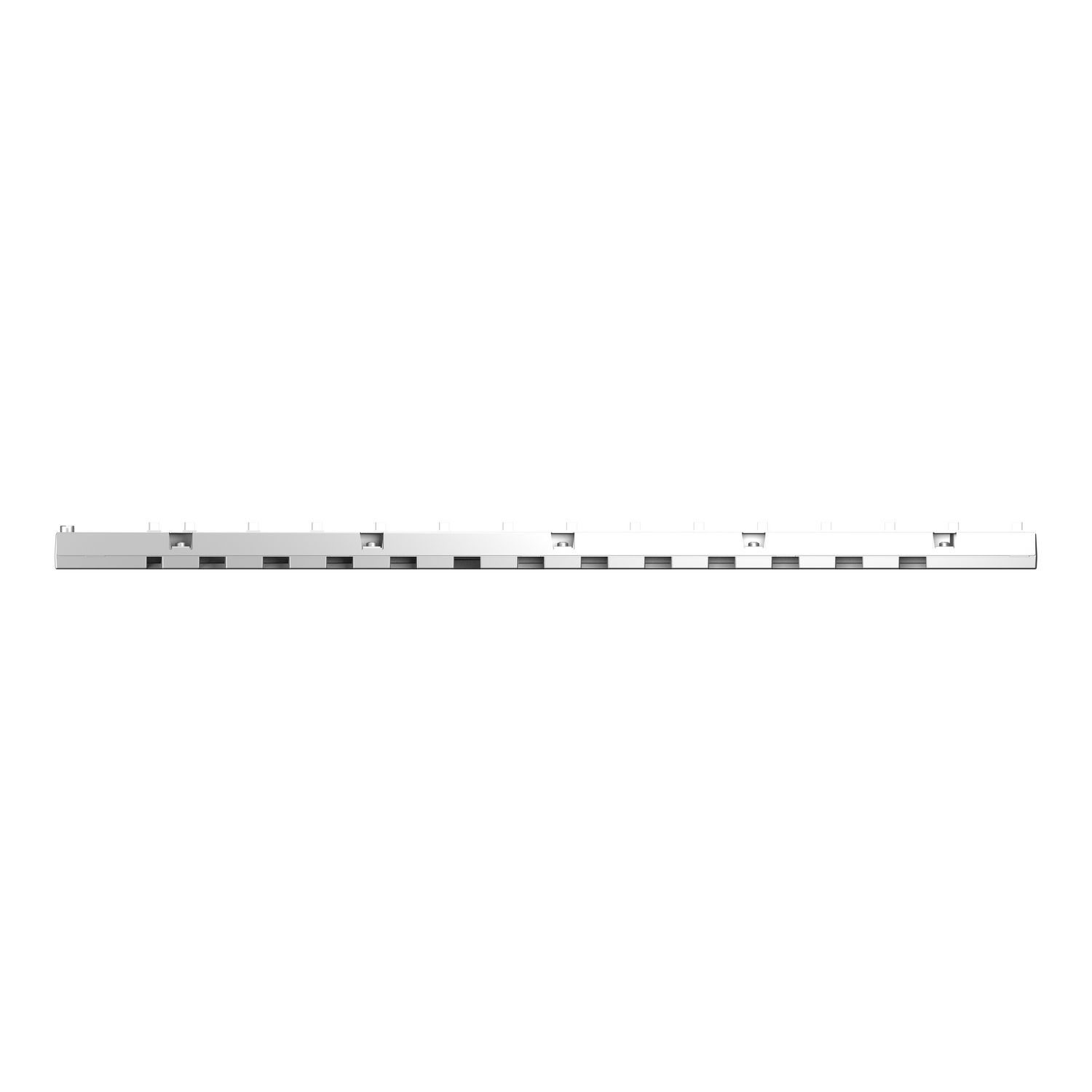

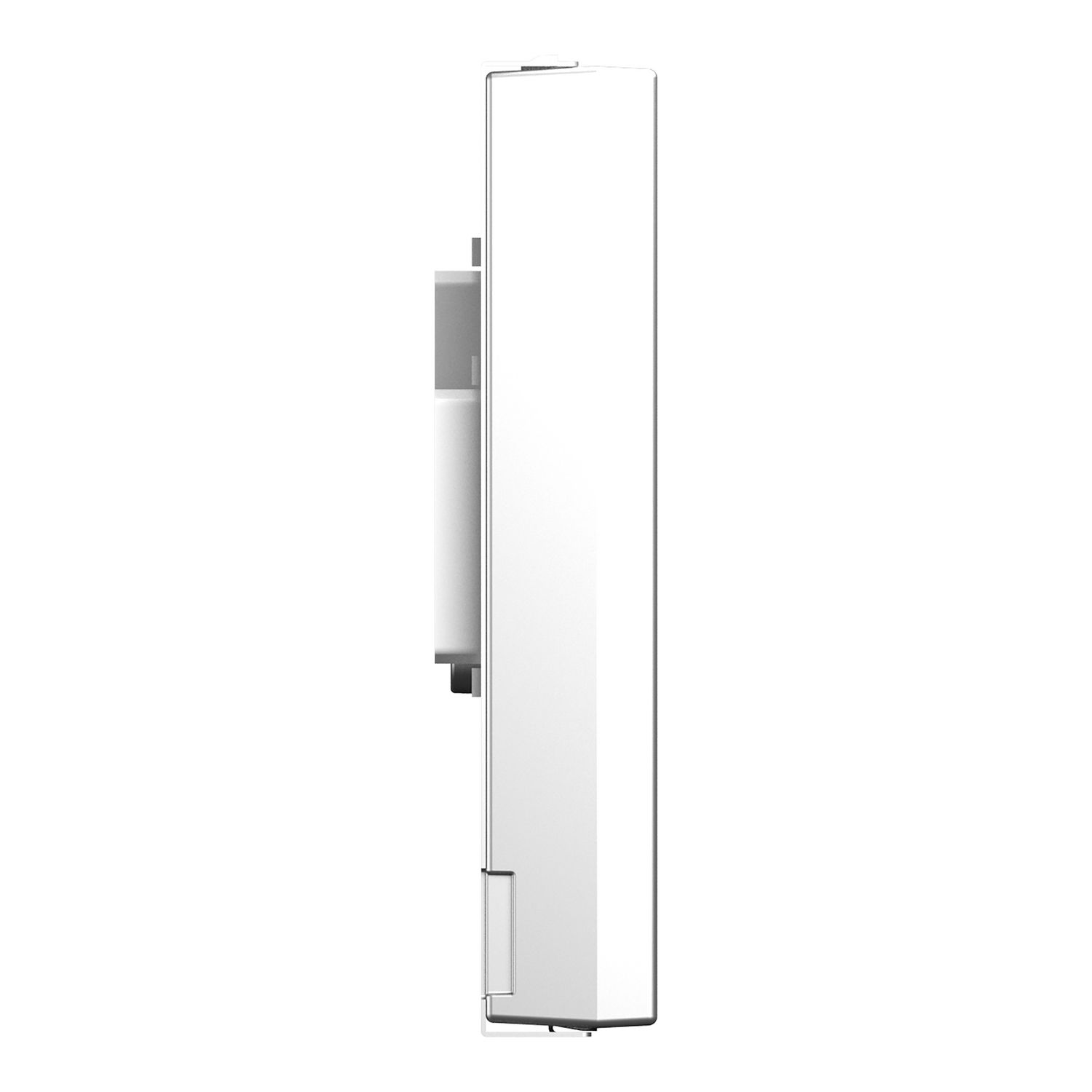

Backplane, Modicon X80, 12 slots, panel, mounting plate mounted

$1,154.94 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

Backplane, Modicon X80, 12 slots, panel, mounting plate mounted

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

User guide

Environmental Disclosure

Declaration of conformity

Circularity Profile

CAD

Product Page Link

Product Data Sheet

This 12 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 1.270kg.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Product or component type	backplane
Complementary
Product compatibility	specific application module, I/O module, BMXCPS power supply, BMXP34 processor
Power consumption in W	0.17 W
Height	103.7 mm
Fixing mode	by 4 M4/M5/M6 screws, mounting on mounting plate, by 4 M4/M5/M6 screws, mounting on panel
Depth	19 mm
Width	503.2 mm
Net weight	1.27 kg
Number of slots	12 bus X
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Relative humidity	10-95 % without condensation
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, UKCA, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation	0-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	16.000 cm
Package 1 Length	56.800 cm
Package 1 Weight	1.317 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.420 kg
Unit Type of Package 3	3
Number of Units in Package 3	32
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	52.680 kg
