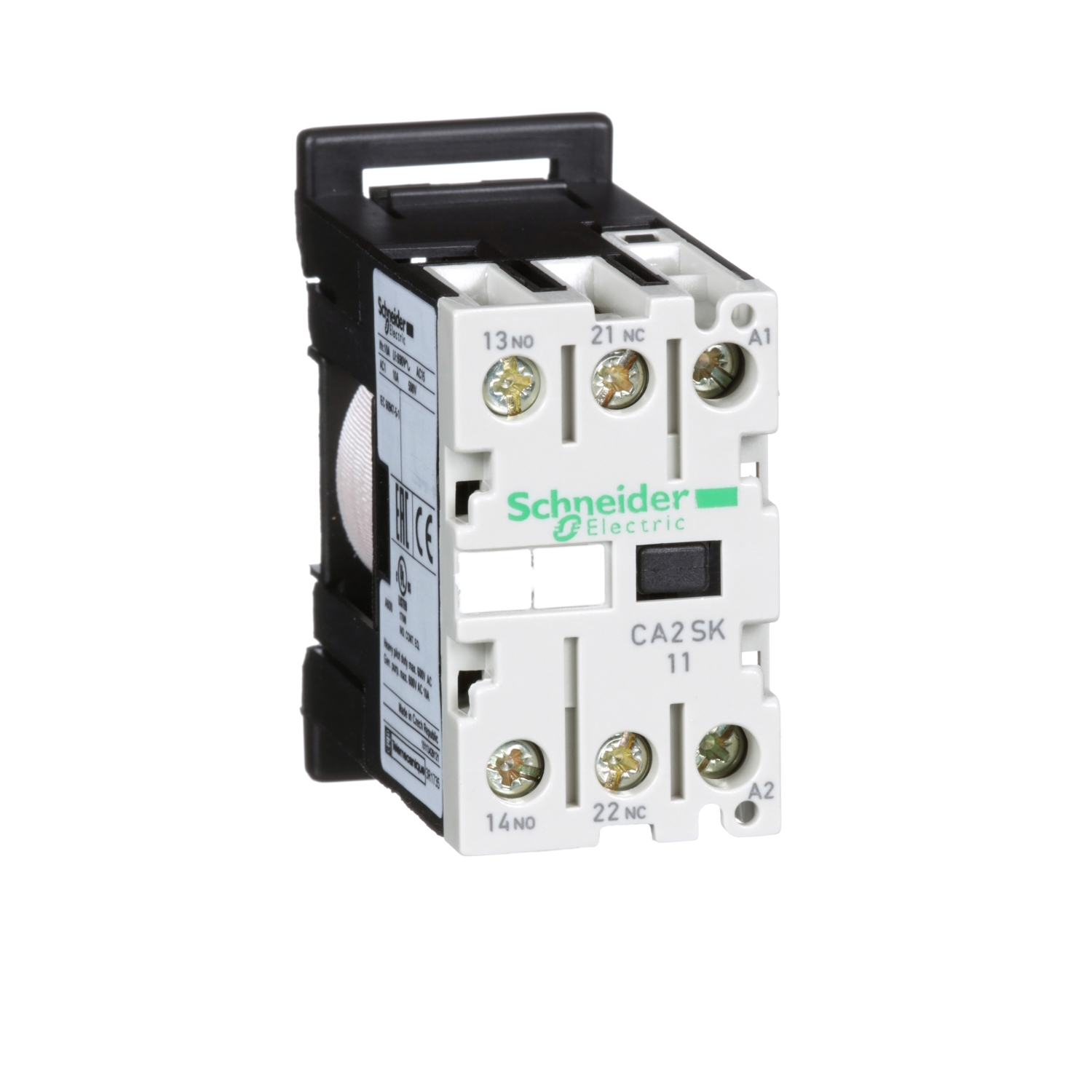

Picture of TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 110 V AC coil
SKU:

CA2SK11F7

TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 110 V AC coil

$149.18
TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 110 V AC coil
  • High durability & stable performance: up to 20 cycles/min for operating rates
  • Reliable in high and low temperature environment
  • Modularity design and compact size for easy maintenance, save time and space on installation
  • Multi standards certified
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
End of life manual
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys SK mini-control relay, 2 contacts (1NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name CA2SK
Utilisation category DC-13, AC-15
Pole contact composition 1 NO + 1 NC
Range TeSys
Product name TeSys CASK
Product or component type control relay
Contactor application control circuit
[Uc] control circuit voltage 110 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
Range of product TeSys SK control relay
[Ue] rated operational voltage <= 690 V <= 400 Hz
Complementary
Heat dissipation 1.4-1.4 W
[Ui] rated insulation voltage 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth 55.5 mm
Width 27 mm
Operating time 8...16 ms coil energisation and NC opening, 8...10 ms coil de-energisation and NC closing, 7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening
Hold-in power consumption in VA 4.2-4.2 VA (at 20 °C)
Compatibility code CA2SK
Mechanical durability 10 Mcycles
Tightening torque 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head
Maximum operating rate 1200 cyc/h
Connections - terminals screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.35-6 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.5-6 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-6 mm²solid
Inrush power in VA 16-16 VA (at 20 °C)
Net weight 0.132 kg
Associated fuse rating 10 A gL conforming to IEC 60947, 10 A gL conforming to VDE 0660
Mounting support rail, plate
[Ith] conventional free air thermal current 10 A (at 55 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
Height 56 mm
Environment
Operating altitude 2000 m without derating
IP degree of protection IP2X
Protective treatment TC conforming to IEC 60068
Ambient air temperature for storage -50-70 °C
Standards CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation -20-50 °C
Product certifications UKCA, CE, EAC, cULus, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 6.7 cm
Package 1 Length 5.9 cm
Package 1 Weight 120.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.98 kg
