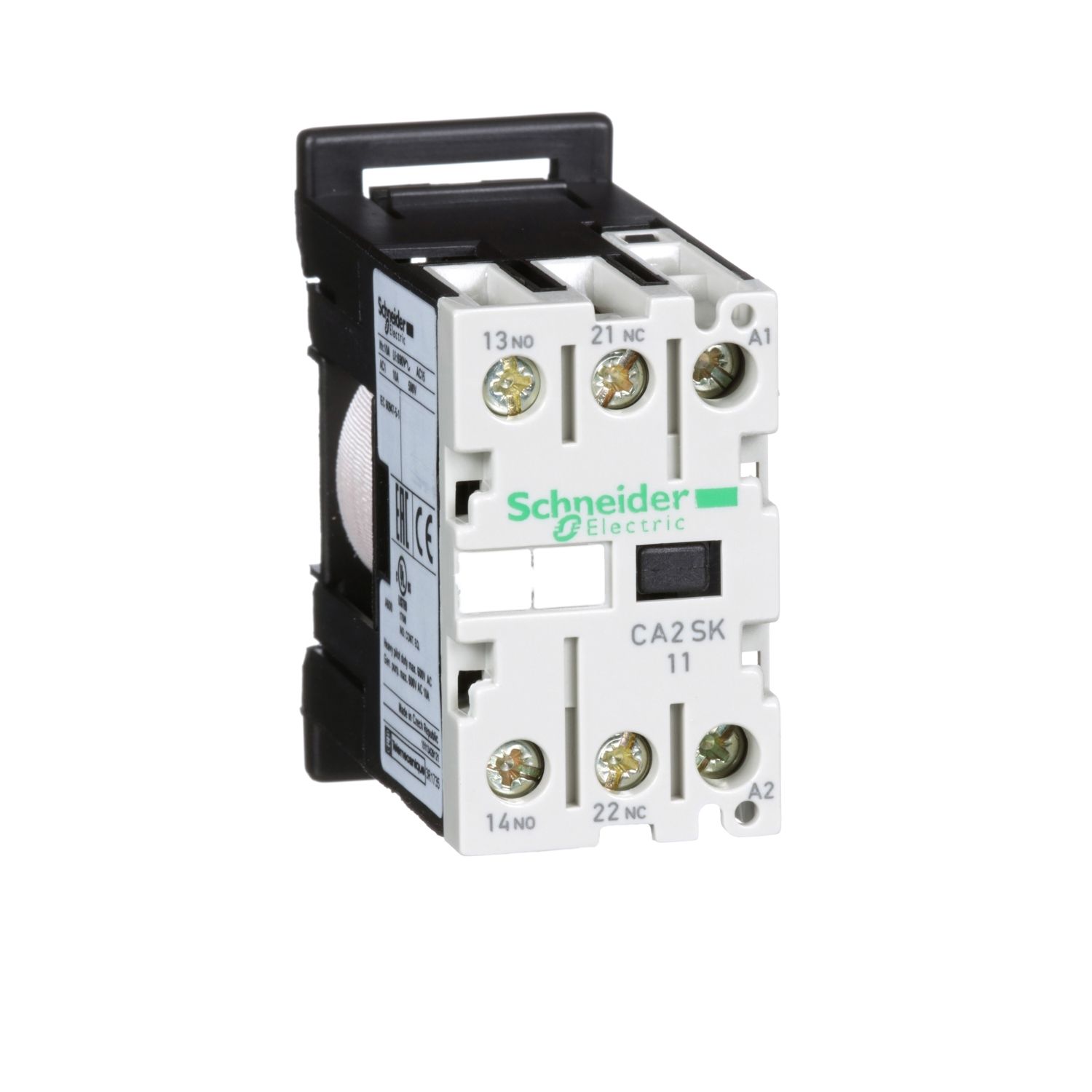

Picture of TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 220 V AC coil
SKU:

CA2SK11M7

TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 220 V AC coil

$149.18
Available for Shipping : 03-Dec-2024
TeSys; TeSys SK, control relay, 1 NO + 1 NC, <= 690 V, 220 V AC coil
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name CA2SK
Utilisation category AC-15, DC-13
Pole contact composition 1 NO + 1 NC
Range TeSys
Product name TeSys CASK
Product or component type control relay
Contactor application control circuit
[Uc] control circuit voltage 220 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
Range of product TeSys SK control relay
[Ue] rated operational voltage <= 690 V <= 400 Hz
Complementary
Heat dissipation 1.4-1.4 W
[Ui] rated insulation voltage 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth 55.5 mm
Width 27 mm
Operating time 8...16 ms coil energisation and NC opening, 8...10 ms coil de-energisation and NC closing, 7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening
Hold-in power consumption in VA 4.2-4.2 VA (at 20 °C)
Compatibility code CA2SK
Mechanical durability 10 Mcycles
Tightening torque 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head
Maximum operating rate 1200 cyc/h
Connections - terminals screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.35-6 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.5-6 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-6 mm²solid
Inrush power in VA 16-16 VA (at 20 °C)
Net weight 0.132 kg
Associated fuse rating 10 A gL conforming to IEC 60947, 10 A gL conforming to VDE 0660
Mounting support plate, rail
[Ith] conventional free air thermal current 10 A (at 55 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
Height 56 mm
Environment
Operating altitude 2000 m without derating
IP degree of protection IP2X
Protective treatment TC conforming to IEC 60068
Ambient air temperature for storage -50-70 °C
Standards CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation -20-50 °C
Product certifications UKCA, CE, EAC, cULus, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 6.000 cm
Package 1 Length 6.500 cm
Package 1 Weight 121.400 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 1280
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 168.013 kg
