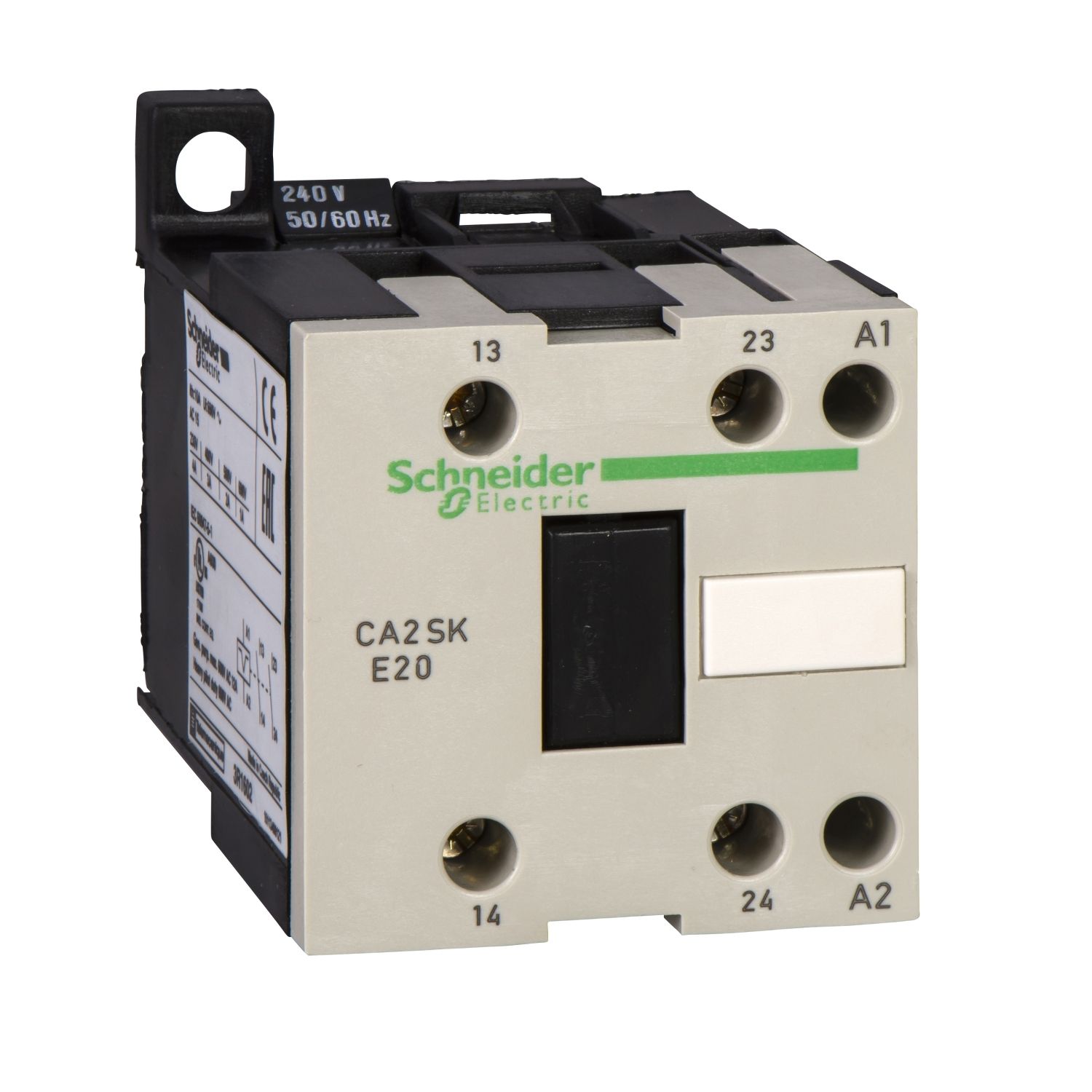

Picture of Control relay, TeSys SK, 2NO, <= 690V, 240V AC coil
SKU:

CA2SKE20U7

Control relay, TeSys SK, 2NO, <= 690V, 240V AC coil

$289.13
Control relay, TeSys SK, 2NO, <= 690V, 240V AC coil
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
Declaration of conformity
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name CA2SKE
Utilisation category DC-13, AC-15
Pole contact composition 2 NO
Range TeSys
Product name TeSys CASK
Product or component type control relay
Contactor application control circuit
[Uc] control circuit voltage 240 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
Range of product TeSys SK control relay
[Ue] rated operational voltage <= 690 V <= 400 Hz
Complementary
Heat dissipation 1.5-1.5 W
[Ui] rated insulation voltage 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth 68 mm
Width 45 mm
Operating time 7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening
Hold-in power consumption in VA 4.9-4.9 VA (at 20 °C)
Compatibility code CA2SKE
Mechanical durability 10 Mcycles
Tightening torque 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head
Maximum operating rate 1200 cyc/h
Connections - terminals screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.35-6 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.5-6 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-6 mm²solid
Inrush power in VA 23-23 VA (at 20 °C)
Net weight 0.132 kg
Associated fuse rating 10 A gL conforming to IEC 60947, 10 A gL conforming to VDE 0660
Mounting support plate, rail
[Ith] conventional free air thermal current 10 A (at 55 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
Height 58 mm
Environment
Operating altitude 2000 m without derating
IP degree of protection IP2X
Protective treatment TC conforming to IEC 60068
Ambient air temperature for storage -50-70 °C
Standards CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation -20-50 °C
Product certifications UKCA, CE, EAC, cULus, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 6.0 cm
Package 1 Length 7.5 cm
Package 1 Weight 181.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.566 kg

Related products

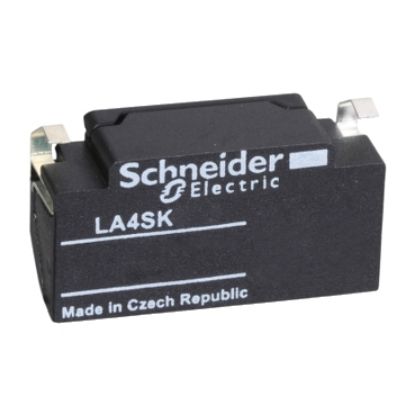

Picture of TeSys; TeSys SK, suppressor module, diodes, 24...250 V DC
