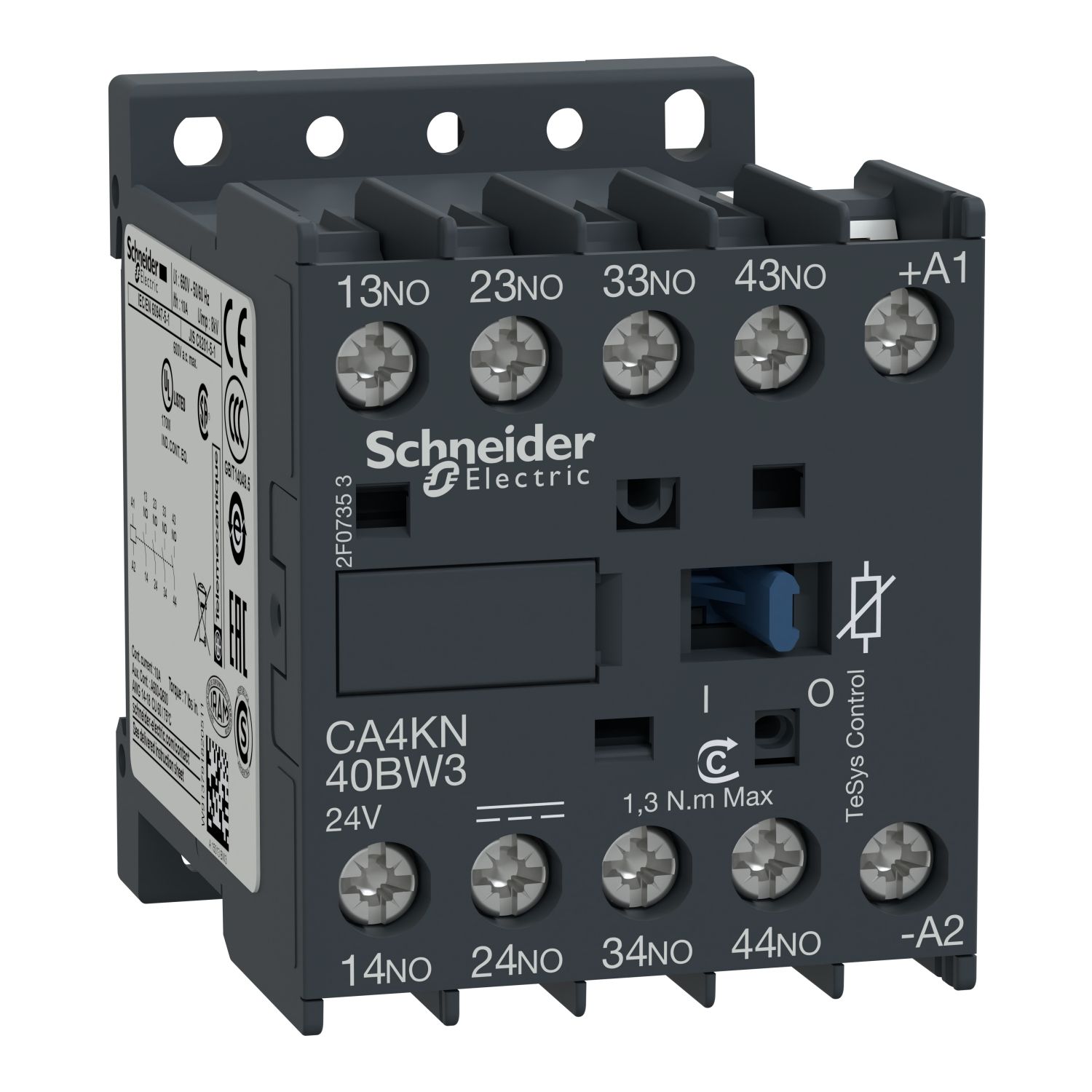

Picture of control relay, TeSys K, 4P(4NO), 690V, 24V DC low consumption coil
SKU:

CA4KN40BW3

control relay, TeSys K, 4P(4NO), 690V, 24V DC low consumption coil

$143.46
control relay, TeSys K, 4P(4NO), 690V, 24V DC low consumption coil
  • TeSys Control Relays provide a cost-effective solution to a simple application
  • Same design as TeSys D, K and SK contactors
  • Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
  • Compatible for all the voltages on the market
  • Multiple international certifications
  • Control relays for AC or DC control circuits (AC15, DC13)
  • Easy to use interface for electronic devices (example: PLCs)
  • Various Relay Coil Voltages: A.C, D.C. or low consumption
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Nov-2024
Product environmental
Catalogue
Instruction sheet
End of life manual
Declaration of conformity
CAD
Product Page Link
Product Data Sheet
TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameCA4K
RangeTeSys
Control circuit typeDC low consumption
Range of productTeSys K control relay
Utilisation categoryAC-15, DC-13
Pole contact composition4 NO
Product nameTeSys CAK
Product or component typecontrol relay
Contactor applicationcontrol circuit
[Uc] control circuit voltage24 V DC
[Ue] rated operational voltage<= 690 V <= 400 Hz
Complementary
Heat dissipation1.8-1.8 W
Compatibility codeCA4K
Mechanical durability30 Mcycles
Tightening torque1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage17 V
Connections - terminalsscrew clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Associated fuse rating10 A gG conforming to VDE 0660, 10 A gG conforming to IEC 60947
Irms rated making capacity110 A conforming to IEC 60947
[Ith] conventional free air thermal current10 A (at 50 °C)
Control circuit voltage limitsoperational: 0.7...1.3 Uc (at <50 °C), drop-out: 0.1...0.75 Uc (at <50 °C)
Height58 mm
[Ui] rated insulation voltage600 V conforming to CSA C22.2 No 14, 690 V conforming to BS 5424, 750 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth57 mm
Width45 mm
Operating time30...40 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
Inrush power in W1.8-1.8 W (at 20 °C)
Maximum operating rate6000 cyc/h
Coil technologybuilt-in bidirectional peak limiting diode suppressor
Net weight0.235 kg
Insulation resistance> 10 MOhm
Hold-in power consumption in W1.8-1.8 W at 20 °C
Immunity to microbreaks2 ms
Mounting supportplate, rail
Non overlap distance0.5 mm
Minimum switching current5 mA
Environment
IP degree of protectionIP2X
Protective treatmentTC conforming to IEC 60068
Ambient air temperature for storage-50-80 °C
StandardsJIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Ambient air temperature for operation-25-50 °C
Mechanical robustnessshocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Operating altitude2000 m without derating
Flame retardancerequirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certificationsUKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width4.800 cm
Package 1 Length6.200 cm
Package 1 Weight221.000 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight9.210 kg
Unit Type of Package 33
Number of Units in Package 3640
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight156.580 kg

Related products

Picture of TeSys, Auxiliary contact block, TeSys K, 2NC,front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 2NC,front mounting, screw clamp terminals

LA1KN02
$29.84
View Detail
Picture of TeSys, Auxiliary contact block, TeSys K, 1NO + 1NC, front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 1NO + 1NC, front mounting, screw clamp terminals

LA1KN11
$29.77
View Detail
Picture of TeSys, Auxiliary contact block, TeSys K, 2NO, front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 2NO, front mounting, screw clamp terminals

LA1KN20
$29.84
View Detail

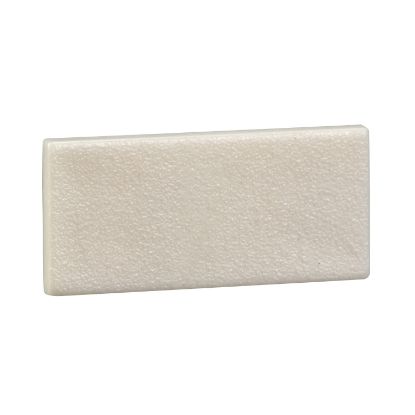

Picture of clip-on marker holder, 8x17mm, for TeSys k contactor or reversing contactor
