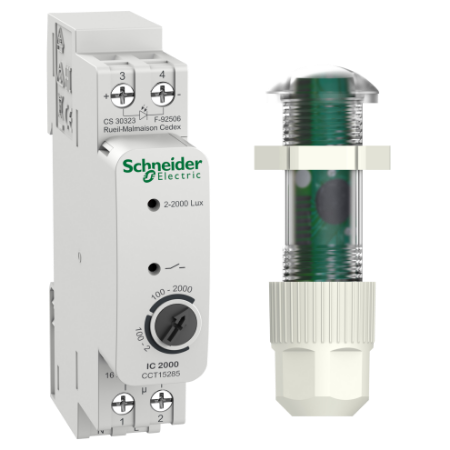

Picture of Acti9 IC2000 indoor (2 - 2000 lux) twilight switch
SKU:

CCT15285

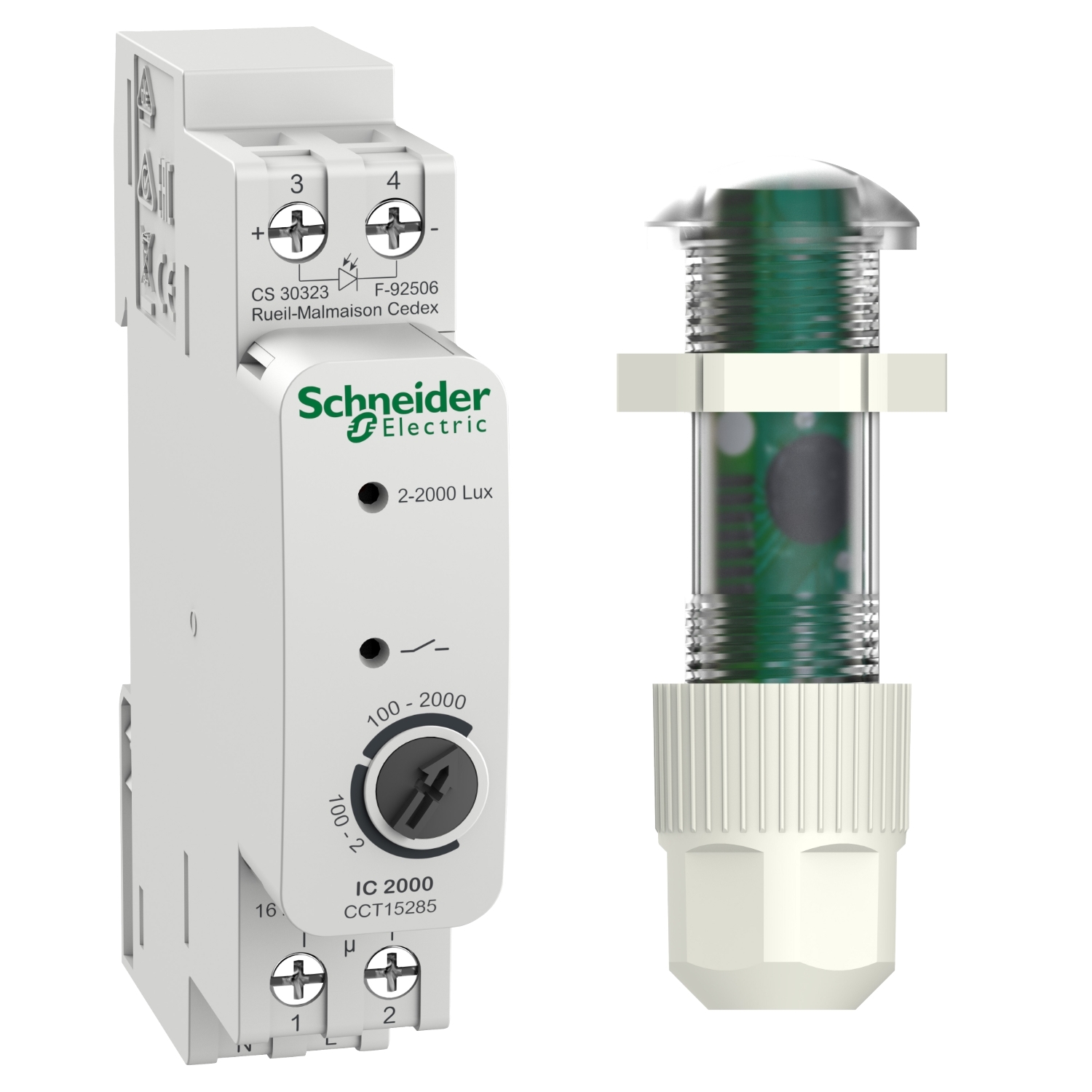

Acti9 IC2000 indoor (2 - 2000 lux) twilight switch

$255.32
Available for Shipping : 24-Nov-2024
Product Selector
Acti9 IC2000 indoor (2 - 2000 lux) twilight switch
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Brochure
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with indoor switchboard sensor 1 channel output

Products specifications

Attribute name Attribute value
Main
Device short name IC2000
Range Acti9
Product name Acti9 IC
Product or component type twilight switch
Provided equipment twilight sensor indoor
Load type > 2 W LED lamp: 200 W, < 2 W LED lamp: 30 W,  compact fluorescent lamp: 170 W,  parallel compensated fluorescent lamp: 730 VA (80 µF),  serial-compensated fluorescent tube: 2300 VA,  non-corrected fluorescent tube: 2300 VA,  halogen lamp: 2600 W,  incandescent lamp: 2600 W
Complementary
Device application building
Maximum power consumption in W 0.5 W stand by
Depth 67 mm
Overvoltage category class 3
Output type dry contact
Width 18 mm
Light intensity adjustment 2-2000 lux
Mounting support TH35 DIN rail conforming to EN 60715
Number of channels 1
Contacts type and composition 1 NO
Electrical insulation class class II
Control type by brightness detection
Connections - terminals 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve, 2 x 0.5-2.5 mm² screw terminals solid or flexible
Time delay 80 s off, 20 s on
Net weight 87.5 g
Marking CE
Accuracy +/- 0.25 s/day 25 °C
[Ue] rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current 16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6
Height 85.5 mm
Minimum switching current 100 mA 24 V AC/DC, 10 mA 230 V AC
Environment
IP degree of protection IP40 (sensor)rear, IP66 (sensor)front, IP20
Relative humidity 90-90 %, non-condensing
Ambient air temperature for storage -30-70 °C
Standards EN 60669-2-1
Ambient air temperature for operation -30-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.7 cm
Package 1 Width 7.7 cm
Package 1 Length 10.5 cm
Package 1 Weight 124.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.922 kg
