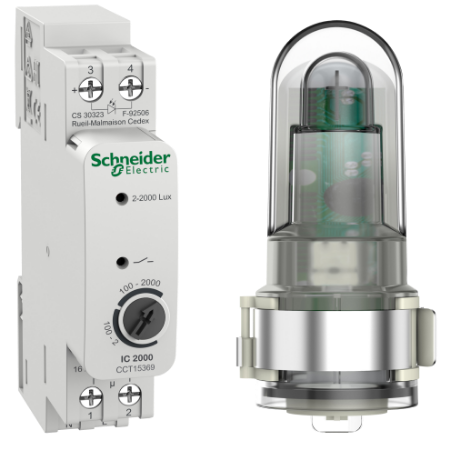

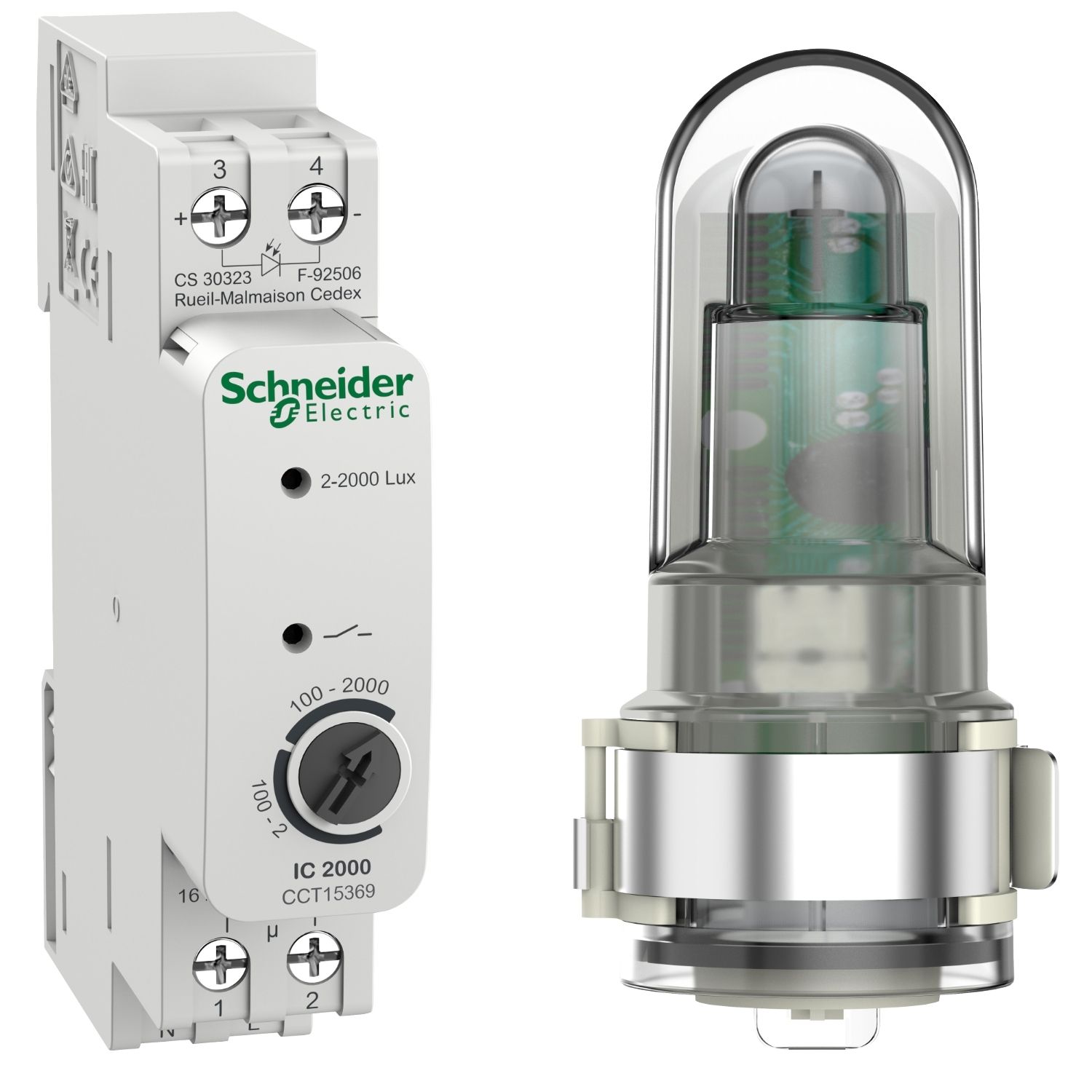

Picture of Acti9 IC2000 outdoor (2 - 2000 lux) twilight switch
SKU:

CCT15369

Acti9 IC2000 outdoor (2 - 2000 lux) twilight switch

$251.86
Product Selector
Acti9 IC2000 outdoor (2 - 2000 lux) twilight switch
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Brochure
Declaration of conformity
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with outdoor wall-mounted sensor 1 channel output

Products specifications

Attribute nameAttribute value
Main
Device short nameIC2000
RangeActi9
Product nameActi9 IC
Product or component typetwilight switch
Provided equipmenttwilight sensor outdoor
Load type> 2 W LED lamp: 200 W, < 2 W LED lamp: 30 W,  compact fluorescent lamp: 170 W,  parallel compensated fluorescent lamp: 730 VA (80 µF),  serial-compensated fluorescent tube: 2300 VA,  non-corrected fluorescent tube: 2300 VA,  halogen lamp: 2600 W,  incandescent lamp: 2600 W
Complementary
Device applicationbuilding
Maximum power consumption in W0.5 W stand by
Depth67 mm
Overvoltage categoryclass 3
Output typedry contact
Width18 mm
Light intensity adjustment2-2000 lux
Mounting supportTH35 DIN rail conforming to EN 60715
Number of channels1
Contacts type and composition1 NO
Electrical insulation classclass II
Control typeby brightness detection
Connections - terminals2 x 0.5-2.5 mm² screw terminals solid or flexible, 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve
Time delay80 s off, 20 s on
Net weight111 g
MarkingCE
Accuracy+/- 0.25 s/day 25 °C
[Ue] rated operational voltage230 V AC +10 % -15 % at 50/60 Hz
Total power losses0.3 W
Maximum switching current16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6
Height85.5 mm
Minimum switching current100 mA 24 V AC/DC, 10 mA 230 V AC
Environment
IP degree of protectionIP55 (sensor), IP20
Relative humidity90-90 %, non-condensing
Ambient air temperature for storage-30-70 °C
StandardsEN 60669-2-1
Ambient air temperature for operation-30-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.5 cm
Package 1 Width8.0 cm
Package 1 Length10.5 cm
Package 1 Weight161.0 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight6.89 kg
Unit Type of Package 33
Package 3 Height80 cm
