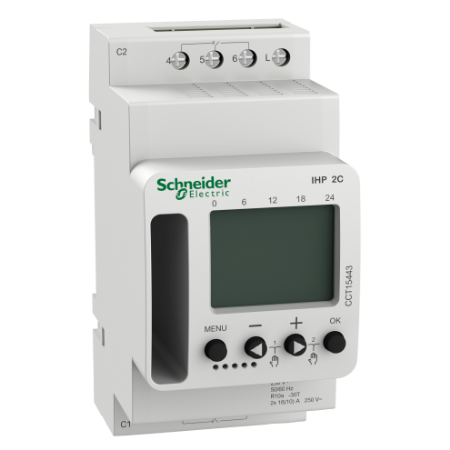

Picture of Acti9 IHP 2C w (24h/7d) programmable time switch

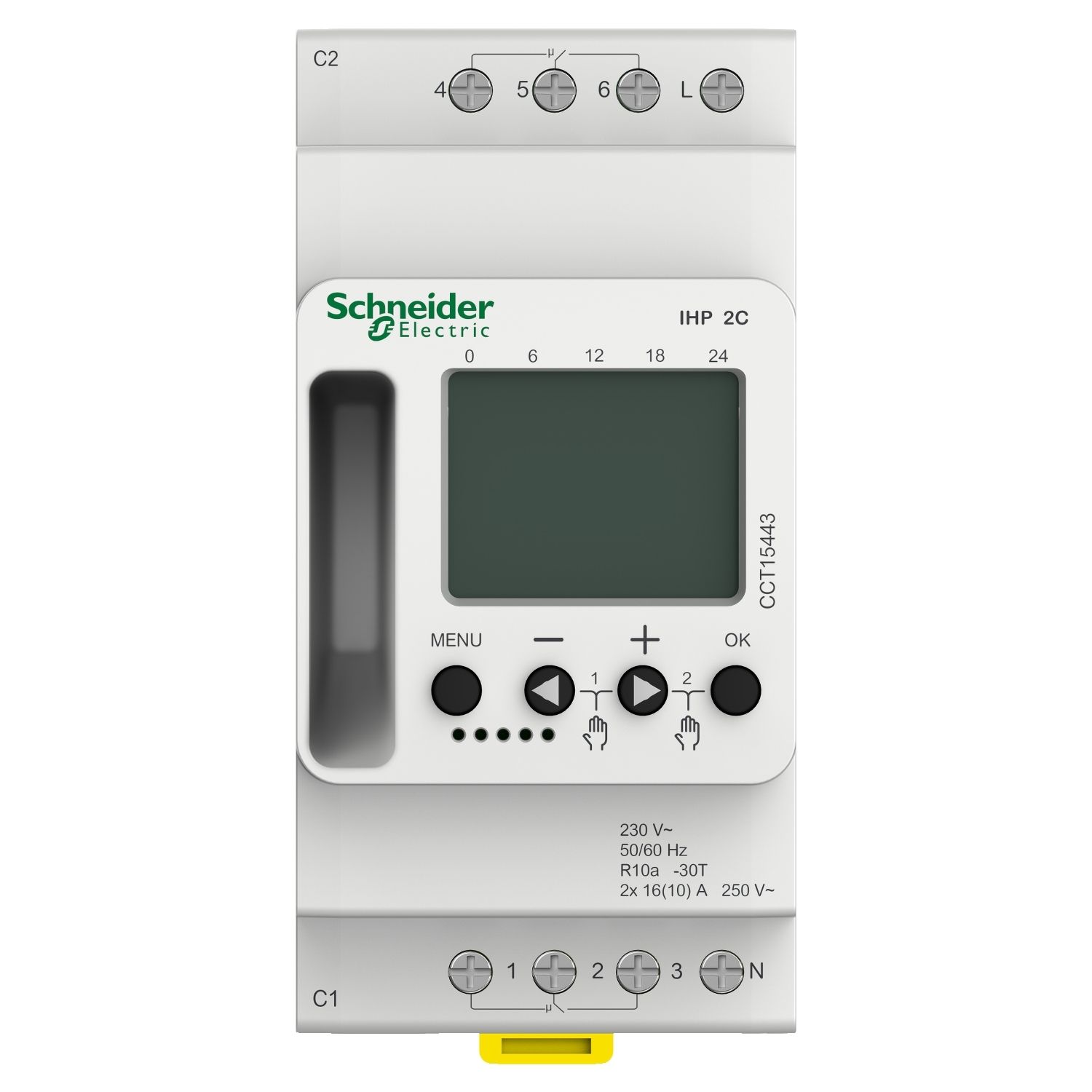

Picture of Acti9 IHP 2C w (24h/7d) programmable time switch

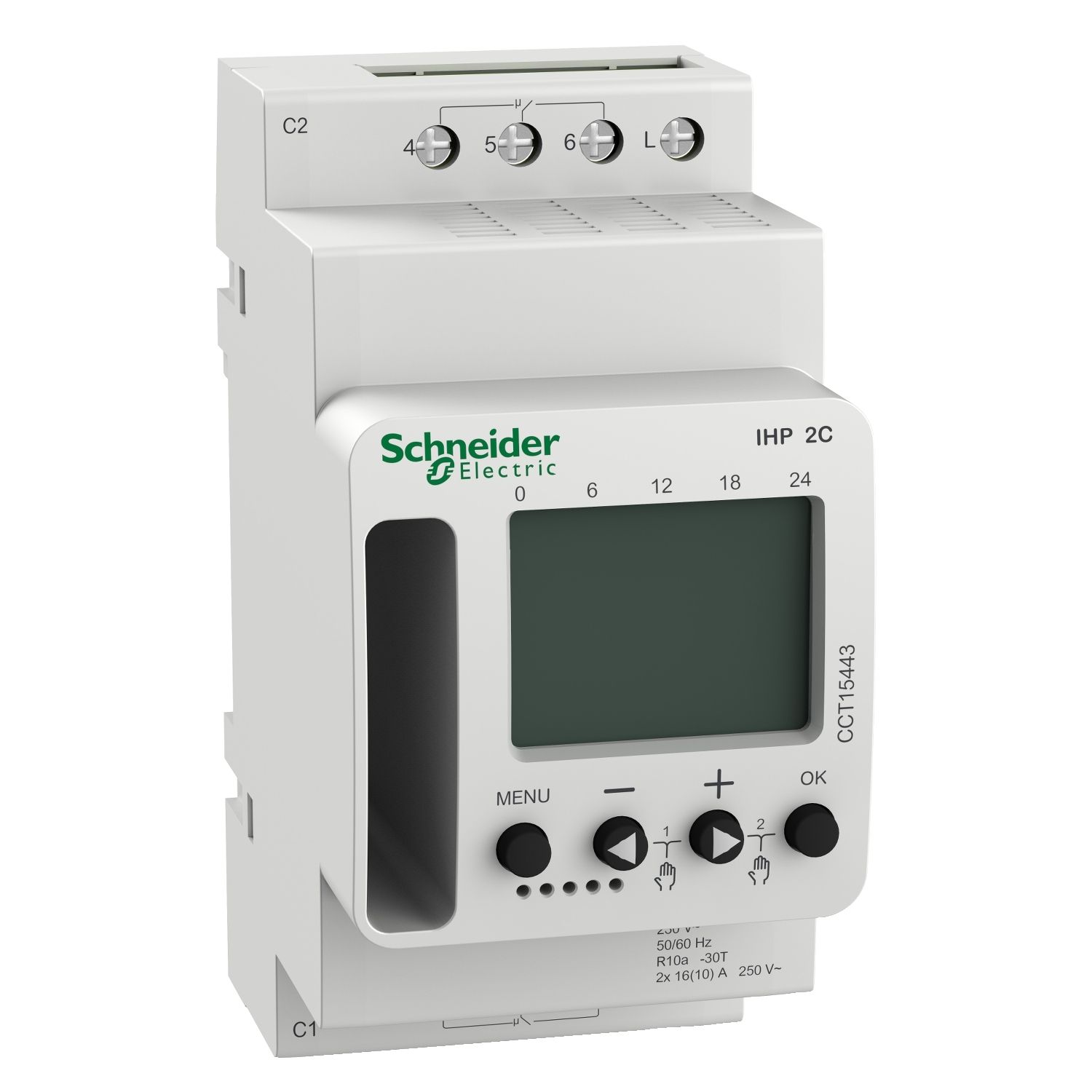

Picture of Acti9 IHP 2C w (24h/7d) programmable time switch
SKU:

CCT15443

Acti9 IHP 2C w (24h/7d) programmable time switch

Old price: $231.00 INC GST
$136.50 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Acti9 IHP 2C w (24h/7d) programmable time switch
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
User guide
Declaration of conformity
Brochure
Product Page Link
Product Data Sheet
IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily

Products specifications

Attribute name Attribute value
Main
Device short name IHP
Device application building
Number of channels 2
Range Acti9
User language Finnish, Swedish, Norwegian, Danish, Portuguese, Spanish, Italian, Dutch, German, French, English
Product name Acti9 IHP
Product or component type programmable digital time switch
Colour tint white
Complementary
Control button type 4 push-buttons
Type of setting weekly programming
Function available switch preselection, on/off switching times, manual operation, on/off permanent switching, automatic winter/summer time changeover, holiday schedules, code lock function
Electrical insulation class class II
Marking CE
Maximum number of switchings 56
Backup time 10 years time and program saving
Accuracy +/- 0.25 s/day 25 °C
Maximum switching current 16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6
Height 92.6 mm
Load type > 2 W LED lamp: 200 W, < 2 W LED lamp: 25 W,  compact fluorescent lamp: 400 W,  parallel compensated fluorescent lamp: 400 VA (48 µF),  serial-compensated fluorescent tube: 2600 VA,  non-corrected fluorescent tube: 2600 VA,  halogen lamp: 2600 W,  incandescent lamp: 2600 W
Minimum interval duration 1 min
Maximum power consumption in W 0.5 W standby
Depth 66.7 mm
Overvoltage category class 3
Output type dry contact
Width 45 mm
Absence for holidays yes
Updated by none
Function none
Mounting support TH35 DIN rail conforming to EN 60715
Contacts type and composition C/O
Connections - terminals 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve, 2 x 0.5-2.5 mm² screw terminals solid or flexible
Net weight 130 g
Time changeover automatic
[Ue] rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz
Minimum switching current 100 mA 24 V AC/DC, 10 mA 230 V AC
Cycle duration 24 hours + 7 days
Environment
IP degree of protection IP20
Relative humidity 90-90 %, non-condensing
Ambient air temperature for storage -30-70 °C
Standards EN 60730-2-7:2010
Ambient air temperature for operation -30-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 8.000 cm
Package 1 Length 10.200 cm
Package 1 Weight 174.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.422 kg
