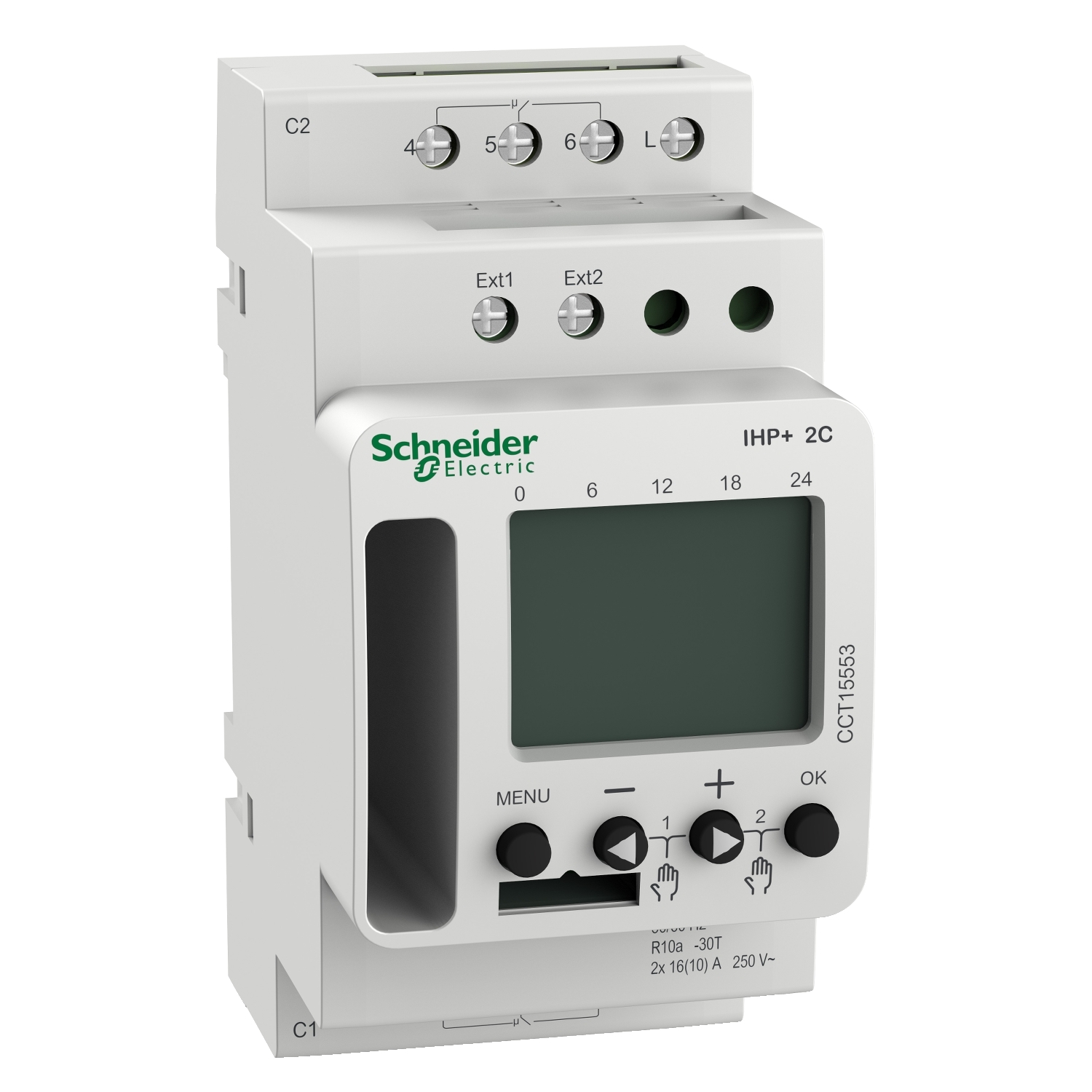

Picture of Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch
SKU:

CCT15553

Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch

Old price: $232.43 INC GST
$137.34 INC GST
Available for Shipping : 22-Jan-2026
Product Selector
Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
IHP+ SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 2 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily

Products specifications

Attribute name Attribute value
Main
Device short name IHP+
Device application building
Provided equipment memory stick
Number of channels 2
Range Acti9
User language Finnish, Swedish, Norwegian, Danish, Portuguese, Spanish, Italian, Dutch, German, French, English
Product name Acti9 IHP
Product or component type programmable digital time switch
Complementary
Control button type 4 push-buttons
Type of setting random program 2 , weekly programming
Display type backlit LCD
Information displayed operating time counter
Function available switch preselection, cycle programming, pulse programming, on/off switching times, automatic winter/summer time changeover, holiday schedules, code lock function, external input for override per channel
Electrical insulation class class II
Marking CE
Maximum number of switchings 84
Backup time 10 years time and program saving
Accuracy +/- 0.25 s/day 25 °C
Maximum switching current 16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6
Height 92.6 mm
Load type > 2 W LED lamp: 200 W, < 2 W LED lamp: 25 W,  compact fluorescent lamp: 400 W,  parallel compensated fluorescent lamp: 400 VA (48 µF),  serial-compensated fluorescent tube: 2600 VA,  non-corrected fluorescent tube: 2600 VA,  halogen lamp: 2600 W,  incandescent lamp: 2600 W
Minimum interval duration 1 s
Maximum power consumption in W 0.5 W standby
Depth 66.7 mm
Overvoltage category class 3
Output type dry contact
Width 45 mm
Absence for holidays yes
Updated by none
Function pulse programming, random function, external input for override
Mounting support TH35 DIN rail conforming to EN 60715
Contacts type and composition C/O
Connections - terminals 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve, 2 x 0.5-2.5 mm² screw terminals solid or flexible
Net weight 141 g
Time changeover automatic
[Ue] rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz
Minimum switching current 100 mA 24 V AC/DC, 10 mA 230 V AC
Cycle duration 24 hours + 7 days
Environment
IP degree of protection IP20
Relative humidity 90-90 %, non-condensing
Ambient air temperature for storage -30-70 °C
Standards EN 60730-2-7:2010
Ambient air temperature for operation -30-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 8.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 184.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.852 kg
