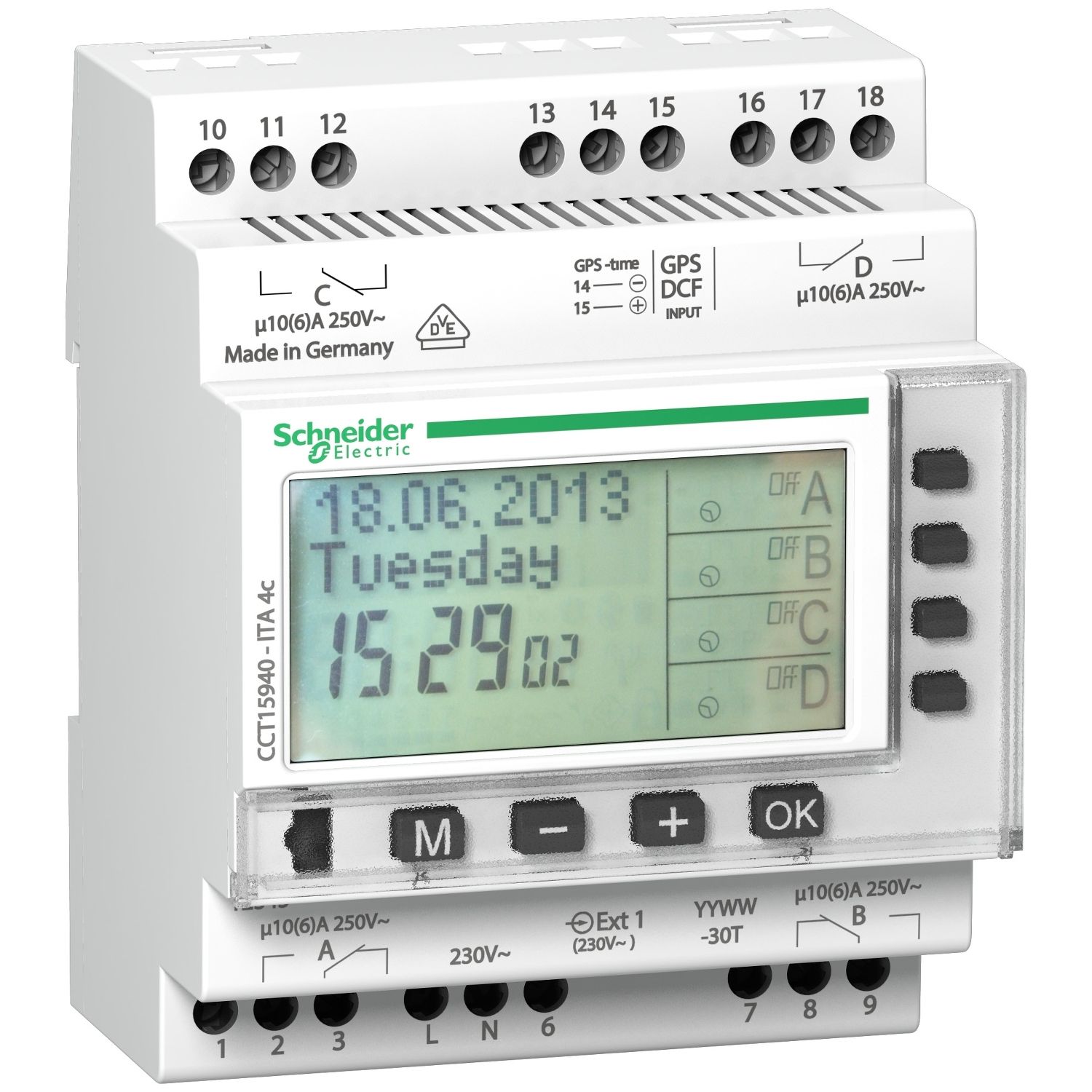

Picture of Acti9 - ITA - 4C yearly time switch - 24 hours + 7 days + year
SKU:

CCT15940

Acti9 - ITA - 4C yearly time switch - 24 hours + 7 days + year

Old price: $1,848.00 INC GST
$1,091.98 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Acti9 - ITA - 4C yearly time switch - 24 hours + 7 days + year
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Brochure
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
ITA 4c yearly programmable time switch. Weekly or yearly time programming to be distributed over 4 channels. Override control with switch or push-button via external inputs. A memory key and a programming kit can be used to duplicate on another ITA or to save the program created by the user. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 124-3.2 W depending on the switching status). Operating temperature -30°C to +55°C. Width (9 mm modules): 8. Degree of protection: IP20. Output contact rating 250 V: 16 A cos Phi 1. 6 A cos Phi 0.6. LCD liquid crystal display: Back-lit. Number of switching operations: 300. Minimum switching: 1 s. Switching accuracy: Without antenna: ± 0.5 s per day at 20°C. With antenna: 1 s on 1 million years1 s. Number of channels: 4.

Products specifications

Attribute name Attribute value
Main
Device short name ITA
Device application building
Number of channels 4
Battery type lithium
Range Acti9
User language Finnish, Polish, Czech, Romanian, Swedish, Portuguese, Danish, English, German, Italian, Dutch, French, Spanish, Norwegian, Hungarian
Range of product Acti9
Product name Acti9 ITA
Product or component type yearly programmable time switch
Colour tint white (RAL 9003)
Complementary
Type of setting absence for holidays function, PIN code
Display type backlit LCD
Compatibility code ITA
Battery life 10 year(s)
Function available automatic winter/summer time changeover, time synchronisation via antenna possible, external input for override, pulse programming, manual or software programming, cycle programming
Number of inputs 2 input(s) impulse and maintained
Maximum number of switchings 300
Backup time 10 years time and program saving
Accuracy +/- 0.5 s/day 20 °C
Maximum switching current 6 A - 250 V AC pf = 0.6 , 10 A - 250 V AC pf = 1
Height 90 mm
Minimum interval duration 1 s
Depth 63 mm
Market segment small commercial
Width 71.5 mm
Absence for holidays yes
Updated by DCF77, GPS
Function pulse programming
Mounting support DIN rail
Connections - terminals screw terminals
9 mm pitches 8
Time changeover automatic
[Ue] rated operational voltage 230 V AC at 50/60 Hz
Cycle duration 24 hours + 7 days + year
Environment
IP degree of protection IP20
Ambient air temperature for operation -30-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 7.800 cm
Package 1 Length 12.500 cm
Package 1 Weight 381.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.025 kg
