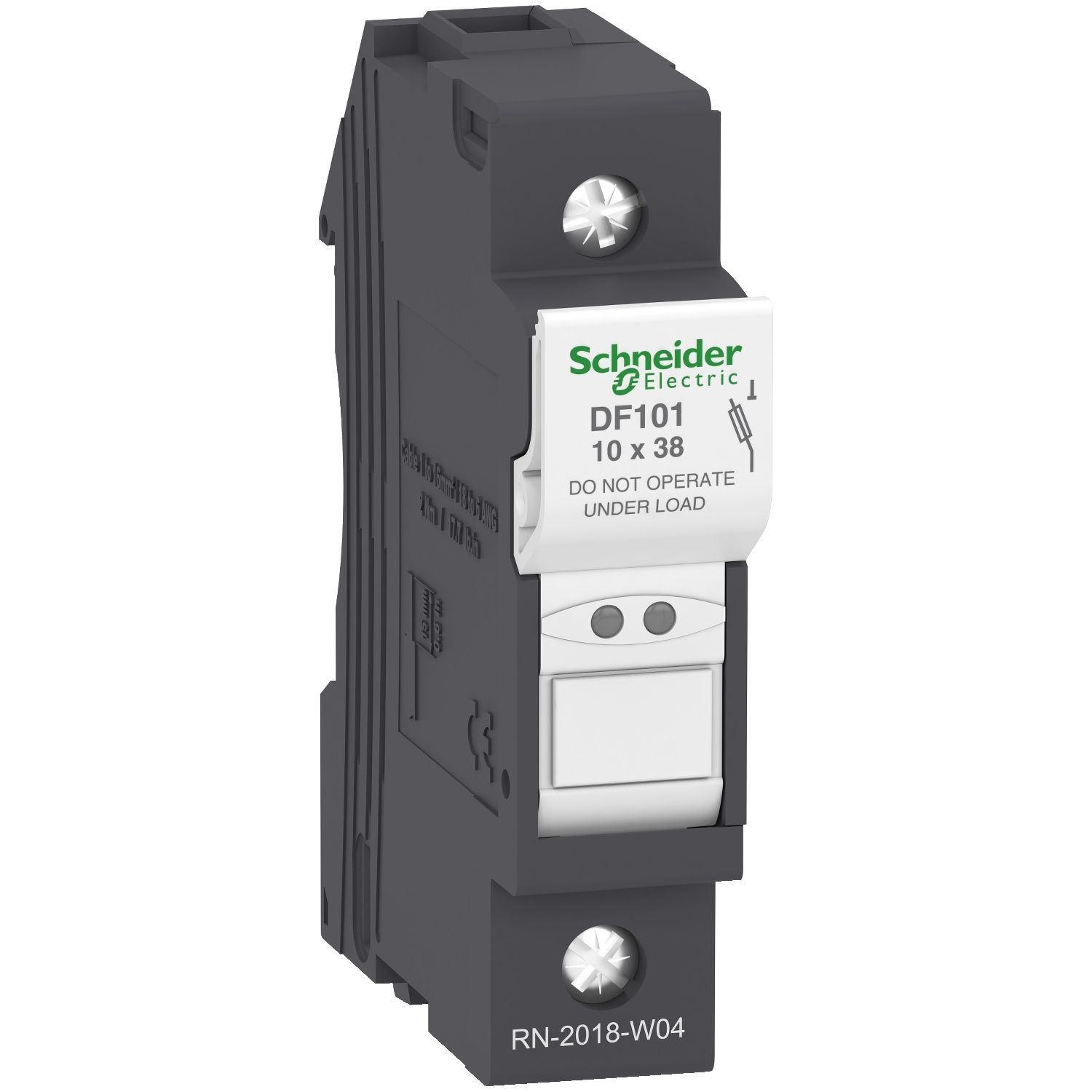

Picture of Fuse carrier, TeSys DF, 1P, 32A, 690VAC, fuse size 10x38mm
SKU:

DF101

Fuse carrier, TeSys DF, 1P, 32A, 690VAC, fuse size 10x38mm

Please Contact Sales to buy this Product. click here
Product Selector
Fuse carrier, TeSys DF, 1P, 32A, 690VAC, fuse size 10x38mm
  • To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V
  • Dual positions locking system for easy DIN-rail mounting
  • Prevent damage to your installation
  • Reduce risk for equipment and personnel
  • Improve production uptime
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Declaration of conformity
End of life manual
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameDF10
Poles description1P
Control typetoggle padlockable
[Ie] rated operational current32 A at 400 V AC
Product compatibilityDF2CN fuse cartridge, DF2CA fuse cartridge
[Ui] rated insulation voltage690 V AC
Short-circuit withstand120 kA 500 V conforming to IEC 60947-3, 120 kA 400 V conforming to IEC 60947-3
Overvoltage categoryIII
RangeTeSys
[Uimp] rated impulse withstand voltage6 kV
Utilisation categoryDC-20B conforming to IEC 60947-3, AC-20B conforming to IEC 60947-3
Power dissipation in W3 W maximum power dissipation by fuse
Product nameTeSys DF
Product or component typefuse carrier
Fuse type, gG, , aM
[Ith] conventional free air thermal current32 A 20 °C
Range of productTeSys fuse carriers
[Ue] rated operational voltage690 V DC, 690 V AC
Fuse size10 x 38 mm
Complementary
Depth61 mm
Width17.5 mm
Quantity per setset of 12
Tightening torque2.2 N.m - with screwdriver flat Ø 5.5 mm, 2.2 N.m - with screwdriver PZ2
Mounting positionvertical (tolerance: +/- 23°)
Net weight0.042 kg
Connections - terminalsscrew clamp terminals 2 cable(s) 1-6 mm²flexible with or without, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²rigid
Product certificationsDNV-GL, EAC, CCC, CSA, UL recognized, IEC
StandardsEN 45545-2: R22 HL2, CSA C22.2 No 4248-1, UL 4248-1, EN/IEC 60269-2, EN/IEC 60947-3
Mounting support35 mm symmetrical DIN rail
Height79.5 mm
Environment
Fire resistance960 °C conforming to IEC 60695-2-1
Operating altitude0...2000 m
Compatibility codeDF10
Ambient air temperature for storage-40-70 °C
Pollution degree3
IP degree of protectionIP20
Ambient air temperature for operation-40-70 °C with derating above 20°C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.7 cm
Package 1 Width6.2 cm
Package 1 Length8 cm
Package 1 Weight44 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height7 cm
Package 2 Width8.5 cm
Package 2 Length22.2 cm
Package 2 Weight566 g
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight9.509 kg
Unit Type of Package 44
Number of Units in Package 41536
Package 4 Height77 cm
Package 4 Width60 cm
Package 4 Length80 cm
Package 4 Weight92.16 kg
