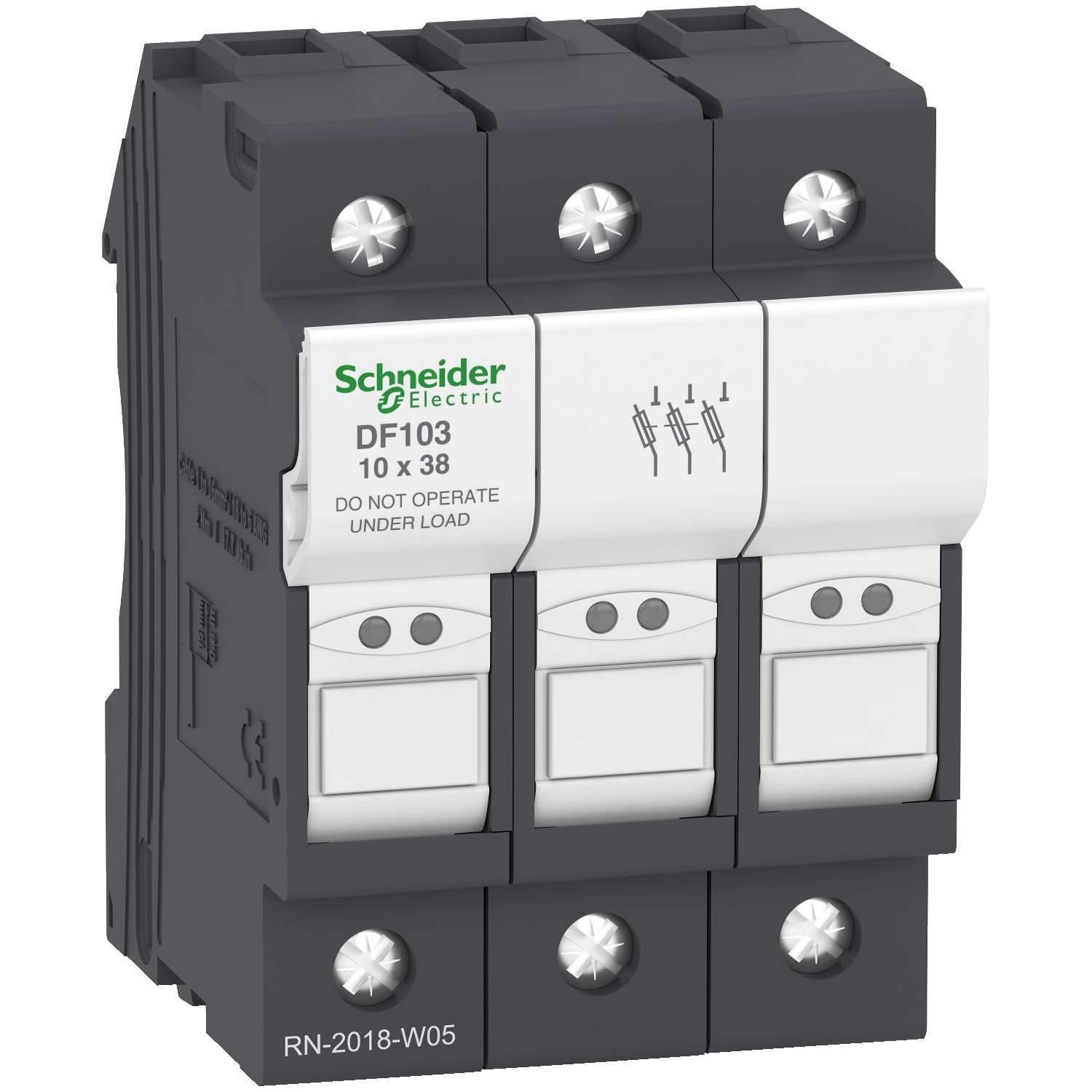

Picture of Fuse carrier, TeSys DF, 3P, 32A, 690VAC, fuse size 10x38mm
SKU:

DF103

Fuse carrier, TeSys DF, 3P, 32A, 690VAC, fuse size 10x38mm

$40.48
Available for Shipping : 10-Dec-2024
Product Selector
Fuse carrier, TeSys DF, 3P, 32A, 690VAC, fuse size 10x38mm
  • To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V
  • Dual positions locking system for easy DIN-rail mounting
  • Prevent damage to your installation
  • Reduce risk for equipment and personnel
  • Improve production uptime
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name DF10
Poles description 3P
Control type toggle padlockable
[Ie] rated operational current 32 A at 400 V AC
Product compatibility DF2CN fuse cartridge, DF2CA fuse cartridge
[Ui] rated insulation voltage 690 V AC
Short-circuit withstand 120 kA 500 V conforming to IEC 60947-3, 120 kA 400 V conforming to IEC 60947-3
Overvoltage category III
Range TeSys
[Uimp] rated impulse withstand voltage 6 kV
Utilisation category DC-20B conforming to IEC 60947-3, AC-20B conforming to IEC 60947-3
Power dissipation in W 3 W maximum power dissipation by fuse
Product name TeSys DF
Product or component type fuse carrier
Fuse type , aM, , gG
[Ith] conventional free air thermal current 32 A 20 °C
Range of product TeSys fuse carriers
[Ue] rated operational voltage 690 V DC, 690 V AC
Fuse size 10 x 38 mm
Complementary
Depth 61 mm
Width 52.5 mm
Quantity per set set of 4
Tightening torque 2.2 N.m - with screwdriver flat Ø 5.5 mm, 2.2 N.m - with screwdriver PZ2
Mounting position vertical (tolerance: +/- 23°)
Net weight 0.126 kg
Connections - terminals screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²rigid
Product certifications DNV-GL, EAC, CCC, CSA, UL recognized, IEC
Standards EN 45545-2: R22 HL2, CSA C22.2 No 4248-1, UL 4248-1, EN/IEC 60269-2, EN/IEC 60947-3
Mounting support 35 mm symmetrical DIN rail
Height 79.5 mm
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Operating altitude 0...2000 m
Compatibility code DF10
Ambient air temperature for storage -40-70 °C
Pollution degree 3
IP degree of protection IP20
Ambient air temperature for operation -40-70 °C with derating above 20°C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 6.200 cm
Package 1 Length 8.000 cm
Package 1 Weight 133.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 6.800 cm
Package 2 Width 8.500 cm
Package 2 Length 22.200 cm
Package 2 Weight 570.000 g
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.504 kg
Unit Type of Package 4 4
Number of Units in Package 4 512
Package 4 Height 77.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 85.300 kg
