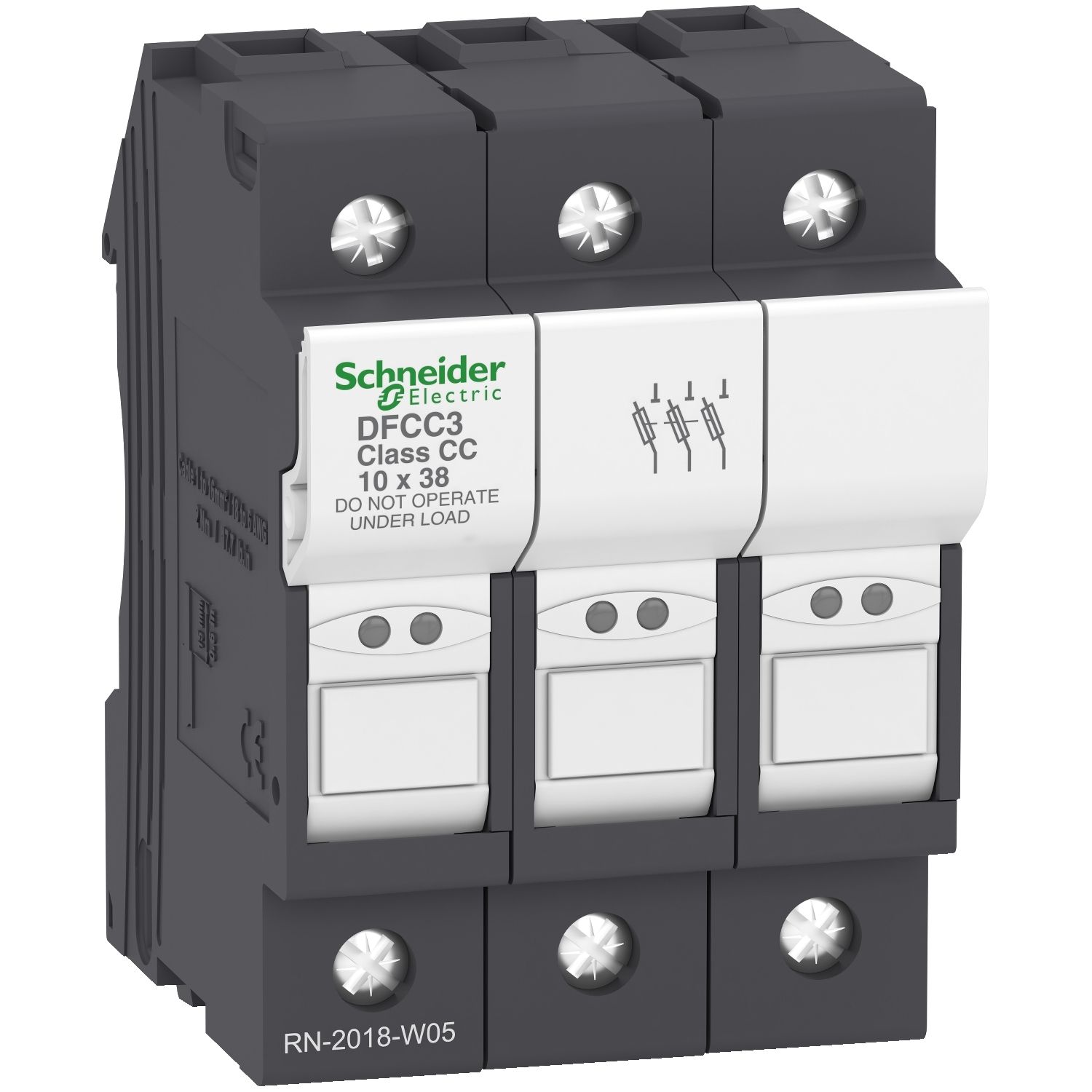

Picture of Fuse carrier, TeSys DF, 3P, 30A, 600VAC, fuse class CC
SKU:

DFCC3

Fuse carrier, TeSys DF, 3P, 30A, 600VAC, fuse class CC

$160.97
Available for Shipping : 24-Nov-2024
Fuse carrier, TeSys DF, 3P, 30A, 600VAC, fuse class CC
  • To be used with class CC fuse links up to 30A and short circuit current up to 200kA at 600V
  • Dual positions locking system for easy DIN-rail mounting
  • Prevent damage to your installation
  • Reduce risk for equipment and personnel
  • Improve production uptime
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name DFCC
Poles description 3P
Control type toggle padlockable
[Ie] rated operational current 30 A
[Ui] rated insulation voltage 600 V AC
Short-circuit withstand 200 kA 600 V conforming to UL 512
Range TeSys
[Uimp] rated impulse withstand voltage 6 kV
Utilisation category AC-20B conforming to IEC 60947-3
Power dissipation in W 3 W maximum power dissipation by fuse
Product name TeSys DF
Product or component type fuse carrier
Fuse type , CC
Range of product TeSys fuse carriers
[Ue] rated operational voltage 600 V AC
Complementary
Depth 61 mm
Width 52.5 mm
Quantity per set set of 6
Tightening torque 2 N.m - with screwdriver flat Ø 5.5 mm, 2 N.m - with screwdriver PZ2
Mounting position vertical (tolerance: +/- 23°)
Net weight 0.126 kg
Connections - terminals screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²rigid
Product certifications CSA, UL recognized
Standards CSA C22.2 No 4248-4, CSA C22.2 No 4248-1, UL 4248-4, UL 4248-1
Mounting support 35 mm symmetrical DIN rail
Height 79.5 mm
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Operating altitude 0...2000 m without derating
Compatibility code DFCC
Ambient air temperature for storage -40-70 °C
Pollution degree 3
IP degree of protection IP20
Ambient air temperature for operation -40-70 °C with derating above 20°C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.3 cm
Package 1 Width 5.3 cm
Package 1 Length 8.0 cm
Package 1 Weight 132.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 6.8 cm
Package 2 Width 8.5 cm
Package 2 Length 22.2 cm
Package 2 Weight 570.0 g
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 9.514 kg
