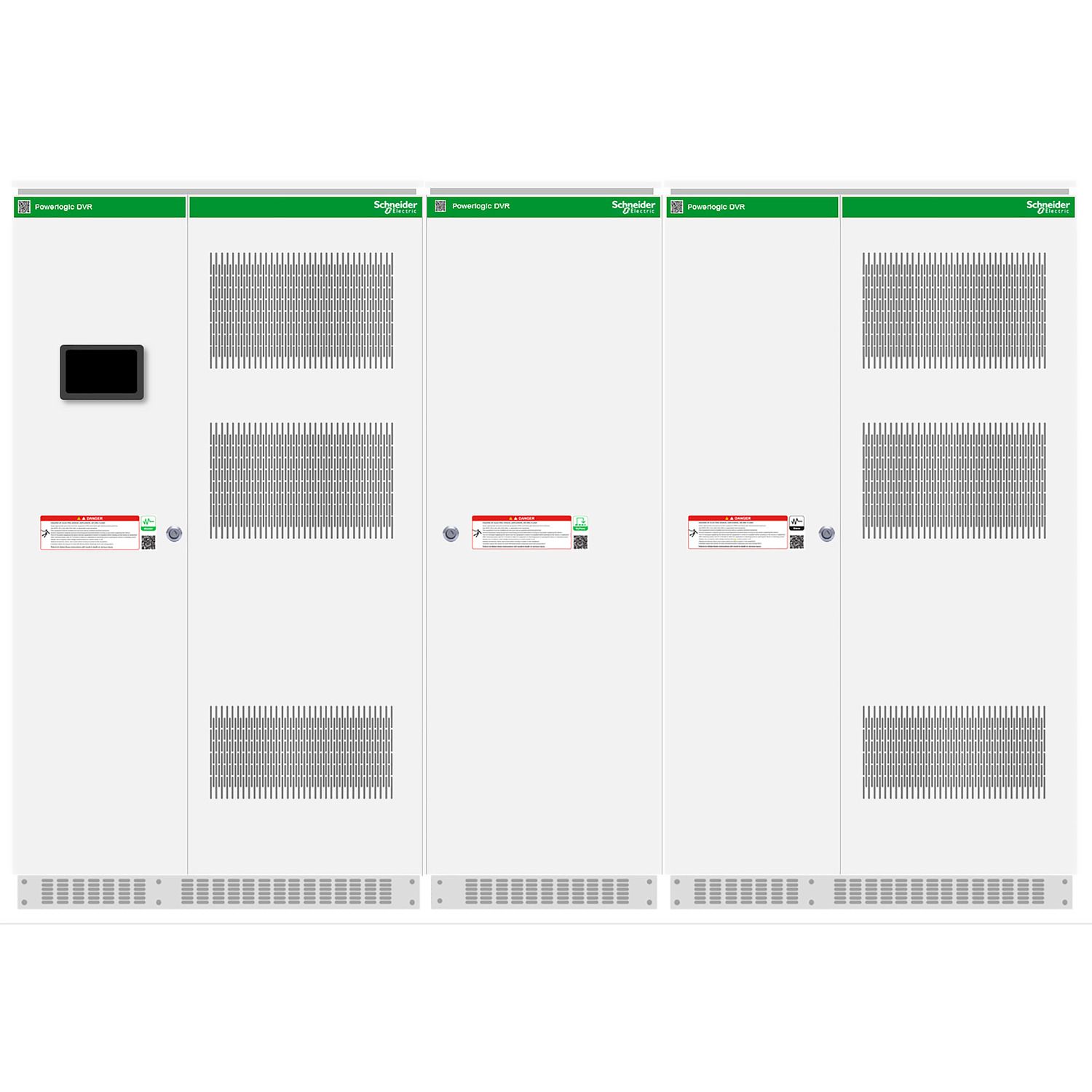

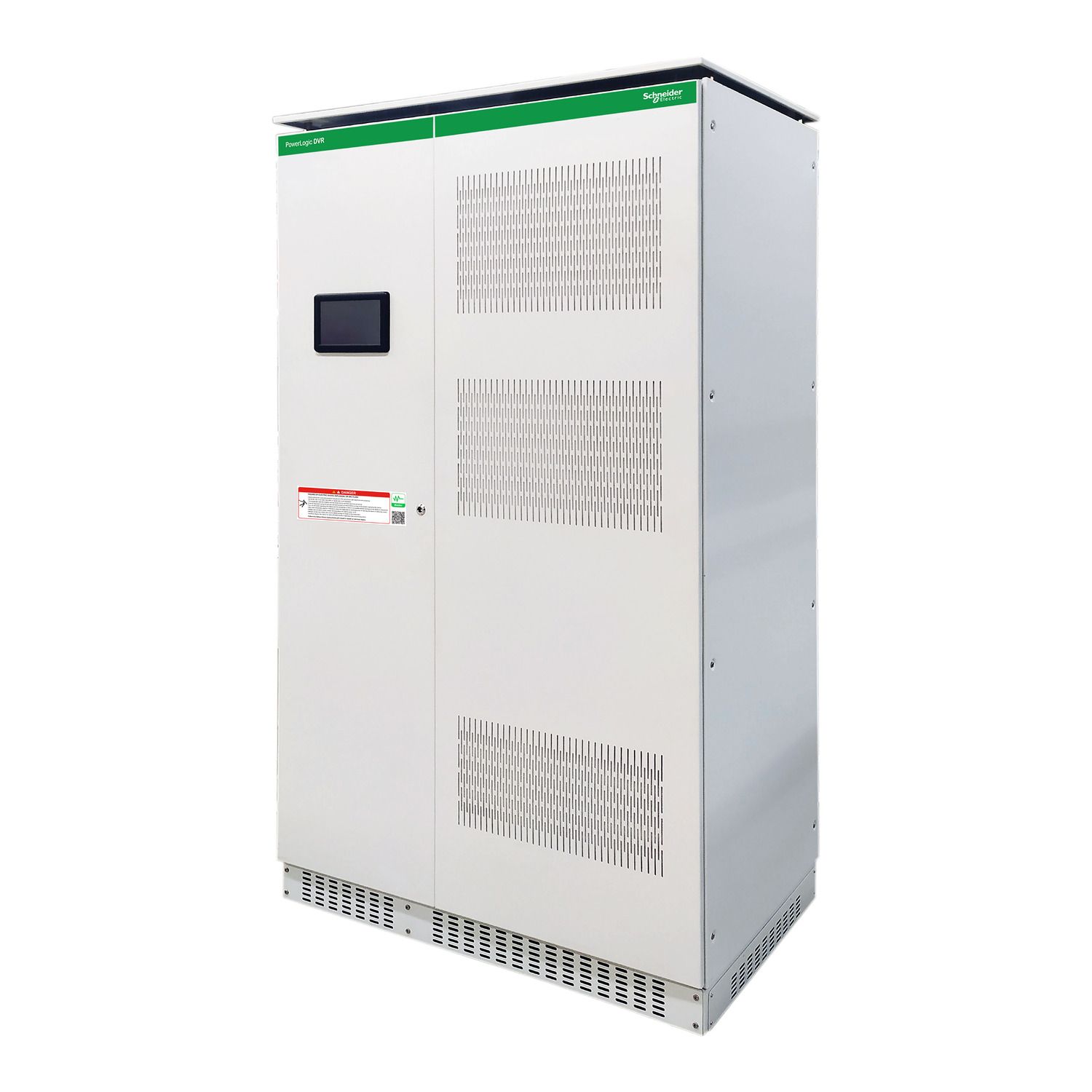

Picture of Voltage regulator DVR, 150 kVA, 208 V, up to 40 % sags reduction, working as primary
SKU:

DVR15040208

Voltage regulator DVR, 150 kVA, 208 V, up to 40 % sags reduction, working as primary

Please Contact Sales to buy this Product. click here
Product Selector
Voltage regulator DVR, 150 kVA, 208 V, up to 40 % sags reduction, working as primary
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 06-Apr-2025
Product environmental
Image of product
Image of product
End of life manual
Image of product
Declaration of conformity
User guide
Catalogue
Product Page Link
Product Data Sheet
The PowerLogic DVR series offer to industry a solution to regulate voltage and restore Sags. This Low Voltage - Dynamic Voltage Restorer eliminates three phase and single-phase sags and regulate plus-minus 20 % voltage continuously. The PowerLogic DVR system is a IGBT based electronic, and a flexible compensator that injects and absorbs energy. It mitigates and eliminates the effect of electrical disturbances to offer a stable voltage with a fast response. The topology of the system allows continuous regulation without using energy storage such as battery or capacitors. This DVR systems require a mandatory additional Manual Bypass cabinet, rated at 630 A. Protection of sensitive loads in power distribution and transmission systems against voltage distortions. This apparatus do have the capacity to correct up to -40 % sags for 30 seconds at 208 VAC, 150 kVA rated power. Enclosure dimensions are 2152 mm in height, 1835 mm in width and 750 mm in depth, and a total weight of 1600 kg. The device passed the following tests: SEMI F47 (US) / IEC 61000-4-34 for sags performances, and received CE, Ctick and EAC certifications. The enclosures is floor standing, equiped with hinged doors locked by a special opening tool. Include a forced ventillation to cool the inverter and the transformer. The design of the apparatus allows connection to Source and Loads from the top or bottom, but to DVR input and output only from the bottom. This asset is compatible with EcoStruxure Power Advisor and EcoStruxure Asset Advisor, and could be supported by a service plan. The PowerLogic DVR is designed to reduce voltage sags on power lines that cater to sensitive commercial and industrial equipments.

Products specifications

Attribute nameAttribute value
Main
RangePowerLogic
Product or component typevoltage stabilizer
Complementary
Noise level75-75 dB
Display typecolour touchscreen
Location of connectionbottom
Sag correction response3 ms
Poles description3P + N, 3P
Sag correction capabilityFor 3 phases 40-40 % for 30 s, accuracy +/- 1 %
Efficiencynon-linear load at at nominal power load factor (97.4 %), linear load at at nominal power load factor ,PF 1 (98.1 %), linear load at at nominal power load factor ,PF 0.8 (97.7 %),  at global efficiency load factor (98 %)
Output voltage accuracy+/- 1 % typical
Display size9 inch
Enclosure mountingfloor-standing
Mean time to repair2 h
Type of coolingforced cooling
Network frequency50/60 Hz +/- 10 %
Function availableprimary function
Installed deviceexternal bypass 630 A
Electromagnetic compatibilityemission standard for industrial environments conforming to IEC 61000-6-4, immunity for industrial environments conforming to IEC 61000-6-2, voltage dips and interruptions immunity test conforming to IEC 61000-4-34
Transfer time0.5 ms from inverter to bypass when outside of the output voltage tolerance
Ride-through time40 ms
Materialhot-rolled steel, cold-rolled steel
[THDU] total harmonic distorsion10-10 % (limit), 8-10 % (short time): output voltage regulated at +/- 3 %, 5-8 % (maximum): output voltage regulated at +/- 1 %, 0-5 % (nominal)
Surface finishpolyester powder
Network rated voltage208-208 V AC
Admitted output loadinverter overload 150 %, 1 s, inverter overload 110 %, 30 s, up to 100% in unbalance, up to 100% in variation
User languageSpanish, Chinese, English
Continuous regulation range-20-20 %
Overload withstand30 In, if overload is exceeded equipment integrity is not guaranteed, 200 ms, 30 In, 200 ms, 5 In, 10 s, 2 In, 60 s
Reactive power rating150 kVA
Information displayedlist of events, alarms
Accessibility for operationfront
Environment
IP degree of protectionIP20
Depth750 mm
Overvoltage categoryIII
Width1835 mm
Colourlight grey (RAL 7035)
Operating altitude<= 1000 m without derating
Relative humidity0-95 % non-condensing
Ambient air temperature for storage-15-45 °C
Net weight1600 kg
Pollution degree2
Ambient air temperature for operation0-40 °C
StandardsISO 9001, ISO 14001, SEMI F47, IEC 62477-1
Height2152 mm
Product certificationsC-Tick, EAC, CE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height236.0 cm
Package 1 Width84.5 cm
Package 1 Length194.0 cm
Package 1 Weight1800.0 kg
