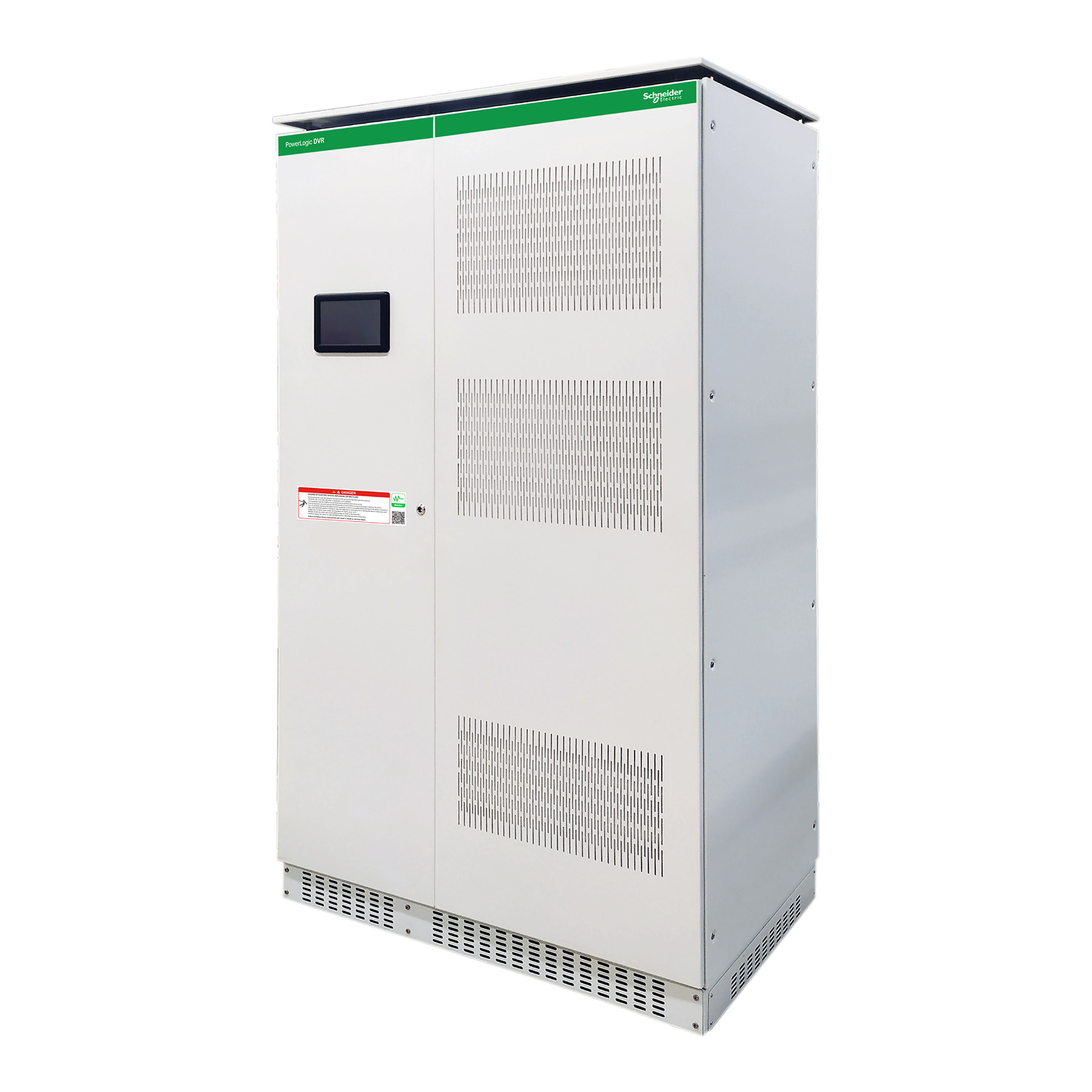

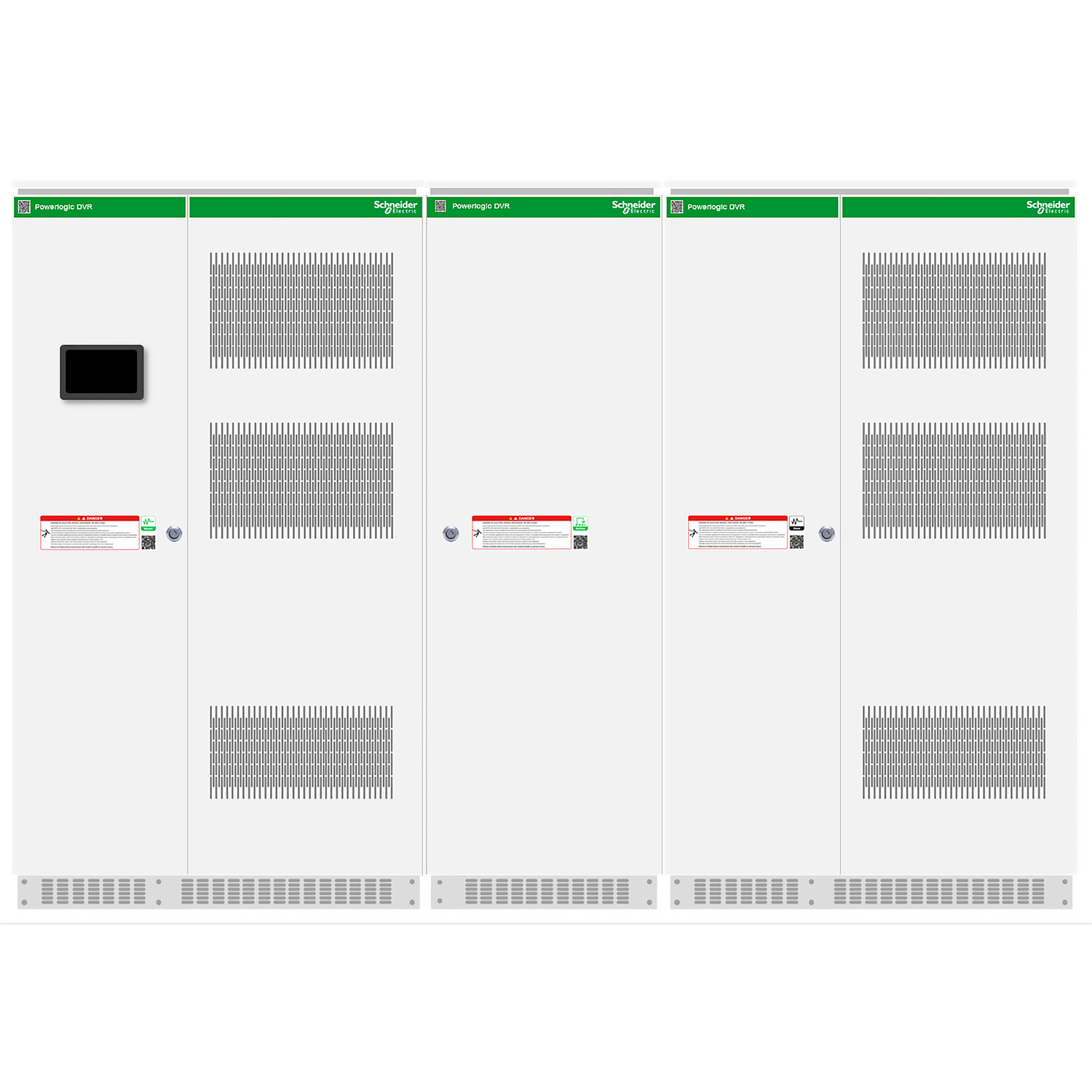

Voltage regulator DVR, 220 kVA, 208 V, up to 50 % sags reduction, working as primary

$198,704.83
Available for Shipping : 28-May-2025
Product Selector
Voltage regulator DVR, 220 kVA, 208 V, up to 50 % sags reduction, working as primary
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Catalogue
User guide
Product Page Link
Product Data Sheet
The PowerLogic DVR series offer to industry a solution to regulate voltage and restore Sags. This Low Voltage - Dynamic Voltage Restorer eliminates three phase and single-phase sags and regulate plus-minus 20 % voltage continuously. The PowerLogic DVR system is a IGBT based electronic, and a flexible compensator that injects and absorbs energy. It mitigates and eliminates the effect of electrical disturbances to offer a stable voltage with a fast response. The topology of the system allows continuous regulation without using energy storage such as battery or capacitors. This DVR systems require a mandatory additional Manual Bypass cabinet, rated at 1250 A. Protection of sensitive loads in power distribution and transmission systems against voltage distortions. This apparatus do have the capacity to correct up to -50 % sags for 30 seconds at 208 VAC, 220 kVA rated power. Enclosure dimensions are 2152 mm in height, 1835 mm in width and 750 mm in depth, and a total weight of 1600 kg. The device passed the following tests: SEMI F47 (US) / IEC 61000-4-34 for sags performances, and received CE, Ctick and EAC certifications. The enclosures is floor standing, equiped with hinged doors locked by a special opening tool. Include a forced ventillation to cool the inverter and the transformer. The design of the apparatus allows connection to Source and Loads from the top or bottom, but to DVR input and output only from the bottom. This asset is compatible with EcoStruxure Power Advisor and EcoStruxure Asset Advisor, and could be supported by a service plan. The PowerLogic DVR is designed to reduce voltage sags on power lines that cater to sensitive commercial and industrial equipments.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Product or component type voltage stabilizer
Complementary
Noise level 75-75 dB
Display type colour touchscreen
Location of connection bottom
Sag correction response 3 ms
Poles description 3P + N, 3P
Sag correction capability For 3 phases 50-50 % for 30 s, accuracy +/- 1 %
Efficiency non-linear load at at nominal power load factor (97.4 %), linear load at at nominal power load factor ,PF 1 (98.1 %), linear load at at nominal power load factor ,PF 0.8 (97.7 %),  at global efficiency load factor (98 %)
Output voltage accuracy +/- 1 % typical
Display size 9 inch
Enclosure mounting floor-standing
Mean time to repair 2 h
Type of cooling forced cooling
Network frequency 50/60 Hz +/- 10 %
Function available primary function
Installed device external bypass 630 A
Electromagnetic compatibility emission standard for industrial environments conforming to IEC 61000-6-4, immunity for industrial environments conforming to IEC 61000-6-2, voltage dips and interruptions immunity test conforming to IEC 61000-4-34
Transfer time 0.5 ms from inverter to bypass when outside of the output voltage tolerance
Ride-through time 40 ms
Material hot-rolled steel, cold-rolled steel
[THDU] total harmonic distorsion 10-10 % (limit), 8-10 % (short time): output voltage regulated at +/- 3 %, 5-8 % (maximum): output voltage regulated at +/- 1 %, 0-5 % (nominal)
Surface finish polyester powder
Network rated voltage 208-208 V AC
Admitted output load inverter overload 150 %, 1 s, inverter overload 110 %, 30 s, up to 100% in unbalance, up to 100% in variation
User language Spanish, Chinese, English
Continuous regulation range -25-20 %
Overload withstand 30 In, if overload is exceeded equipment integrity is not guaranteed, 200 ms, 30 In, 200 ms, 5 In, 10 s, 2 In, 60 s
Reactive power rating 220 kVA
Information displayed list of events, alarms
Accessibility for operation front
Environment
IP degree of protection IP20
Depth 750 mm
Overvoltage category III
Width 1835 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m without derating
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -15-45 °C
Net weight 1600 kg
Pollution degree 2
Ambient air temperature for operation 0-40 °C
Standards ISO 9001, ISO 14001, SEMI F47, IEC 62477-1
Height 2152 mm
Product certifications C-Tick, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 236.0 cm
Package 1 Width 84.5 cm
Package 1 Length 194.0 cm
Package 1 Weight 1800.0 kg
