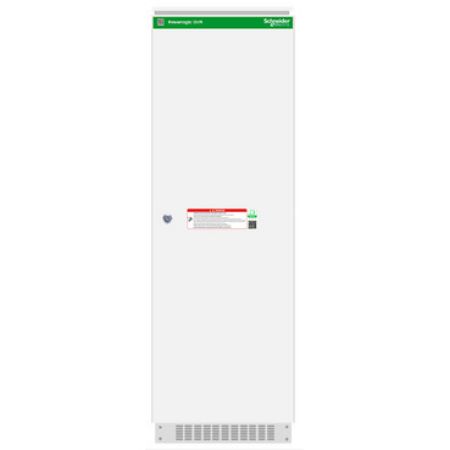

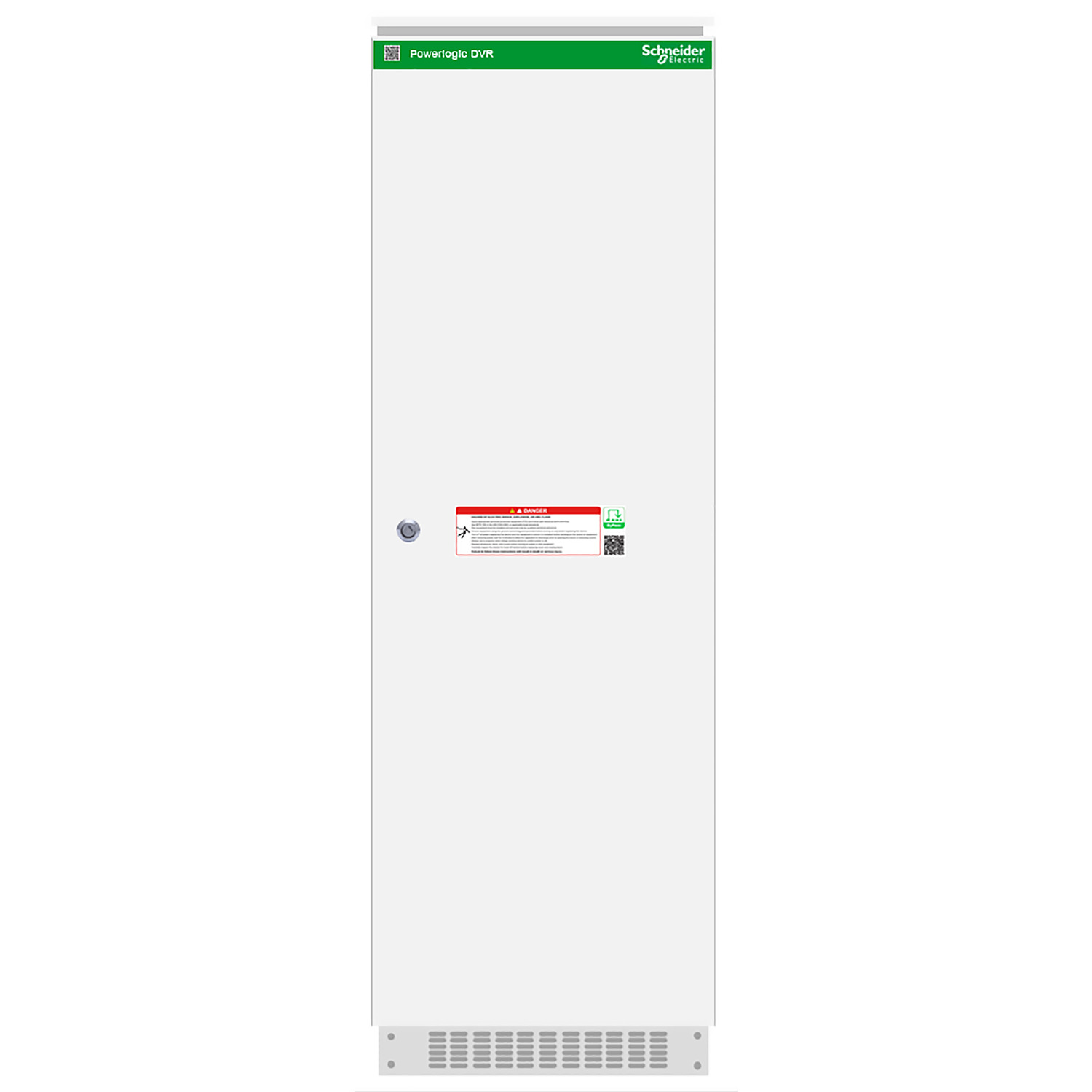

Picture of Voltage regulator DVR, bypass, switch disconnector 1250 A
Picture of Voltage regulator DVR, bypass, switch disconnector 1250 A
Picture of Voltage regulator DVR, bypass, switch disconnector 1250 A
SKU:

DVRBP1250

Voltage regulator DVR, bypass, switch disconnector 1250 A

Old price: $77,438.90 INC GST
$61,951.12 INC GST
Available for Shipping : 23-Jun-2026
Product Selector
Voltage regulator DVR, bypass, switch disconnector 1250 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Jun-2026
Declaration of conformity
Environmental Disclosure
Catalog
Circularity Profile
User guide
Product Page Link
Product Data Sheet

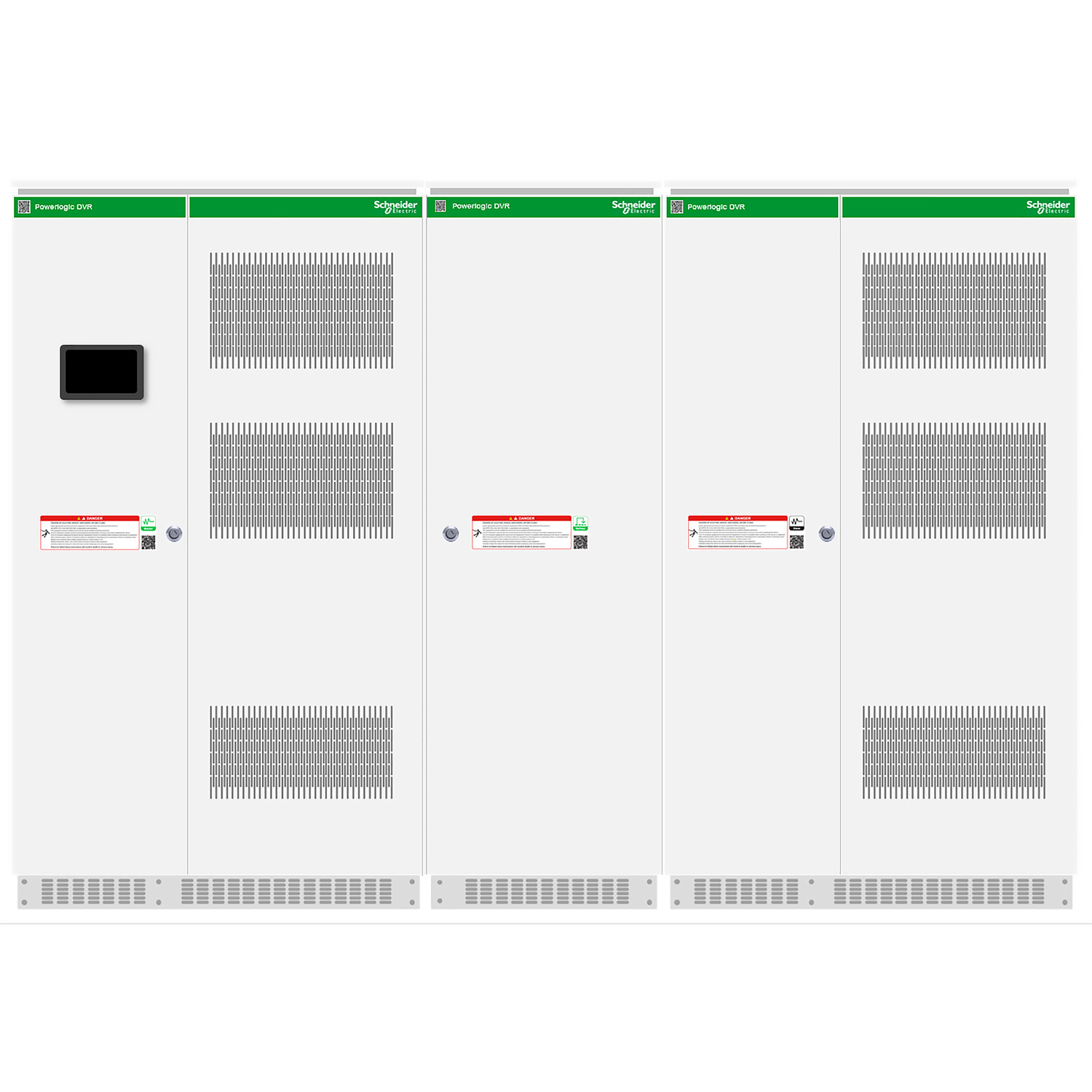

The PowerLogic DVR series offer to industry a solution to regulate voltage and restore Sags. This bypass is part of the Dynamic Voltage Restorer solution, and do not work stand alone. Works as a distribution cabinet to facilitate the power connection between units that are in parallel in a system. In the manual bypass operating mode, loads cannot be protected against disturbances in the electrical supply. Allows continuous power supply to the load during the maintenance of the DVR system. The bypass include a 1250 A switch-disconnector. Enclosure dimensions are 2152 mm in height, 1100 mm in width and 750 mm in depth, and a total weight of 375 kg. The enclosures is floor standing, equiped with hinged doors locked by a special opening tool. The design of the bypass allows connection to Source and Loads from the top or bottom, but to DVR input and output only from the bottom. This asset is compatible with EcoStruxure Power Advisor and EcoStruxure Asset Advisor, and could be supported by a service plan. The PowerLogic DVR is designed to reduce voltage sags on power lines that cater to sensitive commercial and industrial equipments.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Product or component type bypass kit
Complementary
Noise level 75-75 dB
Location of connection top, bottom
Protection type switch-disconnector
Poles description 3P
Enclosure mounting floor-standing
Function available integrated bypass
Material hot-rolled steel, cold-rolled steel
Surface finish polyester powder
Accessibility for operation front
Environment
IP degree of protection IP20
Depth 750 mm
Width 1100 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m without derating
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -15-45 °C
Net weight 375 kg
Ambient air temperature for operation 0-40 °C
Height 2152 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 236.0 cm
Package 1 Width 84.5 cm
Package 1 Length 120.0 cm
Package 1 Weight 525.0 kg
