SKU:

DZ5CA015D

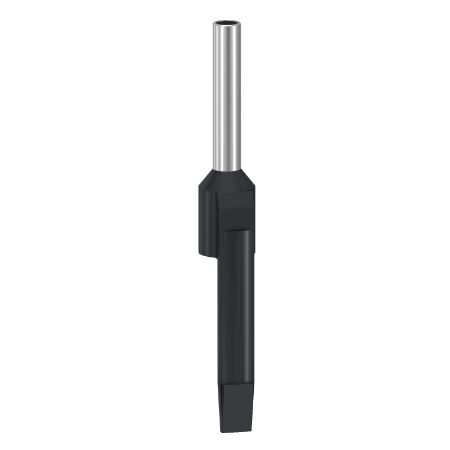

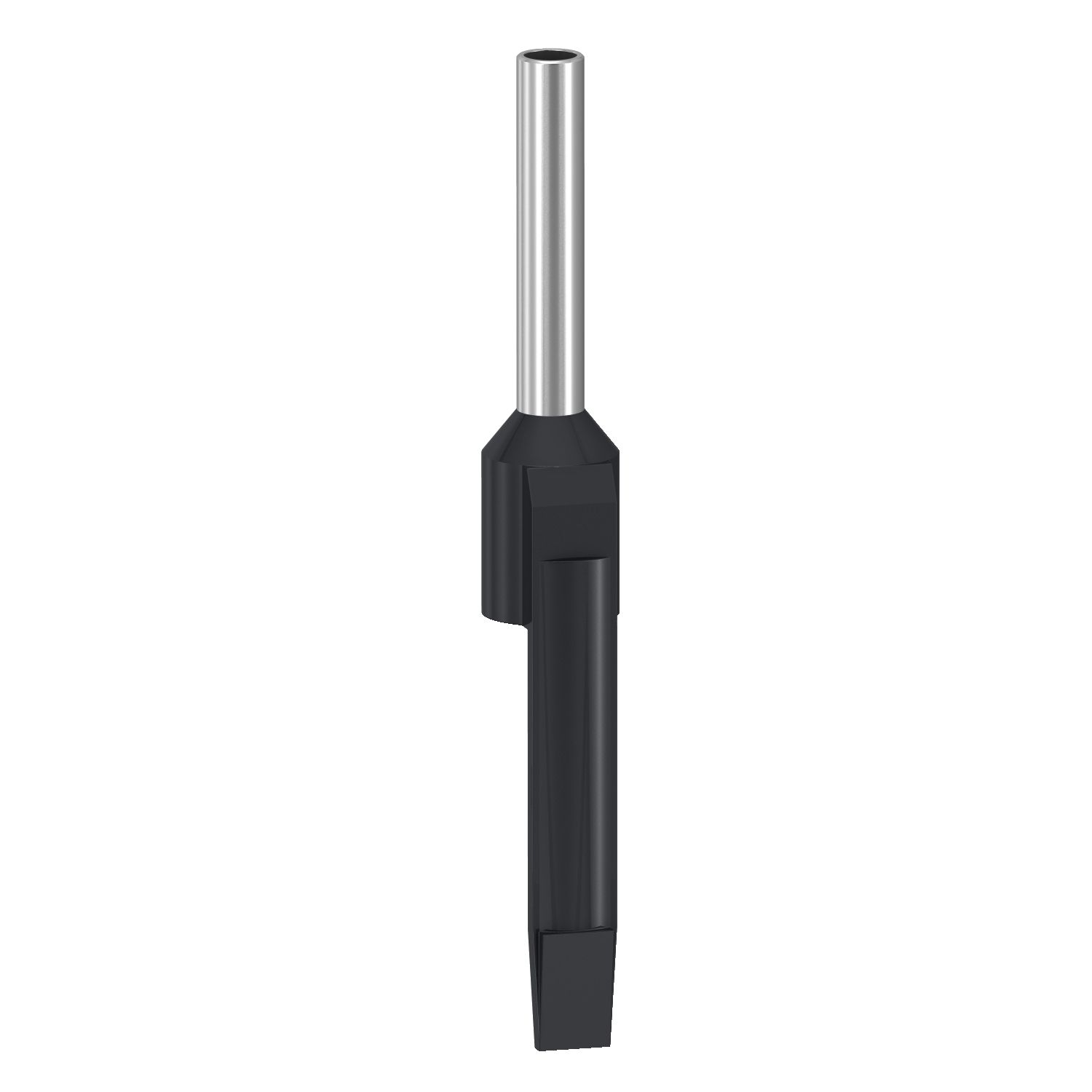

Cable end, Linergy TR cable ends, Single conductor, black, 1.5mm², medium size, markable, insulated, 10 sets of 100

$90.47

This product has a minimum quantity of 1000

Qty:

Available for Shipping : 10-Dec-2024

Cable end, Linergy TR cable ends, Single conductor, black, 1.5mm², medium size, markable, insulated, 10 sets of 100

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	10 sets of 100
Cable end size	medium
Cable cross section	1.5-1.5 mm²
Type of packing	string of bags
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	32 mm
CAD overall width	4 mm
Tube diameter	2 mm
Additional information	with integrated marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	black
AWG gauge	AWG 16
CAD overall height	4 mm
Net weight	0.18 kg
Length	14 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 4 mm
Tube length	8 mm
Environment
Ambient air temperature for operation	-20-105 °C
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	1000
Package 2 Height	2.000 cm
Package 2 Width	11.000 cm
Package 2 Length	21.000 cm
Package 2 Weight	180.000 g
Unit Type of Package 3	3
Number of Units in Package 3	20000
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	3.894 kg
