SKU:

DZ5CA042D

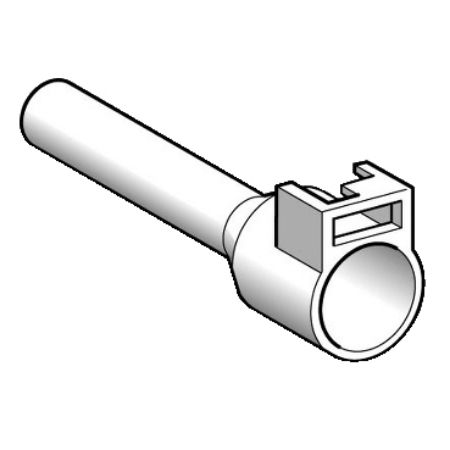

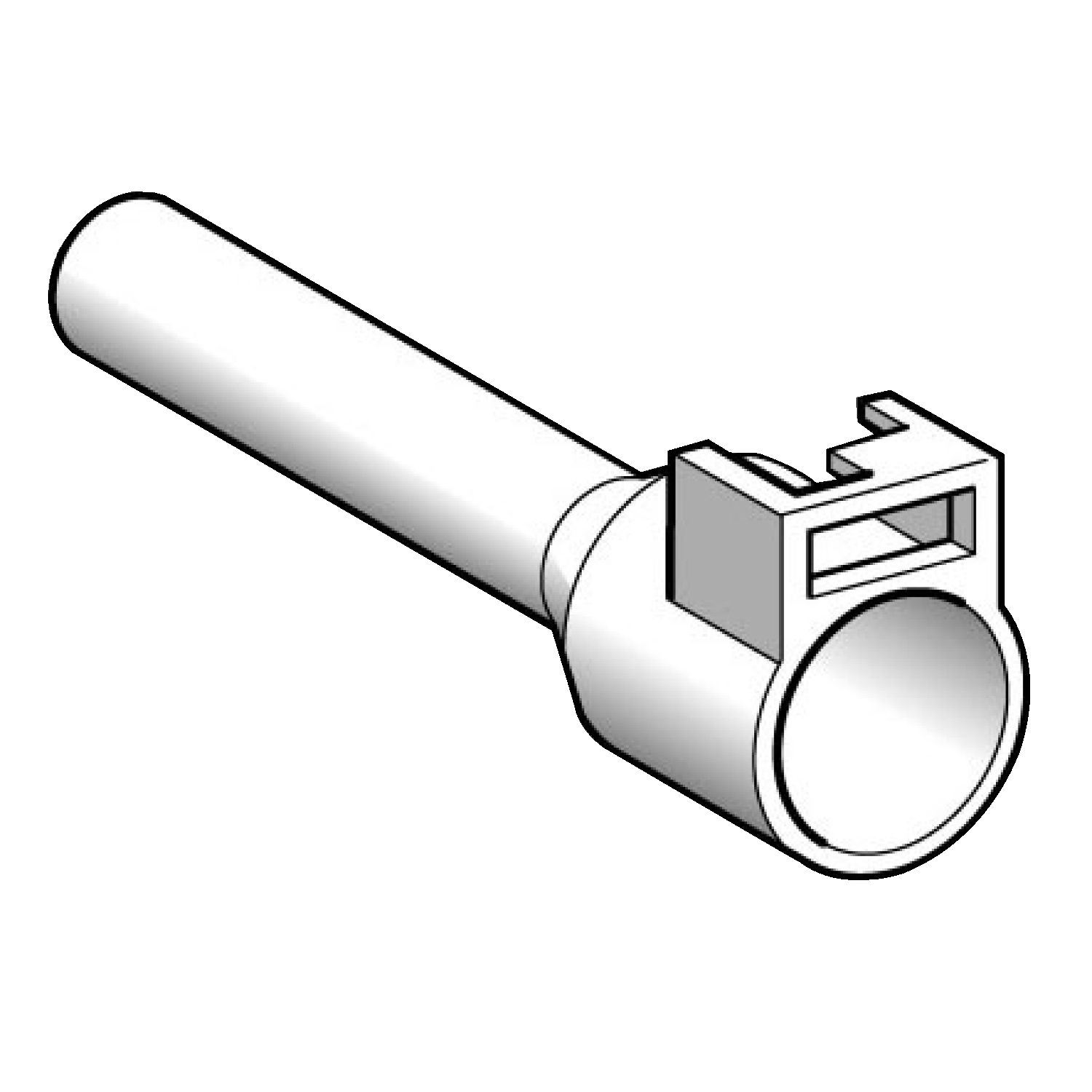

Cable end, Linergy TR cable ends, Single conductor, grey, 4mm², medium size, markable, insulated, 10 sets of 100

$0.70 INC GST

Qty:

Available for Shipping : 29-May-2025

Cable end, Linergy TR cable ends, Single conductor, grey, 4mm², medium size, markable, insulated, 10 sets of 100

Manufacturer: Schneider Electric

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	10 sets of 100
Cable end size	medium
Cable cross section	4-4 mm²
Type of packing	bag
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	20 mm
CAD overall width	6 mm
Tube diameter	3.2 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	grey
AWG gauge	AWG 12
CAD overall height	8 mm
Net weight	0.3 kg
Length	20 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 5.4 mm
Tube length	10 mm
Environment
Ambient air temperature for operation	-20-105 °C
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	1000
Package 2 Height	6.000 cm
Package 2 Width	10.000 cm
Package 2 Length	25.000 cm
Package 2 Weight	317.000 g
Unit Type of Package 3	3
Number of Units in Package 3	5000
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.777 kg
