SKU:

DZ5CA063

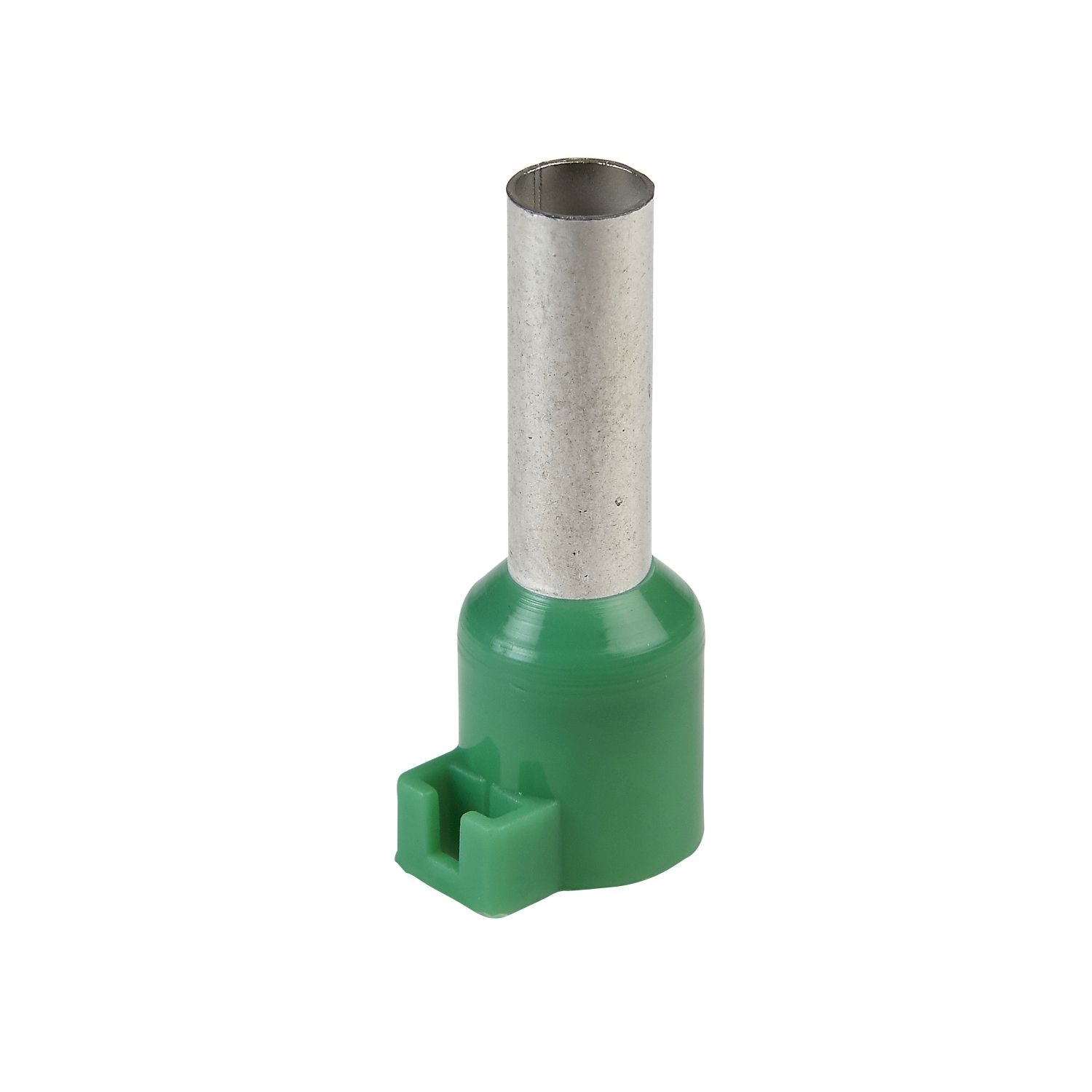

Cable end, Linergy TR cable ends, Single conductor, Green, 6mm², medium size, 10 sets of 100

$0.72

Qty:

Available for Shipping : 10-Dec-2024

Cable end, Linergy TR cable ends, Single conductor, Green, 6mm², medium size, 10 sets of 100

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	set of 100
Cable end size	long
Cable cross section	6-6 mm²
Type of packing	bag
Product or component type	cable end
Standards	NF C 63-023
Range of product	Linergy
Complementary
CAD overall depth	26 mm
CAD overall width	7 mm
Tube diameter	3.9 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	green
AWG gauge	AWG 10
CAD overall height	9 mm
Net weight	0.065 kg
Length	26 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 6.9 mm
Tube length	18 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.500 g
Unit Type of Package 2	2
Number of Units in Package 2	100
Package 2 Height	1.800 cm
Package 2 Width	9.000 cm
Package 2 Length	15.000 cm
Package 2 Weight	52.000 g
Unit Type of Package 3	3
Number of Units in Package 3	8000
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	4.527 kg
