SKU:

DZ5CA162D

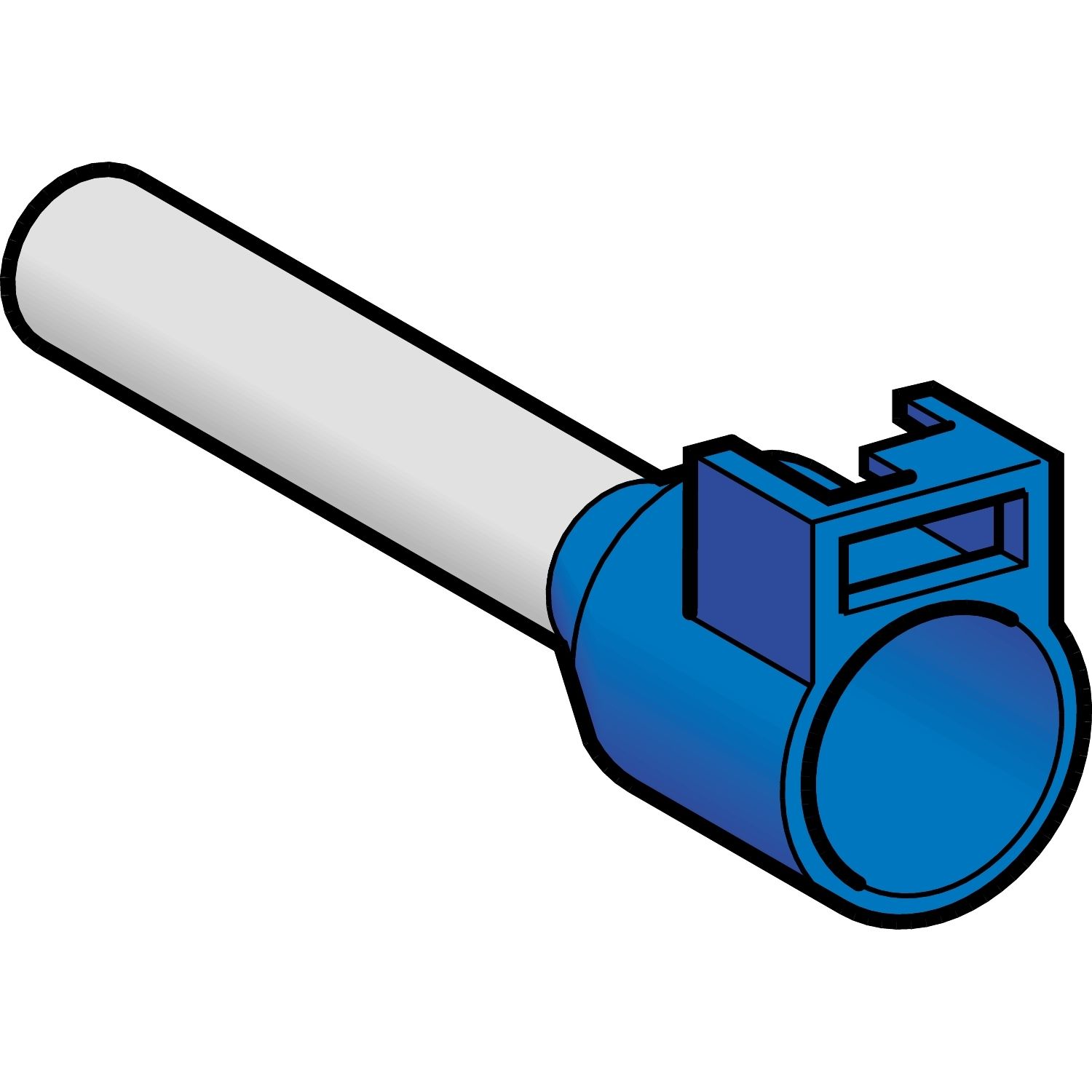

Cable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, medium size, 10 sets of 100

$1.04

Qty:

Available for Shipping : 10-Dec-2024

Cable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, medium size, 10 sets of 100

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	set of 100
Cable end size	medium
Cable cross section	16-16 mm²
Type of packing	bag
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	24 mm
CAD overall width	10 mm
Tube diameter	6.2 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 6
CAD overall height	12 mm
Net weight	0.08 kg
Length	24 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 9.6 mm
Tube length	12 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.000 cm
Package 1 Width	1.200 cm
Package 1 Length	2.400 cm
Package 1 Weight	0.600 g
Unit Type of Package 2	2
Number of Units in Package 2	100
Package 2 Height	4.000 cm
Package 2 Width	8.500 cm
Package 2 Length	12.000 cm
Package 2 Weight	67.000 g
Unit Type of Package 3	3
Number of Units in Package 3	1500
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.199 kg
