SKU:

DZ5CA163D

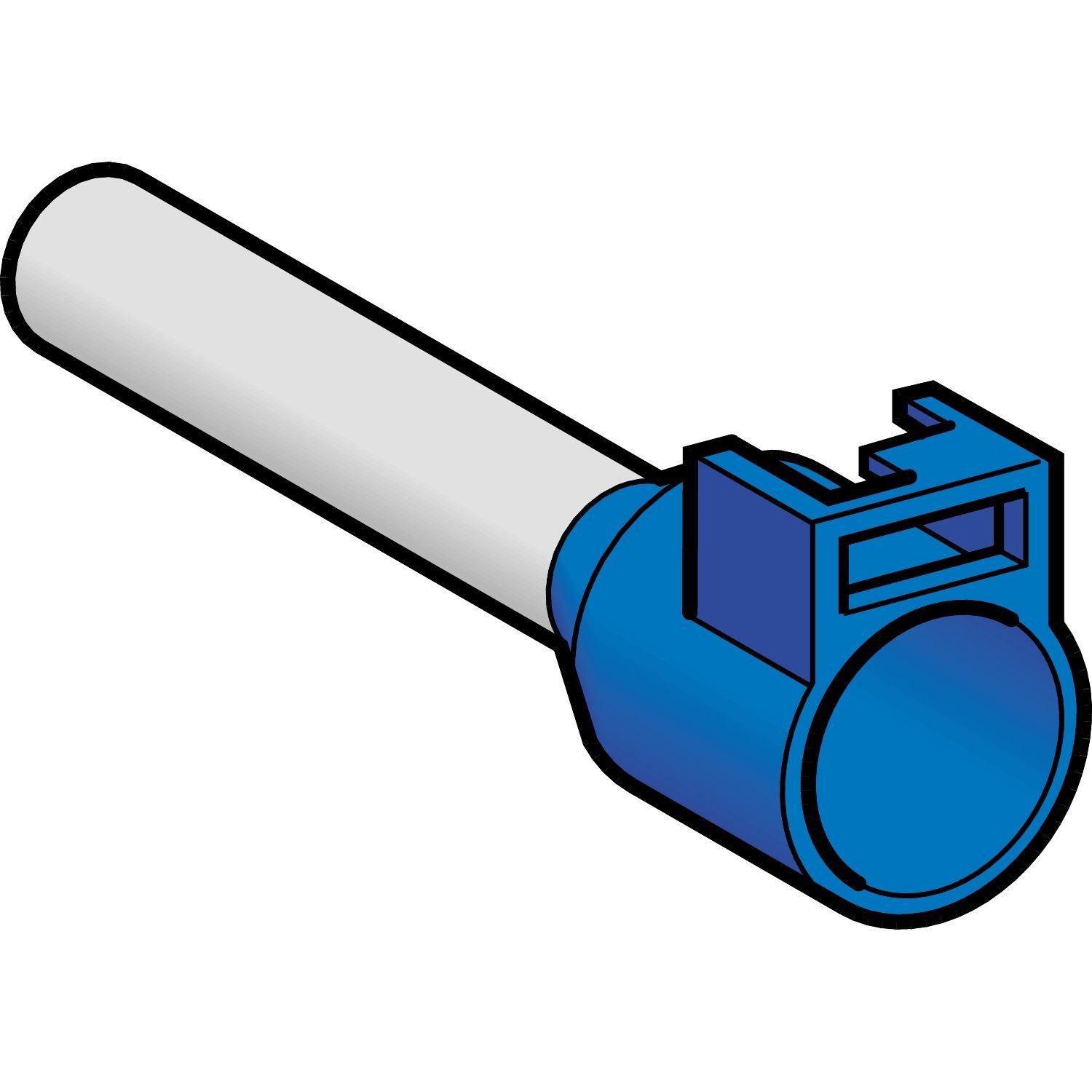

Cable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, long size, 10 sets of 100

$1.62
Available for Shipping : 28-Nov-2024
Cable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, long size, 10 sets of 100
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 100
Cable end size long
Cable cross section 16-16 mm²
Type of packing bag
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 28 mm
CAD overall width 10 mm
Tube diameter 6.2 mm
Additional information for additional marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour blue
AWG gauge AWG 6
CAD overall height 12 mm
Net weight 0.1 kg
Length 28 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 9.6 mm
Tube length 18 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 2.000 cm
Package 2 Width 12.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 87.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1500
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.498 kg
