SKU:

DZ5CA502D

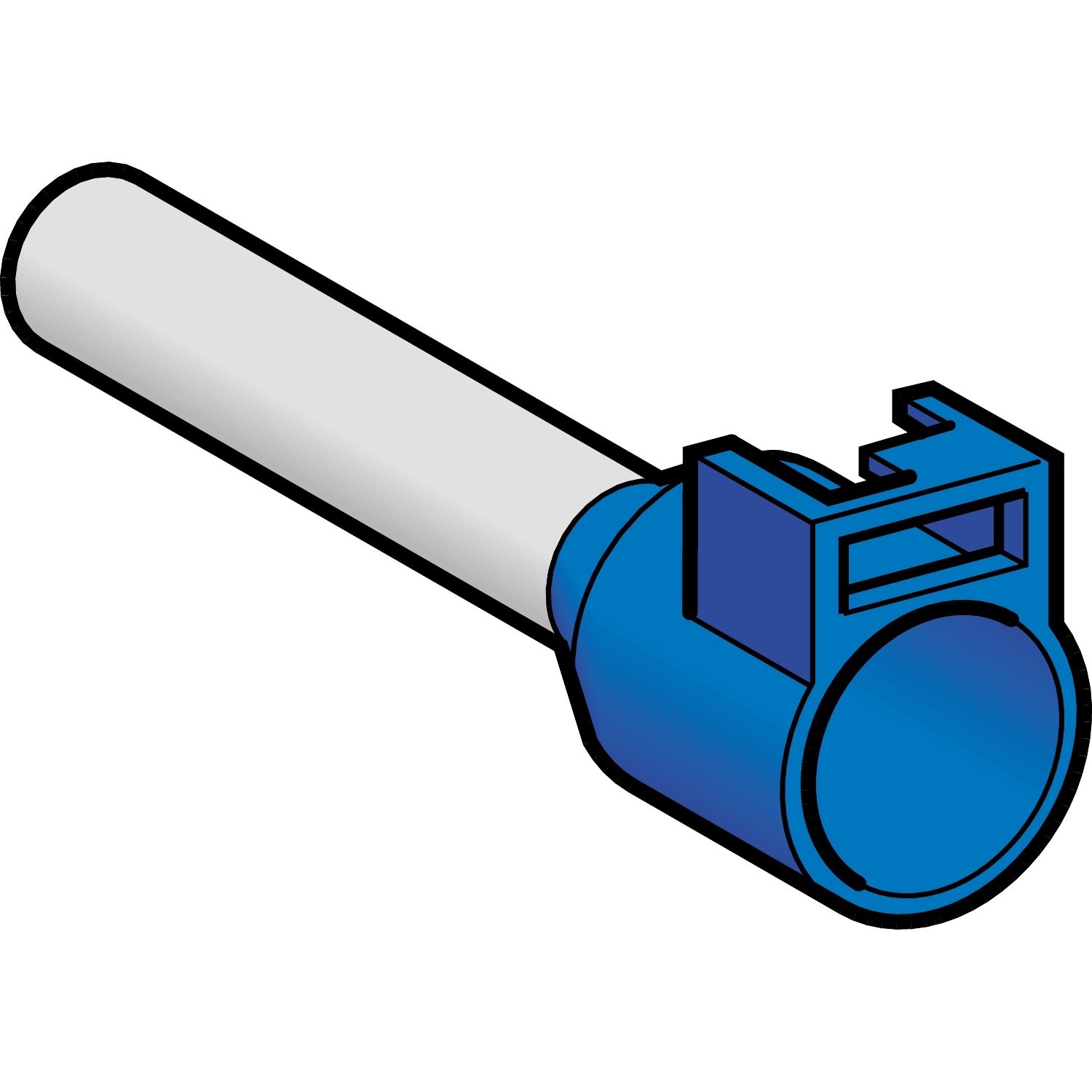

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², medium size, for insulated, clip-in type, 1 bags

$0.48

Qty:

Available for Shipping : 10-Dec-2024

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², medium size, for insulated, clip-in type, 1 bags

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	set of 20
Cable end size	medium
Cable cross section	50-50 mm²
Type of packing	bag
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	36 mm
CAD overall width	16 mm
Tube diameter	11 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 1/0
CAD overall height	18 mm
Net weight	0.06 kg
Length	36 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 16 mm
Tube length	20 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.0 cm
Package 1 Width	9.0 cm
Package 1 Length	9.0 cm
Package 1 Weight	3.0 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	3.0 cm
Package 2 Width	9.0 cm
Package 2 Length	9.0 cm
Package 2 Weight	61.0 g
Unit Type of Package 3	3
Number of Units in Package 3	800
Package 3 Height	15.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	2.895 kg
