SKU:

DZ5CA503

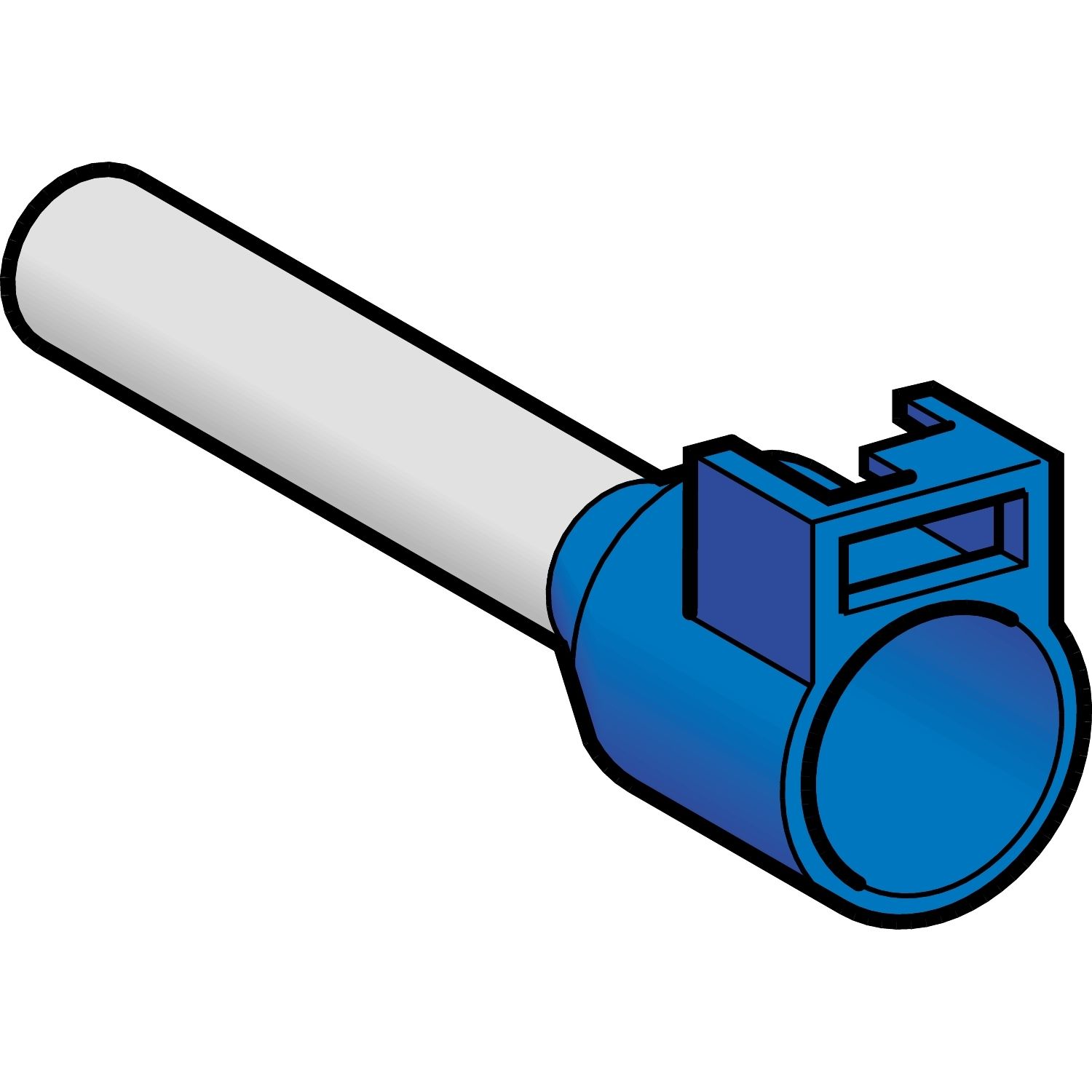

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, for clip-in type, 10 sets of 100

$0.58

Qty:

Available for Shipping : 10-Dec-2024

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, for clip-in type, 10 sets of 100

Manufacturer: Schneider Electric

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	set of 20
Cable end size	long
Cable cross section	50-50 mm²
Type of packing	bag
Product or component type	cable end
Standards	NF C 63-023
Range of product	Linergy
Complementary
CAD overall depth	40 mm
CAD overall width	16 mm
Tube diameter	11 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 1/0
CAD overall height	18 mm
Net weight	0.074 kg
Length	40 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 16 mm
Tube length	25 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.900 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	4.000 cm
Package 2 Width	7.500 cm
Package 2 Length	11.000 cm
Package 2 Weight	66.000 g
Unit Type of Package 3	3
Number of Units in Package 3	1000
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	3.825 kg
