SKU:

DZ5CA503D

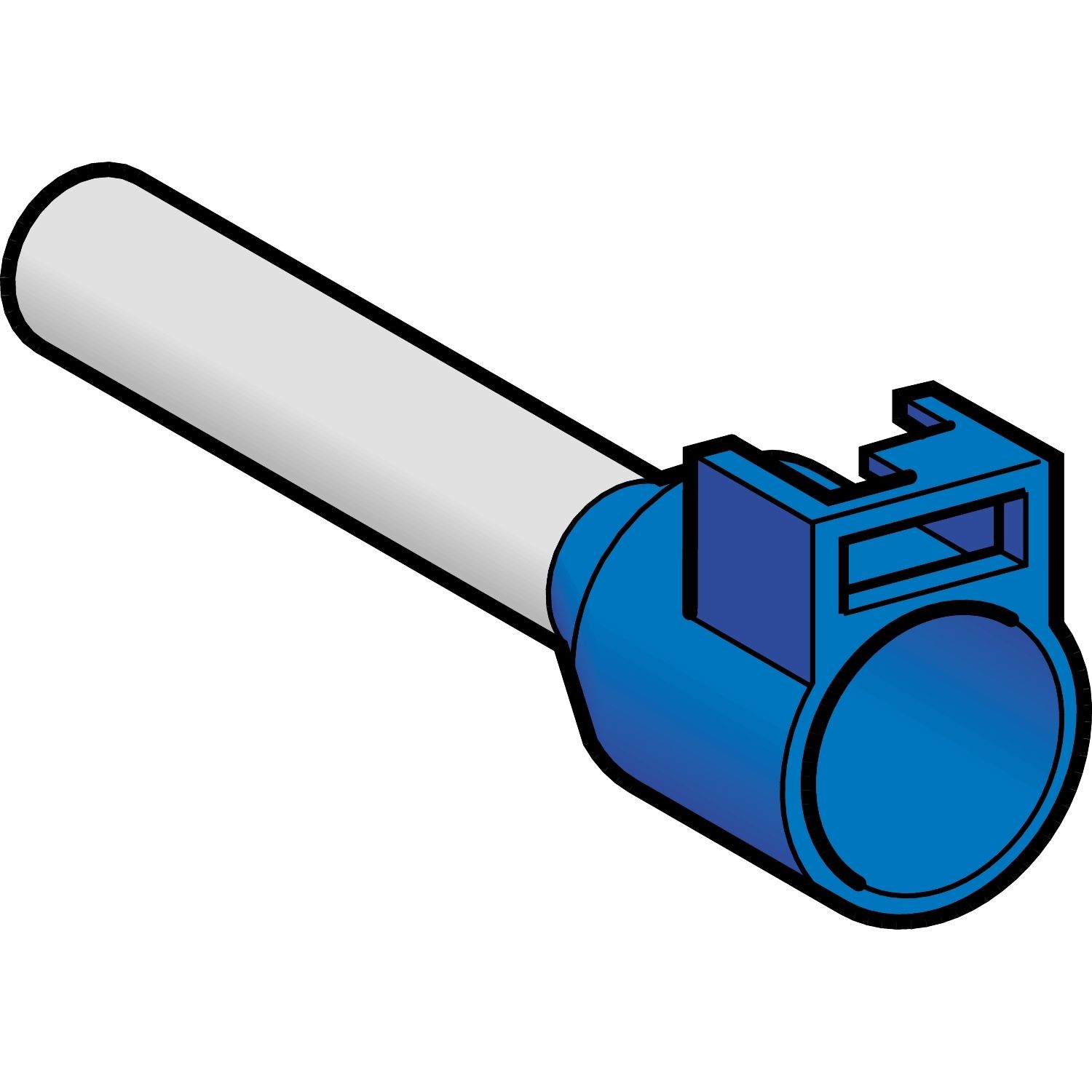

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, clip-in type, for insulated clable

$0.66

Qty:

Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, clip-in type, for insulated clable

Estimated Delivery Date: 25-Oct-2024

Attribute name	Attribute value
Main
Quantity per set	set of 20
Cable end size	long
Cable cross section	50-50 mm²
Type of packing	bag
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	40 mm
CAD overall width	16 mm
Tube diameter	11 mm
Additional information	for additional marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 1/0
CAD overall height	18 mm
Net weight	0.072 kg
Length	40 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 16 mm
Tube length	25 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	2.000 cm
Package 2 Width	10.000 cm
Package 2 Length	13.000 cm
Package 2 Weight	70.000 g
Unit Type of Package 3	3
Number of Units in Package 3	800
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	3.530 kg
