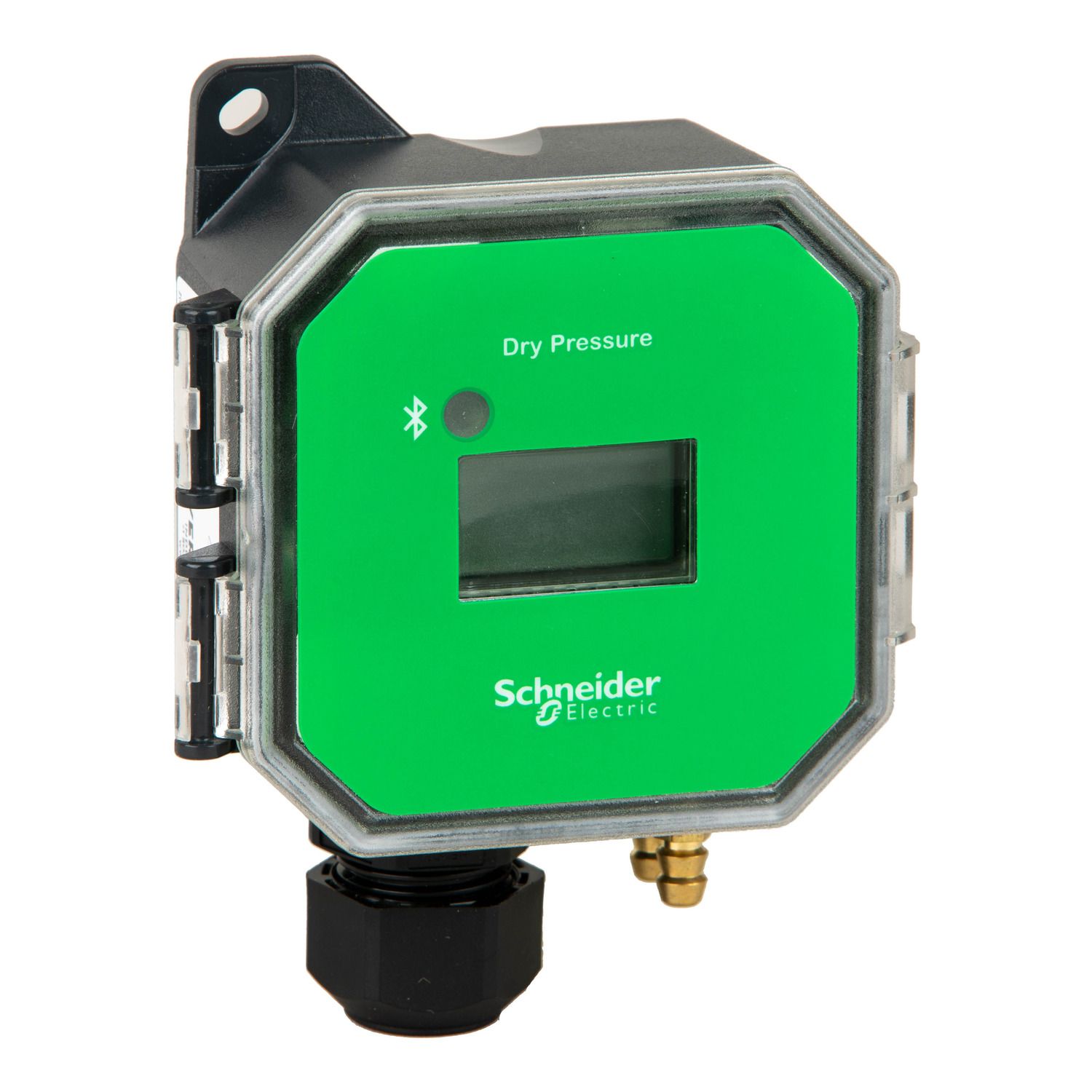

Picture of Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
SKU:

EPD301LCD

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

$803.41
Available for Shipping : 18-Mar-2025
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
  • Bluetooth functionality for ease of commissioning and maintenance
  • All in one device giving pressure and velocity measurement, DIP switch selectable modes
  • Ease of installation with a captured cover design and external screw terminal
  • Bi-directional mode configuration with quick setting
  • Circuit Protection avoids damage due to incorrect wiring
  • Suitable for harsh environment with IP 65 housing
  • Push button auto zero for optimum accuracy
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
SpaceLogic EP Series pressure sensors can measure either air pressure or velocity with the flip of a switch. This device is intended for duct mounting and it has an LCD display. It measures pressure from 0 to 1 In WC and velocity from 0 ft/min to 3000 ft/min. Bluetooth functionality is available for easy commissioning and maintenance. These devices include an IP65/NEMA 4 environmental rating and a 5-year limited warranty.

Products specifications

Attribute name Attribute value
Main
Probe length 188 mm
IP degree of protection IP65
Device application air velocity monitoring, VAV control, fan monitoring, filter monitoring, duct pressure monitoring
Depth 42 mm
Fitting type male
Width 88 mm
Probe diameter 7 mm
Local signalling red/green/blue LED
Display size 17 x 28 mm
Burst pressure 5 psid (34.5 kPa)
Pressure measurement range 0...1" W.C. (0...250 Pa), 0...0.5" W.C. (0...100 Pa), 0...0.25" W.C. (0...50 Pa), 0...0.1" W.C. (0...25 Pa)
Net weight 0.125 kg
Controlled fluid gas, air
Location plant room
Product or component type pressure transmitter sensor
Type of measurement differential pressure
Fitting size 6 mm (0.24")
Standards EN 61326-2-3, EN 61326-1, EN 61000-6-1, EN 61000-6-3
Mounting support duct
Range of product EP
Calibration certificate none
Pressure measurement drift less than 2 %
Ambient air temperature for operation -20-60 °C
Height 112 mm
[Us] rated supply voltage 24 V AC, 12...30 V DC
Product certifications CE
Complementary
Mounting mode panel
Sensor model EPD301LCD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.8 cm
Package 1 Width 11.2 cm
Package 1 Length 8.8 cm
Package 1 Weight 133 g
