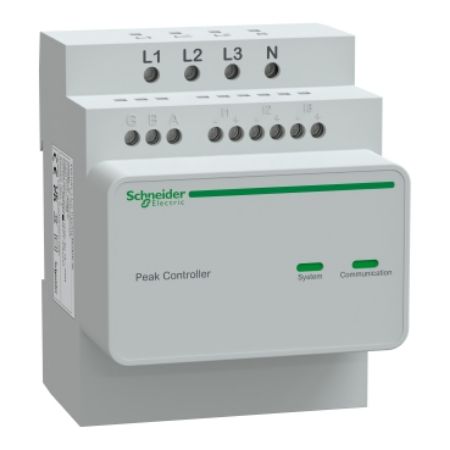

Picture of EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A
SKU:

EVA1HPC3

EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A

$290.36
Available for Shipping : 24-Nov-2024
Product Selector
EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A
  • Competitive and certified offer
  • Benefit of Schneider’s reputation network of certified partners
  • Product available from Distributors
  • Easy installation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Brochure
System user guide
CAD
Instruction sheet
Product Page Link
Product Data Sheet

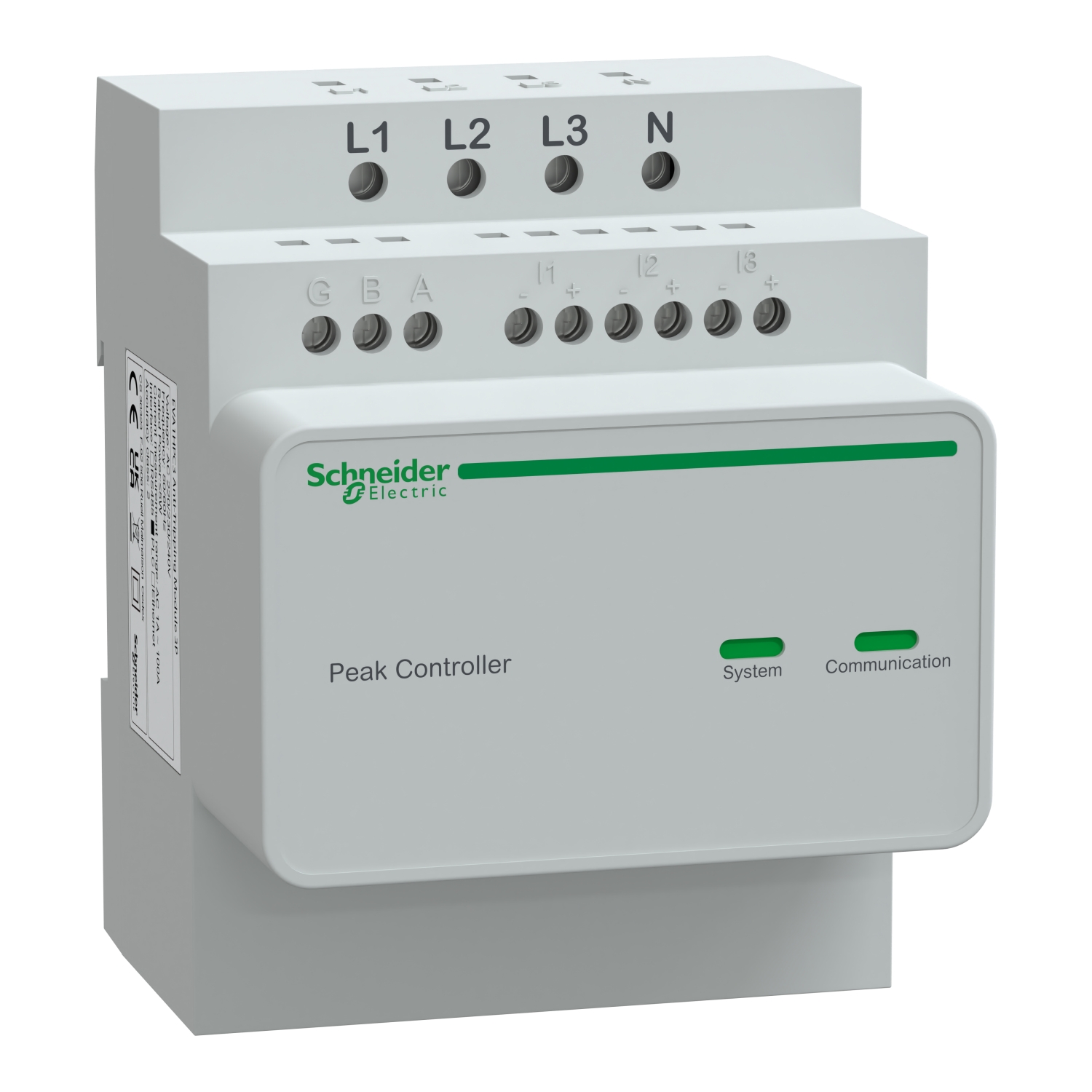

This EVlink Home accessory is a load-shedder used as an anti-tripping system to complement the charging station. It is used in three-phase network. It allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house. The dimensions are (W) 72mm x (H) 89mm x (D) 75mm. Its product weight is 180g. Its color is white. It is made of plastic.

Products specifications

Attribute name Attribute value
Main
Range EVlink
Material plastic
Product or component type load-shedder
Complementary
Depth 75 mm
Width 89 mm
Colour white
Quantity per set set of 1
Settings operating mode manual
[Us] rated supply voltage 220...230 V AC 50/60 Hz +/- 10 %
Connectivity to devices PLC
Local signalling 1 green LED, function: embedded communication status, 1 red LED, function: fault indication, 1 green LED, function: control process
Net weight 180 g
Network number of phases three phase
Condition of use indoor
Power consumption in W 5 W
Power supply output current 50-50 A, 40-40 A, 32-32 A, 25-25 A, 20-20 A, 16-16 A
Standards EN 61326-1:2013, EN 61010-1:2010
Range compatibility EVlink EVlink Home
Mounting support 35 mm DIN rail
Height 72 mm
Environment
Operating altitude 0...2000 m
Overvoltage category III
Ambient air temperature for storage -40-85 °C
Relative humidity 5-95 %
Pollution degree 2
Ambient air temperature for operation -30-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 12 cm
Package 1 Length 21.5 cm
Package 1 Weight 638 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.716 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 73 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 84 kg
