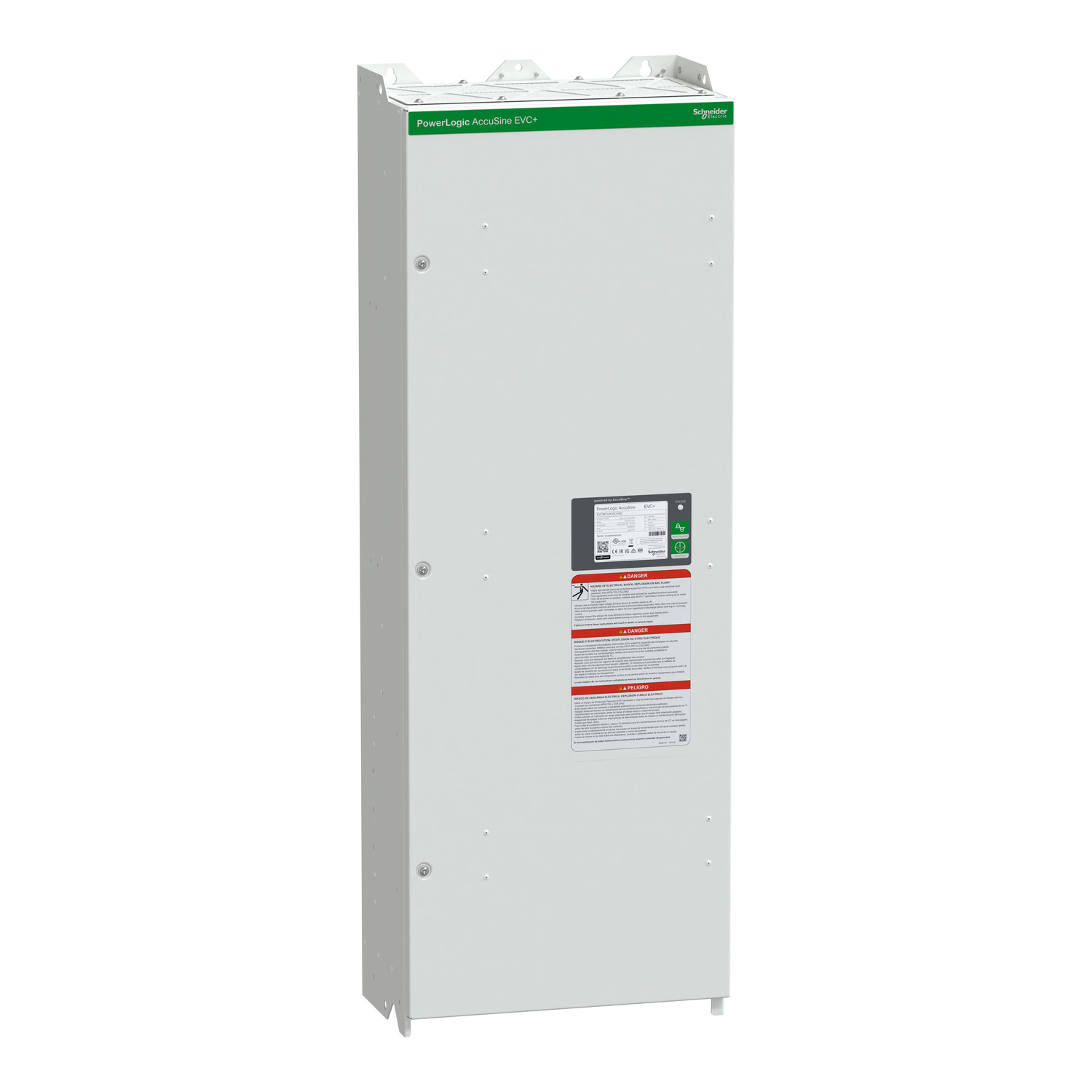

Picture of electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 DNV (marine)
SKU:

EVCM100D5CH00

electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 DNV (marine)

Please Contact Sales to buy this Product. click here
electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 DNV (marine)
  • Stepless Power Factor Correction to ensure Unity Power Factor
  • Fully Certified to UL & IEC 61439-1 & 2 (2020) Standards
  • Can operate up to 50° C without derating
  • Scalable. Reliable. Efficient
  • Marine Certified
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Instruction sheet
User guide
End of life manual
Technical illustration
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. To be used by OEM (provided in an IP00 / UL open chassis) to be installed in a cabinet. To be used by OEM (IP00 / UL Type Open) chassis mount to be installed in a cabinet, with marine certification (DNV & ABS) The dimensions of the chassis are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Compliant with marine standard DNV-GL and other certifications (HCAI, CE, UKCA, RCM, UL, CSA) as well as IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit in an enclosure. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.

Products specifications

Attribute nameAttribute value
Main
RangePowerLogic
Product nameAccuSine EVC+
Product or component typeelectronic VAR compensator
Complementary
Wiring mode3 or 4 wires
Maximum permissible voltage1.1 x Un
Location of connectionbottom
Protection typeinternal by fuse
Poles description3P
Enclosure mountingtray mounted
Network frequency50/60 Hz +/- 3 % auto-sensing
Function availablerear plenum with forced ventilation for high heat flow
Electromagnetic compatibilityimmunity for industrial environments conforming to EN 61000-6-2, emission tests, class A conforming to EN 61000-6-4
Control typeelectronic
Mounting locationindoor
Operating modephase harmonic correction, mains current balancing, displacement power factor correction, power factor correction
Network rated voltage208-480 V AC
Reactive power rating55 kvar 208 V AC 50/60 Hz, 63 kvar 240 V AC 50/60 Hz, 100 kvar 480 V AC 50/60 Hz, 100 kvar 380 V AC 50/60 Hz
Accessibility for operationfront
Environment
IP degree of protectionIP00
Depth265 mm
Width440 mm
Colourwhite
Operating altitude<= 4800 m, <= 4800 m 1 % per 100 m, 1000 m
Ambient air temperature for storage-20-60 °C
Relative humidity0-95 %
Impregnation materialconformal coated
Net weight90 kg
Environmental characteristicstorage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation50-52 °C maximum with current derating of 2 % per °C, 0-50 °C
StandardsIEC 61439-1, IEC 62477-1, IEEE 519-2014, ISO 9001, CSA C22.2 No 14, UL 508
Height1260 mm
Product certificationsABS, DNV, RCM, cULus, CE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height32 cm
Package 1 Width50.5 cm
Package 1 Length133.5 cm
Package 1 Weight101.9 kg
