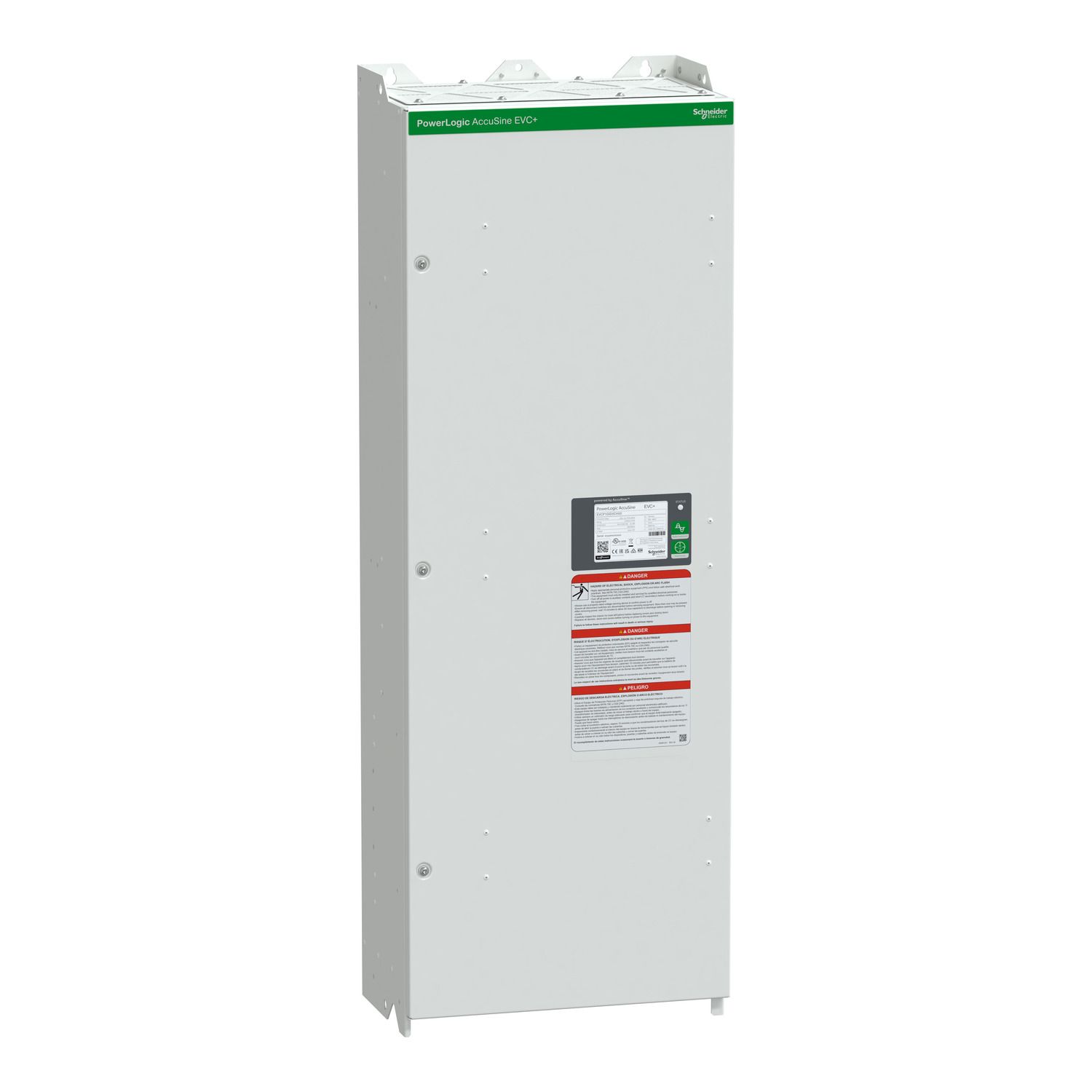

Picture of electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 chassis
SKU:

EVCP100D5CH00

electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 chassis

$19,571.77
Availability: Please contact our sales team on 1300 724 622.
electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100 kvar, 208-480 V, IP00 chassis
  • Stepless Power Factor Correction to ensure Unity Power Factor
  • Fully Certified to UL & IEC 61439-1 & 2 (2020) Standards
  • Can operate up to 50° C without derating
  • Scalable. Reliable. Efficient
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
End of life manual
Technical illustration
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. To be used by OEM (provided in an IP00 / UL open chassis) to be installed in a cabinet. To be used by OEM (IP00 / UL Type Open) chassis mount to be installed in a cabinet. The dimensions of the chassis are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Certified for HCAI, CE, UKCA, RCM, UL, CSA and more, plus compliant with IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit in an enclosure. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Product name AccuSine EVC+
Product or component type electronic VAR compensator
Complementary
Wiring mode 3 or 4 wires
Maximum permissible voltage 1.1 x Un
Location of connection bottom
Protection type internal by fuse
Poles description 3P
Enclosure mounting tray mounted
Network frequency 50/60 Hz +/- 3 % auto-sensing
Function available rear plenum with forced ventilation for high heat flow
Electromagnetic compatibility immunity for industrial environments conforming to EN 61000-6-2, emission tests, class A conforming to EN 61000-6-4
Control type electronic
Mounting location indoor
Operating mode phase harmonic correction, mains current balancing, displacement power factor correction, power factor correction
Network rated voltage 208-480 V AC
Reactive power rating 55 kvar 208 V AC 50/60 Hz, 63 kvar 240 V AC 50/60 Hz, 100 kvar 480 V AC 50/60 Hz, 100 kvar 380 V AC 50/60 Hz
Accessibility for operation front
Environment
IP degree of protection IP00
Depth 265 mm
Width 440 mm
Colour white
Operating altitude <= 4800 m, <= 4800 m 1 % per 100 m, 1000 m
Ambient air temperature for storage -20-60 °C
Relative humidity 0-95 %
Impregnation material conformal coated
Net weight 90 kg
Environmental characteristic storage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation 50-52 °C maximum with current derating of 2 % per °C, 0-50 °C
Standards IEC 61439-1, IEC 62477-1, IEEE 519-2014, ISO 9001, CSA C22.2 No 14, UL 508
Height 1260 mm
Product certifications RCM, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 32 cm
Package 1 Width 50.5 cm
Package 1 Length 133.5 cm
Package 1 Weight 101.9 kg
