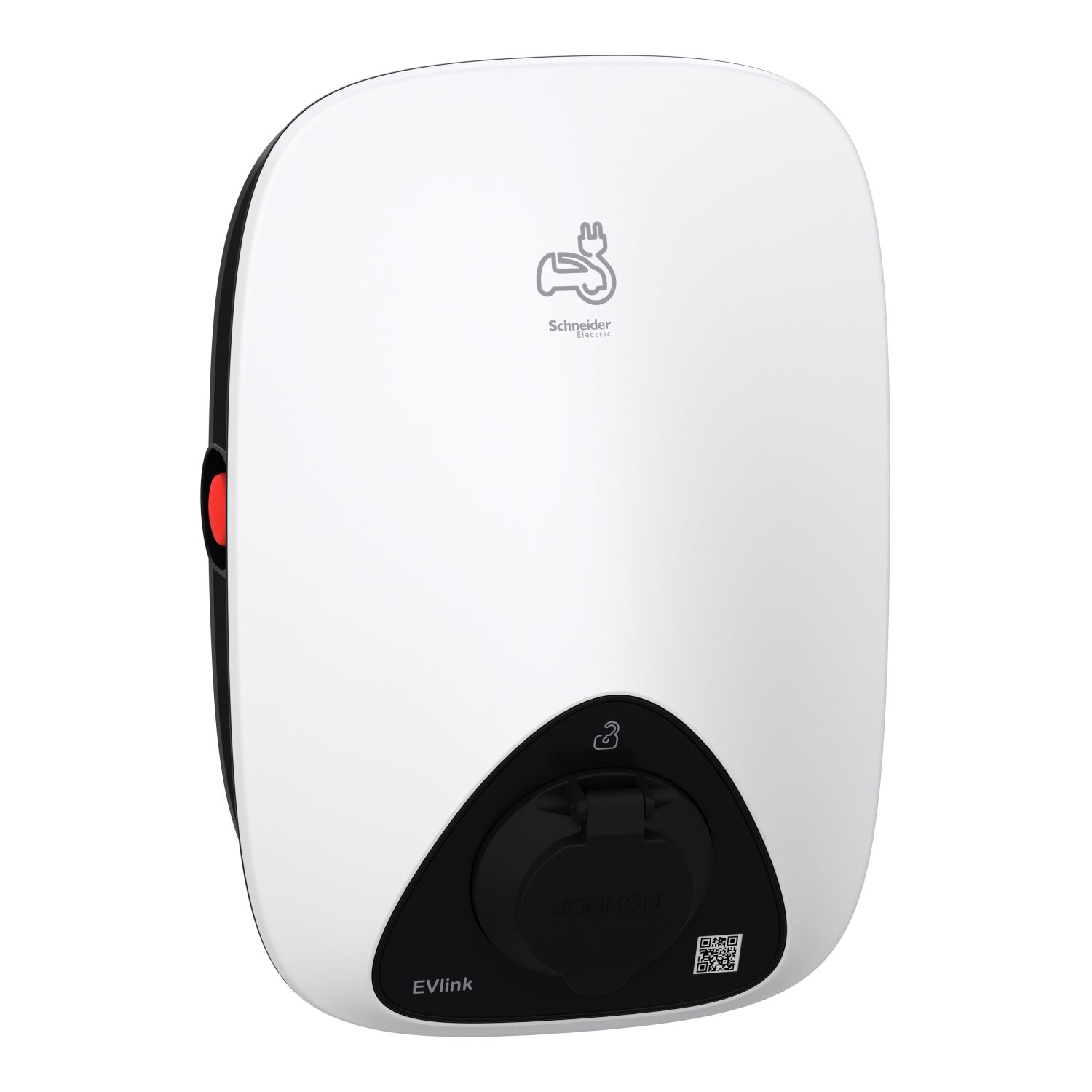

Picture of EVlink Home, Charging station, 3P+N, 1xT2, 11kW, 16A, with RDC-DD
SKU:

EVH4S11N2

EVlink Home, Charging station, 3P+N, 1xT2, 11kW, 16A, with RDC-DD

$1,159.31
Available for Shipping : 24-Nov-2024
EVlink Home, Charging station, 3P+N, 1xT2, 11kW, 16A, with RDC-DD
  • Competitive and certified offer
  • Benefit of Schneider’s reputation network of certified partners
  • Product available from Distributors
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Declaration of conformity
Product environmental
Instruction sheet
CAD
End of life manual
System user guide
Image of product in real life situation
Product Page Link
Product Data Sheet
This Evlink Home product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C. The output type is a T2 socket-outlet, fixed on the front face of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It can be used with a TN-S or TT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage for instance. The dimensions are (W) 282mm x (H) 409mm x (D) 148mm. Its product weight is 5.6kg. Its color is white (RAL9003). It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. By complementing the charging station with the anti-tripping system, it benefits of the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 1
Socket outlet type T2
Mounting mode wall-mounted
Nominal output power 11 kW 16 A 400 V
Range EVlink
Output type socket-outlet T2 front face
Offer type basic
Poles description 3P + N
Product name EVlink Home
Product or component type charging station
Socket number 1
Complementary
Colour white (RAL 9003)
Protection type earth-leakage protection
Maximum supply current 16 A
[Us] rated supply voltage 400 V AC 50 Hz +/- 10 %
Number of inputs 1
Height 409 mm
Earthing system TN-S, TT
Depth 148 mm
Width 282 mm
Input type auxiliary for dynamic energy management
Control type red 1 emergency stop, function: 1 push-button
Local signalling red, green and blue 1 LED, function: status indication
Net weight 5.6 kg
Standards EN 61000-6-3, EN 61000-6-1, IEC 61851-1, EN 61851
Product certifications UKCA, CE
Environment
Ambient air temperature for storage -40-85 °C
Relative humidity 5-95 %
IP degree of protection IP54 conforming to EN/IEC 60529
Ambient air temperature for operation -30-50 °C
IK degree of protection IK10 conforming to IEC 62262
Operating altitude 0...2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.5 cm
Package 1 Width 39.5 cm
Package 1 Length 49.0 cm
Package 1 Weight 5.152 kg
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 104.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 94.5 kg

Related products

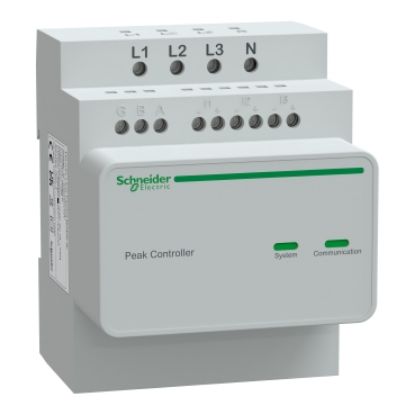

Picture of EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A

EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A

EVA1HPC3
$290.36
View Detail
