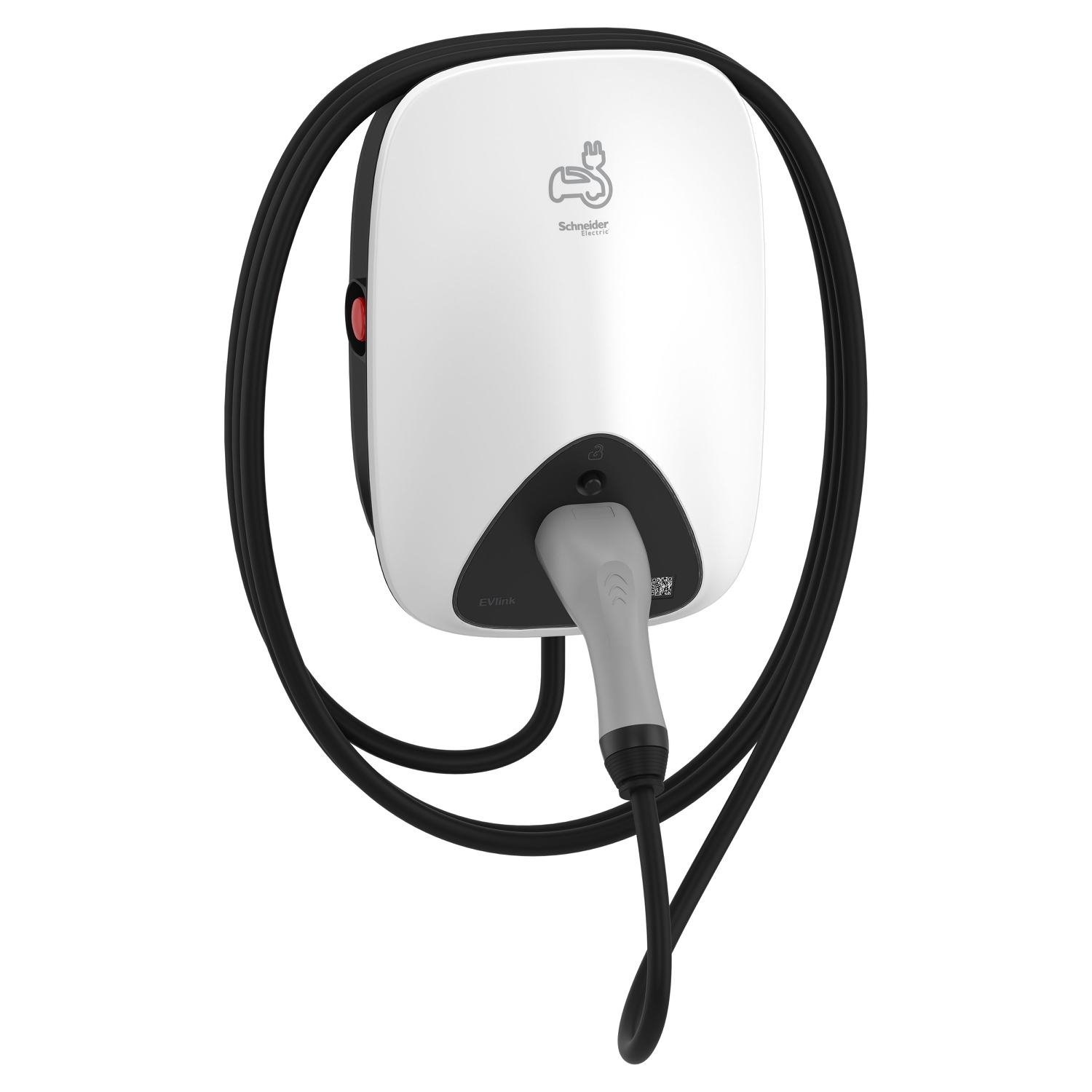

Picture of EVlink Home, Charging station, 3P+N, attached cable 5m, 11kW, 16A, with RDC-DD
SKU:

EVH4S11NC

EVlink Home, Charging station, 3P+N, attached cable 5m, 11kW, 16A, with RDC-DD

$1,217.27
Available for Shipping : 24-Nov-2024
EVlink Home, Charging station, 3P+N, attached cable 5m, 11kW, 16A, with RDC-DD
  • Competitive and certified offer
  • Benefit of Schneider’s reputation network of certified partners
  • Product available from Distributors
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
System user guide
Declaration of conformity
Product environmental
Instruction sheet
End of life manual
Image of product in real life situation
CAD
Product Page Link
Product Data Sheet
This Evlink Home product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C. The output type is a 5m attached cable with a T2 socket-outlet at the end, installed at the bottom and top centre of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It can be used with a TN-S or TT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage for instance. The dimensions are (W) 282mm x (H) 409mm x (D) 148mm. Its product weight is 5.6kg. Its color is white (RAL9003). It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. By complementing the charging station with the anti-tripping system, it benefits of the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 1
Socket outlet type cable T2
Mounting mode wall-mounted
Nominal output power 11 kW 16 A 400 V
Range EVlink
Output type attached cable T2 bottom and top centre of enclosure 5 m
Offer type basic
Poles description 3P + N
Product name EVlink Home
Product or component type charging station
Socket number 1
Complementary
Colour white (RAL 9003)
Protection type earth-leakage protection
Maximum supply current 16 A
[Us] rated supply voltage 400 V AC 50 Hz +/- 10 %
Number of inputs 1
Height 409 mm
Earthing system TN-S, TT
Depth 148 mm
Width 282 mm
Input type auxiliary for dynamic energy management
Control type red 1 emergency stop, function: 1 push-button
Local signalling red, green and blue 1 LED, function: status indication
Net weight 5.6 kg
Standards EN 61000-6-3, EN 61000-6-1, IEC 61851-1, EN 61851
Product certifications UKCA, CE
Environment
Ambient air temperature for storage -40-85 °C
Relative humidity 5-95 %
IP degree of protection IP55 conforming to EN/IEC 60529
Ambient air temperature for operation -30-50 °C
IK degree of protection IK10 conforming to IEC 62262
Operating altitude 0...2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 32.200 cm
Package 1 Width 40.000 cm
Package 1 Length 49.000 cm
Package 1 Weight 6.690 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 79.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 66.500 kg

Related products

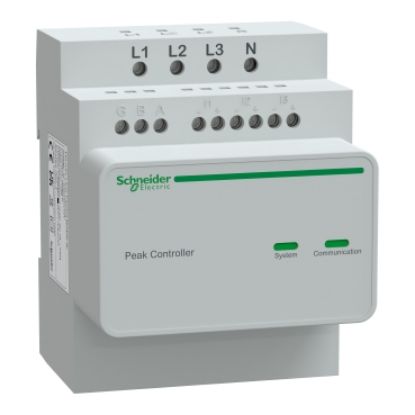

Picture of EVlink Home, Anti-tripping module, 3P, maximum current allowed to charging station manually setting from 16A to 50A
