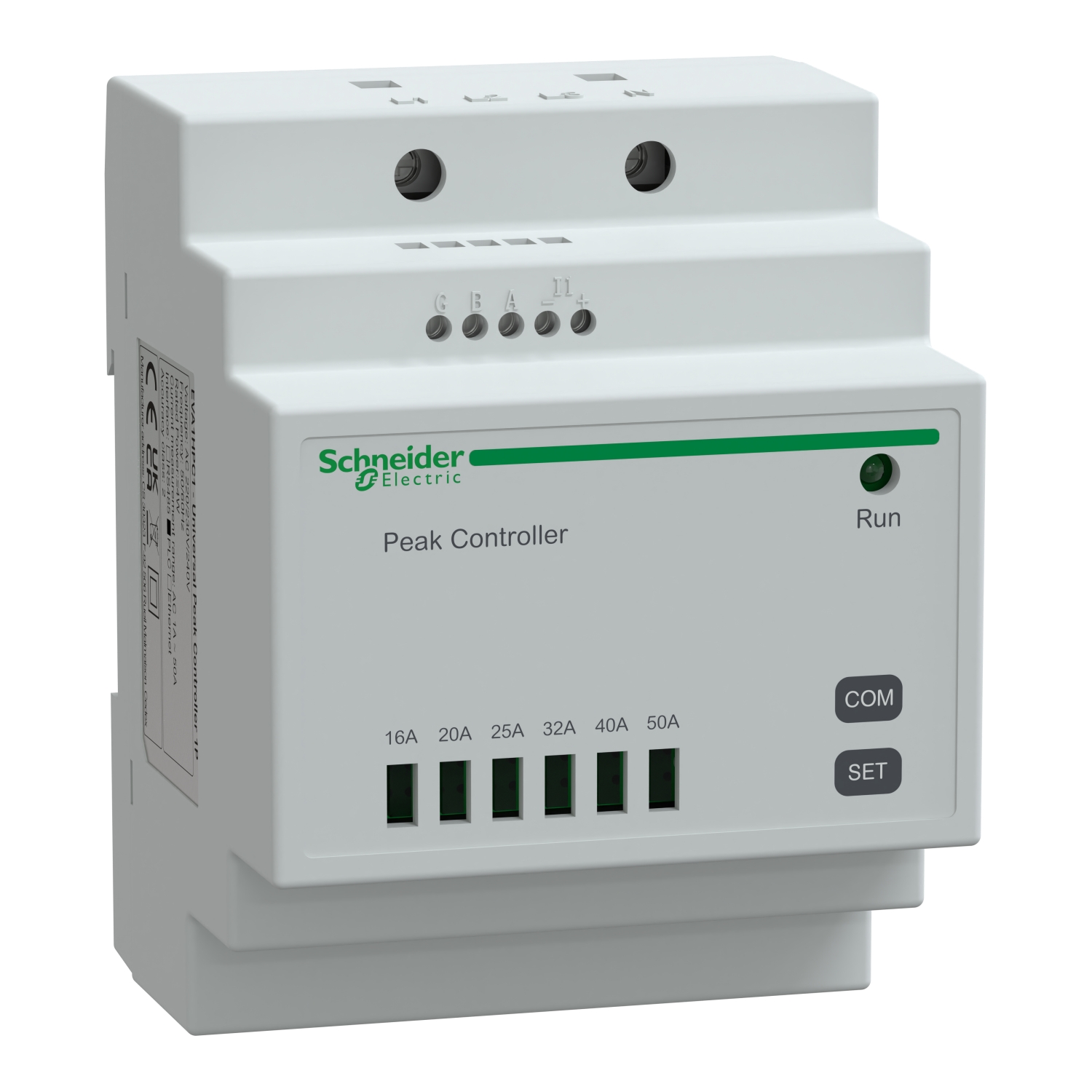

Picture of EVlink Home, Anti-tripping module, 1P, maximum current allowed to charging station manually setting from 16A to 50A
SKU:

EVA1HPC1

EVlink Home, Anti-tripping module, 1P, maximum current allowed to charging station manually setting from 16A to 50A

$290.36
Available for Shipping : 24-Nov-2024
Product Selector
EVlink Home, Anti-tripping module, 1P, maximum current allowed to charging station manually setting from 16A to 50A
  • Competitive and certified offer
  • Benefit of Schneider’s reputation network of certified partners
  • Product available from Distributors
  • Easy installation
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Instruction sheet
Product environmental
End of life manual
Declaration of conformity
System user guide
Product Page Link
Product Data Sheet
This EVlink Home accessory is a load-shedder used as an anti-tripping system to complement the charging station. It is used in single-phase network. The dimensions are (W) 93mm x (H) 70mm x (D) 69mm. Its product weight is 196g. Its color is white. It is made of plastic.

Products specifications

Attribute name Attribute value
Main
Range EVlink
Material plastic
Product or component type load-shedder
Complementary
Depth 69 mm
Width 93 mm
Colour white
Quantity per set set of 1
Settings operating mode manual
[Us] rated supply voltage 220...230 V AC 50/60 Hz +/- 10 %
Connectivity to devices PLC
Local signalling 1 green LED, function: embedded communication status, 1 red LED, function: fault indication, 1 green LED, function: control process
Net weight 196 g
Network number of phases single phase
Condition of use indoor
Power consumption in W 4 W
Power supply output current 50-50 A, 40-40 A, 32-32 A, 25-25 A, 20-20 A, 16-16 A
Standards EN 61326-1:2013, EN 61010-1:2010
Range compatibility EVlink EVlink Home
Mounting support 35 mm DIN rail
Height 70 mm
Environment
Operating altitude 0...2000 m
Overvoltage category III
Ambient air temperature for storage -40-85 °C
Relative humidity 5-95 %
Pollution degree 2
Ambient air temperature for operation -30-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 10.100 cm
Package 1 Length 17.600 cm
Package 1 Weight 515.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.540 kg
