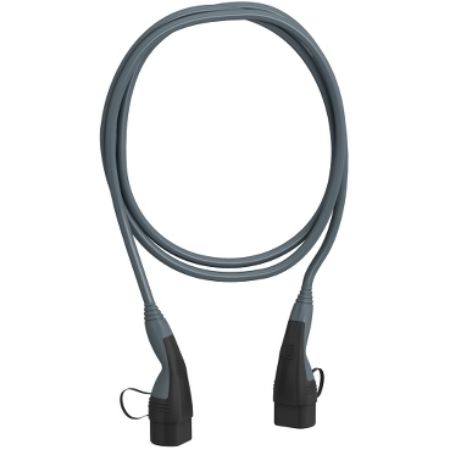

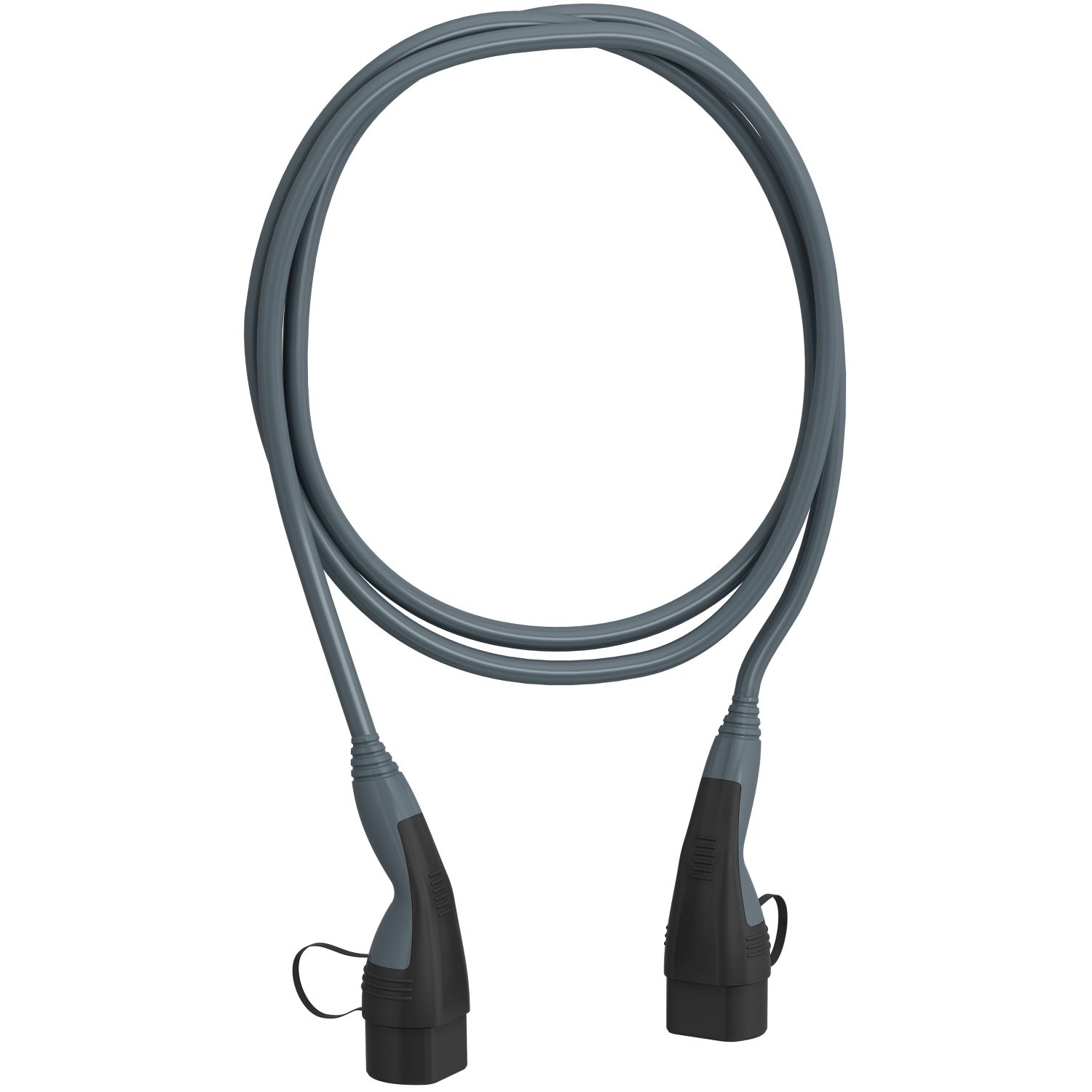

Picture of Charging cable, EVlink, 10m, 32A, 3-Phase, T2 connector at each end of cable
SKU:

EVP1CNX32322

Charging cable, EVlink, 10m, 32A, 3-Phase, T2 connector at each end of cable

$852.04
Available for Shipping : 24-Nov-2024
Charging cable, EVlink, 10m, 32A, 3-Phase, T2 connector at each end of cable
  • EVlink Pro AC cable
  • EVlink Pro AC accessory
  • Certified and aesthetic – Compliant with strict safety certification
  • Peace of mind - Worldwide customer care center
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This EVlink cabling accessory is a three-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 380VAC up to 415VAC. The frequency is 50Hz to 60Hz. The cable length is 10m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.

Products specifications

Attribute name Attribute value
Main
Poles description 3P + N
[In] rated current 32 A
Range EVlink
Network number of phases three phase
Product or component type charging cable
Socket number 2
Accessory / separate part category cabling accessory
[Us] rated supply voltage 380...415 V AC 50/60 Hz
Complementary
Colour grey
Socket-outlet type T2 / silver plated contacts charging station end
Net weight 5.9 kg
Length 10 m
Connector type T2 charging station end silver plated contacts, T2 vehicle end silver plated contacts, T2 T2
Range compatibility EVlink EVlink Pro AC Metal EVB3 charging station, EVlink EVlink Pro AC EVB3 charging station, EVlink EVlink Wallbox EVH2 charging station, EVlink EVlink Smart Wallbox EVB1 charging station, EVlink EVlink parking EVW2 charging station, EVlink EVlink parking EVF2 charging station, EVlink EVlink parking EVW1 charging station, EVlink EVlink parking EVF1 charging station
Standards IEC 62196-2, IEC 62196-1
Product certifications CE
Environment
Ambient air temperature for storage -40-80 °C
Relative humidity 5-95 %
IP degree of protection IP44 conforming to IEC 60529
Ambient air temperature for operation -30-50 °C
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 33.000 cm
Package 1 Length 42.000 cm
Package 1 Weight 5.785 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 115.500 kg
