SKU:

EVB3S22N4

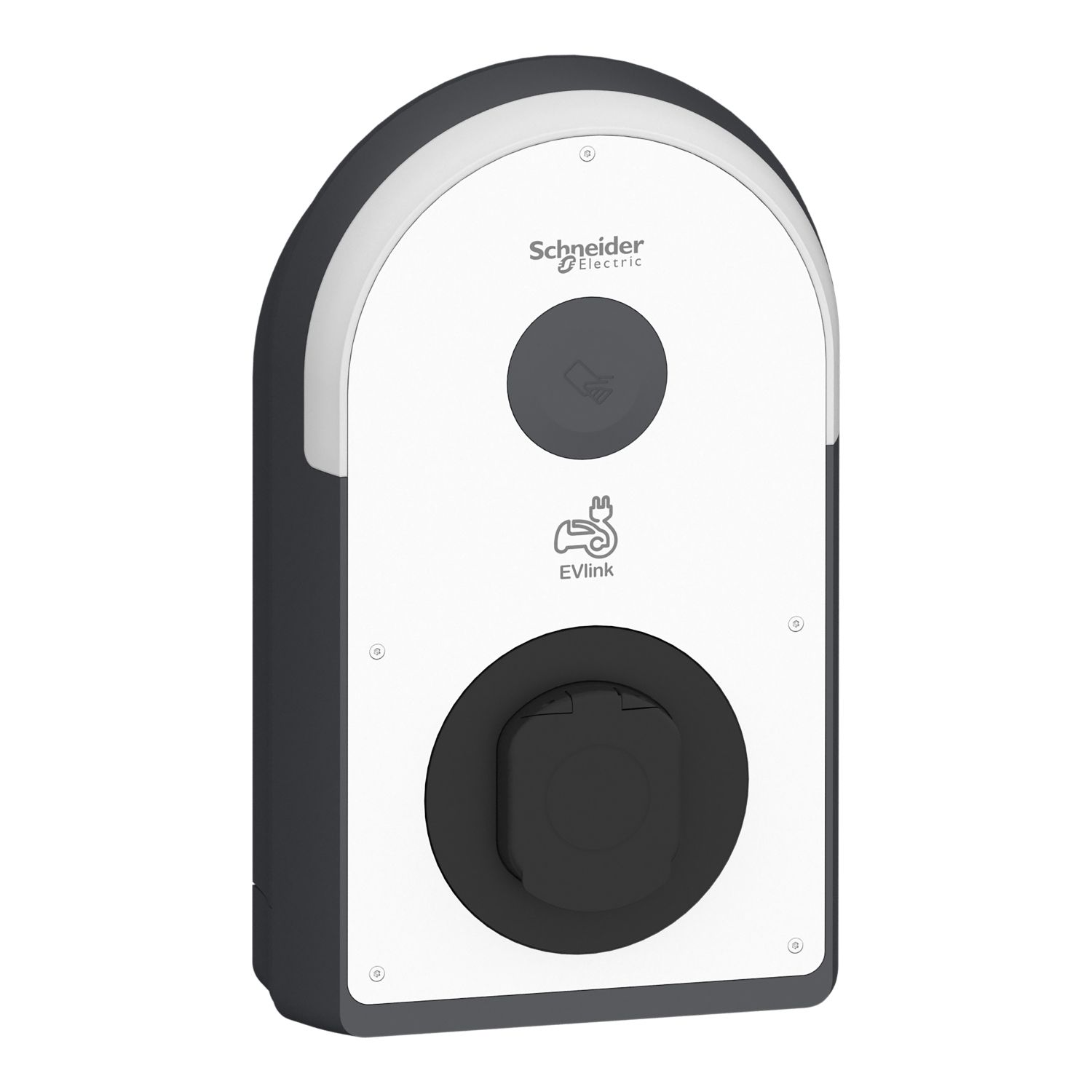

EVlink Pro AC, Charging station, AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RDC-DD 6mA, MNx aux.

$2,293.28

Qty:

Available for Shipping : 17-Nov-2024

Product Selector

EVlink Pro AC, Charging station, AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RDC-DD 6mA, MNx aux.

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

End of life manual

Instruction sheet

Brochure

User guide

System user guide

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

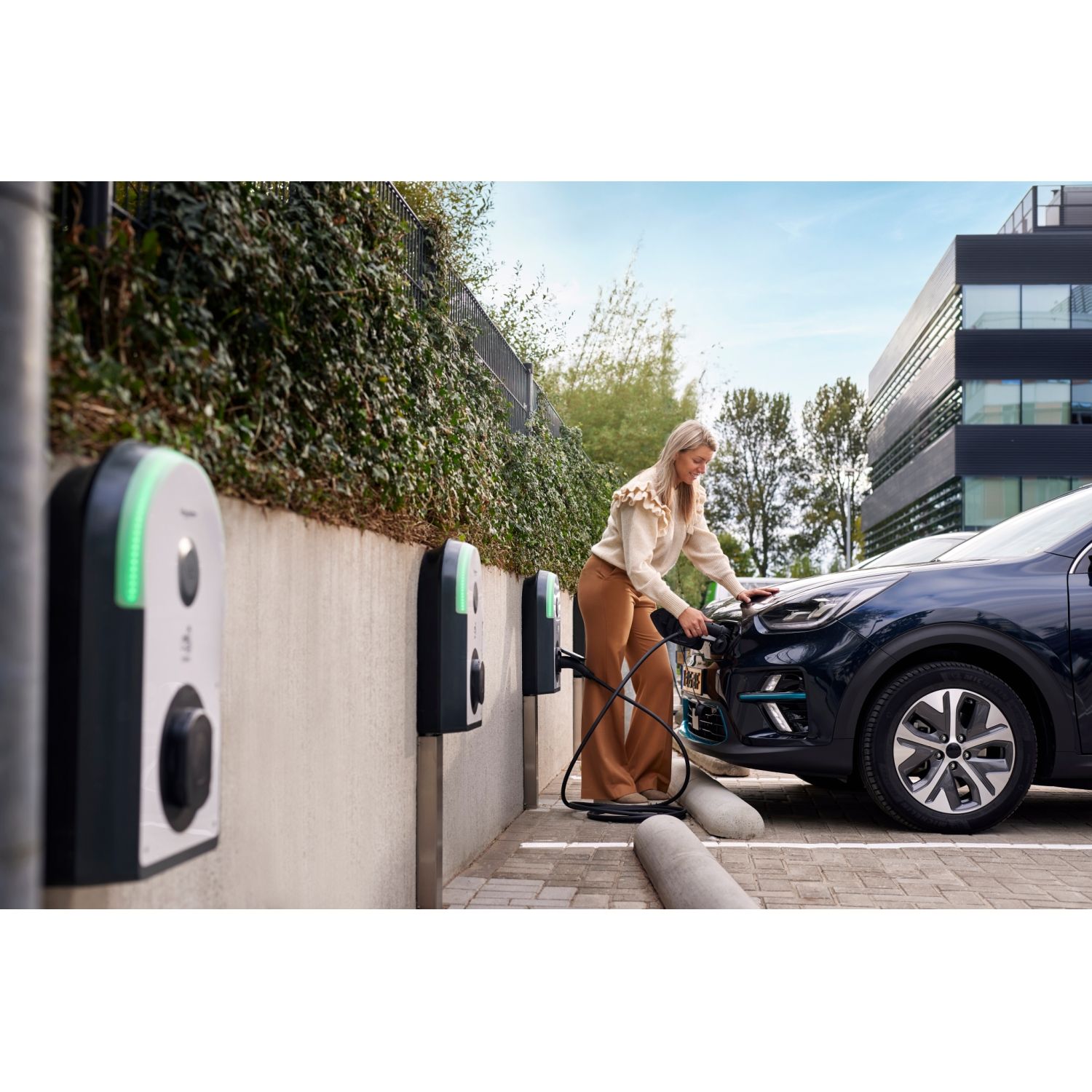

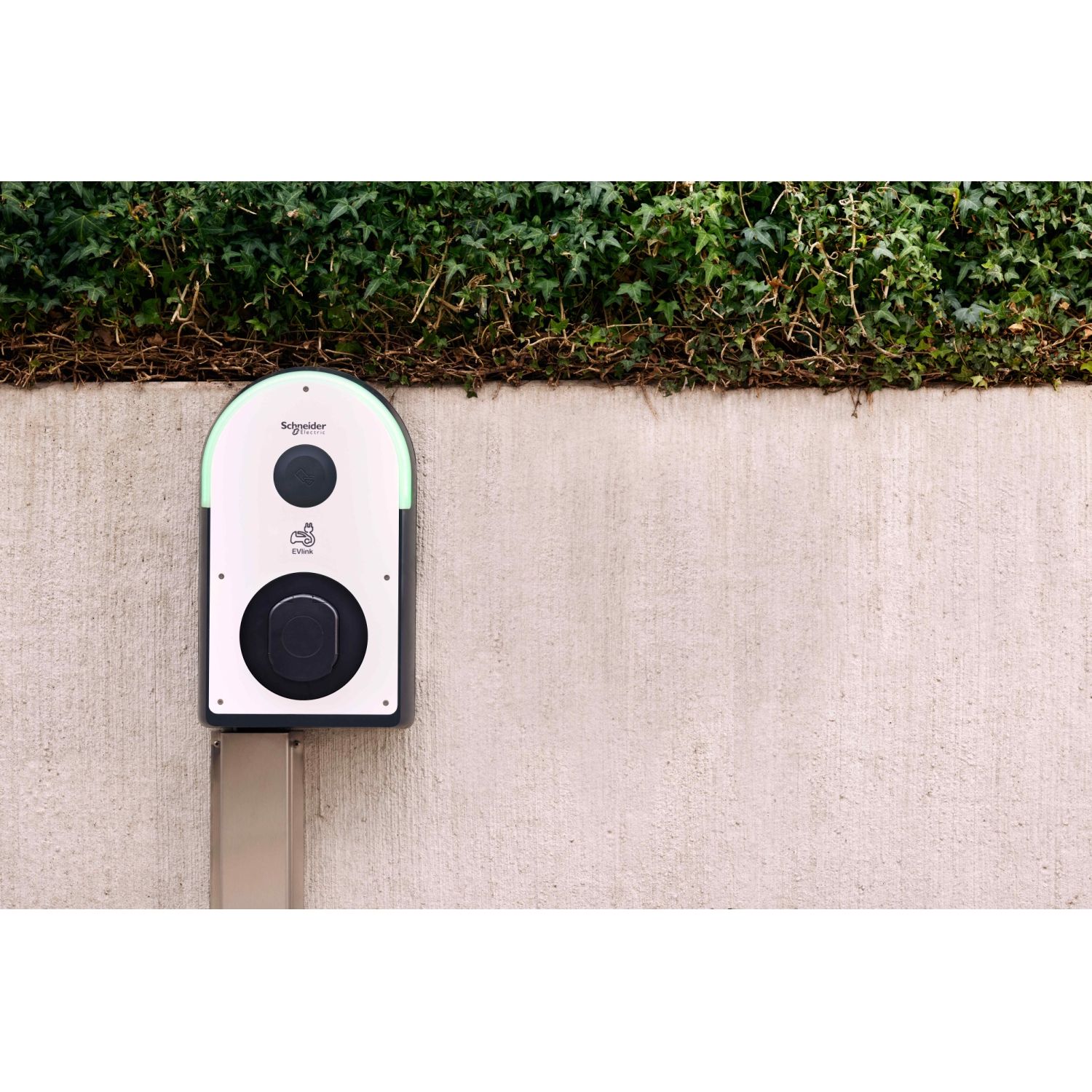

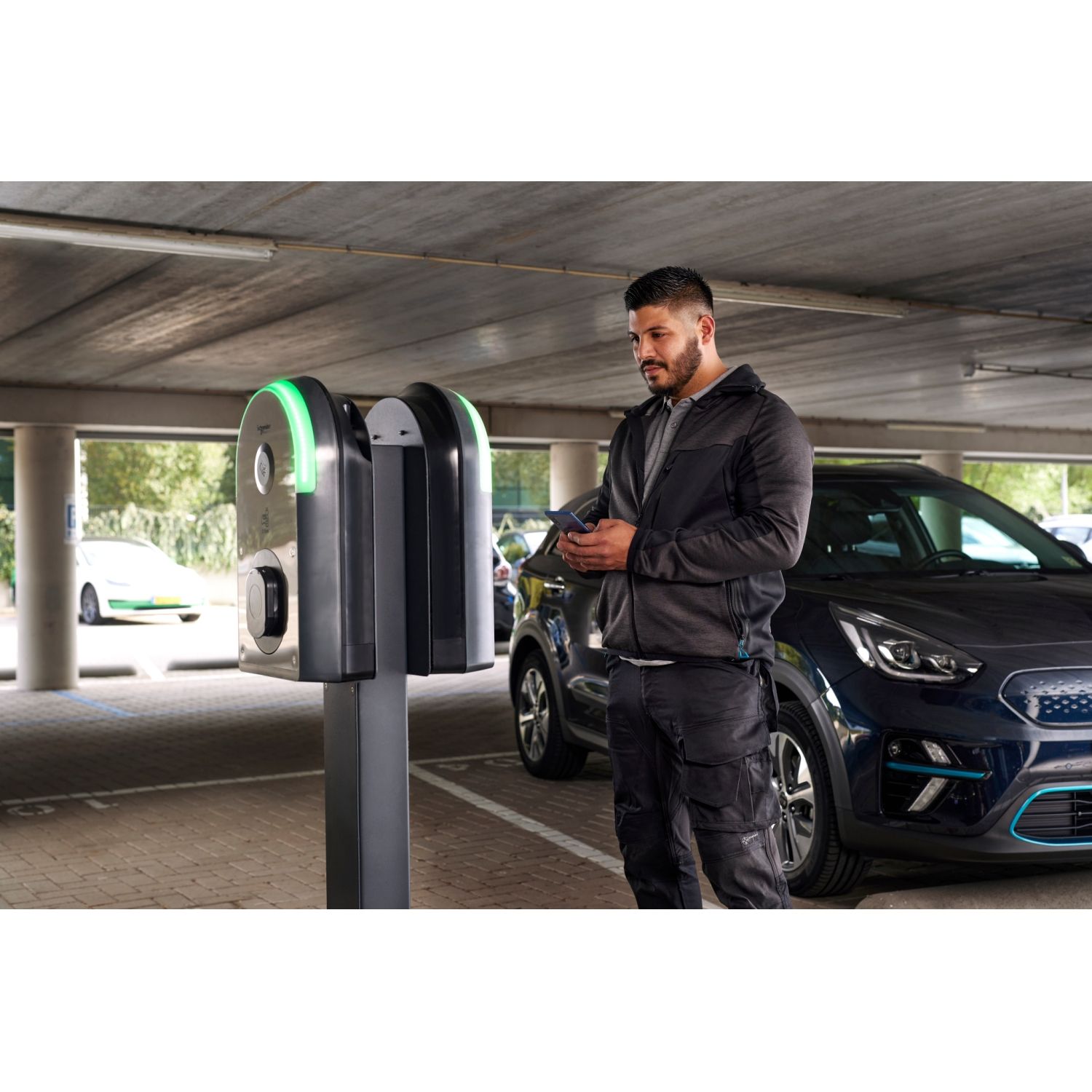

This EVlink Pro AC product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. It can also be floor-standing, either fixed on a pedestal, or integrated in a kit enclosure. Both pedestal or kit enclosure have to be ordered separately. It can be installed indoor as well as outdoor. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C. The storage temperature is between -40°C and 80°C. The output type is a T2 socket-outlet with shutter (T2S), fixed on the front face of the station. All the contacts of T2S socket-outlet are silver-plated avoiding overheating. The nominal output power is 22kW. It is supplied in three-phase (3P+N). The rated charging current is 32A under 380V to 415VAC with a 50Hz to 60Hz frequency. It can be used with a TT, TN-S, or TN-C-S earthing system. It is also IT compatible with an additional isolation transformer on the power supply. The charging station is easy to install and to comission. It is recommended at home as well as at fleets, at street or at work. The dimensions are (W) 317mm x (H) 529mm x (D) 153mm. Its product weight is 7.2kg. Its color is white (RAL9003). It embeds a built-in protection against residual direct current, with a 6mA residual direct current detection device (RDC-DD). An MNx under voltage tripping auxiliary is also integrated in the charging station for safety. Moreover, it is necessary to meet EV Ready requirements. The charging station can be fed by cable coming from the rear, the top or the bottom of it. To load an electrical vehicle, the access control is done by a user authentication through RFID or NFC badge. But the charging station can also be used for free access. The load starting can be time-delayed. During the load time, the power can be limited to ensure the continuity of service and optimize the charging time of all the charging station based on a same feeding. It has 2 Ethernet RJ45 ports for LAN connection. The parameters are set up through eSetup app via Bluetooth or EcoStruxure EV Charging Expert. The charging station can be managed in standalone or in clustered architecture. The OCCP 1.6 communication protocol is used to connect to the supervision device.The available services are the charge detail records, the diagnosis capabilities and the load management. The charging station has the CE and EV Ready certification.

Products specifications

Attribute name	Attribute value
Main
Device short name	EVB3
Function available	load management, charge detail records, diagnosis capabilities
Range	EVlink
Communication network type	Modbus TCP, 3G/4Gmodem optional, bluetooth, Ethernet
Communication port protocol	OCPP 1.6
Communication service	JSON smart charging for OCPP 1.6
Product name	EVlink Pro AC
Connector type	2 RJ45 for Ethernet LAN connection
Product or component type	charging station
Operating mode	standalone, clustered architecture
Complementary
Colour	back part: black (RAL 9005), housing: dark grey (RAL 7016), front face: white (RAL 9003)
Width	317 mm
Ambient air temperature for storage	-40-80 °C
[Us] rated supply voltage	380...415 V AC 50/60 Hz
Relative humidity	5-95 %
Nominal output power	22 kW 32 A 380...415 V
Output type	front side T2 with shutter socket-outlet / silver plated contacts
Depth	153 mm
RFID frequency	13.56 MHz
IP degree of protection	IP55
Ambient air temperature for operation	-30-50 °C
Standards	ISO 15118, NF C 61314, IEC 60884-1, EN 61000-6-3:2011/A1, EN 61000-6-3:2007, EN 61000-6-2:2019, EN/IEC 62196-2:ed. 1, EN/IEC 62196-1:ed. 2, EN/IEC 61851-1:ed. 3
Number of inputs	3
IK degree of protection	IK10
Poles description	3P + N for power circuit
Protection device type	residual direct current detection device (RDC-DD) - 6 mA
Earthing system	IT (single phase network only allowed, 400V 3 phases network forbidden), TN-C-S, TN-S, TT
NFC tag type	type 5, type 4, type 2, type 1
Cable entry	rear entry, top entry, bottom entry
Operating altitude	2000 m without derating
Input type	binary for vehicle detection closing contact, binary for delayed charging closing contact, binary for power limitation closing contact
Accuracy class	class 1
Mounting support	kit enclosure, to be ordered separately, pedestal, to be ordered separately
Height	529 mm
Technology type	MIFARE Plus, MIFARE Ultralight, MIFARE Classic
Control type	can be controlled by remote
Access control system	free access, badge NFC, badge RFID conforming to ISO/IEC 15693, badge RFID conforming to ISO/IEC 14443 A and B
Local signalling	1 red LED light strip, function: fault indication, 1 blue LED light strip, function: charging, 1 green LED light strip, function: available
Type of installation	outdoor, indoor
Net weight	7.2 kg
Socket number	1
Range compatibility	EcoStruxure EcoStruxure EV Advisor, EVlink EVlink Pro AC Metal, EVlink EcoStruxure EV Charging Expert
Provided equipment	1 MNx auxiliary contact integrated, 1 residual direct current detection device (RDC-DD) integrated
Mounting mode	floor-standing (kit enclosure), floor-standing (pedestal), wall-mounted (kit enclosure), wall-mounted
Product certifications	CE, EV Ready
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	28.5 cm
Package 1 Width	35.5 cm
Package 1 Length	57.5 cm
Package 1 Weight	8.7 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	73.0 cm
Package 2 Width	60.0 cm
Package 2 Length	80.0 cm
Package 2 Weight	43.0 kg
