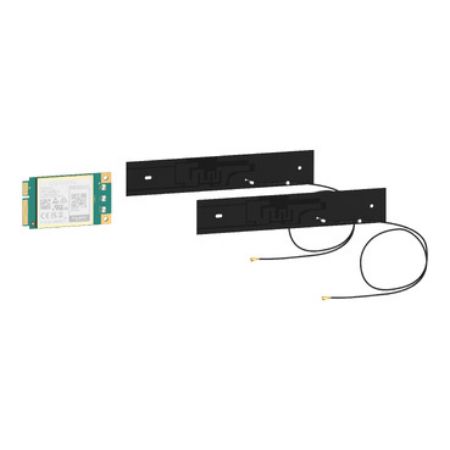

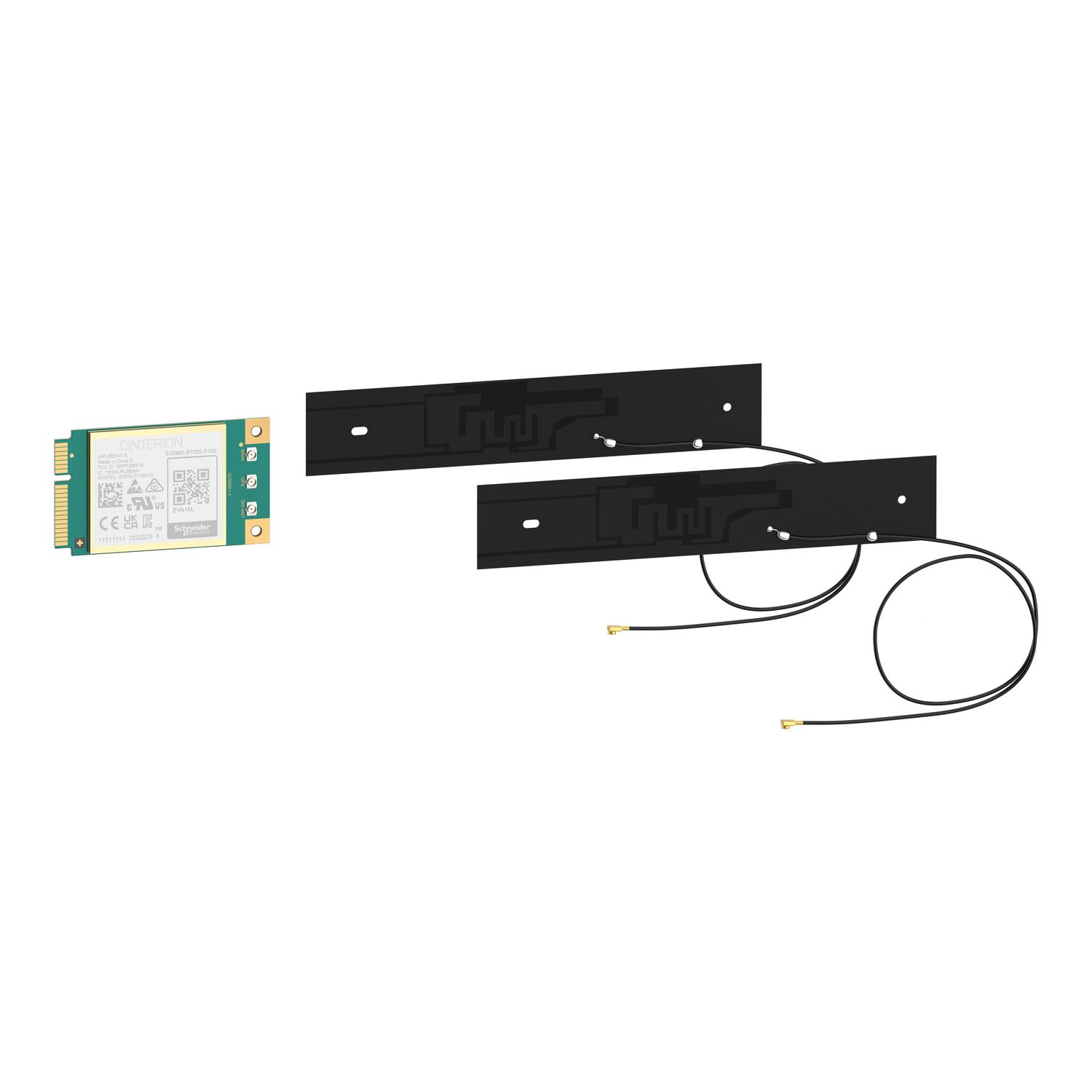

Picture of 4G modem kit, EVlink Pro AC, with 4G cellular modem and 2 antennas
SKU:

EVA1MS

4G modem kit, EVlink Pro AC, with 4G cellular modem and 2 antennas

$386.54
Available for Shipping : 24-Nov-2024
4G modem kit, EVlink Pro AC, with 4G cellular modem and 2 antennas
  • EVlink Pro AC accessory
  • Certified and aesthetic – Compliant with strict safety certification
  • Peace of mind - Worldwide customer care center
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
System user guide
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This communication accessory for EVlink Pro AC contains a 4G modem and 2 antennas that are installed inside the charging station. It allows the EVlink Pro AC charging station to connect to EV Advisor platform or an external supervision system or any cloud based software. There is an instruction sheet that provides step by step guidance on the installation of the 4G modem and the antennas.

Products specifications

Attribute name Attribute value
Main
Range EVlink
Product or component type 4G modem
Accessory / separate part category communication accessory
Complementary
Product compatibility charging station
Depth 160 mm
Width 120 mm
Integrated connection type micro SIM (3FF) card slot
Transmission rate 5 Mbps for uplink, 10 Mbps for downlink
Mounting mode by screws
Net weight 70 g
Kit composition 1 instruction sheet, 2 antenna, 2 screw, 1 modem
Range compatibility EVlink EVlink Pro AC
Height 20 mm
Antenna type internal
Communication network type GSM, UMTS, 4G LTE
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-80 °C
Directives RED directive 2014/53/UE and UK equivalent
Standards AS/NZS CISPR 32, EN/IEC 63000:2018
Ambient air temperature for operation -30-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 11.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 66.000 g
Unit Type of Package 2 2
Number of Units in Package 2 134
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.650 kg
