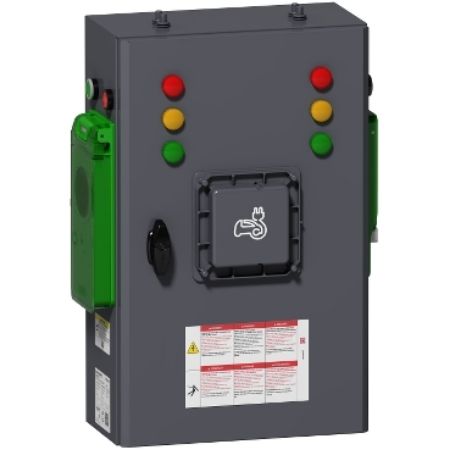

Picture of EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID
SKU:

EVP2PE2244R

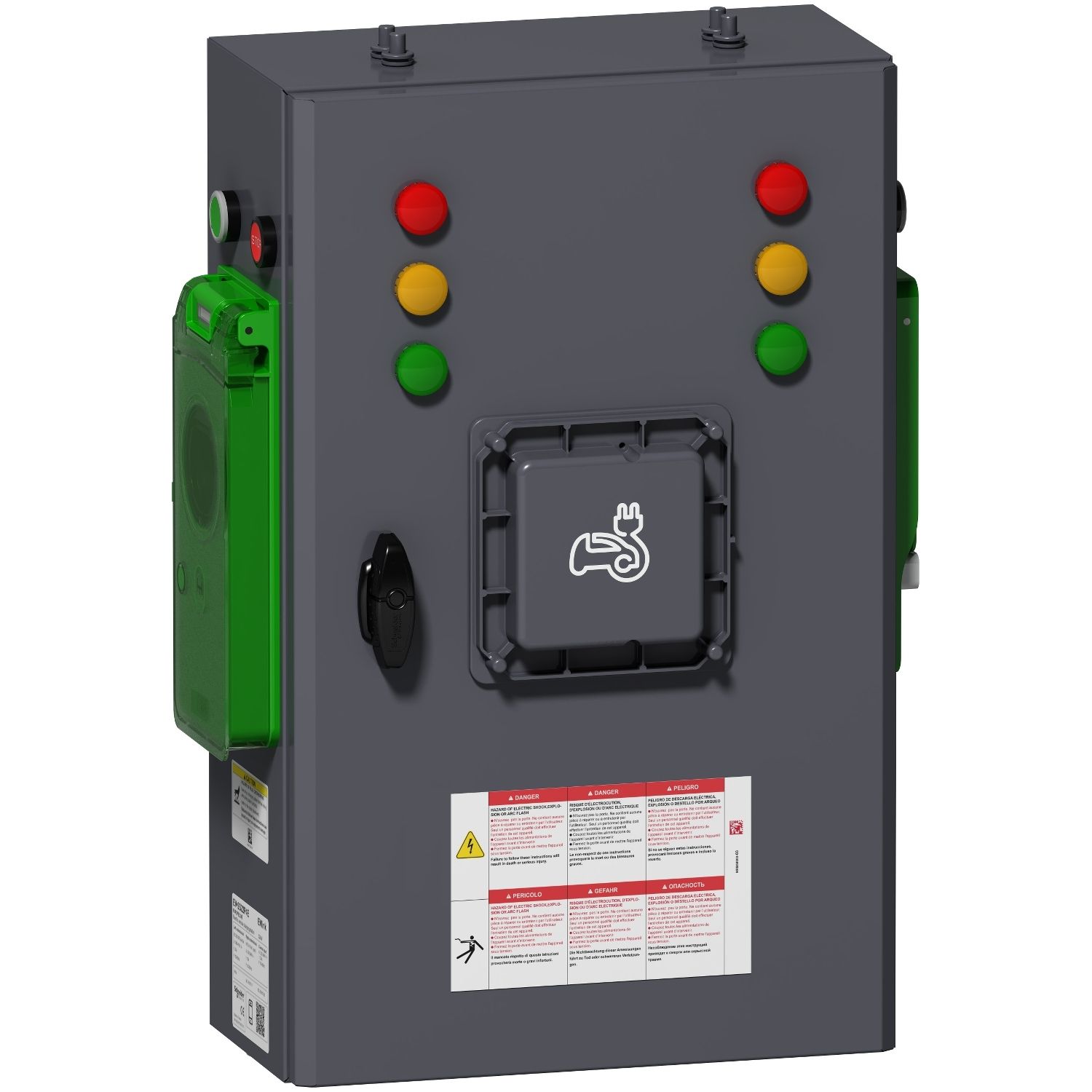

EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID

Please Contact Sales to buy this Product. click here
EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Poles description1P + N for control circuit, 3P + N for power circuit
Device short nameEVP2
Socket outlet type2 x T2S
Socket-outlet typeright side: T2 with shutter / silver plated contacts
Maximum supply current32 A for T2 with shutter
Mounting modefloor-standing, wall-mounted
Access control systembadge RFID conforming to ISO/IEC 15693, badge RFID conforming to ISO/IEC 14443
Nominal output power22 kW for T2 with shutter
RangeEVlink
Product nameEVlink parking
Product or component typeenclosure
Earthing systemTT, TN, IT
Socket number2
Range compatibilityEVlink EVlink parking EVW2 charging station, EVlink EVlink parking EVF2 charging station
Offer typestandard
[Us] rated supply voltage380...415 V AC 50/60 Hz power circuit, 230 V AC 50/60 Hz control circuit
Complementary
Web serverembedded
Depth206 mm
Width400 mm
Colourgrey (RAL 7016)
Ethernet serviceconfiguration via web server
Control type2 green illuminated push-button, function: start/unlock flap, 2 red push-button, function: stop
Net weight20 kg
Local signallingnot operational: 2 LED (red) on front, reserved: 2 LED (orange) on front, available: 2 LED (green) on front, on charge: 2 LED (green) (flashing) on side
Height625 mm
Environment
Operating altitude0...2000 m conforming to IEC 61851-22
IK degree of protectionIK10 socket-outlet conforming to IEC 61851-22, IK10 charging station conforming to IEC 61851-22
Ambient air temperature for storage-40-80 °C
Relative humidity0-95 %
IP degree of protectionIP54 on load conforming to IEC 61851-1, IP54 off load conforming to IEC 61851-1
Ambient air temperature for operation-25-50 °C conforming to IEC 61851-22
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height25.000 cm
Package 1 Width50.000 cm
Package 1 Length70.000 cm
Package 1 Weight18.029 kg
Unit Type of Package 22
Number of Units in Package 22
Package 2 Height50.000 cm
Package 2 Width80.000 cm
Package 2 Length60.000 cm
Package 2 Weight47.500 kg
