SKU:

EY56CSC310

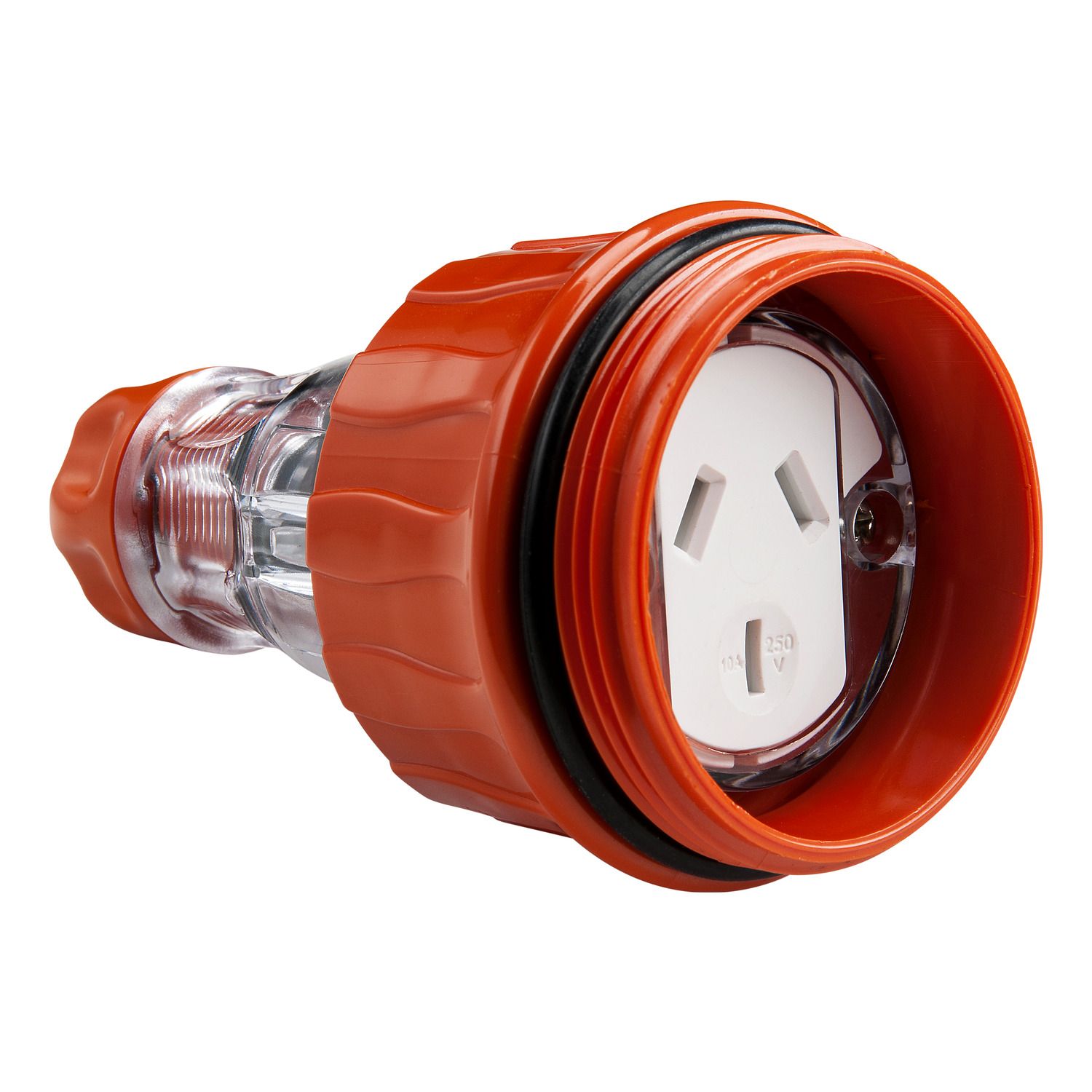

Easy56, Socket Connector, 10A, 250V

$25.39

Qty:

Easy56, Socket Connector, 10A, 250V

Estimated Delivery Date: 26-Sep-2024

Attribute name	Attribute value
Main
Plug, socket category	low voltage
Poles description	1P + N + E
Product compatibility	plug Easy56 EY56P310
Product or component type	connector
Outlet standard deviation	Australian/New Zealand
Shape of pin	flat
Accessory / separate part category	connection accessory
Network type	AC
Pin number	3 pins
Complementary
[Ue] rated operational voltage	250 V
Cable outer diameter	6.8-10.6 mm
Depth	105 mm
Market segment	utility, industry, small commercial
Width	65 mm
Colour	body: clear, plug: orange (RAL 2004)
[In] rated current	10 A
Cable entry	cable gland
Material	polycarbonate: housing
Cable cross section	0.75-1 mm²
Wire stripping length	12-34 mm
Thread type	M20
Net weight	0.107 kg
Plug, socket, control station shape	straight
Contacts material	sleeves: brass
Height	65 mm
Connections - terminals	screw terminals
Targeted country	New Zealand, Australia
Network frequency	50 Hz
Environment
Quality labels	RCM
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3120
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.3 cm
Package 1 Width	6.3 cm
Package 1 Length	10.5 cm
Package 1 Weight	123 g
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	72 mm
Package 2 Width	118 mm
Package 2 Length	270 mm
Package 2 Weight	0.686 kg
Unit Type of Package 3	3
Number of Units in Package 3	75
Package 3 Height	295 mm
Package 3 Width	350 mm
Package 3 Length	350 mm
Package 3 Weight	9.225 kg
