SKU:

EY56P520

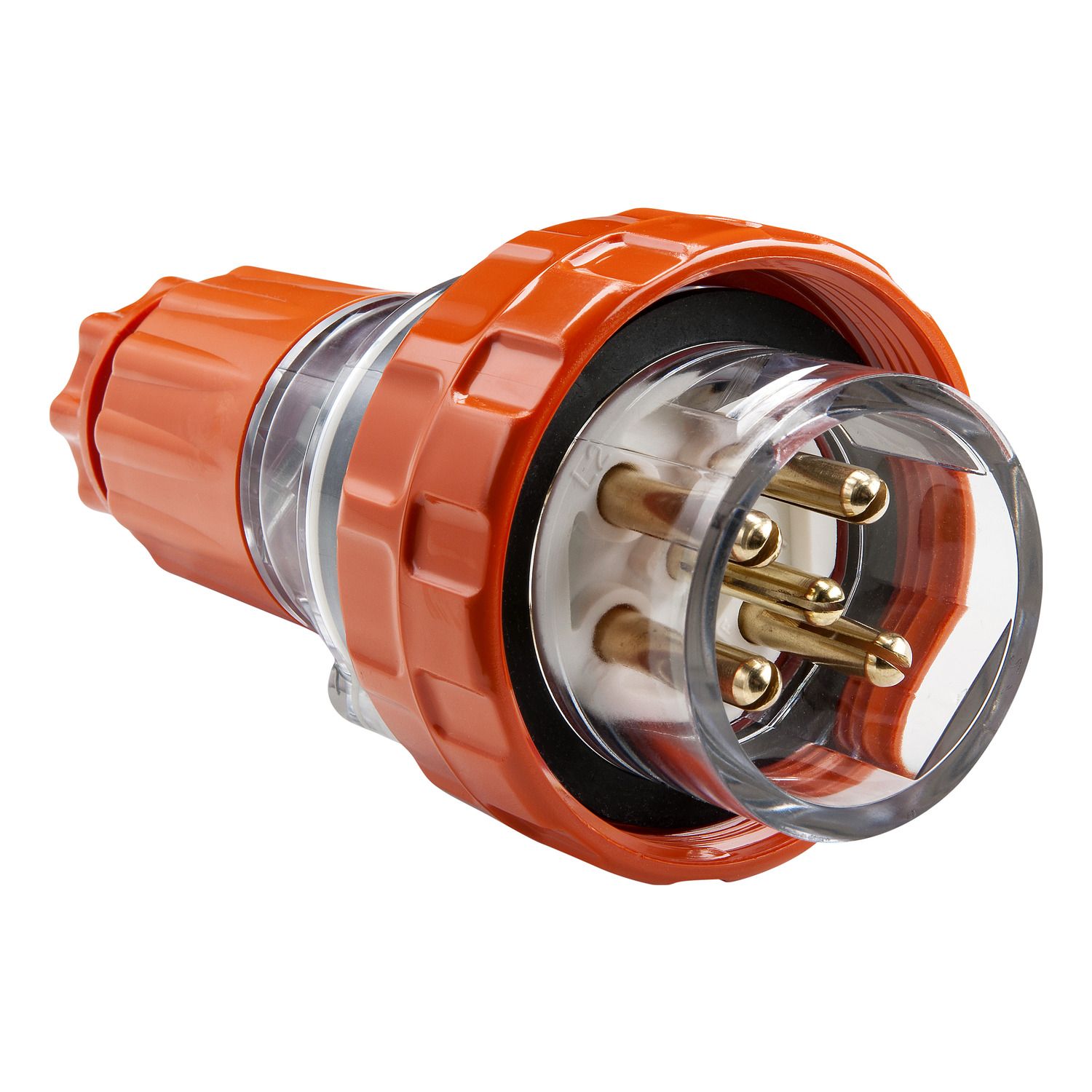

Easy56, Plug, 5 Pin, 20A, 500V

$50.78

Qty:

Easy56, Plug, 5 Pin, 20A, 500V

Estimated Delivery Date: 26-Sep-2024

Attribute name	Attribute value
Main
Device short name	EY56P520
Plug, socket category	low voltage
Poles description	3P + N + E
Product name	Easy56
Product or component type	plug
Outlet standard deviation	Australian/New Zealand
Shape of pin	tubular
Pin number	5 pins
Complementary
[Ue] rated operational voltage	500 V
Cable outer diameter	7-16 mm
Depth	152 mm
Market segment	utility, small commercial, industry
Width	78 mm
Colour	body: clear, plug: orange (RAL 2004)
[In] rated current	20 A
Cable entry	cable gland
Material	polycarbonate: housing
Cable cross section	1-4 mm²
Wire stripping length	10-35 mm
Net weight	0.298 kg
Plug, socket, control station shape	straight
Contacts material	pins: brass
Network type	AC
Height	78 mm
Connections - terminals	screw terminals
Targeted country	Australia, New Zealand
Network frequency	50 Hz
Environment
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3123
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17 cm
Package 1 Width	8 cm
Package 1 Length	9.5 cm
Package 1 Weight	313 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	21.8 cm
Package 2 Width	35.3 cm
Package 2 Length	45 cm
Package 2 Weight	6460.1 g
Unit Type of Package 3	3
Number of Units in Package 3	400
Package 3 Height	100 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	143202 g
