SKU:

EY56P532

Easy56, Plug, 5 Pin, 32A, 500V

$65.15 INC GST

Qty:

Available for Shipping : 28-Apr-2025

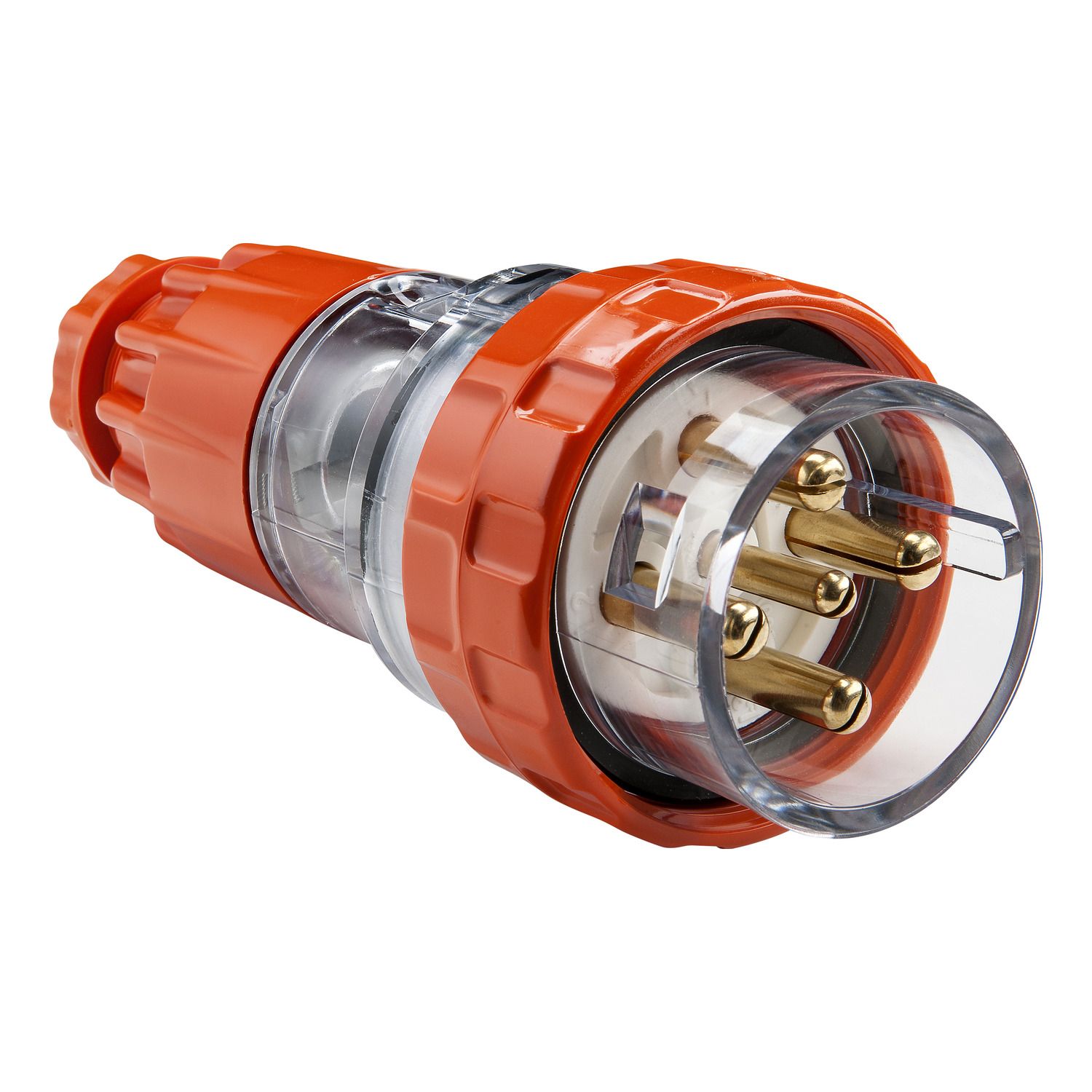

Easy56, Plug, 5 Pin, 32A, 500V

Manufacturer: Schneider Electric

Declaration of conformity

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56P532
Plug, socket category	low voltage
Poles description	3P + N + E
Product name	Easy56
Product or component type	plug
Outlet standard deviation	Australian/New Zealand
Shape of pin	tubular
Pin number	5 pins
Complementary
[Ue] rated operational voltage	500 V
Cable outer diameter	11-29.5 mm
Depth	176 mm
Market segment	utility, industry, small commercial
Width	78 mm
Colour	body: clear, plug: orange (RAL 2004)
[In] rated current	32 A
Cable entry	cable gland
Material	polycarbonate: housing
Cable cross section	4-16 mm²
Wire stripping length	10-65 mm
Net weight	0.42 kg
Plug, socket, control station shape	straight
Contacts material	pins: brass
Network type	AC
Height	78 mm
Connections - terminals	screw terminals
Targeted country	Australia, New Zealand
Network frequency	50 Hz
Environment
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3123
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.4 cm
Package 1 Width	8.8 cm
Package 1 Length	19.4 cm
Package 1 Weight	438 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	18.3 cm
Package 2 Width	38.9 cm
Package 2 Length	45.7 cm
Package 2 Weight	9026.3 g
Unit Type of Package 3	3
Number of Units in Package 3	400
Package 3 Height	100 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	194526 g
