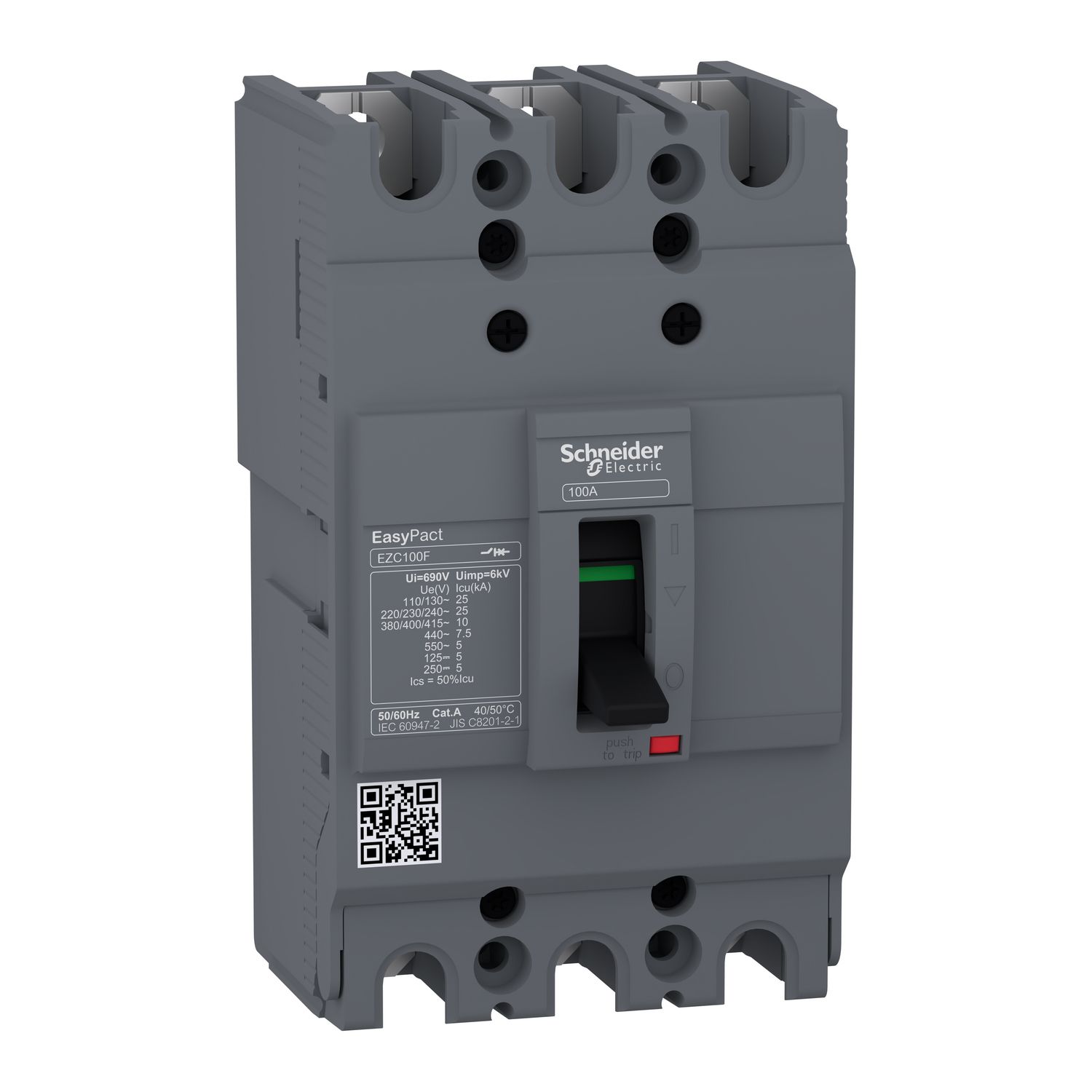

Picture of circuit breaker,EasyPact EZC100F ,TMD, 100A ,3 poles 3d
SKU:

EZC100F3100

circuit breaker,EasyPact EZC100F ,TMD, 100A ,3 poles 3d

Old price: $1,856.80 INC GST
$1,518.86 INC GST
Available for Shipping : 14-Apr-2026
Product Selector
circuit breaker,EasyPact EZC100F ,TMD, 100A ,3 poles 3d
  • Outstanding durability with the features you need
  • Easy to order and stock
  • High quality: using advanced manufacturing methods and premium materials
  • Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards
  • Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Catalog
Instruction sheet
CAD
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 100A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

Products specifications

Attribute name Attribute value
Main
Device short name Easypact EZC100F
Device application distribution
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Protection type overload protection, short-circuit protection
Trip unit rating 100-100 A at 50 °C
Suitability for isolation yes conforming to IEC 60947-2
Breaking capacity 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
Pollution degree 3 conforming to IEC 947-1, 3 conforming to IEC 60664-1
Range EasyPact
Protected poles description 3t
Range of product EasyPact
Trip unit name TM-D
[Ics] rated service breaking capacity 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 125 V DC conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
Circuit breaker name Easypact EZC100F
Trip unit technology thermal-magnetic
Poles description 3P
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Utilisation category category A
Product name EasyPact EZC
Product or component type circuit breaker
Breaking capacity code F
Network type AC, DC
[Ue] rated operational voltage 250 V DC conforming to IEC 60947-2, 550 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 100 A at 40 °C
Network frequency 50/60 Hz
Complementary
Compatibility code EZC100
Mechanical durability 8500 cycles
Electrical durability category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Neutral protection setting without protection
Mounting mode fixed
Upside connection front
Control type toggle
Downside connection front
Earth-leakage protection without
Connection pitch 25 mm
Height 130 mm
Depth 60 mm
Market segment small commercial
Width 75 mm
Local signalling positive contact indication
Mounting support backplate
Environment
Ambient air temperature for storage -35-85 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards EN/IEC 60947-2, GB/T 14048.2, JIS C8201-2-2, EN/IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 8.5 cm
Package 1 Length 14 cm
Package 1 Weight 808 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.887 kg
Unit Type of Package 3 3
Number of Units in Package 3 384
Package 3 Height 75 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 328 kg

Related products

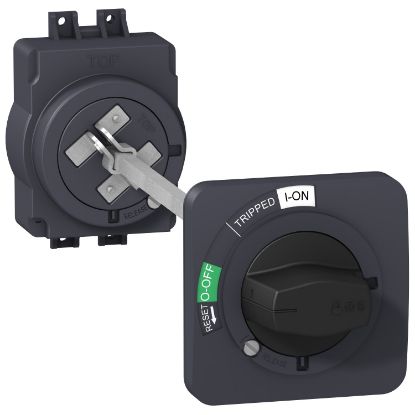

Picture of extended rotary handle, EasyPact EZC100, EasyPact CVS100BS, black handle, black front plate

extended rotary handle, EasyPact EZC100, EasyPact CVS100BS, black handle, black front plate

EZAROTE
$664.05 INC GST $811.80 INC GST
View Detail

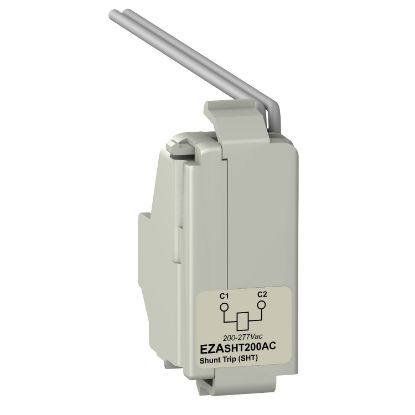

Picture of shunt trip, EasyPact CVS100BS, 200VAC to 277VAC
