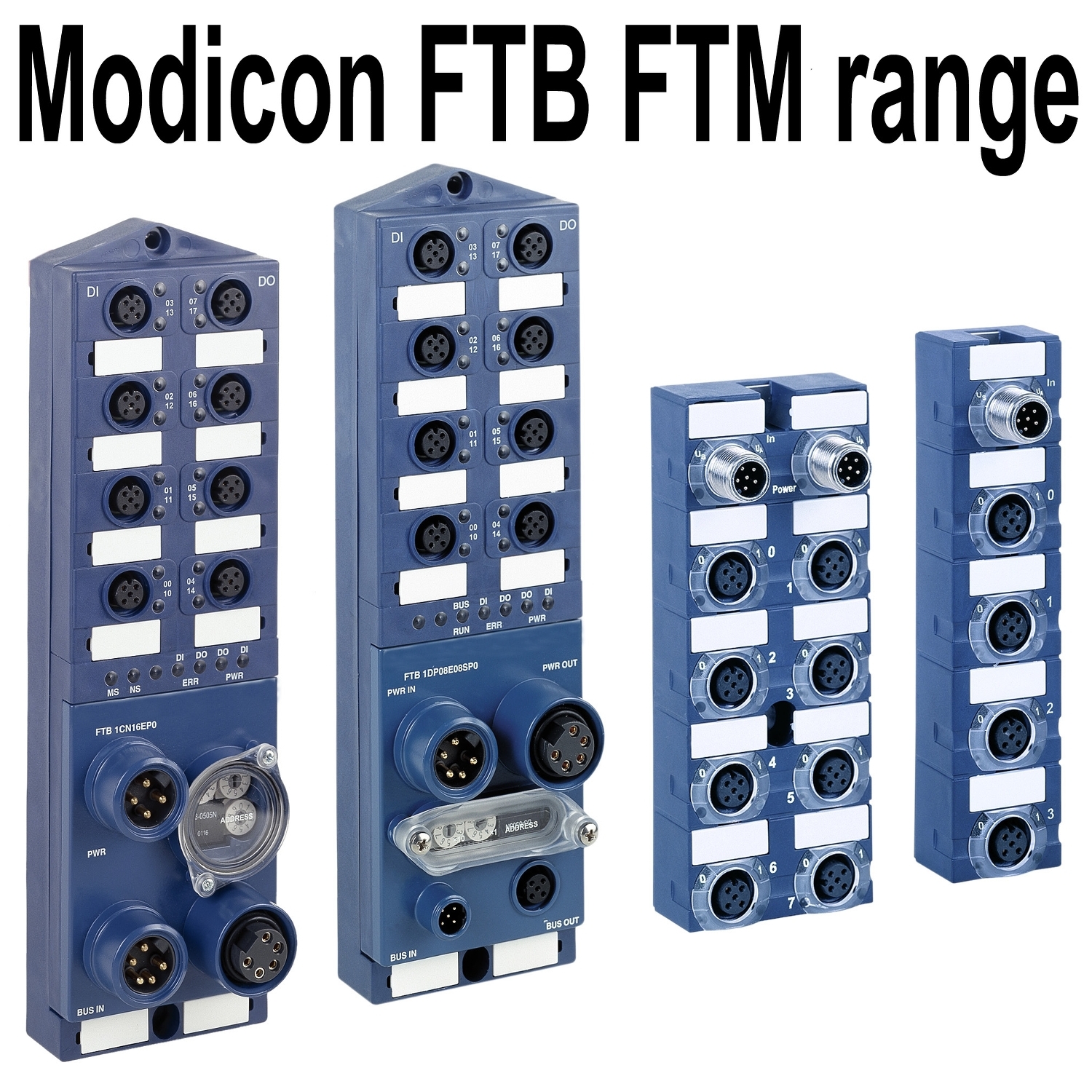

Picture of compact IP67 modular I/O splitter box - Advantys FTM - 4I - 24 V DC - 12 bits
SKU:

FTM1AS04C12C

compact IP67 modular I/O splitter box - Advantys FTM - 4I - 24 V DC - 12 bits

Please Contact Sales to buy this Product. click here
compact IP67 modular I/O splitter box - Advantys FTM - 4I - 24 V DC - 12 bits
Be the first to review this product
Manufacturer: Telemecanique
Availability: Please contact our sales team on 1300 724 622.
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Analogue output number4
Splitter box typecompact
Range of productAdvantys FTM
Input/output number4
Product or component typeIP67 modular I/O splitter box
Analogue output range0...20 mA, 4...20 mA
Electrical connection4 female connectors M12 (actuator), 1 male connector M12 (bus module or previous module)
Complementary
Minimum output impedance0 Ohm
Operating positionany position
Maximum supply current4 A
Surge withstand0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5
Input filtering1 ms
Status LED1 LED per channel (yellow) channel status
Current per channel1.6 A
Maximum cable distance between devices30 m
Conversion time0...1 ms
Internal current consumption50 mA
Analogue output resolution12 bits
Net weight0.13 kg
Control threshold undervoltage0-18 V
Fixing modeby 2 screws
[Ue] rated operational voltage24 V DC
Tightening torque1.5 N.m for M4 screw(s)
Maximum output impedance500 Ohm
Environment
Resistance to fast transients2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4
IP degree of protectionIP67
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2
Ambient air temperature for storage-25-70 °C
Ambient air temperature for operation0-55 °C
Resistance to conducted disturbances10 V conforming to IEC 61000-4-6
Operating altitude0...2000 m
Vibration resistance15 gn conforming to IEC 68-2-6
Shock resistance50 gn for 11 ms conforming to IEC 68-2-27, EA tests
Resistance to radiated fields10 V/m conforming to IEC 61000-4-3
Product certificationscULus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
