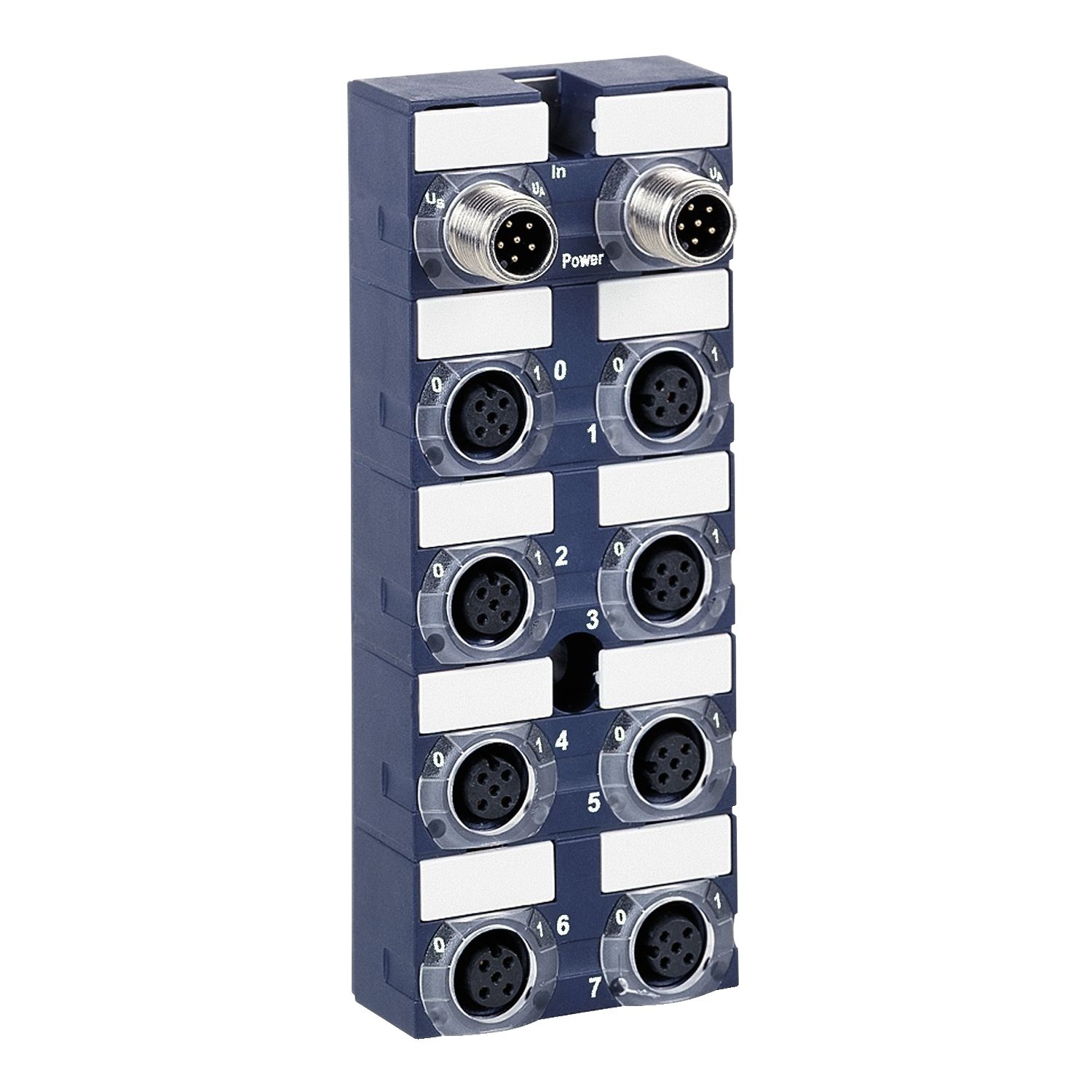

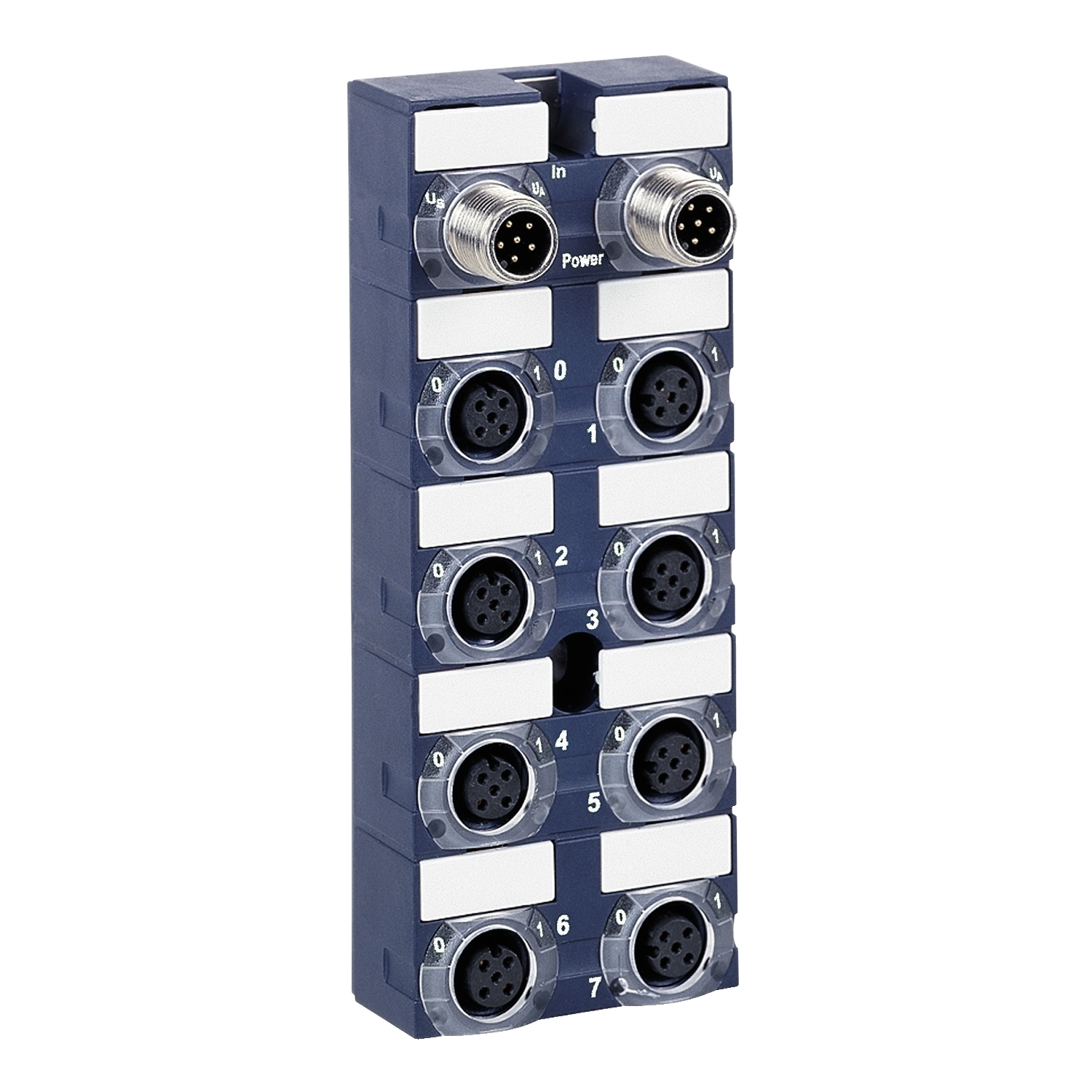

Picture of compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC
SKU:

FTM1DD16C12

compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC

Please Contact Sales to buy this Product. click here
compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC
Be the first to review this product
Manufacturer: Telemecanique
Estimated Delivery Date: 18-Oct-2024
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Input/output number16
Product compatibilitywith 2-wire/3-wire sensors
Discrete output number0-16
Product or component typeIP67 modular I/O splitter box
Electrical connection8 female connectors M12 (sensor or actuator), 1 male connector M12 (bus module or previous module), 1 male connector M12 (auxiliary actuator power supply)
Range of productAdvantys FTM
Discrete input number0-16
Splitter box typecompact
Complementary
Switching frequency<= 50 Hz resistive load, <= 5 Hz inductive load
Reverse polarity protectioninternal
Net weight0.22 kg
Maximum auxiliary supply current4 A
Discrete output current500 mA
Control threshold undervoltage0-18 V
Discrete input current200 mA
Maximum tungsten load10 W
Operating positionany position
Discrete output voltage typeDC
Discrete input voltage typeDC
Fixing modeby 2 screws
[Ue] rated operational voltage24 V DC
Input filtering1 ms
Maximum supply current4 A
Status LED1 LED ssr pwr sply dgtc + com status, 1 LED auxiliary supply power on, 1 LED actuator power supply diagnostics, 1 LED per channel (yellow) channel status
Discrete input voltage24 V
Tightening torque1.5 N.m for M4 screw(s)
Discrete input logicpositive
Response time on output0...0.5 ms
Internal current consumption50 mA
Output connection cable size0.75 mm², cable length <10 m, 0.34 mm², cable length <5 m
Surge withstand0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5
Discrete output typetransistor
Discrete output voltage24 V
Sensor power supply18-30 V
Environment
Operating altitude0...2000 m
Resistance to fast transients2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4
IP degree of protectionIP67
Shock resistance50 gn for 11 ms conforming to IEC 68-2-27, EA tests
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2
StandardsIEC 1131-2 Type 2
Resistance to radiated fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for storage-25-70 °C
Ambient air temperature for operation0-55 °C
Resistance to conducted disturbances10 V conforming to IEC 61000-4-6
Vibration resistance15 gn conforming to IEC 68-2-6
Product certificationscULus
