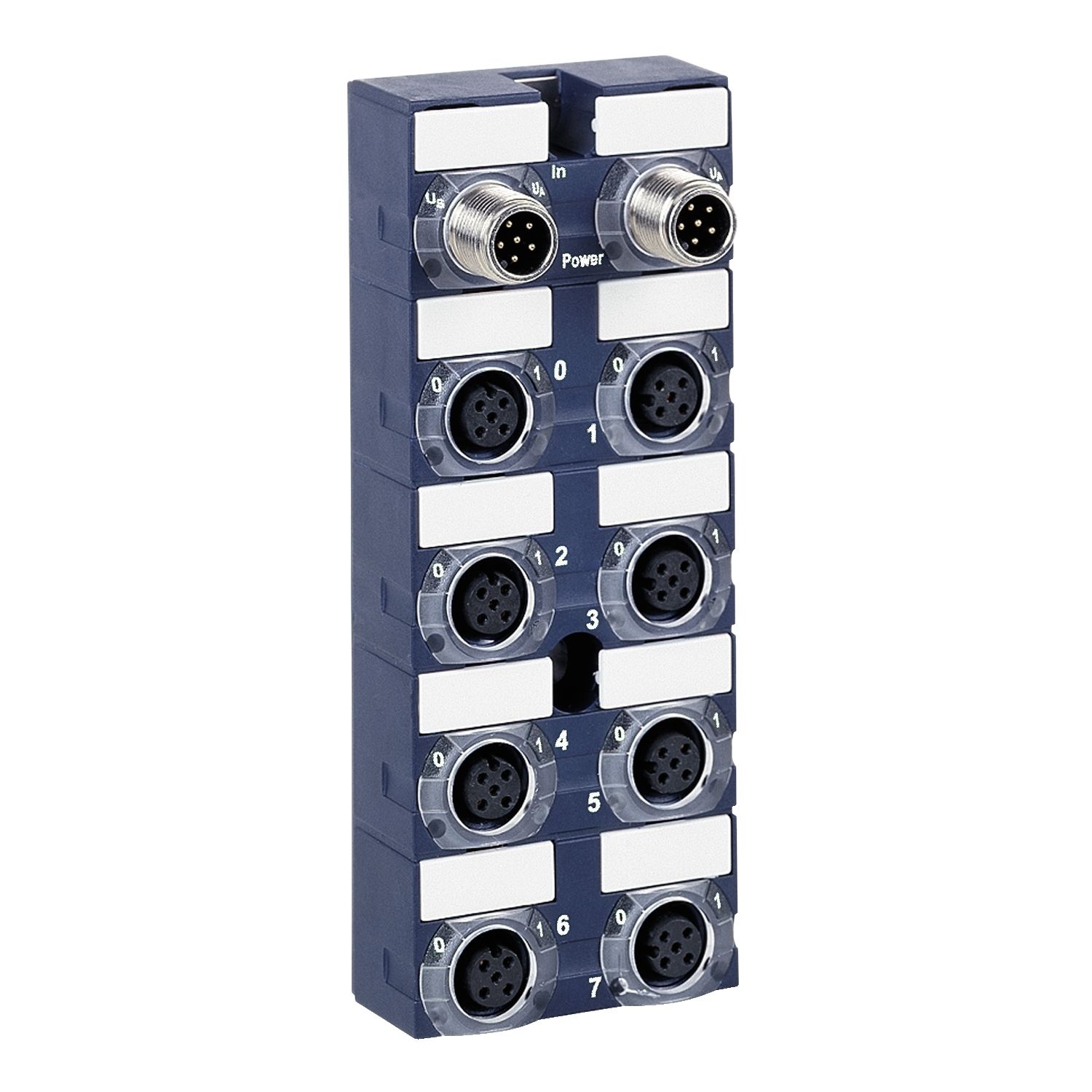

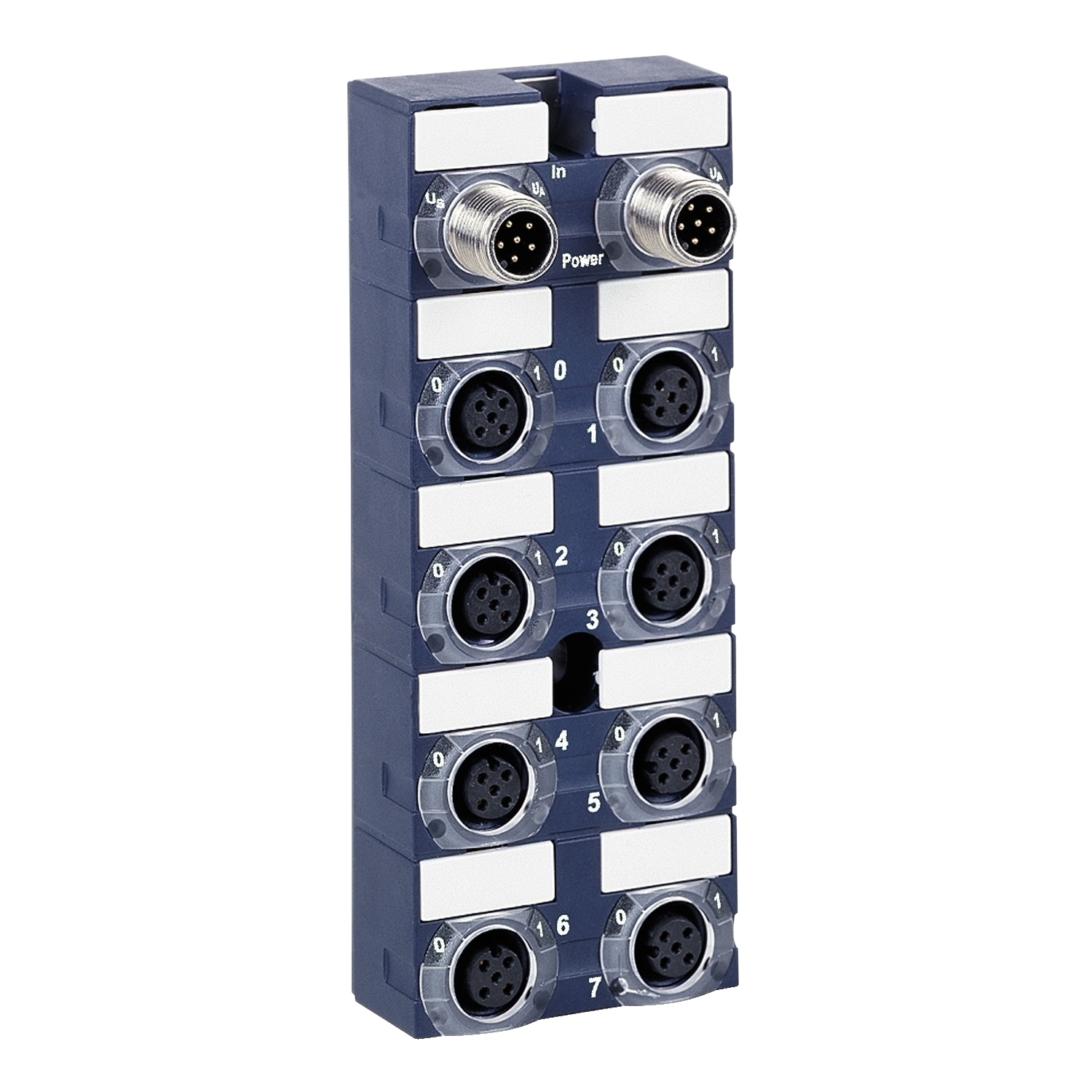

Picture of compact IP67 modular I/O splitter box - Advantys FTM - 8 I - 24 V DC - 50 mA
SKU:

FTM1DE08C12

compact IP67 modular I/O splitter box - Advantys FTM - 8 I - 24 V DC - 50 mA

Please Contact Sales to buy this Product. click here
compact IP67 modular I/O splitter box - Advantys FTM - 8 I - 24 V DC - 50 mA
Be the first to review this product
Manufacturer: Telemecanique
Availability: Please contact our sales team on 1300 724 622.
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Input/output number8
Product compatibilitywith 2-wire/3-wire sensors
Product or component typeIP67 modular I/O splitter box
Electrical connection4 female connectors M12 (sensor), 1 male connector M12 (bus module or previous module)
Range of productAdvantys FTM
Discrete input number8/8/2024 12:00:00 AM
Splitter box typecompact
Complementary
Reverse polarity protectioninternal
Net weight0.12 kg
Control threshold undervoltage0-18 V
Discrete input current200 mA
Operating positionany position
Discrete input voltage typeDC
Fixing modeby 2 screws
[Ue] rated operational voltage24 V DC
Input filtering1 ms
Maximum supply current4 A
Status LED1 LED per channel (yellow) channel status
Discrete input voltage24 V
Tightening torque1.5 N.m for M4 screw(s)
Discrete input logicpositive
Internal current consumption50 mA
Surge withstand0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5
Sensor power supply18-30 V
Environment
Operating altitude0...2000 m
Resistance to fast transients2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4
IP degree of protectionIP67
Shock resistance50 gn for 11 ms conforming to IEC 68-2-27, EA tests
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2
StandardsIEC 1131-2 Type 2
Resistance to radiated fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for storage-25-70 °C
Ambient air temperature for operation0-55 °C
Resistance to conducted disturbances10 V conforming to IEC 61000-4-6
Vibration resistance15 gn conforming to IEC 68-2-6
Product certificationscULus
